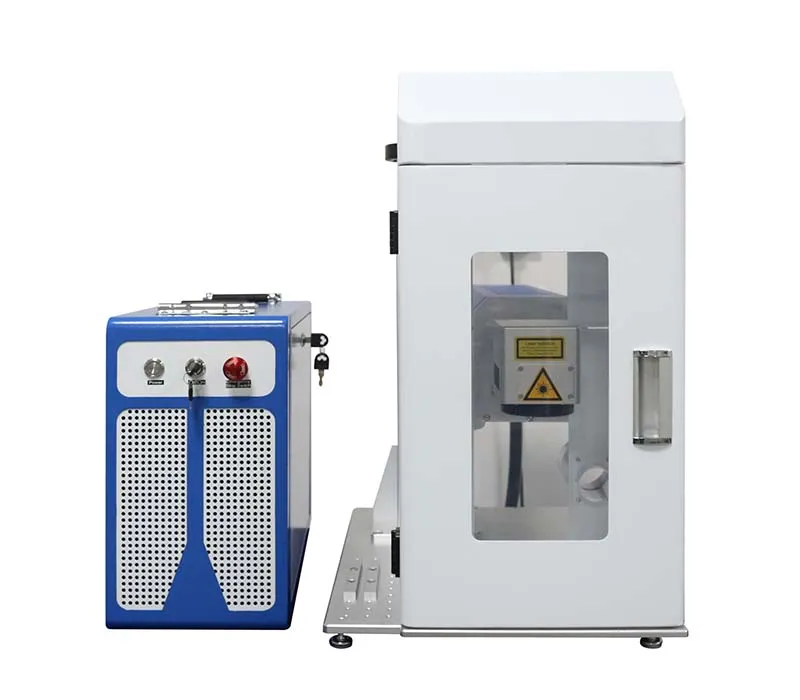

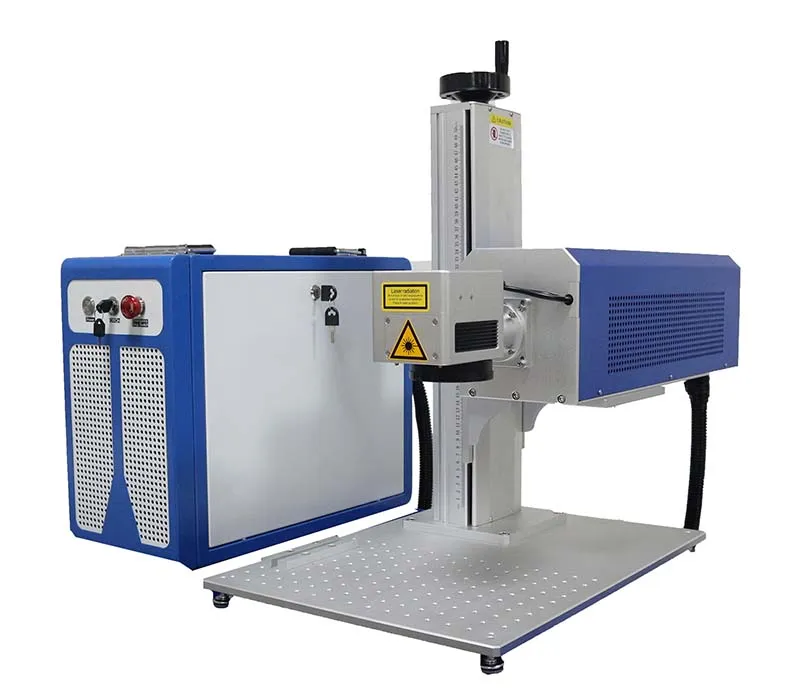

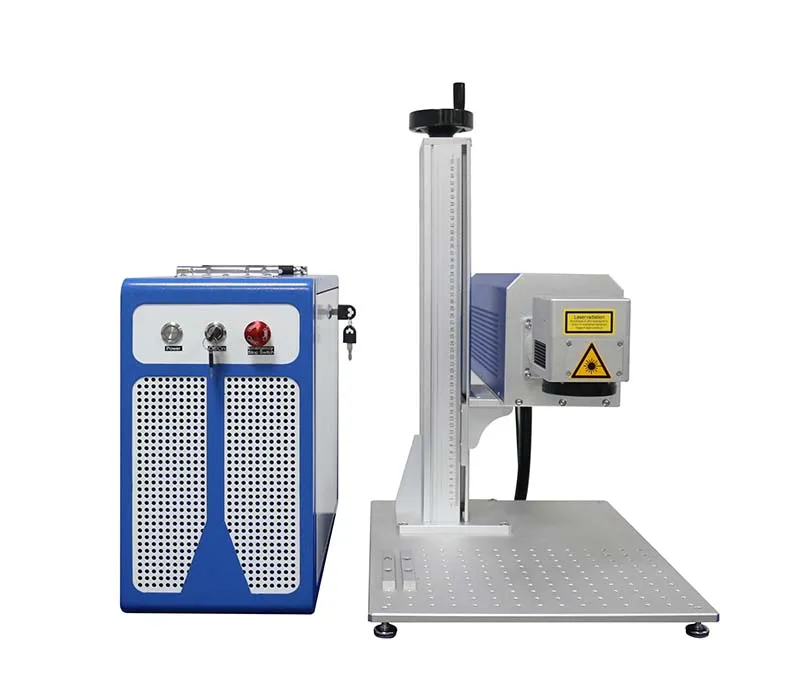

Split CO₂ Laser Marking Machine

Split CO₂ Laser Marking Machine
  • Split CO₂ Laser Marking Machine
  • Split CO₂ Laser Marking Machine
  • Split CO₂ Laser Marking Machine

    • Split CO₂ Laser Marking Machine
    • Laser wavelength 10.6μm
    • Marking range 50×50mm~300×300mm
    • Beam quality M²<1.5
    • Machine weight 68kg

    The CO₂ laser (wavelength 10.6μm) boasts extremely high absorption rates for non-metallic materials (such as plastic, wood, glass, ceramics, acrylic, leather, fabric, etc.), enabling non-contact, consumable-free permanent marking.

    • Low energy consumption: The entire machine consumes only 500W, meaning just 0.5 kWh per hour. Calculated at an industrial electricity price of 0.8 RMB/kWh, the hourly cost is merely 0.4 RMB.
    • Consumable-free & environmentally friendly: Requires no ink or chemical etchants, saving an estimated 50,000-100,000 RMB annually on consumables (based on 8 hours of daily operation).
    • Ultra-long lifespan: Equipped with a high-quality RF laser tube, offering a lifespan of over 30,000 hours and supporting continuous 24/7 operation.
    Request a Quote
    Applications
    Suitable for marking, cutting, and drilling various non-metallic materials, such as wood, paper, fabric, acrylic, leather, plastic, rubber, resin, ceramics, coated materials, stone, and more.

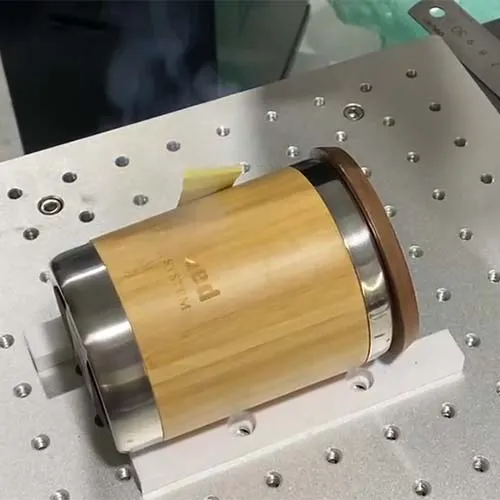

    • Bamboo cup laser marking
      Bamboo cup laser marking
    • Leather laser marking
      Leather laser marking
    • Shoe sole laser marking
      Shoe sole laser marking

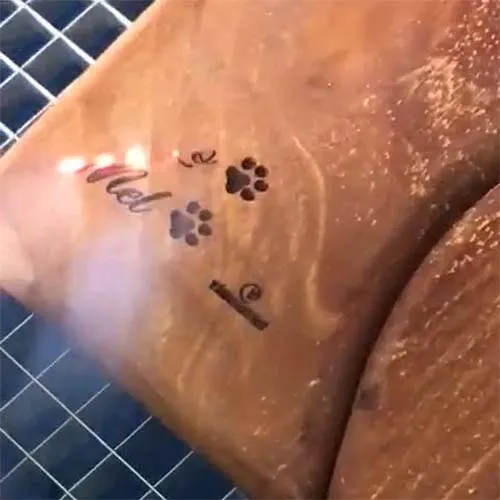

    • Wood laser marking
      Wood laser marking

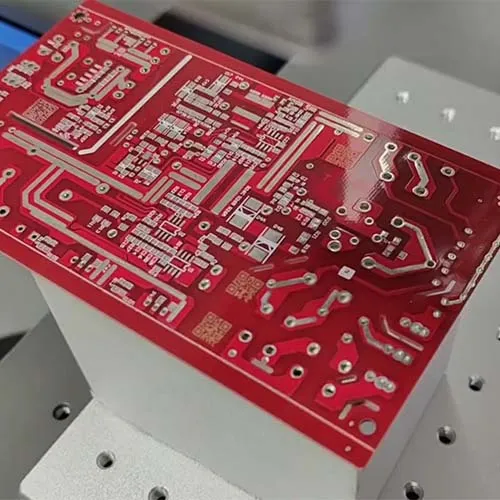

    • PCB QR code laser marking
      PCB QR code laser marking

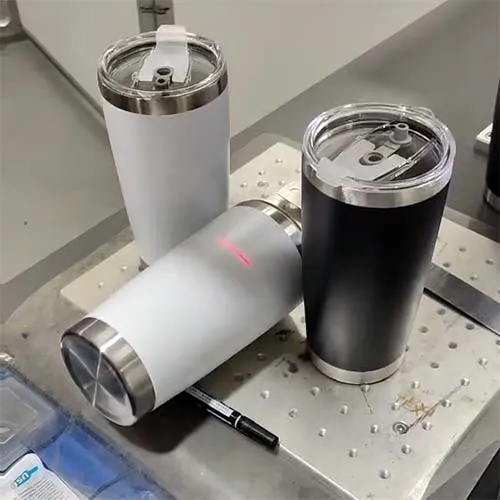

    • Stainless steel tumbler laser marking
      Stainless steel tumbler laser marking
    • Cuttable film laser engraving
      Cuttable film laser engraving

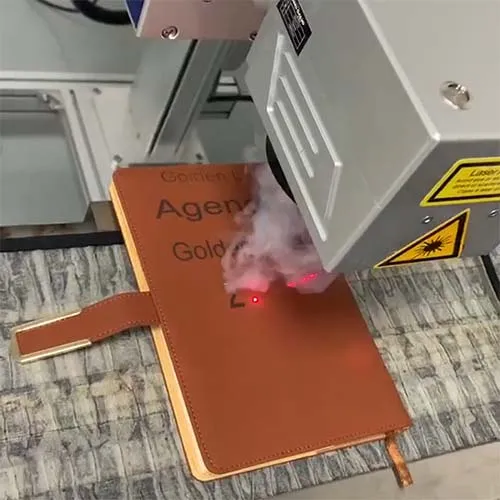

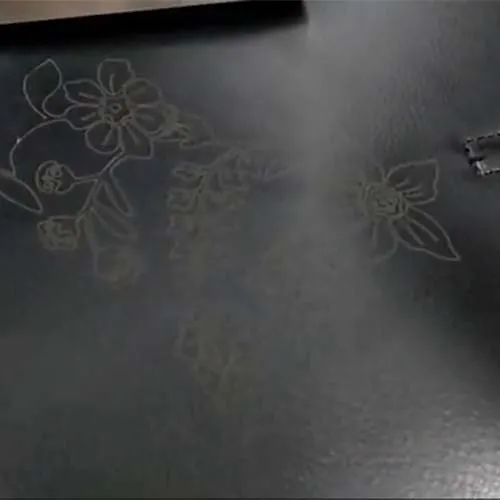

    • Leather notebook cover laser marking
      Leather notebook cover laser marking

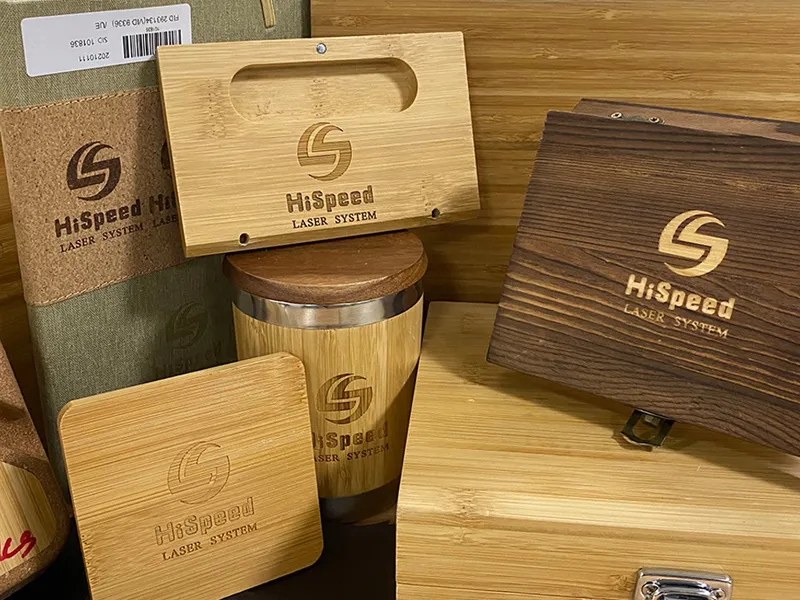

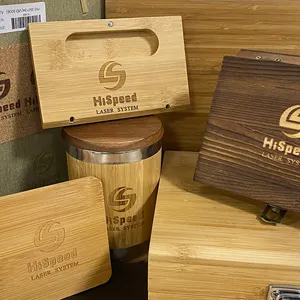

    • Bamboo and wood products laser marking
      Bamboo and wood products laser marking

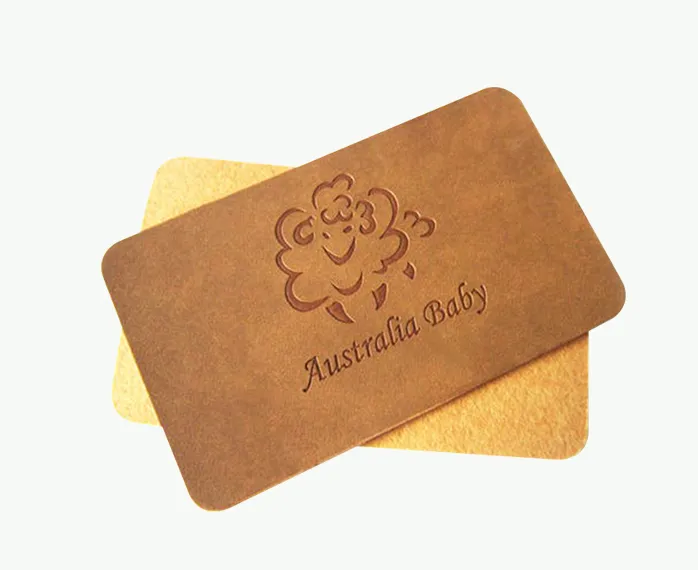

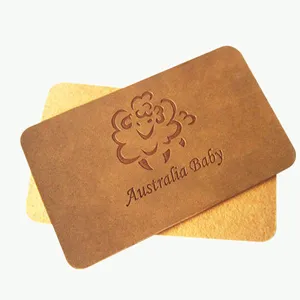

    • Leather laser marking
      Leather laser marking
    • PU notebook laser marking
      PU notebook laser marking

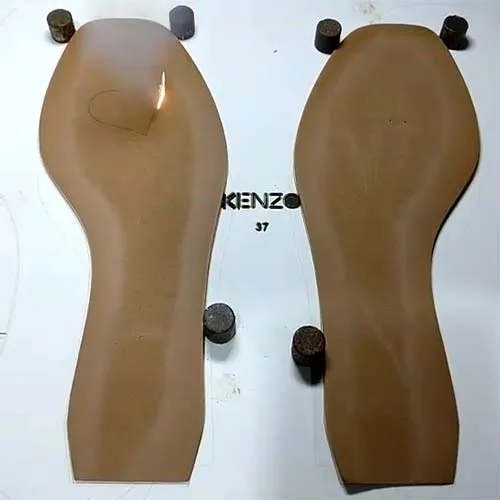

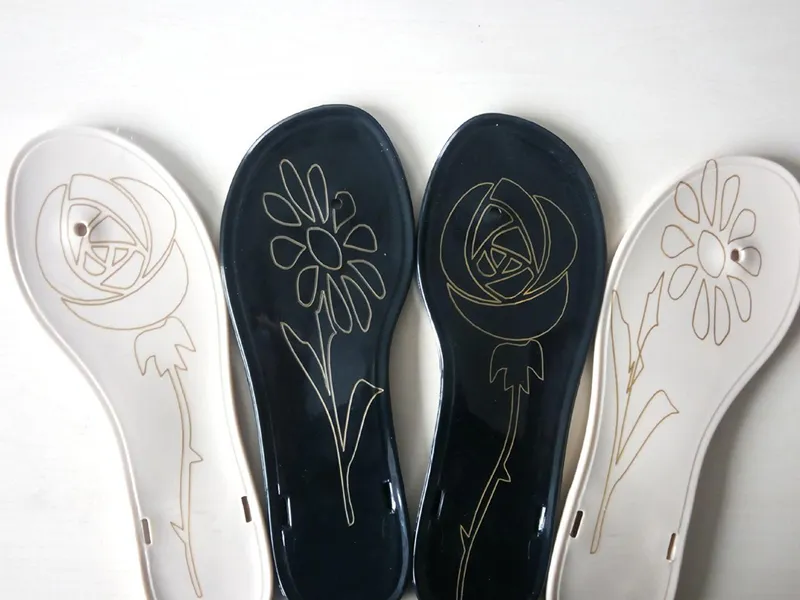

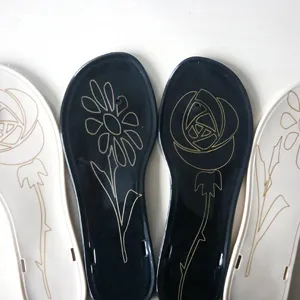

    • Insole laser marking
      Insole laser marking

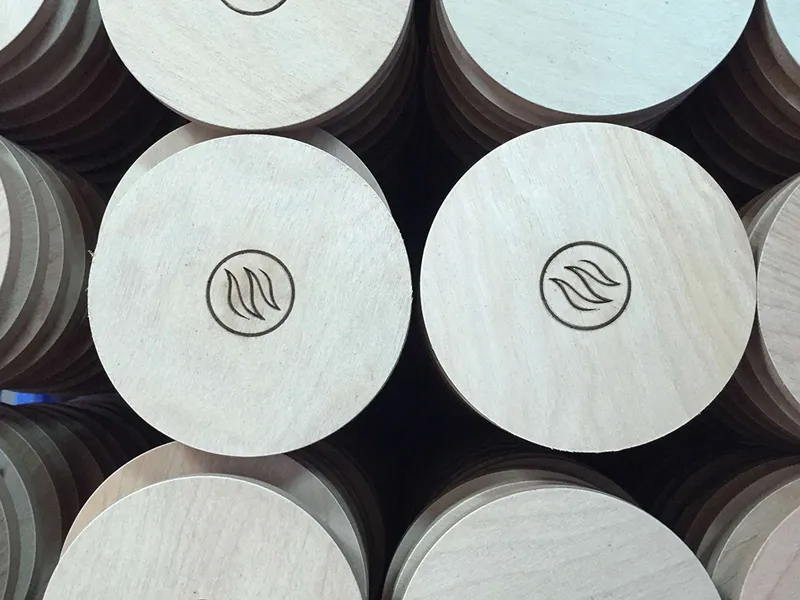

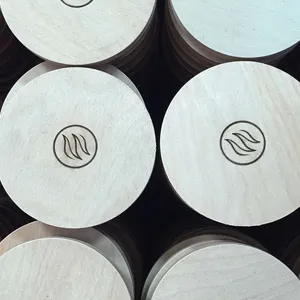

    • Wood laser marking
      Wood laser marking

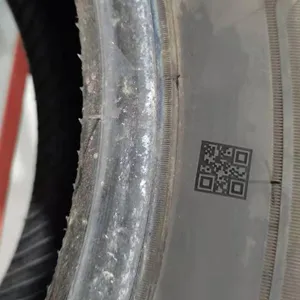

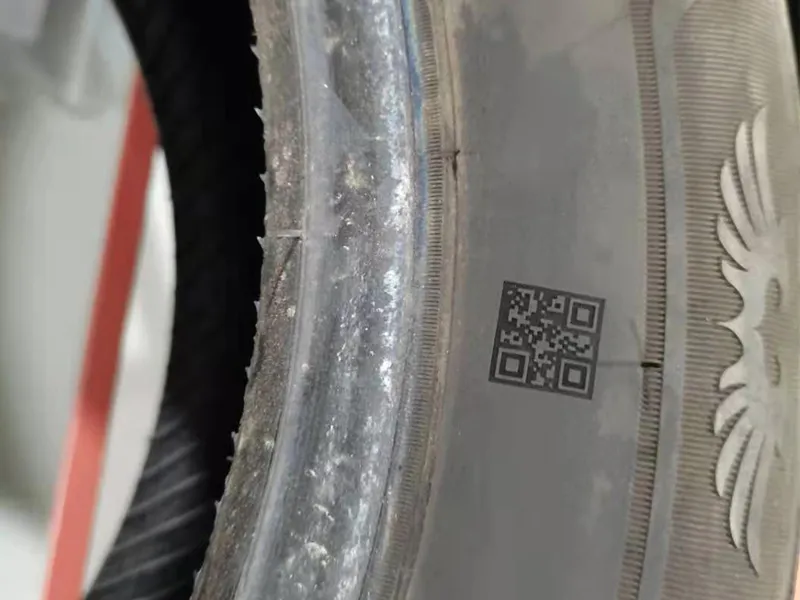

    • Tire QR code laser marking
      Tire QR code laser marking

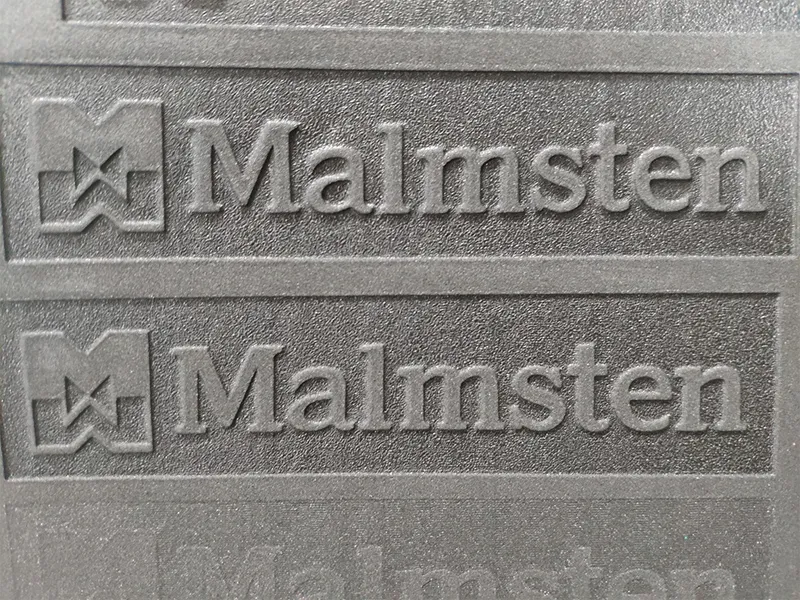

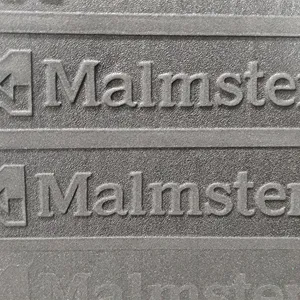

    • EVA foam laser marking
      EVA foam laser marking

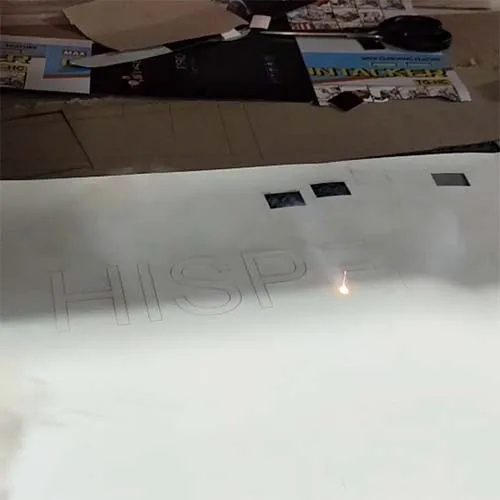

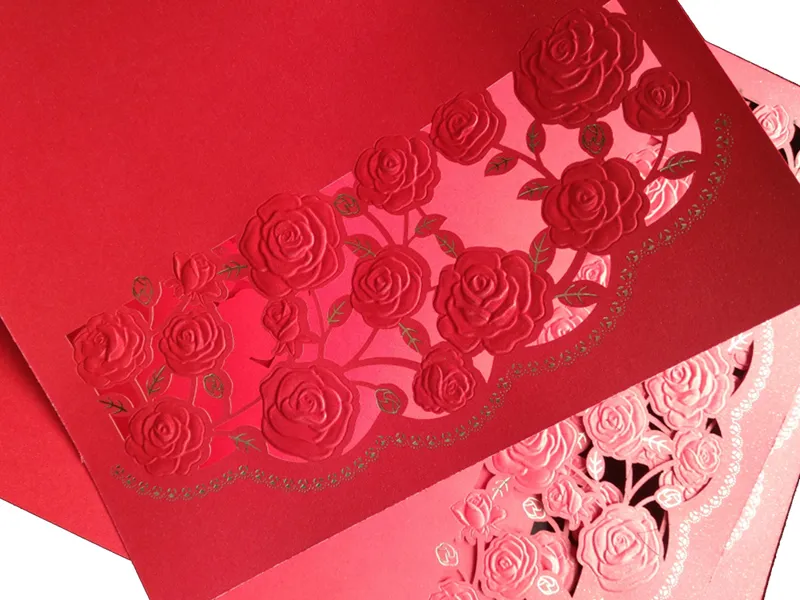

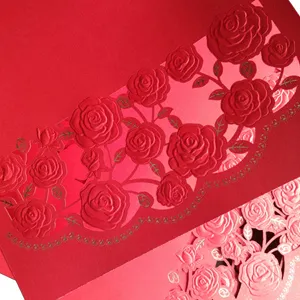

    • Card paper laser cutting
      Card paper laser cutting
    • Technical Data
    • Configuration
    • Inquiry
    Technical Data
    • Laser power 30W
    • Laser type CO₂ Laser
    • Laser wavelength 10.6μm
    • Marking range 50×50mm~300×300mm
    • Beam quality M²<1.5
    • Scanning speed F=160mm, ≤7000mm/s
    • Pulse repetition frequency 0~25 kHz
    • Min. line width 0.1mm (depending on material) @F=160mm
    • Min. character height 0.6mm @ F=160mm
    • Cooling method air cooling
    • Power supply 1.5kW/AC220V/50Hz (Voltage fluctuation range ±5%; a voltage stabilizer is required if exceeding this range)
    • Operating temperature & humidity 0℃~40℃, 30%≤RH≤85% (Operating outside this range may affect equipment performance and lifespan; consider installing air conditioning if used outside this range)
    • Oil mist & condensation not allowed
    • Machine dimensions 320×550×700mm (optical path section), 210×400×450mm (cabinet)
    • Package size 830×440×1080mm
    • Machine weight 68kg
    • Package weight 78kg
    Configuration

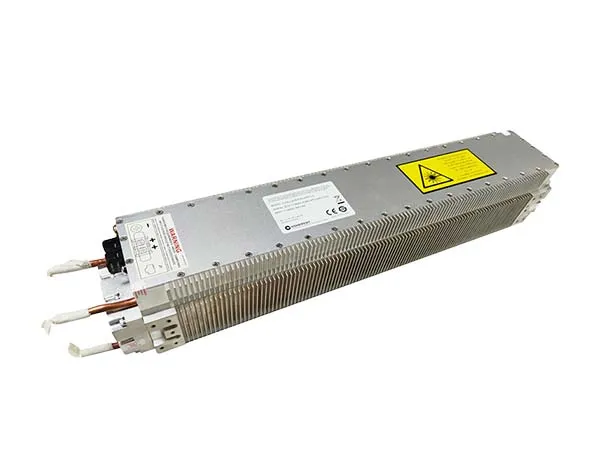

    RF CO₂ laser

    RF CO₂ laser
    Features high electro-optical conversion efficiency, requires virtually no maintenance, and is suitable for high-volume production needs; supports multiple wavelengths (e.g., 10.6μm, 9.3μm).

    Galvo scanner

    Galvo scanner
    The galvo scanner boasts fast scanning speeds, reaching tens of thousands of scans per second; it features a sealed design for long lifespan and low maintenance costs. Electromagnetic or piezoelectric drive methods reduce mechanical wear, further enhancing the equipment's durability and reliability.

    F-theta lens

    F-theta lens
    Equipped with an F-theta lens for 1064nm wavelength, mainly used in fiber laser marking machines. Due to its longer wavelength, it offers strong energy penetration, making it suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.

    Control card

    Control card
    Equipped with a genuine JCZ EZCAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.

    Computer

    Computer
    Features an industrial computer with a Windows 10 system and a 19-inch LCD display to ensure smoother operation of the entire laser equipment.

    Column

    Column
    Supports various working area options (e.g., 110×110mm, 150×150mm, etc.), meeting diverse marking requirements. The Z-axis, through precise mechanical design and control systems, ensures accurate laser focus alignment at different heights for stable and reliable marking results.

    Laser safety warning labels

    Laser safety warning labels
    Plays a crucial role in scenarios involving laser applications, primarily serving to alert people to potential laser hazards and ensure personnel safety.

    • Fume ExtractorFume Extractor
    • 80mm rotary clamp fixture80mm rotary clamp fixture
    • Roller rotary axisRoller rotary axis
    • Rotary axis with tailstockRotary axis with tailstock
    • CO₂ laser
    • Split laser control cabinet
    • Aluminum alloy work panel
    • Galvo scanner
    • F-theta lens
    • Control card
    • Laser power supply
    • Laptop
    • Power cord
    • Safety goggles
    • Foot pedal switch
    • Aluminum test piece
    • Hex key tool set
    • Equipment warranty certificate
    • Shipping accessories list
    • Product catalog
    Our Laser Marking Machines

    Hispeed Laser has been a trusted manufacturer of industrial laser systems since 2017, delivering precision solutions for marking, welding, cutting, and cleaning applications. With annual production exceeding 1,000 units, we supply CE, UKCA, and FDA-certified equipment to clients in over 80 countries across Europe, Southeast Asia, and South America.

    Our advanced laser technology serves diverse industries including 3C electronics, automotive, medical devices, jewelry, and packaging. We offer comprehensive OEM/ODM services, fully customized solutions tailored to your specific requirements, and rapid delivery, typically within 7–10 days. Beyond installation, Hispeed provides complete lifecycle support to ensure optimal performance and longevity of your equipment.

    Get in Touch

    It is suitable for non-metallic materials such as wood, acrylic, leather, etc. Metal materials with special coatings, like the surface of a painted insulated cup, can also be marked.

    This machine is suitable for marking, cutting, and drilling various non-metallic materials. It cannot directly mark bare metals. If you need to mark metal materials, we recommend using a fiber laser marking machine instead.

    Under normal use, the theoretical lifespan of CO₂ laser engraving equipment is approximately 25,000-40,000 hours. The specific lifespan can be influenced by factors such as operating frequency, environment, and maintenance.

    The entire machine comes with a two-year warranty. During the warranty period, faulty components not caused by human error can be replaced free of charge.

    The standard control software is EzCad. Its interface supports multiple languages (Chinese, English, Russian, Japanese, etc.), making it intuitive and easy to use.

    It supports common formats like PLT, DXF, AI, etc., and is compatible with mainstream design software to meet diverse engraving/cutting needs.

    Yes, the equipment supports rapid marking of QR codes, barcodes, serial numbers, logos, text, and other content, suitable for product traceability and identification applications across various industries.
