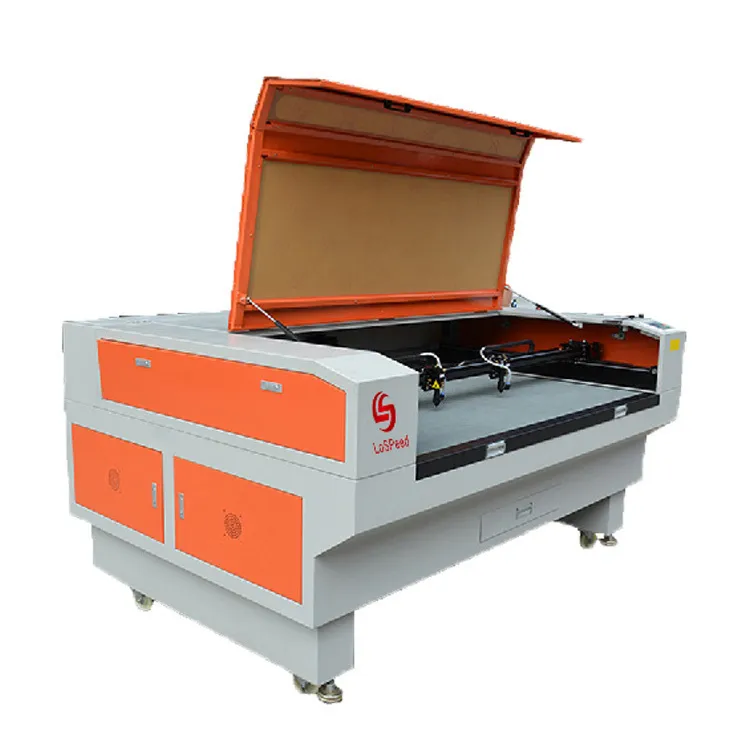

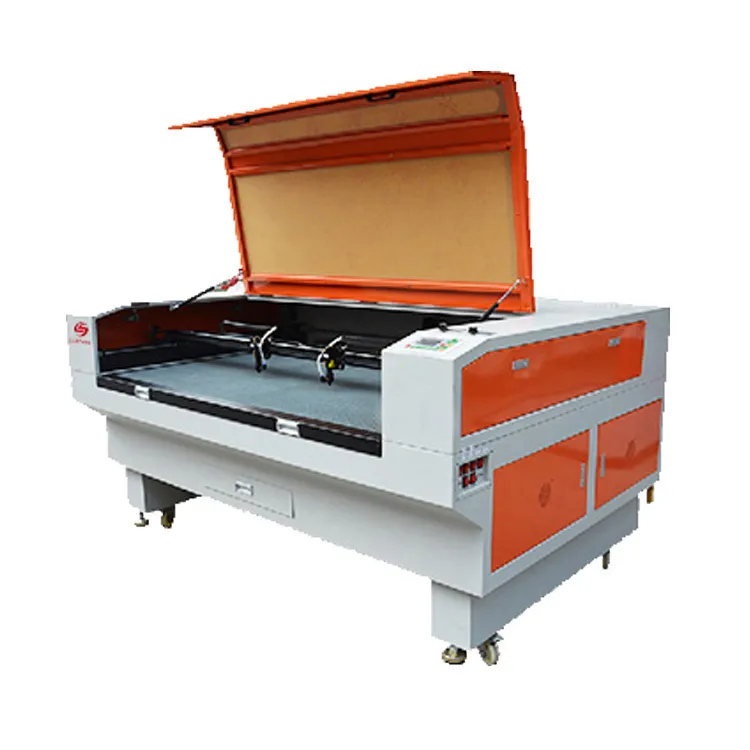

CO₂ Laser Cutting Machine, LS-1390
- Laser Power :130W
- Cutting Speed: 0-36m/m
- Repeat Accuracy: ±0.05mm
- Working Area: 1300X900mm
T series laser machine is a new model launched by Hispeed Laser The machine is equipped with at least two laser heads, which can be moved at any distance. The whole machine is equipped with two sets of laser tubes, two laser power supplies, imported linear guides, and imported stepping motors. And the driver, the stainless steel front socket bottom plate, the software adopts the world’s leading independent research and development control software, which can realize the separate adjustment of the power of the dual laser heads and solve the problem of the power cannot be adjusted in the past. The multi-head laser cutting machine doubles the work efficiency. This machine is widely used in clothing, leather, appliqué embroidery and other industries.
| Model | |
| Laser Type | CO2 laser |
| Laser Power | 130W |
| Engraving Speed | 0-64m/m |
| Cutting Speed | 0-36m/m |
| Repeat Accuracy | ±0.05mm |
| Moving System | CNC control system |
| Cooling Mode | Water-cooling and protection system |
| Overall Power Consumption | ≤1250w |
| Working Voltage | 220±10% 50Hz(60Hz) |
| Operating Temperature | 0~45ºC |
| Operating Humidity | 5%-95% |
| Controlling Software | Ruida Control Card |
| Graphic Supported Format | CAD, MP,JPG,PNG,TIF,PCX,TAG,IOO,GIF,PLT |
| Working Area | 1300mmX900mm |
| G.W | 550KG |

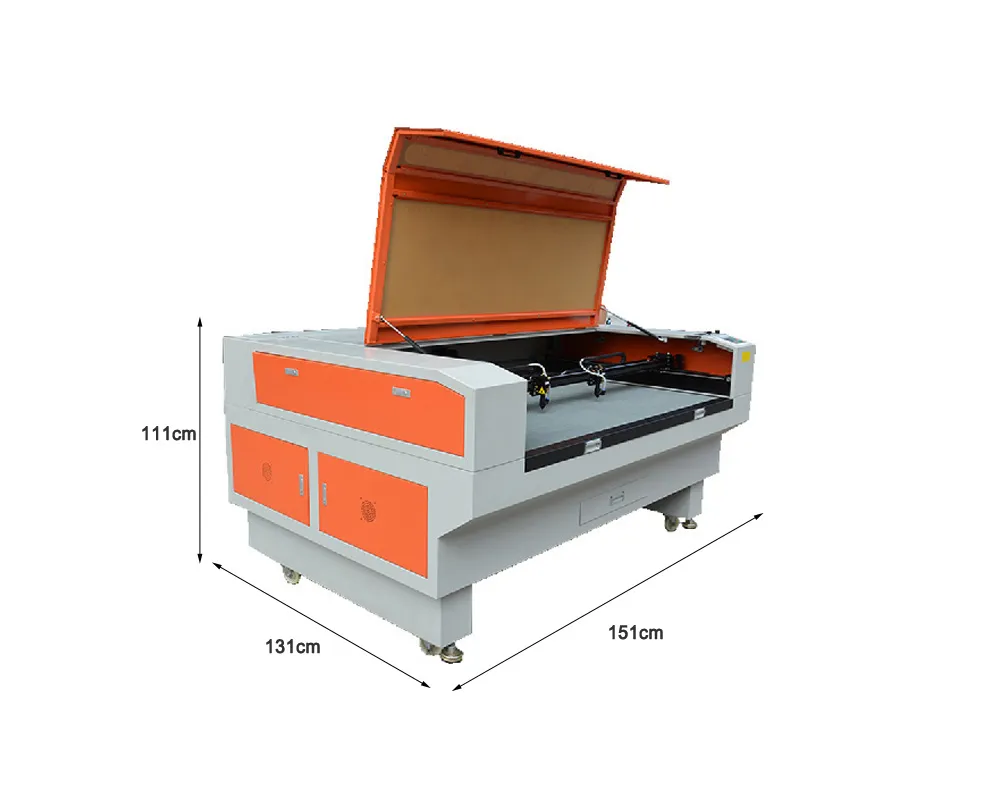

| Package Dimension | 2000mmX1600mmX1270mm |
Engraving and cutting of paper, fabric, plastic, nonwoven cloth in garment and toy industries, also inclusive of precise cutting to non-metal materials, like acrylic and MDF board in handbag, glove, mold, advertisements, decoration, electrical appliance and plastic industries.
Woodwork, paper, leather, cloth, organic glass, resin, acrylic, woolens, plastic, rubber, ceramic, crystal, jade, bamboo and other non-metal materials.
