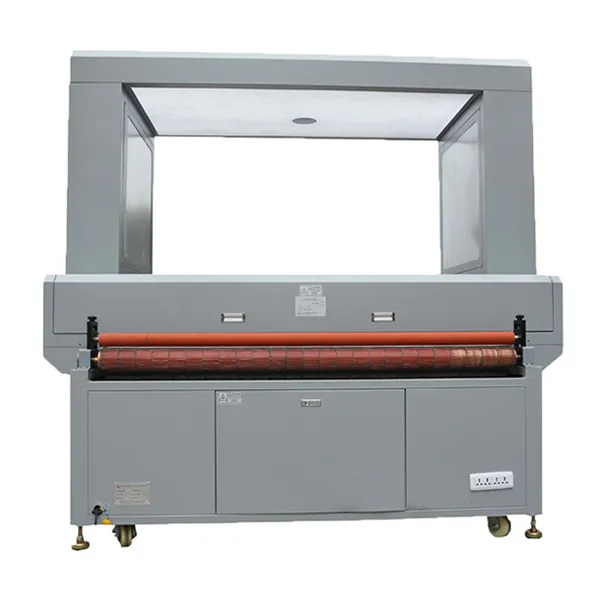

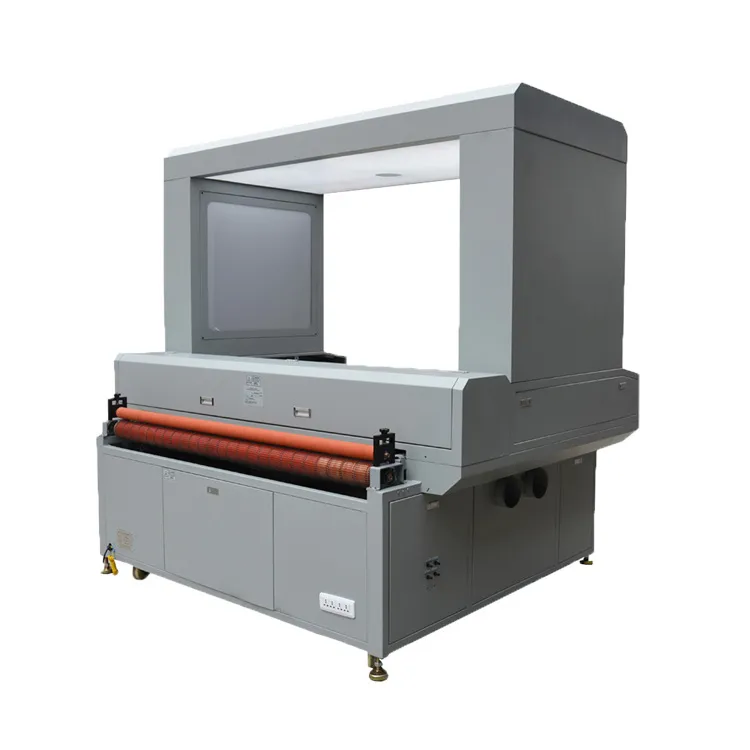

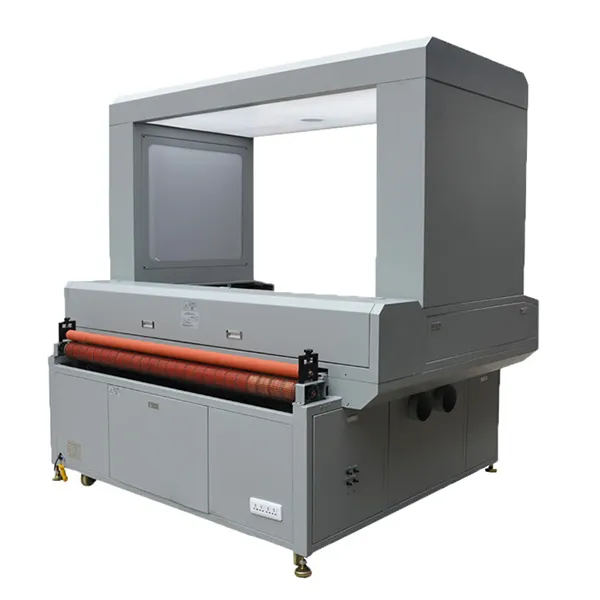

Small Size CO₂ Laser Cutting Machine with Panoramic Camera
- Laser Power : 80 / 100 / 130 / 150 / 180 / 200 / 250w
- Working Size : 1800*1200mm
- Cutting Speed : 0-600mm/s
- Machining Accuracy : 0.1mm
High precision camera recognition technology is used to automatically find all kinds of image edge cutting lines or positioning feature points.
Automatic camera positioning laser cutting machine in the work, through the visual recognition system to the pattern into the computer processing, can automatically identify and accurate, fast positioning cutting, to avoid the user because of inaccurate positioning caused by the waste of materials and time.
Fast and continuous cutting function, strong data processing ability based on fine DSP technology, professional camera recognition technology software and coordination of precision mechanical components ensure accurate and high-speed cutting.
| Laser Power | 80w/100w/130w/150w/180w/200w/250w |
| Cutting Speed | 0-600mm/s |
| Engraving Speed | 0-1800mm/s |
| Machining Accuracy | 0.1mm |
| Power Supply | AC220V 50HZ/60HZ |
| Working Size | 1800*1200mm |
| Cooling Mode | Water cooling |
| Product Application | Fabric,acrylic,crystal,leather,MDF,textile |
| Gross Power | ≤3500W |
| Warranty | 1 year |
| Laser head | Single/Double |
| Color | White and grey ,purple |

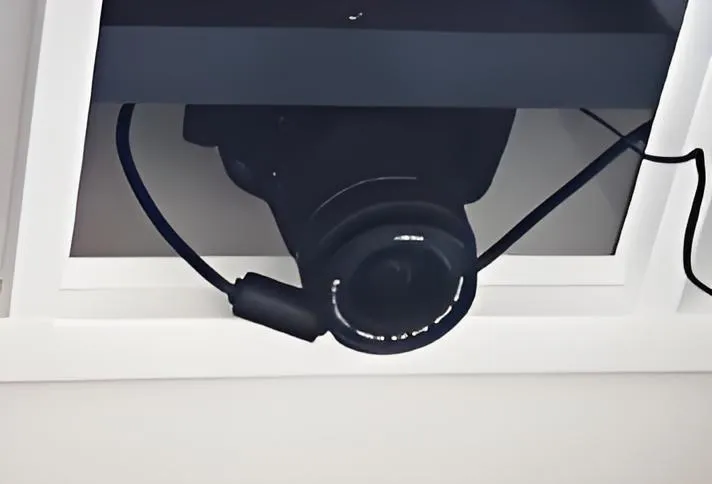

High Definition SLR Camera
Canon 18-megapixel camera, the error can be controlled with in 0.02mm

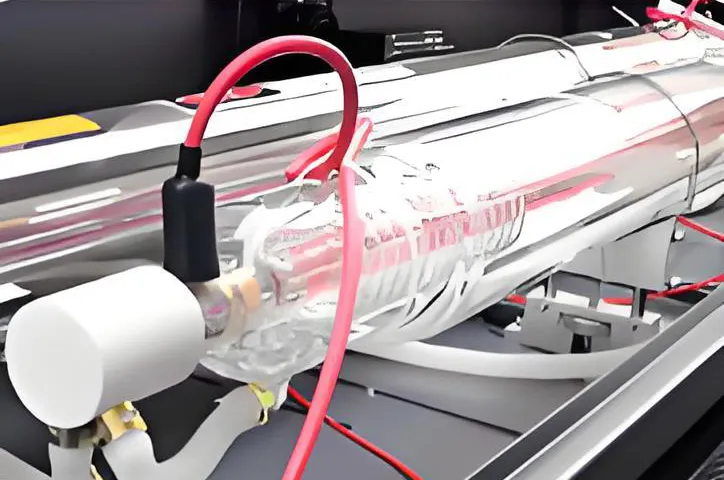

CO₂ Laser Tube
The CO2 laser tube has stable and fine light output, high precision, smooth cutting surface without burrs

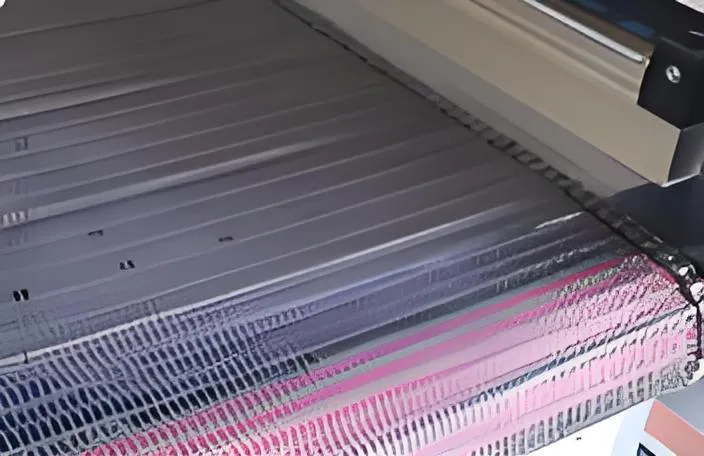

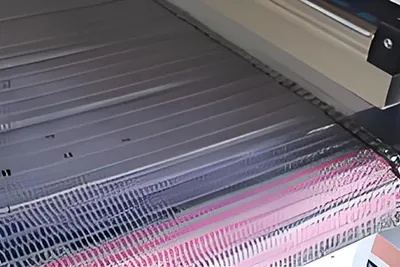

Automatic Feed Mesh Belt
Herringbone mesh belt than the traditional mesh belt is more solid, higher density, not easy to deformation

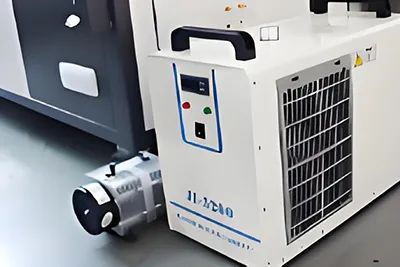

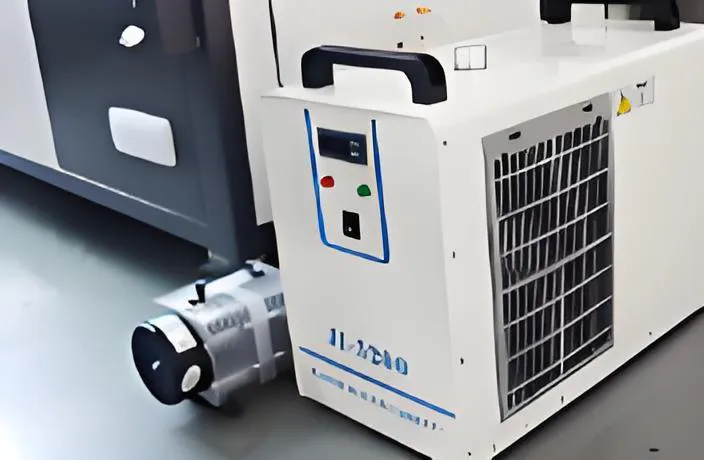

Thermostatic Cooling Water Tank
With intelligent and constant two working modes, suitable for a variety of environmental temperature.

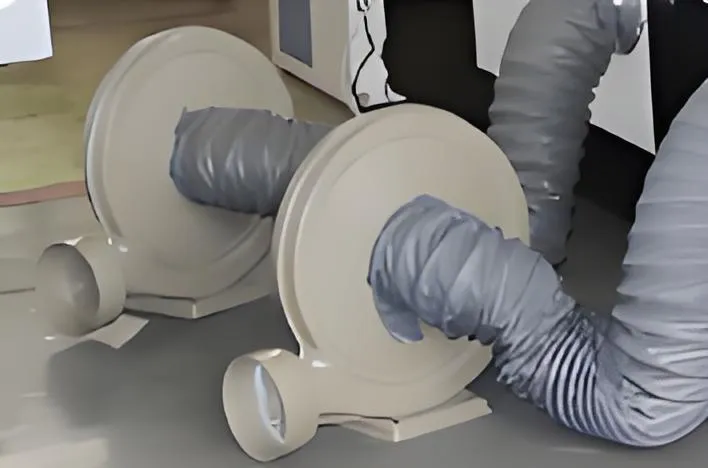

Blower
For some materials cut smoke generation, through the blower is very good smoke exhaust to the outdoor.
