CO₂ Glass Tube Laser Cutting Machine

CO₂ Glass Tube Laser Cutting Machine
  • CO₂ Glass Tube Laser Cutting Machine
  • CO₂ Glass Tube Laser Cutting Machine

    • CO₂ Glass Tube Laser Cutting Machine
    • Laser power 130W
    • Max. cutting speed 30m/min
    • Cooling method water cooling
    • Machine weight 520kg

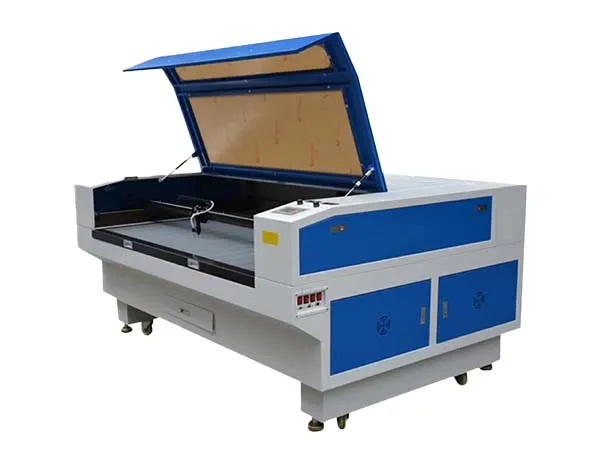

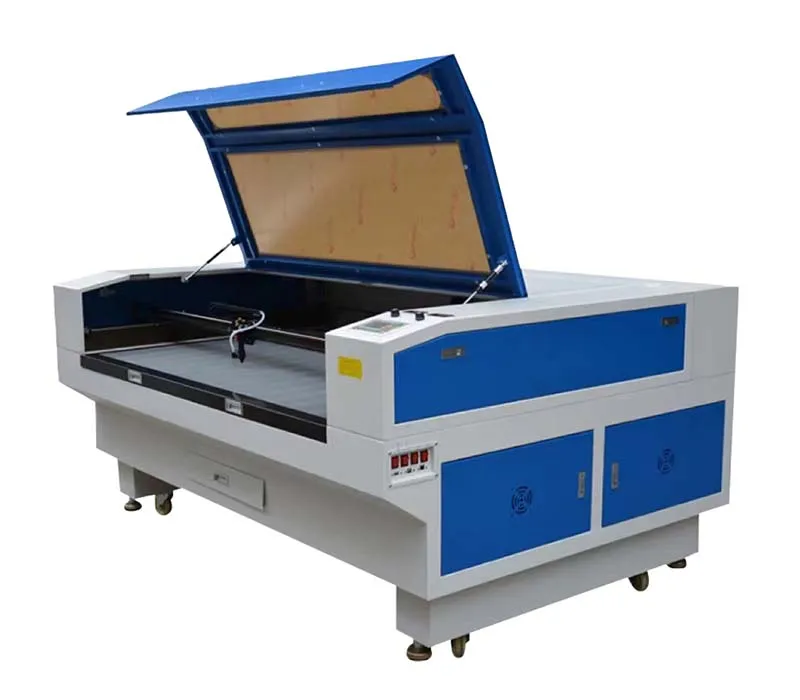

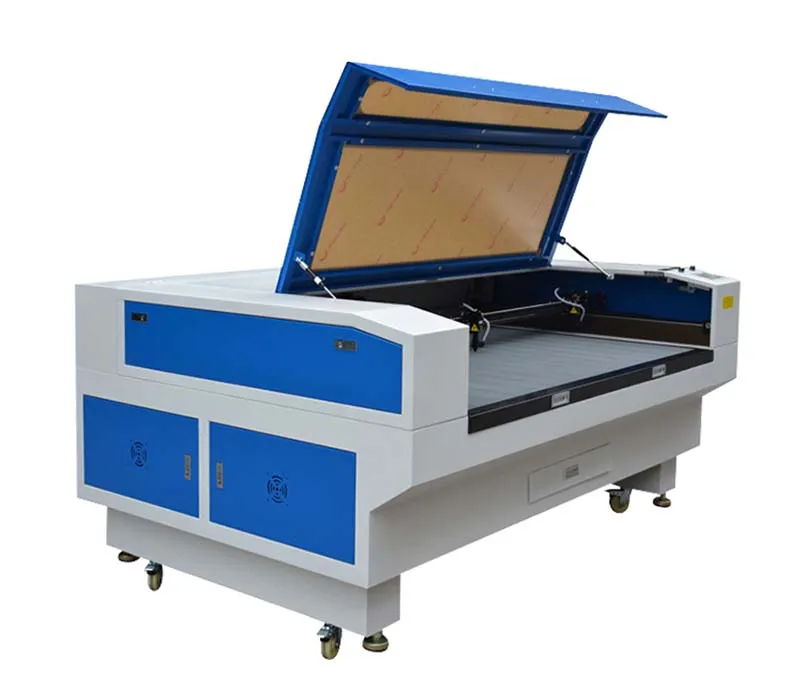

    The CO₂ glass tube laser cutting machine features a centered cutting area with an open top cover for convenient loading and unloading. An independent built-in storage cabinet door keeps tools organized, while universal wheels at the bottom allow for easy equipment repositioning, adapting to flexible production needs. Core components are modularly assembled for quick disassembly and reassembly during maintenance, reducing downtime. Its 7-inch touchscreen allows new users to get started within 1 hour. Equipped with a renowned brand Reci glass tube, it offers more stable performance and excellent cost-effectiveness.

    Request a Quote
    Applications

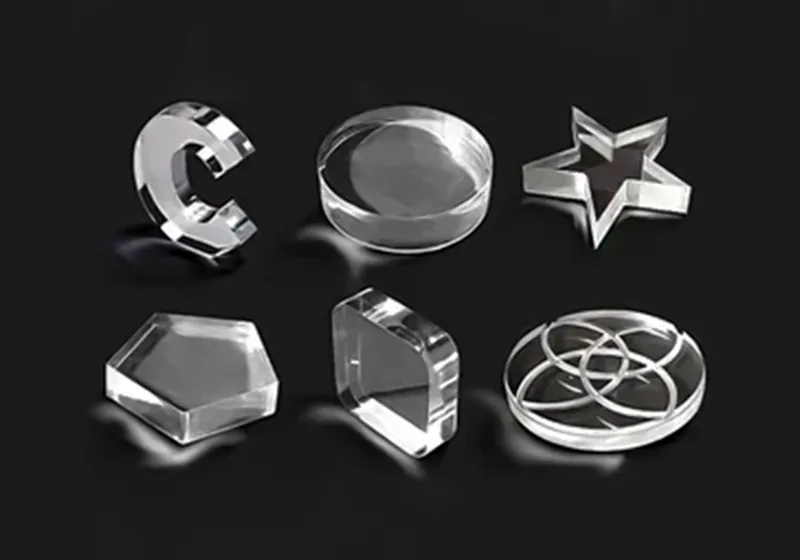

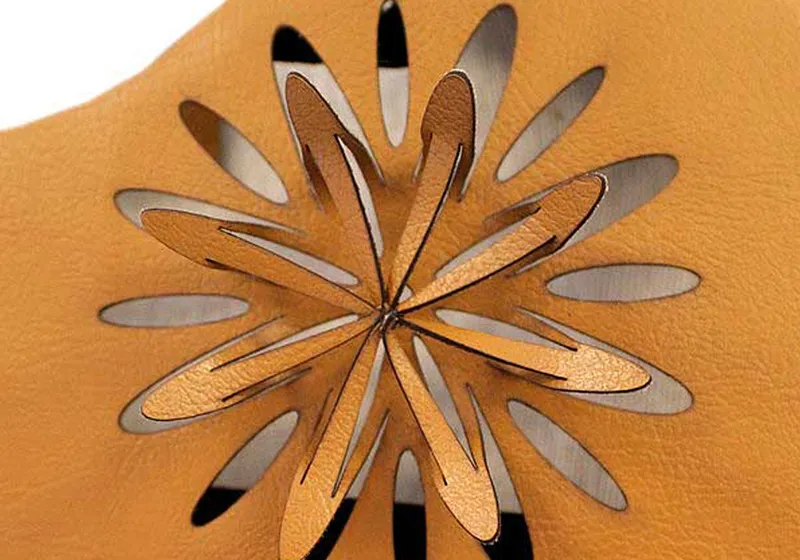

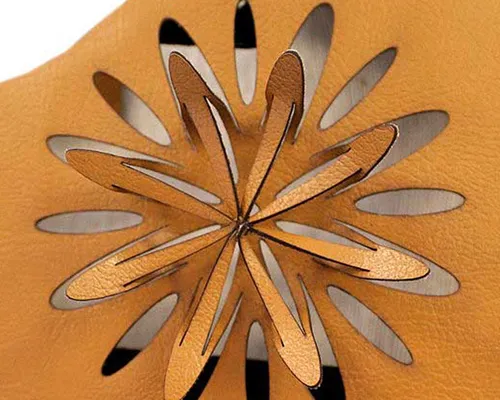

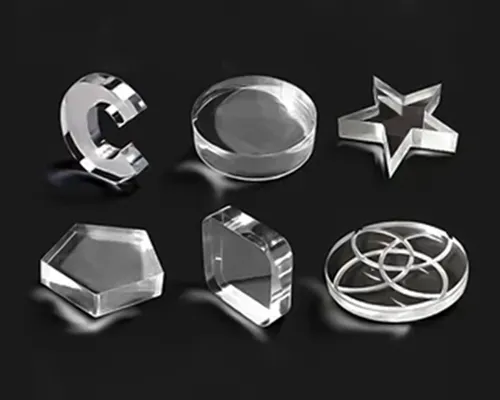

    Acrylic, wooden crafts, leather, paperboard, fabric, rubber, plastic.

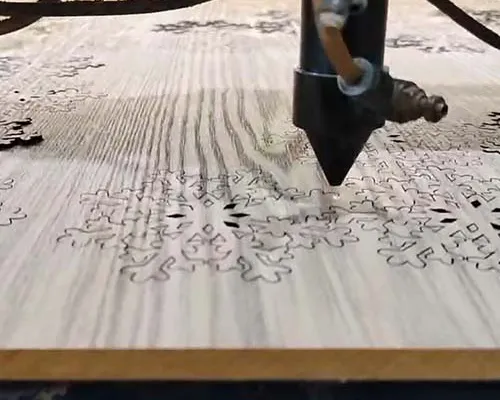

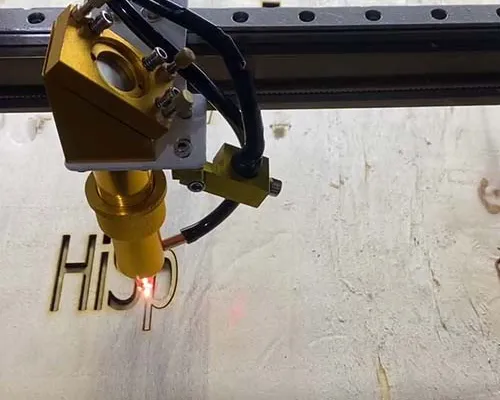

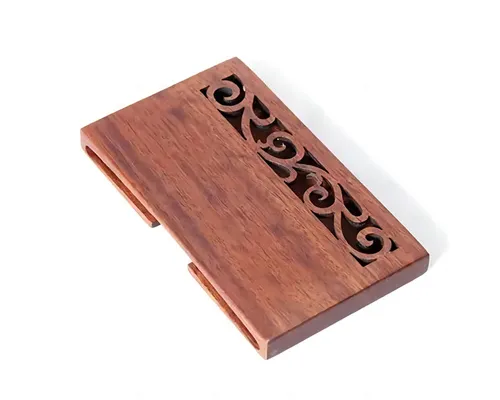

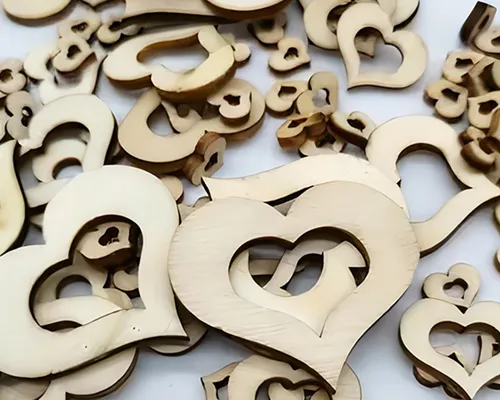

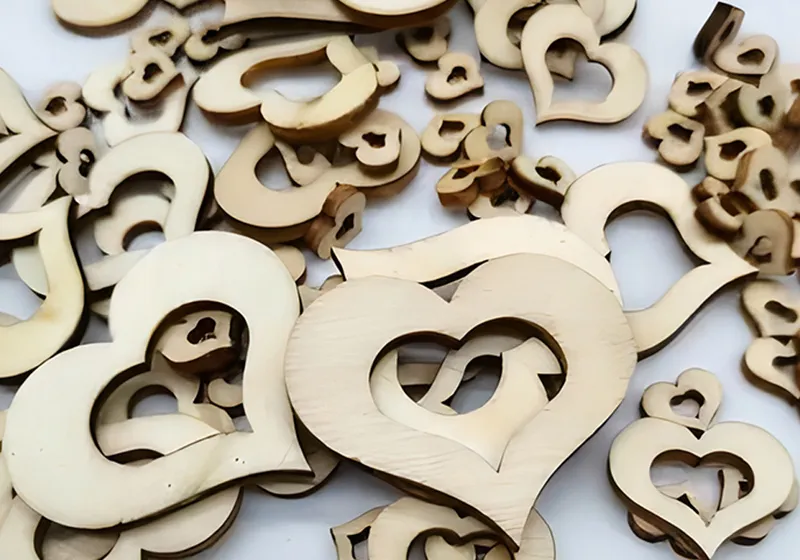

    • 3mm wood laser cutting
      3mm wood laser cutting

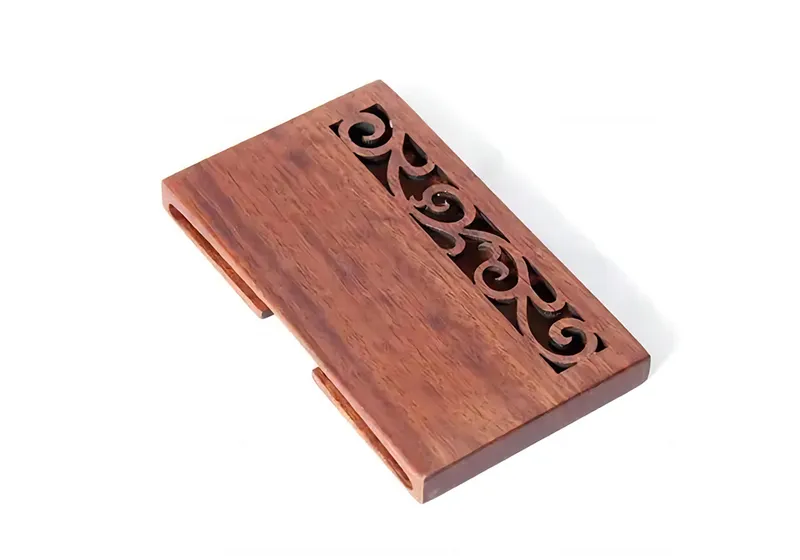

    • 10mm wood laser cutting
      10mm wood laser cutting

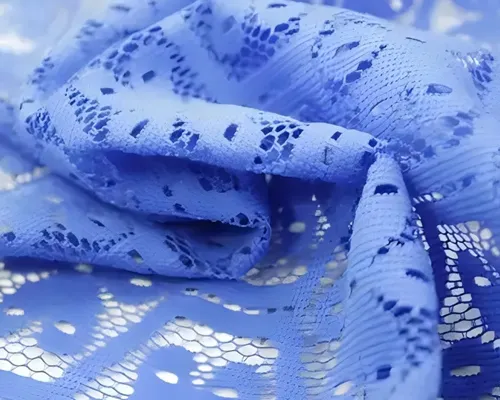

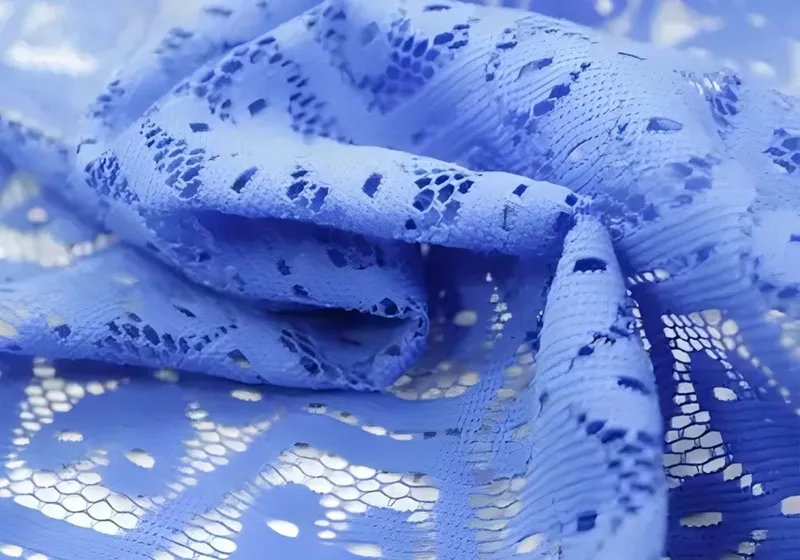

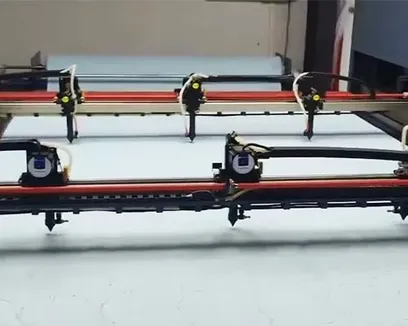

    • Fabric laser cutting
      Fabric laser cutting

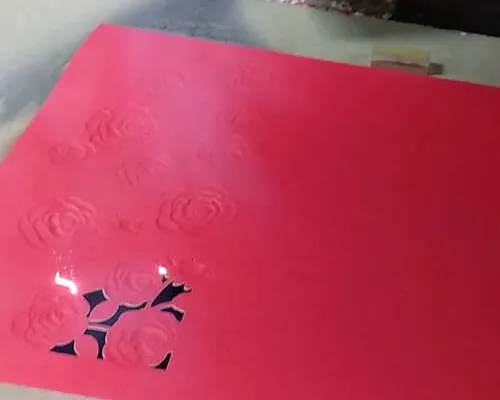

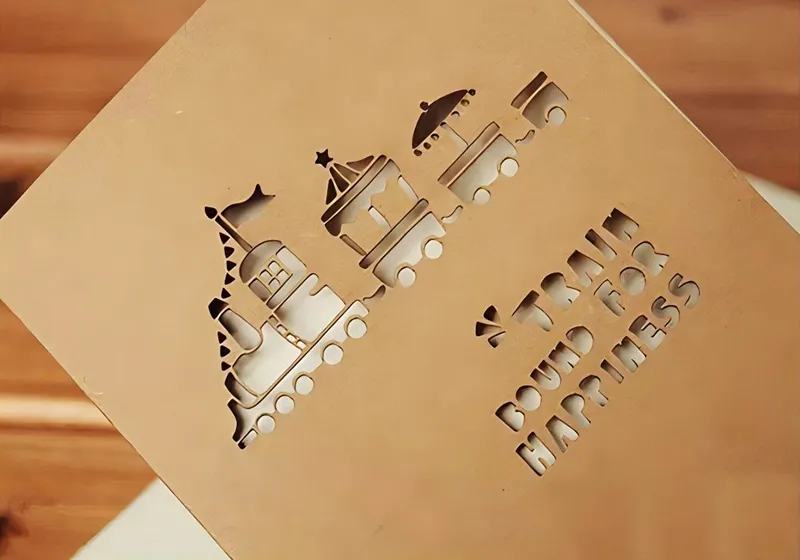

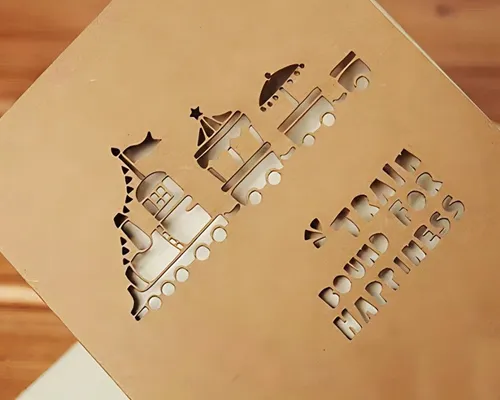

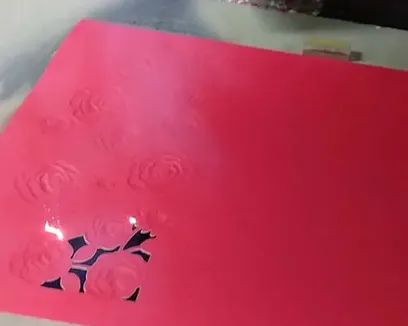

    • Paper card laser cutting
      Paper card laser cutting
    • Technical Data
    • Configuration
    • FAQ
    • Why Us
    • Inquiry
    Technical Data
    • Laser type CO₂ glass laser tube
    • Laser power 130W
    • Max. cutting speed 30m/min
    • Working area 1300×900mm (customizable)
    • File format BMP, PLT, DXF, DST, JPG, CDR, PNG, DSB, RAW, etc
    • Operation system RD control system
    • Cooling method water cooling
    • Power supply 220V±10%, 50Hz / 110V±10%, 60Hz

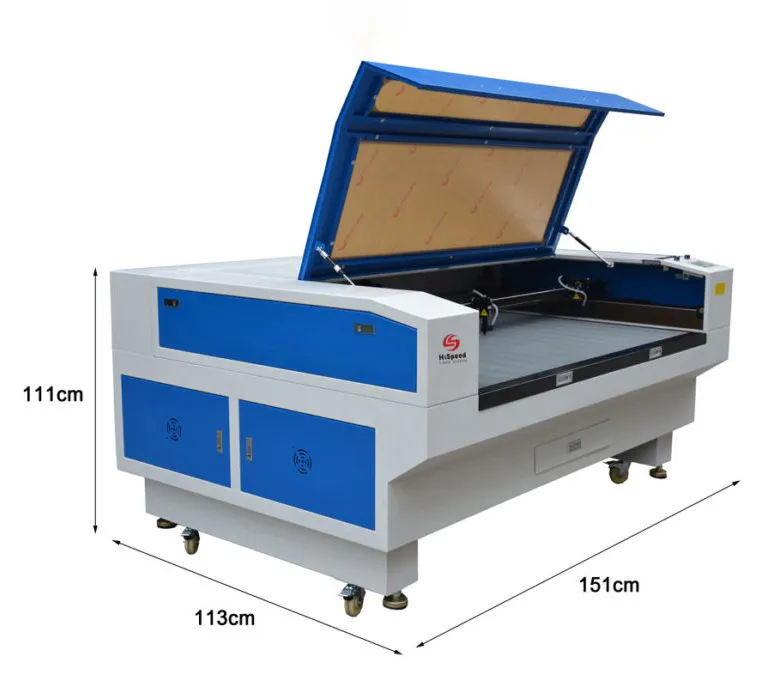

    • Machine dimensions 1130×1510×1110mm
    • Machine weight 520kg
    • Package size 2000×1600×1270mm
    • Package weight 550kg
    Configuration

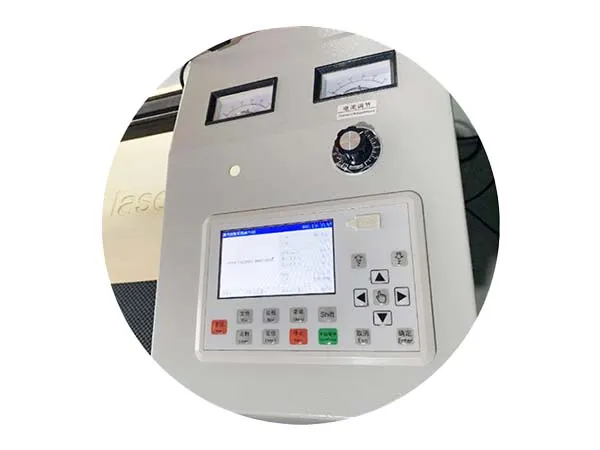

    Laser cutting control cabinet

    Laser cutting control cabinet
    Integrates an advanced CNC system, supporting multi-axis linkage and real-time data processing to ensure precise and synchronized cutting trajectories with an error of ≤±0.05mm, suitable for complex graphic processing. It supports third-party software integration, such as CAD/AI drawing import, and is CE safety certified, equipped with an emergency stop button.

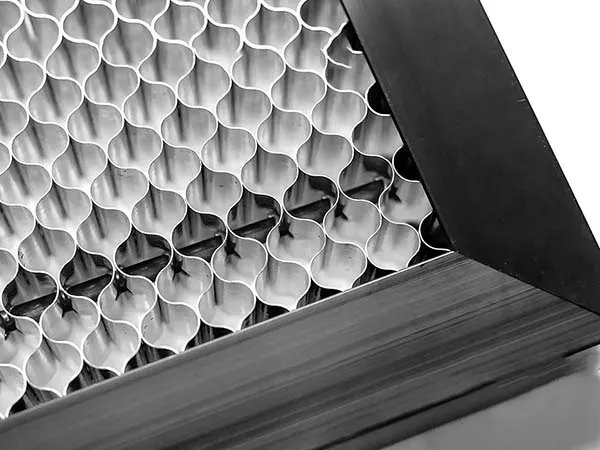

    Honeycomb working platform

    Honeycomb working platform
    Its porous structure reduces material contact area, preventing scratches on delicate materials like mirrored acrylic, while also improving airflow circulation and reducing cutting dust residue.

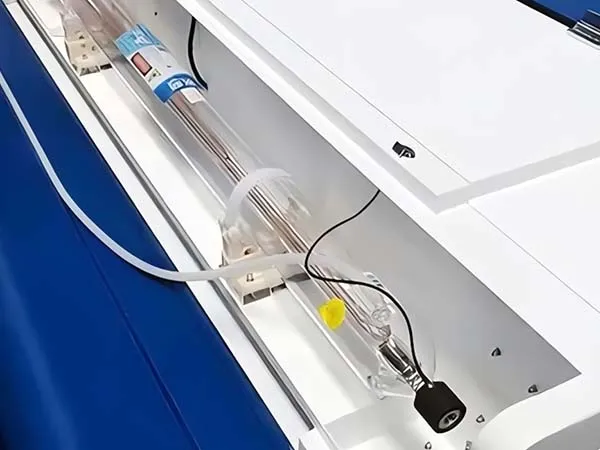

    Glass laser tube

    Glass laser tube
    Utilizes a renowned industry brand Reci laser tube, guaranteeing quality and high cost-effectiveness, with a price that is only 1/10th of imported metal tubes. Its 10.6μm wavelength is optimized for non-metal materials like acrylic, wood, and leather, providing smooth, char-free cutting edges that require no secondary polishing.

    RD touch screen system

    RD touch screen system
    Features a 7-inch high-definition touch screen with a graphical interface, supporting drag-and-drop file import, allowing new users to master it within 1 hour. It visually displays cutting progress, equipment status, and error codes, facilitating technical team support and reducing downtime.

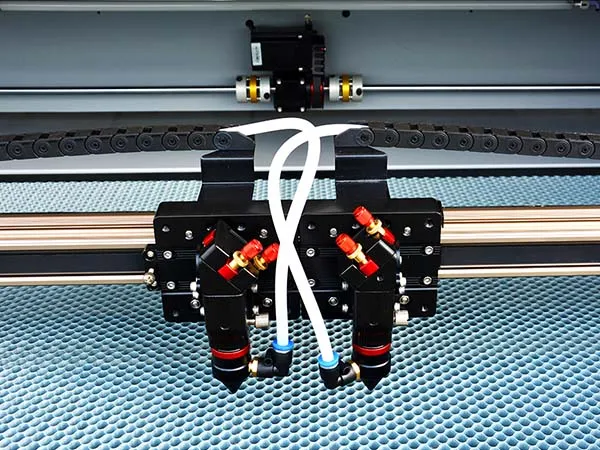

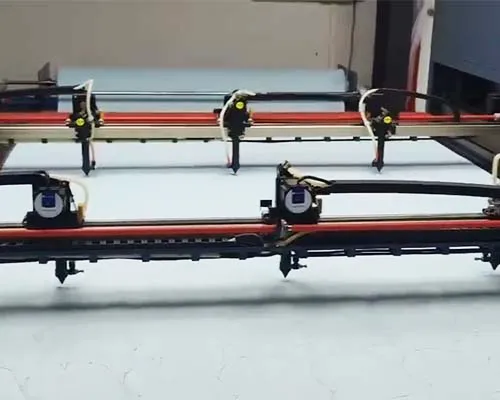

    • Dual-head Laser SystemDual-head Laser System

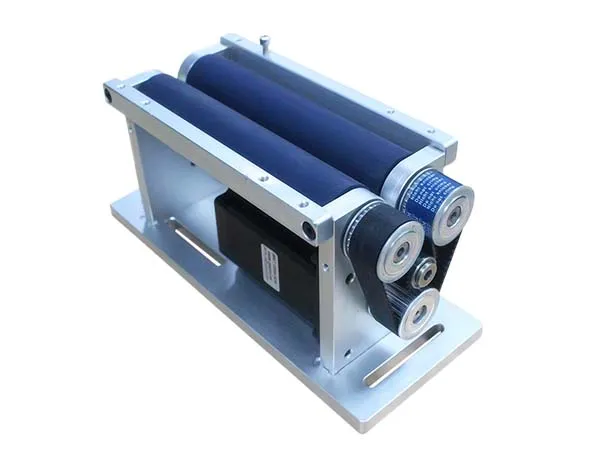

    • Rotary AxisRotary Axis

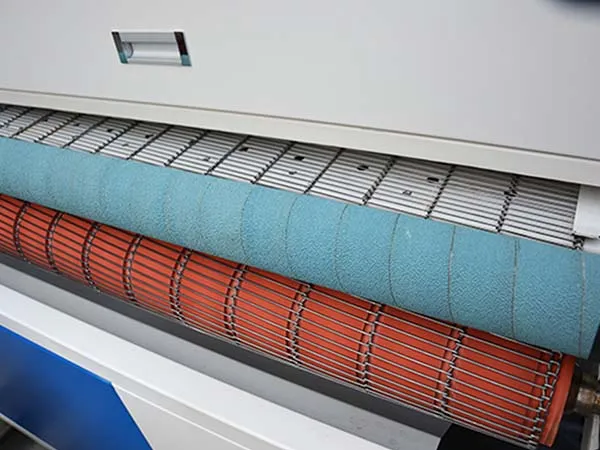

    • Automatic FeedingAutomatic Feeding
    • Water ChillerWater Chiller

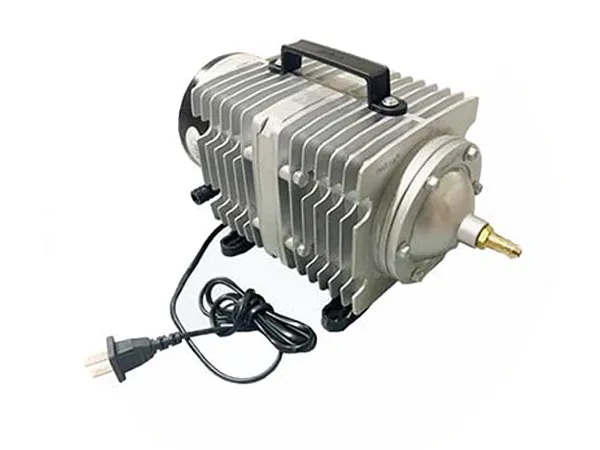

    • Air PumpAir Pump

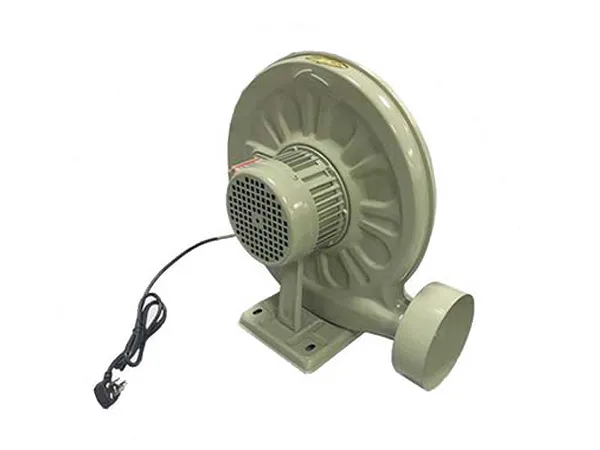

    • BlowerBlower
    • Glass Laser Tube
    • Reflective Lenses

    The lifespan of a CO2 glass laser tube is approximately 8,000 hours, a CO2 metal laser tube is about 40,000 hours, and a fiber laser is about 100,000 hours. If the cutting effect is not as good as before, consider if the laser tube is nearing its lifespan limit. Contact the supplier for assistance in testing and confirming if replacement is needed.

    Fiber laser models can cut metal, while CO2 laser models are limited to non-metal cutting.

    Monthly cleaning of guide rails and lenses can be completed in about 30 minutes and is not complex.

    The maximum cutting thickness varies depending on the laser power and material. Users can provide specific data, and we offer free sample cutting tests.
