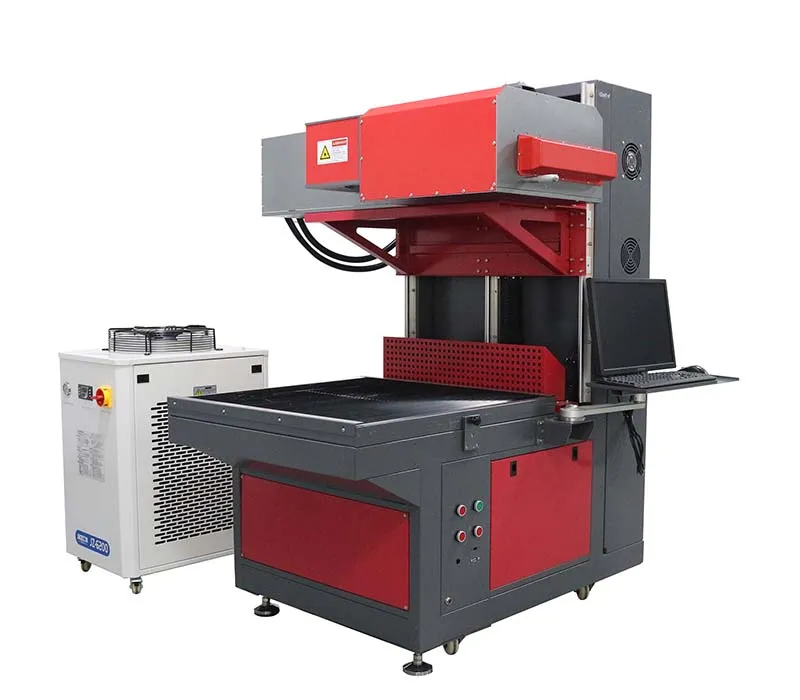

Dynamic CO₂ Laser Marking Machine

Dynamic CO₂ Laser Marking Machine
  • Dynamic CO₂ Laser Marking Machine
  • Dynamic CO₂ Laser Marking Machine
  • Dynamic CO₂ Laser Marking Machine
  • Dynamic CO₂ Laser Marking Machine
  • Dynamic CO₂ Laser Marking Machine

    • Dynamic CO₂ Laser Marking Machine
    • Laser wavelength 10.6μm
    • Marking range ≤600×600mm
    • Beam quality M²<1.5
    • Machine weight 440kg

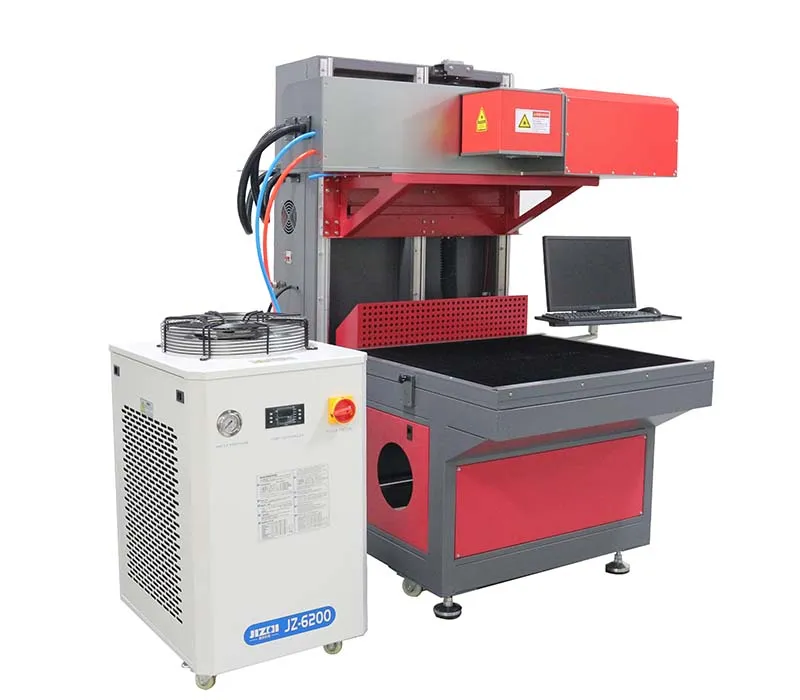

    The dynamic CO₂ laser marking machine features a compact, fully integrated design that reduces footprint by 40%. Its user-centric layout includes an adjustable-angle display for both seated and standing operation, minimizing neck strain. The built-in keyboard aligns flush with the machine’s frame to prevent accidental bumps, while tactile knobs and physical buttons retain the familiarity of traditional controls—ideal for new users. Equipped with universal casters and brake locks, the machine can be easily repositioned to adapt to production line adjustments.

    Request a Quote
    Applications
    Suitable for marking, cutting, and drilling various non-metallic materials, such as wood, paper, fabric, acrylic, leather, plastic, rubber, resin, ceramics, coated materials, stone, and more.

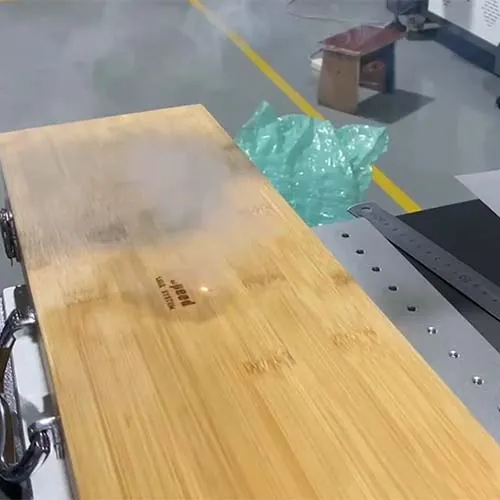

    • Bamboo case laser marking
      Bamboo case laser marking
    • Leather laser marking
      Leather laser marking
    • Wooden craft laser marking
      Wooden craft laser marking
    • Shoe sole laser marking
      Shoe sole laser marking

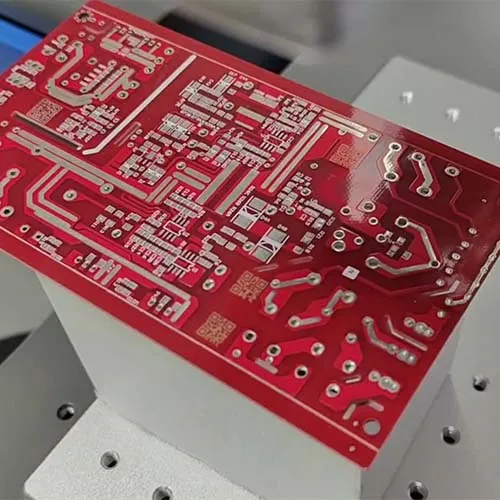

    • PCB QR code laser marking
      PCB QR code laser marking
    • Cuttable film laser engraving
      Cuttable film laser engraving

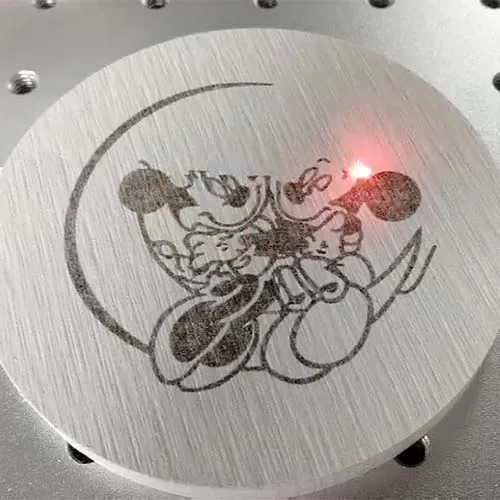

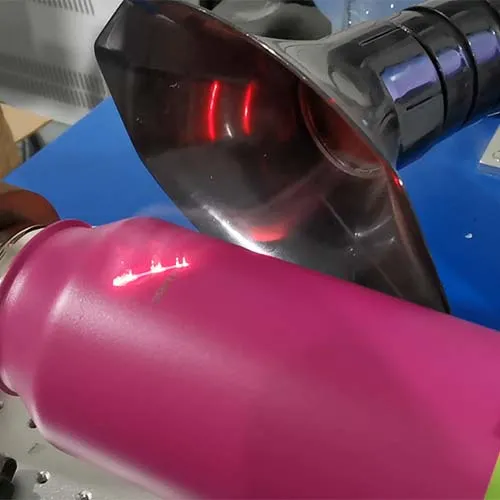

    • Stainless steel tumbler laser marking
      Stainless steel tumbler laser marking
    • Bamboo and wood products laser marking
      Bamboo and wood products laser marking

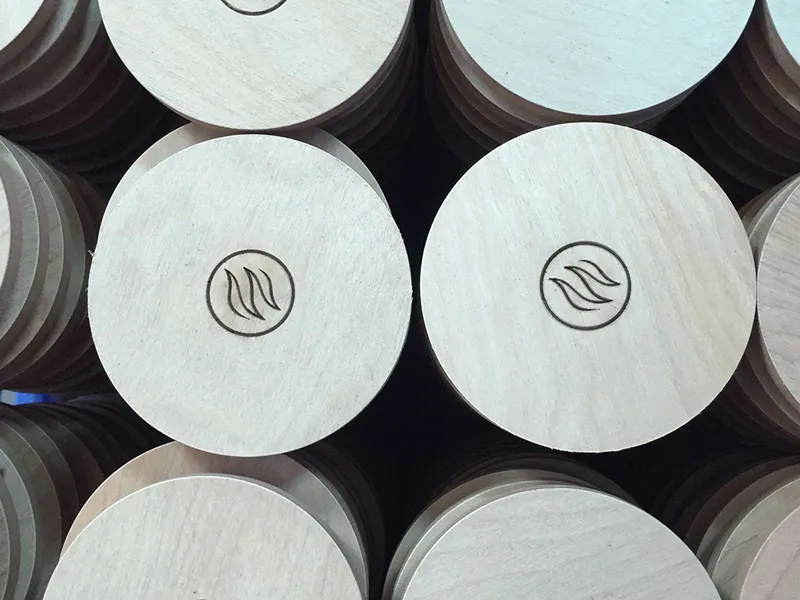

    • Wood laser marking
      Wood laser marking

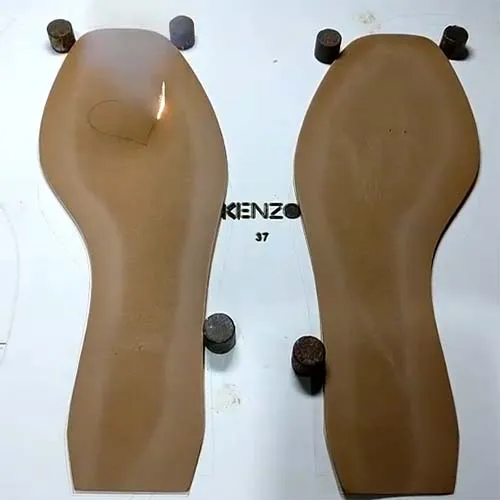

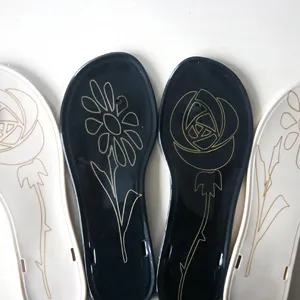

    • Insole laser marking
      Insole laser marking

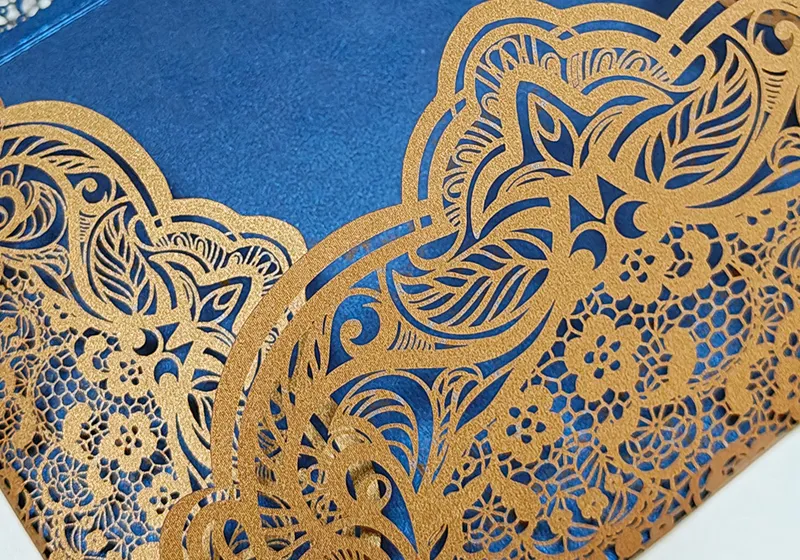

    • Envelope laser cutting
      Envelope laser cutting
    • Fabric laser cutting
      Fabric laser cutting
    • Shoe leather laser cutting
      Shoe leather laser cutting
    • EVA foam laser marking
      EVA foam laser marking

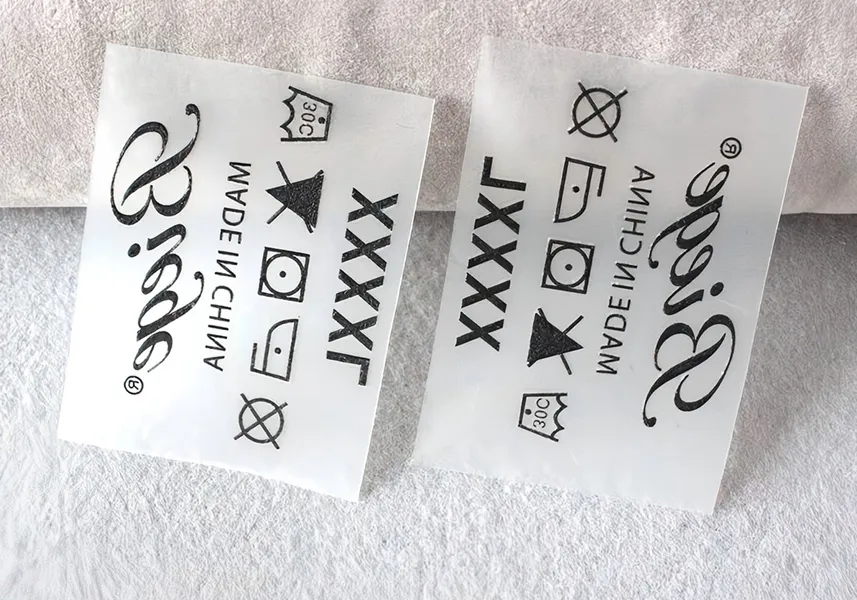

    • Transfer sticker laser marking
      Transfer sticker laser marking
    • Technical Data
    • Configuration
    • Inquiry
    Technical Data
    • Laser power 100W, 250W, 350W
    • Laser type CO₂ Laser
    • Laser wavelength 10.6μm
    • Marking range ≤600×600mm
    • Beam quality M²<1.5
    • Scanning speed ≤7000mm/s
    • Pulse repetition frequency 0~25 kHz
    • Min. line width 0.1mm (depending on material)
    • Min. character height 0.6mm
    • Cooling method water cooling
    • Power supply 1.5kW/AC220V/50Hz (Voltage fluctuation range ±5%; a voltage stabilizer is required if exceeding this range)
    • Operating temperature & humidity 0℃~40℃, 30%≤RH≤85% (Operating outside this range may affect equipment performance and lifespan; consider installing air conditioning if used outside this range)
    • Oil mist & condensation not allowed

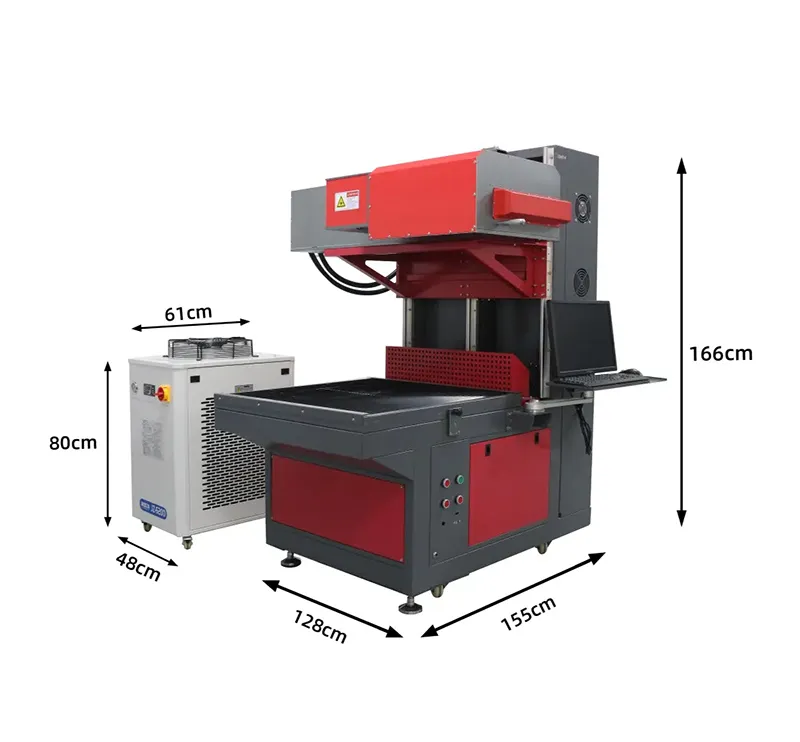

    • Machine dimensions 1280×1550×1660mm (chiller 480×610×800mm)
    • Package size 1710×1310×1800mm
    • Machine weight 440kg
    • Package weight 485kg
    Configuration
    RF CO₂ laser

    RF CO₂ laser
    Utilizes an industry-renowned imported coherent laser source, known for its high electro-optical conversion efficiency and excellent performance. It requires virtually no maintenance, is suitable for high-volume production needs, and supports 24-hour continuous operation without malfunction.

    2.5D Galvo scanner

    2.5D Galvo scanner
    Employs dynamic focusing technology, integrating an electrically adjustable lens to quickly adjust the laser focal position without relying on mechanical moving parts, achieving a Z-axis working range of up to 100mm.

    Control card

    Control card
    Equipped with a genuine JCZ EZCAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.

    Computer

    Computer
    Features an industrial computer with a Windows 10 system and a 19-inch LCD display to ensure smoother operation of the entire laser equipment.

    Z-axis lifting platform

    Z-axis lifting platform
    Features a dual-rail design, fixed with screw spacing to ensure the platform remains horizontally stable during lifting and lowering, preventing tilting or wobbling. Paired with wear-resistant copper nuts, it enhances transmission precision and lifespan, reducing mechanical wear. Some high-end models may combine electrically adjustable focusing lenses with the galvo system to achieve Z-axis dynamic focusing, replacing traditional mechanical lifting and expanding the focusing range (e.g., ±21mm).

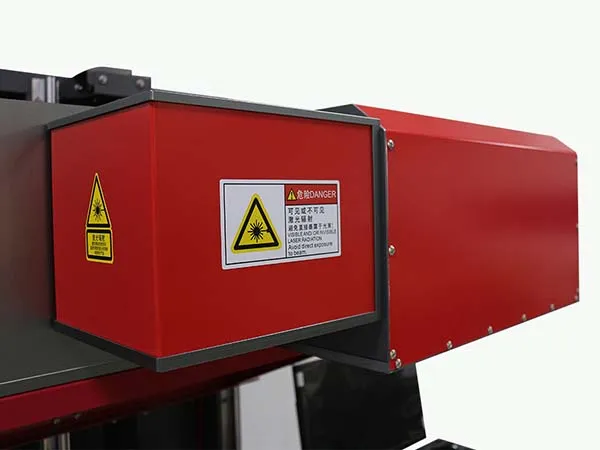

    Laser safety warning labels

    Laser safety warning labels
    Plays a crucial role in scenarios involving laser applications, primarily serving to alert people to potential laser hazards and ensure personnel safety.

    • Fume ExtractorFume Extractor
    • 80mm rotary clamp fixture80mm rotary clamp fixture
    • Roller rotary axisRoller rotary axis
    • Rotary axis with tailstockRotary axis with tailstock

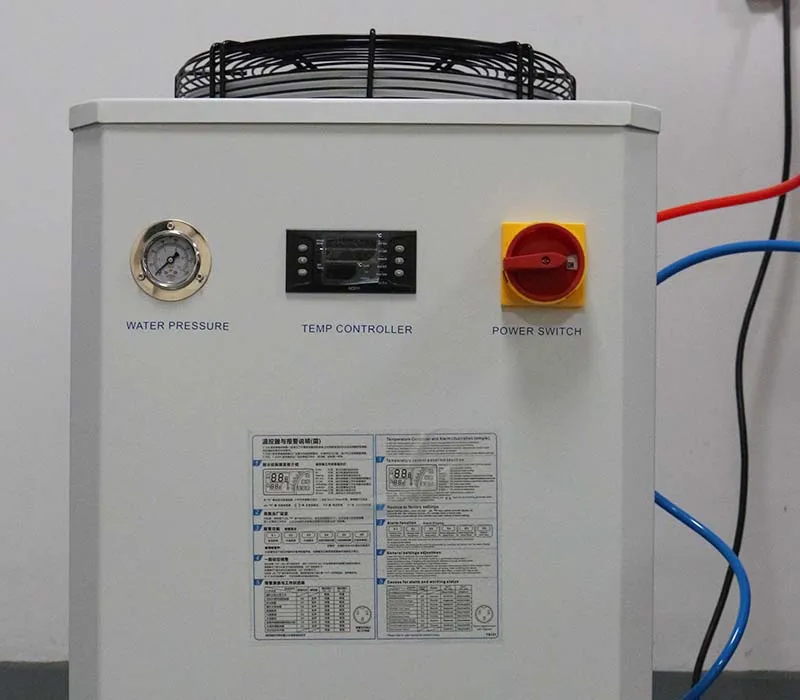

    Water chiller

    Water Chiller

    • CO₂ laser
    • Laser control cabinet

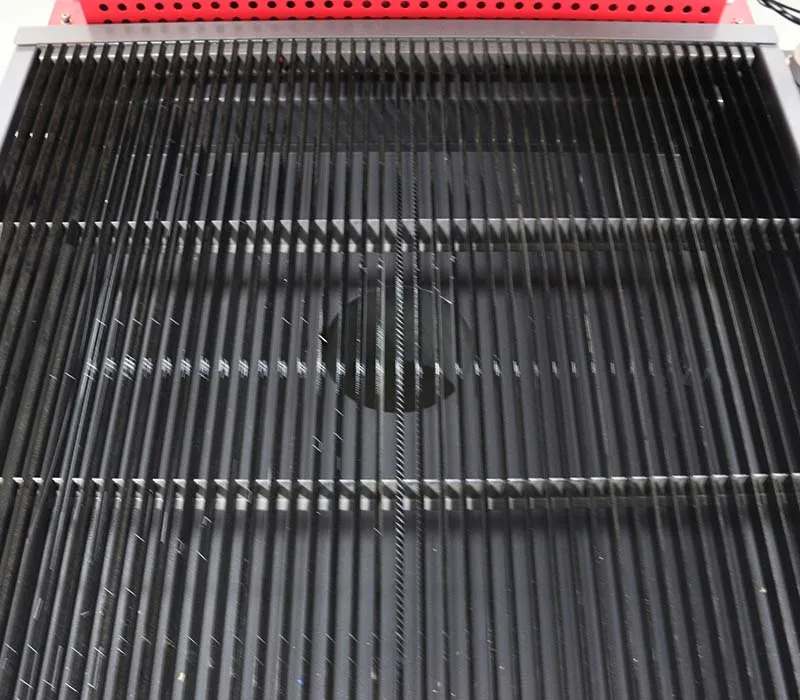

    • Honeycomb panel workbench
    • 2.5D dynamic focusing galvo scanner head
    • F-theta lens
    • Control card
    • Laser power supply
    • Computer
    • Power cord
    • Water chiller
    • Safety goggles
    • Foot pedal switch
    • Hex key tool set
    • Equipment warranty certificate
    • Shipping accessories list
    • Product catalog
    Our Laser Marking Machines

    Hispeed Laser has been a trusted manufacturer of industrial laser systems since 2017, delivering precision solutions for marking, welding, cutting, and cleaning applications. With annual production exceeding 1,000 units, we supply CE, UKCA, and FDA-certified equipment to clients in over 80 countries across Europe, Southeast Asia, and South America.

    Our advanced laser technology serves diverse industries including 3C electronics, automotive, medical devices, jewelry, and packaging. We offer comprehensive OEM/ODM services, fully customized solutions tailored to your specific requirements, and rapid delivery, typically within 7–10 days. Beyond installation, Hispeed provides complete lifecycle support to ensure optimal performance and longevity of your equipment.

    Get in Touch

    It is suitable for non-metallic materials such as wood, acrylic, leather, etc. Metal materials with special coatings, like the surface of a painted insulated cup, can also be marked.

    This machine is suitable for marking, cutting, and drilling various non-metallic materials. It cannot directly mark bare metals. If you need to mark metal materials, we recommend using a fiber laser marking machine instead.

    Under normal use, the theoretical lifespan of CO₂ laser engraving equipment is approximately 25,000-40,000 hours. The specific lifespan can be influenced by factors such as operating frequency, environment, and maintenance.

    The entire machine comes with a two-year warranty. During the warranty period, faulty components not caused by human error can be replaced free of charge.

    The standard control software is EzCad. Its interface supports multiple languages (Chinese, English, Russian, Japanese, etc.), making it intuitive and easy to use.

    It supports common formats like PLT, DXF, AI, etc., and is compatible with mainstream design software to meet diverse engraving/cutting needs.

    Yes, the equipment supports rapid marking of QR codes, barcodes, serial numbers, logos, text, and other content, suitable for product traceability and identification applications across various industries.
