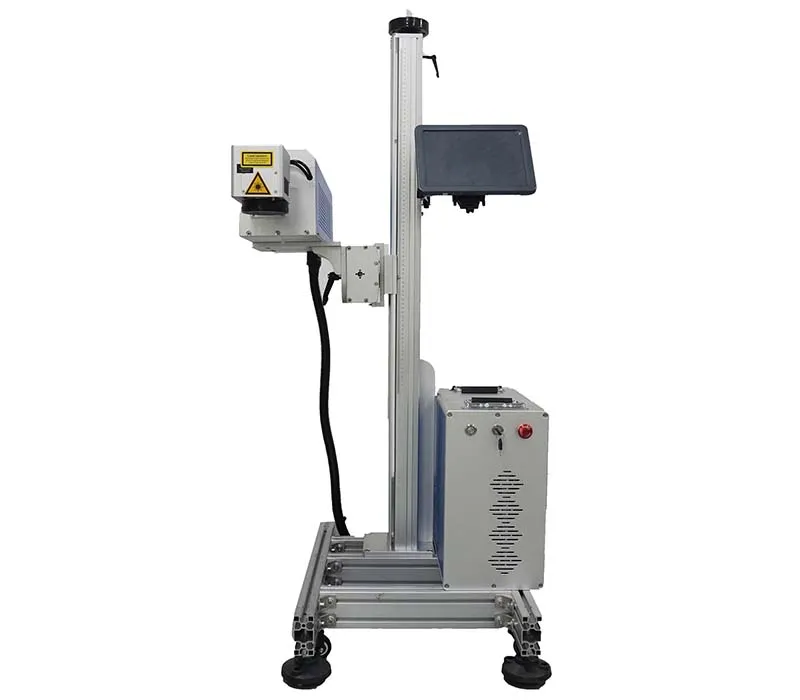

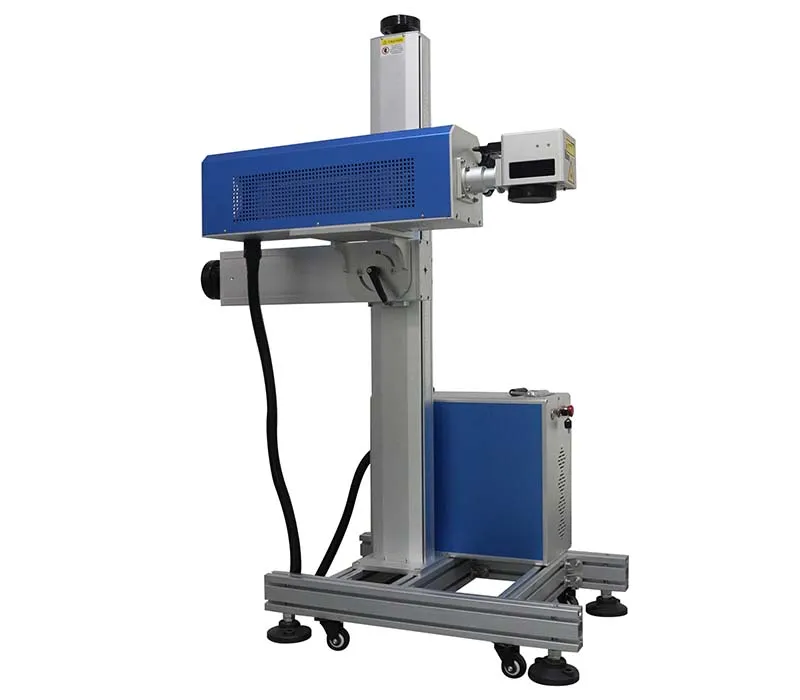

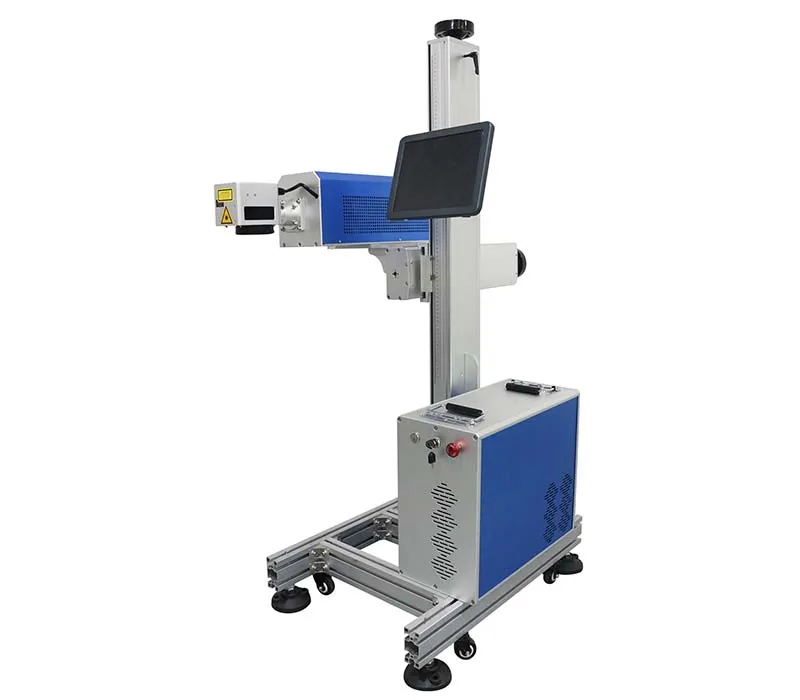

Online Flying CO₂ Laser Marking Machine

Online Flying CO₂ Laser Marking Machine
  • Online Flying CO₂ Laser Marking Machine
  • Online Flying CO₂ Laser Marking Machine
  • Online Flying CO₂ Laser Marking Machine

    • Online Flying CO₂ Laser Marking Machine
    • Laser wavelength 10.6μm
    • Marking range 50×50mm~300×300mm
    • Beam quality M²<1.5
    • Machine weight 116kg

    Designed specifically for high-speed production lines, the online flying CO₂ laser marking machine integrates an industrial-grade CO₂ RF laser and a high-speed galvo scanner system. It supports synchronous marking on production lines moving at 0-30m/min, allowing for permanent product identification without stopping the line. With scanning speeds up to 12,000mm/s, it boosts daily production capacity by 200%. It seamlessly integrates with PLC systems, enabling fully automatic serial number, QR code, and batch number generation and traceability. Requiring zero consumables and causing no ink pollution, it complies with FDA/CE certifications, meeting safety standards for food packaging and medical-grade applications.

    Request a Quote

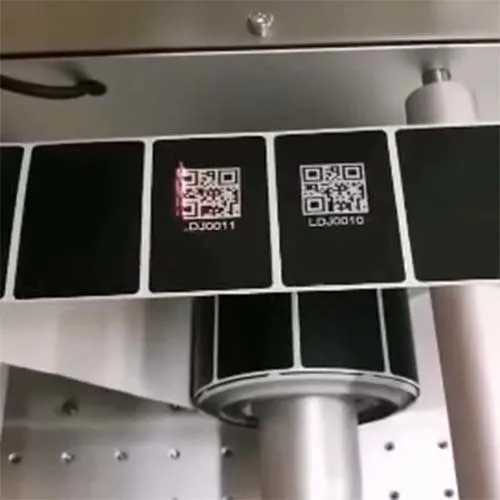

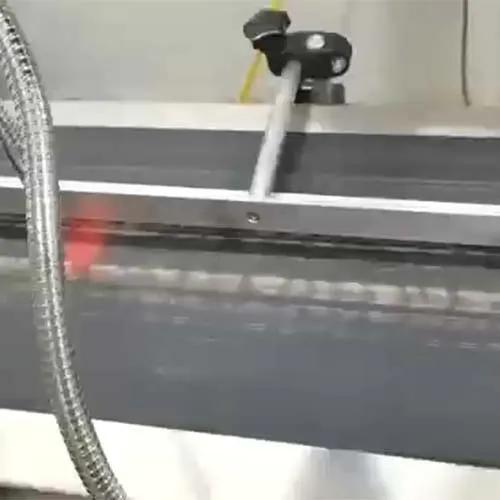

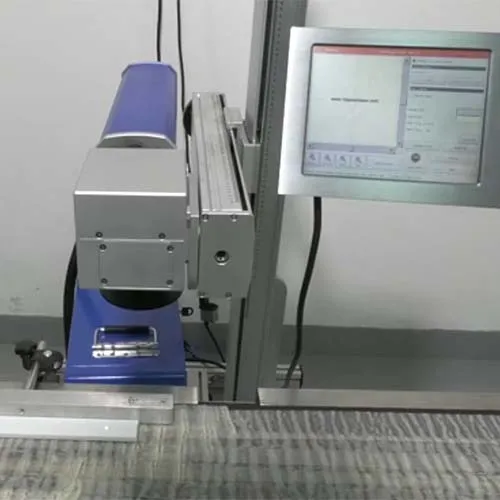

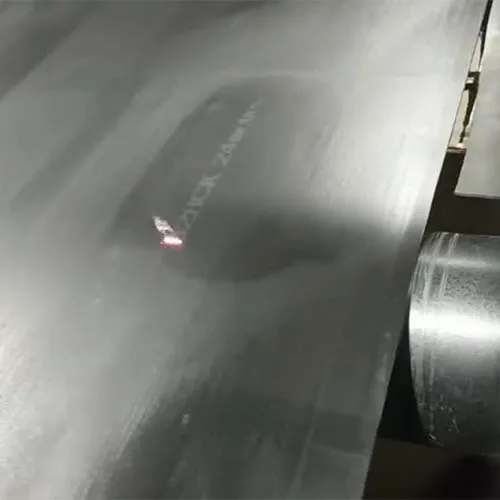

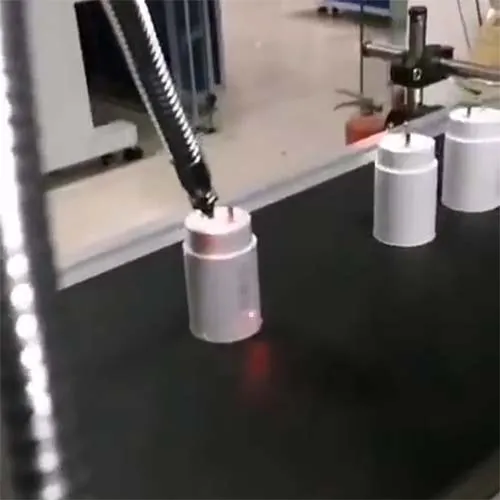

    Applications
    Suitable for marking various non-metallic materials, such as wood products, paper, fabric, acrylic, leather, plastic, rubber, resin, ceramics, coated materials, and more. This equipment is primarily used in packaging industries for food, pharmaceuticals, cosmetics, etc.
    • HDPE pipe laser marking
      HDPE pipe laser marking
    • PVC cable tray laser marking
      PVC cable tray laser marking
    • Stainless steel laser marking
      Stainless steel laser marking
    • Power plug laser marking
      Power plug laser marking
    • Aluminum QR code laser marking
      Aluminum QR code laser marking

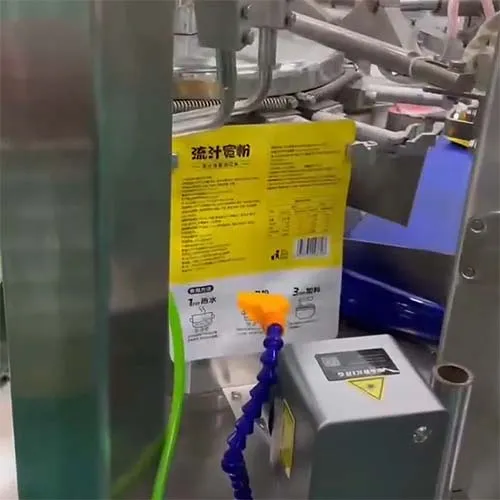

    • Flexible pouch laser marking
      Flexible pouch laser marking
    • Carton box laser marking
      Carton box laser marking
    • Plastic bottle laser marking
      Plastic bottle laser marking

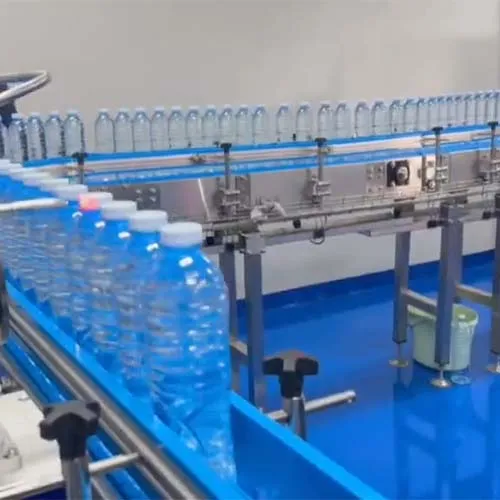

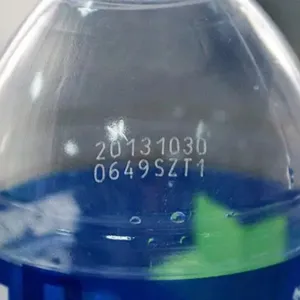

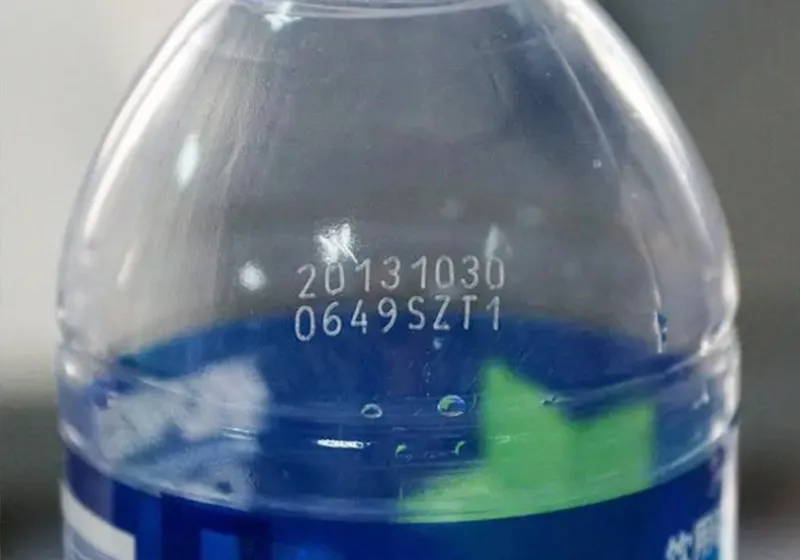

    • Mineral water bottle laser marking
      Mineral water bottle laser marking

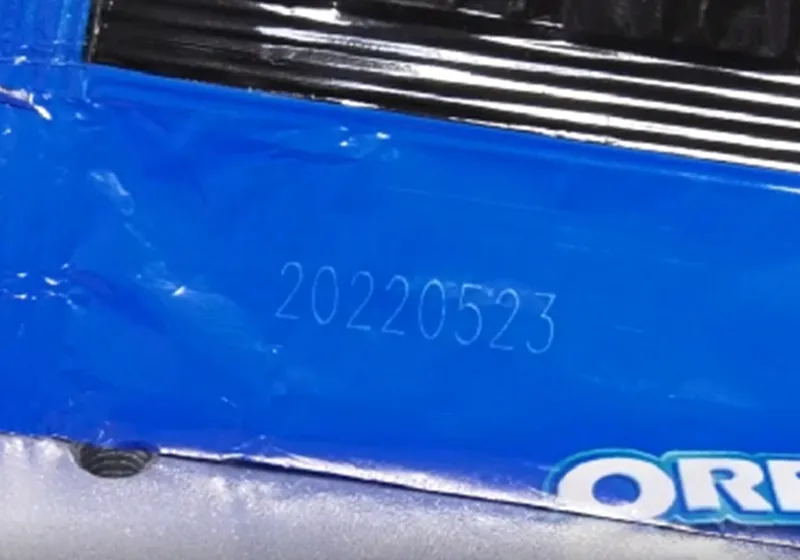

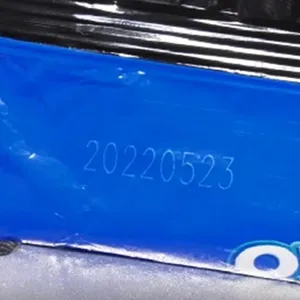

    • Food packaging laser marking
      Food packaging laser marking

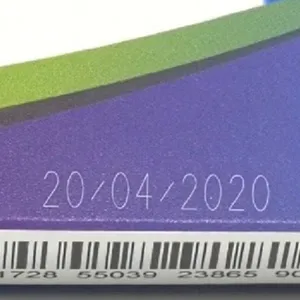

    • Medicine box laser marking
      Medicine box laser marking

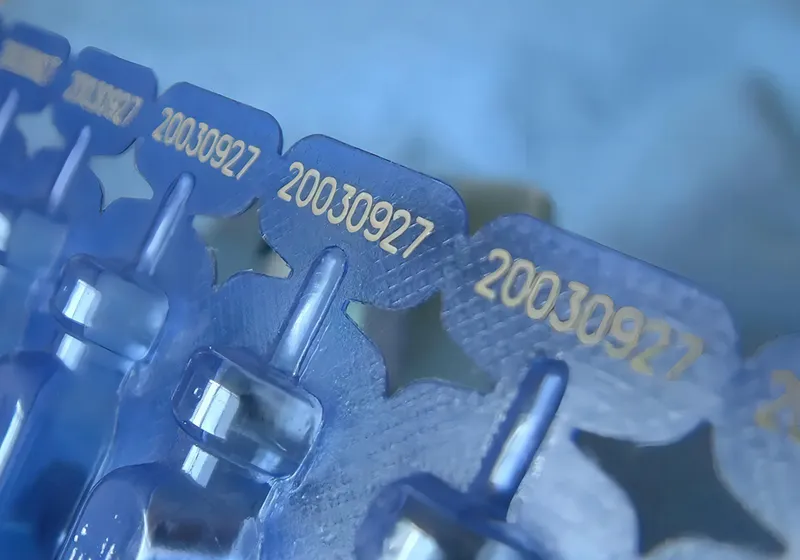

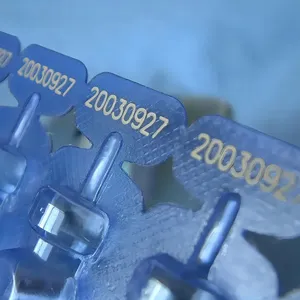

    • Aluminum-plastic packaging laser marking
      Aluminum-plastic packaging laser marking
    • Technical Data
    • Configuration
    • Inquiry
    Technical Data
    • Laser power 30W
    • Laser type CO₂ Laser
    • Laser wavelength 10.6μm
    • Marking range 50×50mm~300×300mm
    • Beam quality M²<1.5
    • Scanning speed F=160mm, ≤7000mm/s
    • Pulse repetition frequency 0~25 kHz
    • Min. line width 0.1mm (depending on material) @F=160mm
    • Min. character height 0.6mm @ F=160mm
    • Cooling method air cooling
    • Power supply 1.5kW/AC220V/50Hz (Voltage fluctuation range ±5%; a voltage stabilizer is required if exceeding this range)
    • Operating temperature & humidity 0℃~40℃, 30%≤RH≤85% (Operating outside this range may affect equipment performance and lifespan; consider installing air conditioning if used outside this range)
    • Oil mist & condensation not allowed

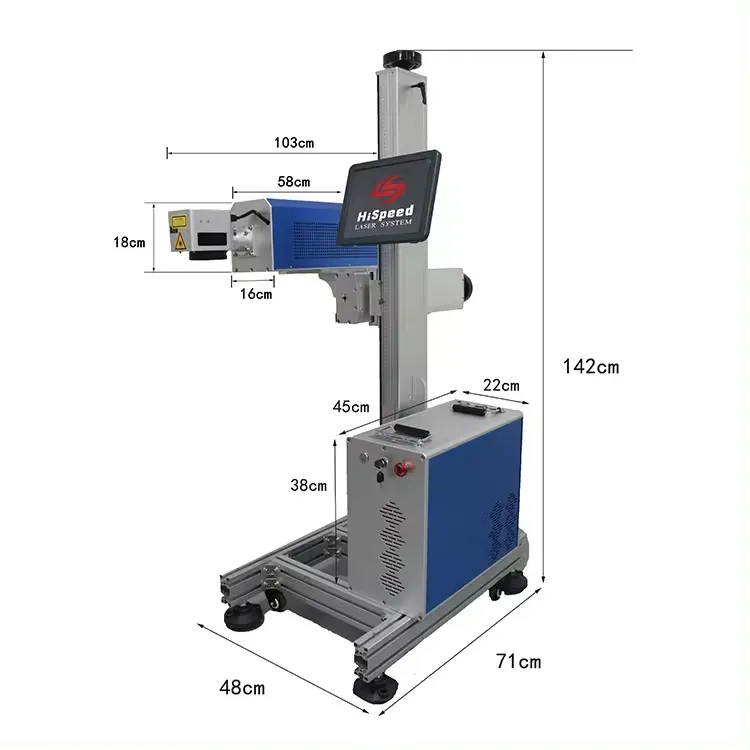

    • Machine dimensions 480×710×1420mm
    • Package size 1340×620×690mm
    • Machine weight 116kg
    • Package weight 126kg
    Configuration
    RF CO₂ laser

    RF CO₂ laser
    Features high electro-optical conversion efficiency, requires virtually no maintenance, and is suitable for high-volume production needs; supports multiple wavelengths (e.g., 10.6μm, 9.3μm).

    Galvo scanner

    Galvo scanner
    The galvo scanner boasts fast scanning speeds, reaching tens of thousands of scans per second; it features a sealed design for long lifespan and low maintenance costs. Electromagnetic or piezoelectric drive methods reduce mechanical wear, further enhancing the equipment's durability and reliability.

    F-theta lens

    F-theta lens
    Equipped with an F-theta lens for 1064nm wavelength, mainly used in fiber laser marking machines. Due to its longer wavelength, it offers strong energy penetration, making it suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.

    Control card

    Control card
    Equipped with a genuine JCZ EZCAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.

    Computer

    Computer
    Features an industrial computer with a Windows 10 system and a 19-inch LCD display to ensure smoother operation of the entire laser equipment.

    Column

    Column
    Supports various working area options (e.g., 110×110mm, 150×150mm, etc.), meeting diverse marking requirements. The Z-axis, through precise mechanical design and control systems, ensures accurate laser focus alignment at different heights for stable and reliable marking results.

    Laser safety warning labels

    Laser safety warning labels
    Plays a crucial role in scenarios involving laser applications, primarily serving to alert people to potential laser hazards and ensure personnel safety.

    • Fume ExtractorFume Extractor
    • 80mm rotary clamp fixture80mm rotary clamp fixture
    • Roller rotary axisRoller rotary axis
    • Rotary axis with tailstockRotary axis with tailstock
    • CO₂ laser
    • Split laser control cabinet
    • Aluminum alloy work panel
    • Galvo scanner
    • F-theta lens
    • Control card
    • Laser power supply
    • Laptop
    • Power cord
    • Safety goggles
    • Foot pedal switch
    • Aluminum test piece
    • Hex key tool set
    • Equipment warranty certificate
    • Shipping accessories list
    • Product catalog
    Our Laser Marking Machines

    Hispeed Laser has been a trusted manufacturer of industrial laser systems since 2017, delivering precision solutions for marking, welding, cutting, and cleaning applications. With annual production exceeding 1,000 units, we supply CE, UKCA, and FDA-certified equipment to clients in over 80 countries across Europe, Southeast Asia, and South America.

    Our advanced laser technology serves diverse industries including 3C electronics, automotive, medical devices, jewelry, and packaging. We offer comprehensive OEM/ODM services, fully customized solutions tailored to your specific requirements, and rapid delivery, typically within 7–10 days. Beyond installation, Hispeed provides complete lifecycle support to ensure optimal performance and longevity of your equipment.

    Get in Touch

    It is suitable for non-metallic materials such as wood, acrylic, leather, etc. Metal materials with special coatings, like the surface of a painted insulated cup, can also be marked.

    This machine is suitable for marking, cutting, and drilling various non-metallic materials. It cannot directly mark bare metals. If you need to mark metal materials, we recommend using a fiber laser marking machine instead.

    Under normal use, the theoretical lifespan of CO₂ laser engraving equipment is approximately 25,000-40,000 hours. The specific lifespan can be influenced by factors such as operating frequency, environment, and maintenance.

    The entire machine comes with a two-year warranty. During the warranty period, faulty components not caused by human error can be replaced free of charge.

    The standard control software is EzCad. Its interface supports multiple languages (Chinese, English, Russian, Japanese, etc.), making it intuitive and easy to use.

    It supports common formats like PLT, DXF, AI, etc., and is compatible with mainstream design software to meet diverse engraving/cutting needs.

    Yes, the equipment supports rapid marking of QR codes, barcodes, serial numbers, logos, text, and other content, suitable for product traceability and identification applications across various industries.
