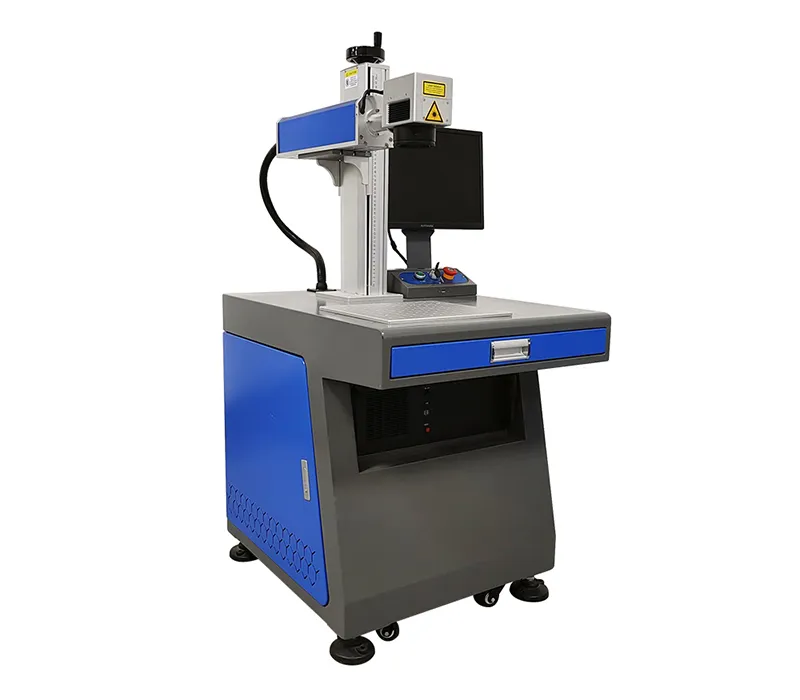

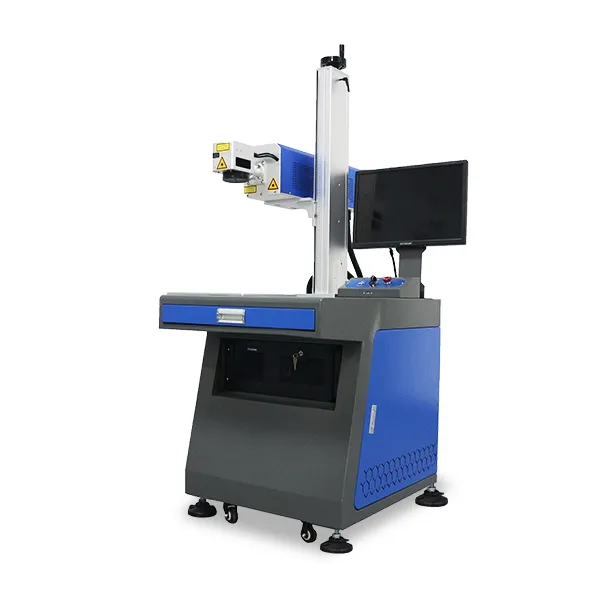

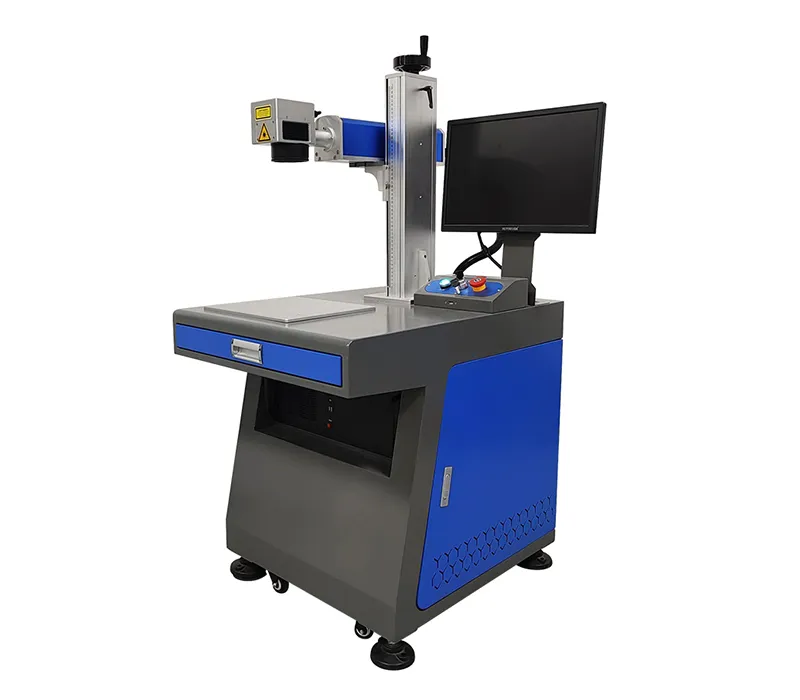

Desktop Fiber Laser Marking Machine

Desktop Fiber Laser Marking Machine
  • Desktop Fiber Laser Marking Machine
  • Desktop Fiber Laser Marking Machine
  • Desktop Fiber Laser Marking Machine
  • Desktop Fiber Laser Marking Machine
  • Desktop Fiber Laser Marking Machine
  • Desktop Fiber Laser Marking Machine

    • Desktop Fiber Laser Marking Machine
    • Laser wavelength 1064nm
    • Marking range 50×50mm~300×300mm
    • Beam quality M²<1.5
    • Max. line speed 7000mm/s

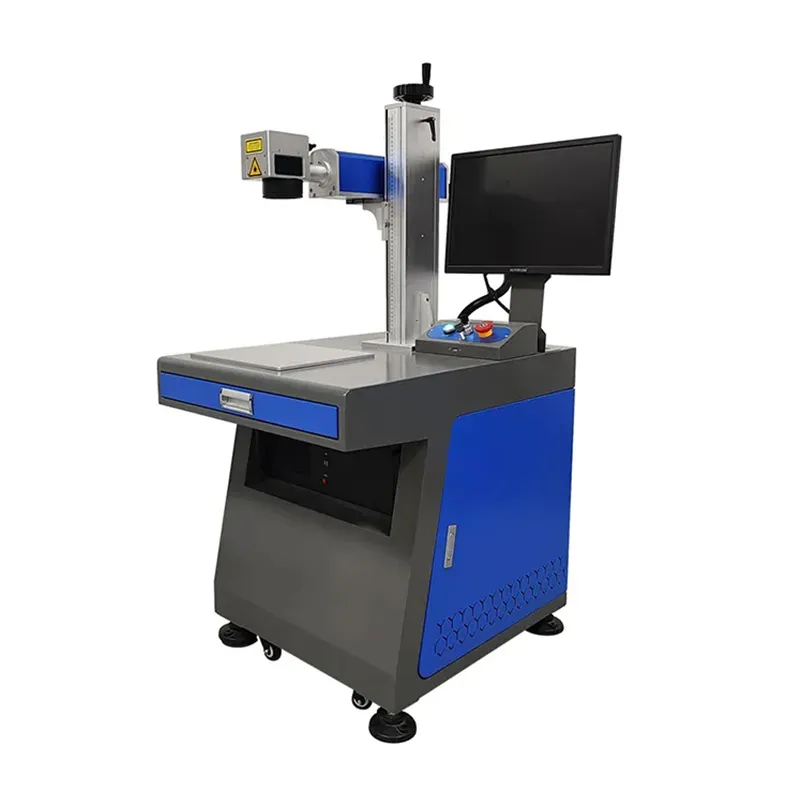

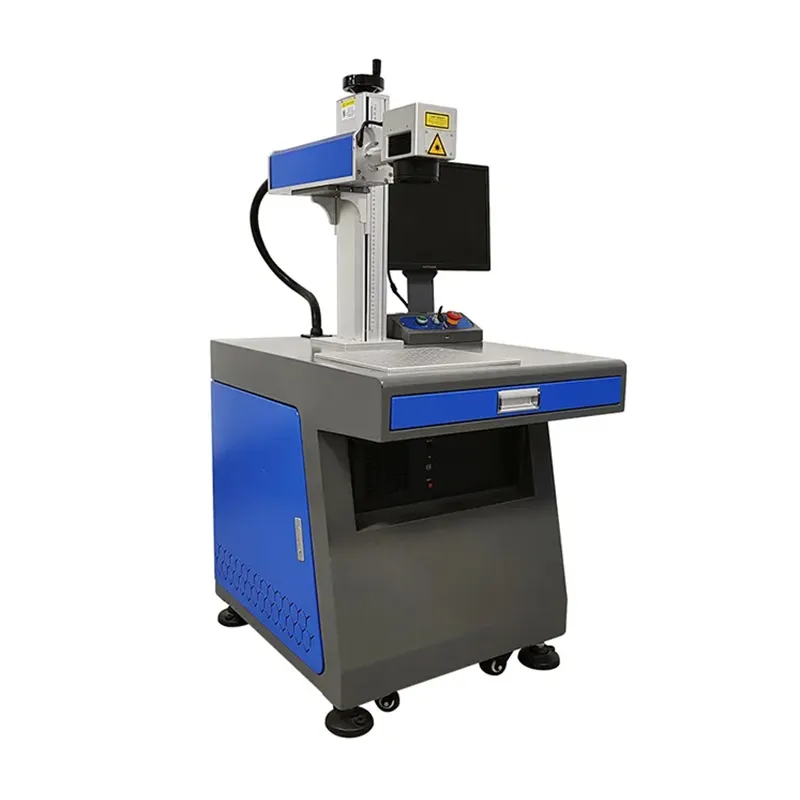

    The desktop fiber laser marking machine is designed with user-friendliness in mind. Its integrated equipment-and-workstation design fully conforms to ergonomic standards, eliminating the need for factories to set up additional workstations, which significantly reduces space occupation. The intuitive software control interface allows even first-time users to quickly set up and begin marking. Our laser marking machines stand out due to their versatility. They support multiple marking modes, including text, barcodes, and trademarks, enabling you to customize identification according to specific needs. This makes them ideal for product identification, anti-counterfeiting measures, or decorative purposes.

    Request a Quote
    Applications
    Metals: Iron, steel, carbon steel, stainless steel, pure aluminum, aluminum alloy, zinc alloy, titanium alloy, brass, bronze, gold, silver, platinum
    Plastics: ABS, PVC, PE, HDPE
    • Stainless steel laser marking
      Stainless steel laser marking

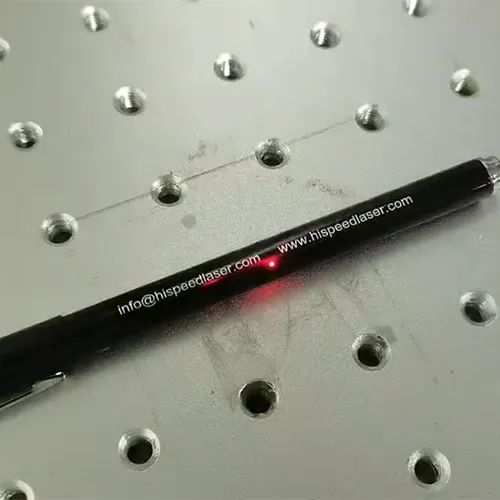

    • Pen laser marking
      Pen laser marking

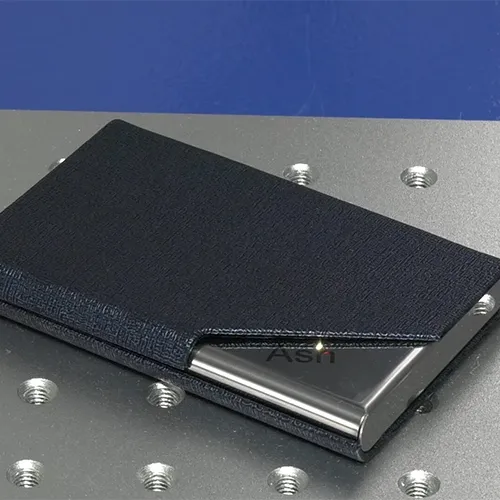

    • Business card case laser marking
      Business card case laser marking

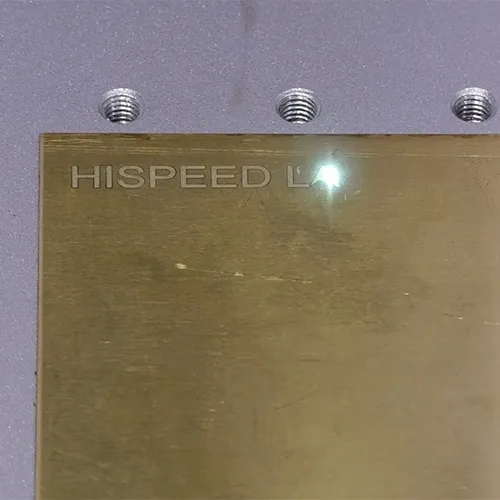

    • Brass laser marking
      Brass laser marking
    • Aluminum alloy laser marking
      Aluminum alloy laser marking

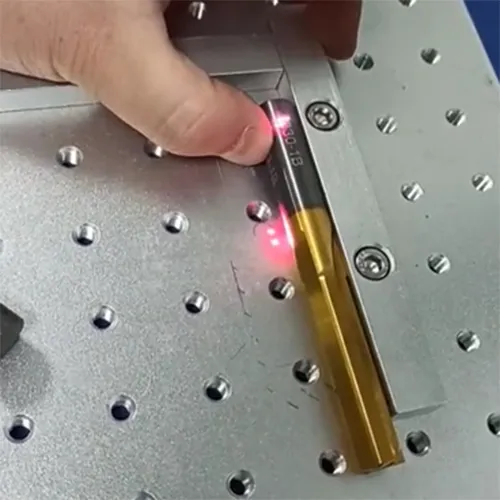

    • Carbide drill bit laser marking
      Carbide drill bit laser marking
    • Serial number laser marking
      Serial number laser marking
    • Metal flask laser engraving
      Metal flask laser engraving

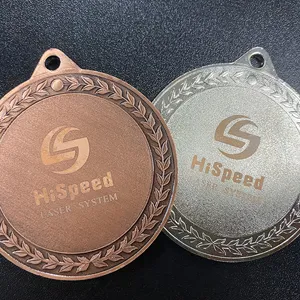

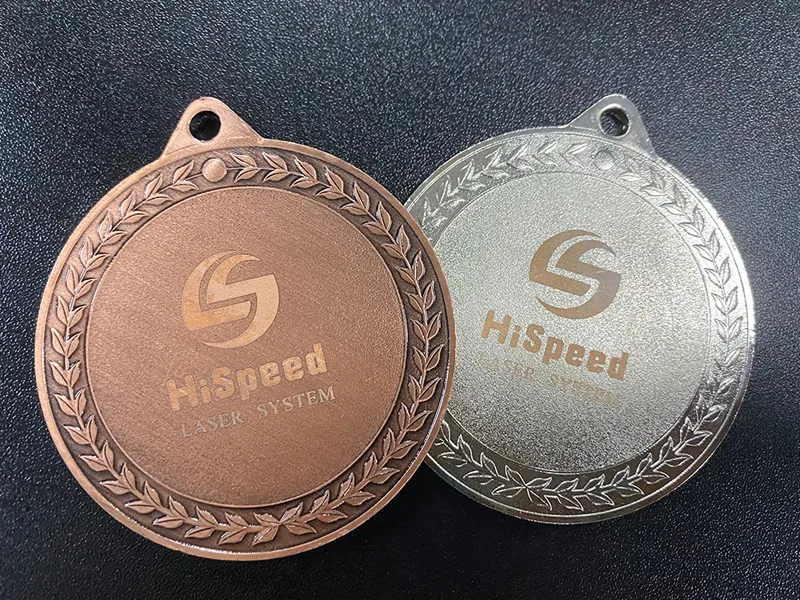

    • Copper medal laser marking
      Copper medal laser marking

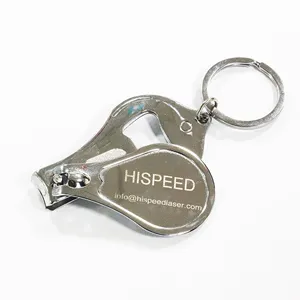

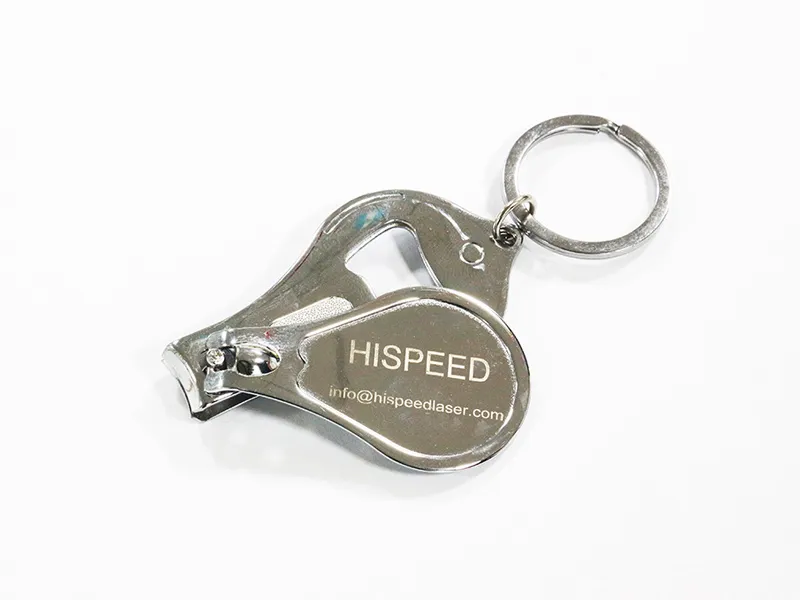

    • Stainless steel nail clipper laser marking
      Stainless steel nail clipper laser marking

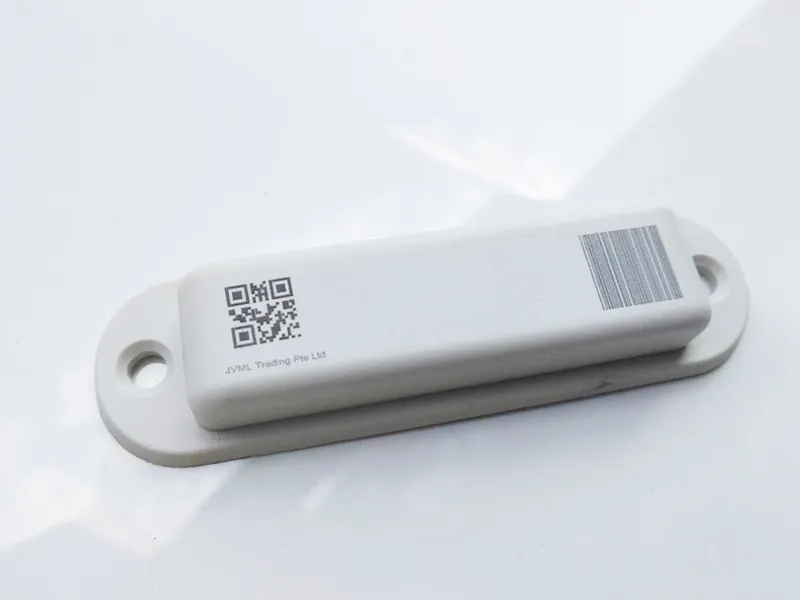

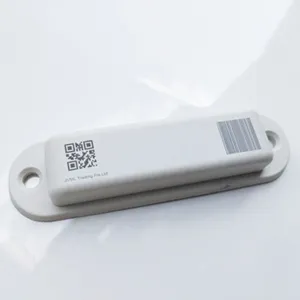

    • ABS plastic laser marking
      ABS plastic laser marking

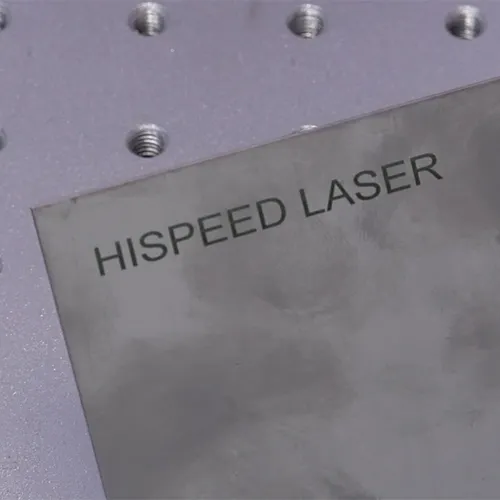

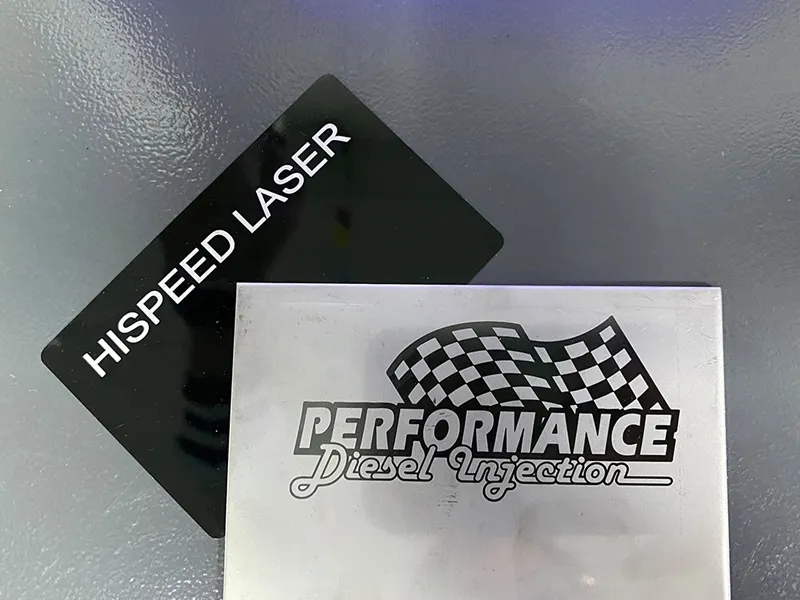

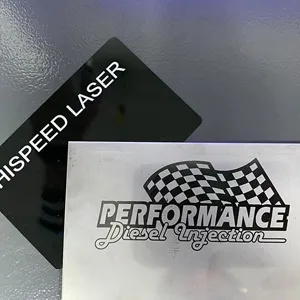

    • Stainless steel laser black marking
      Stainless steel laser black marking

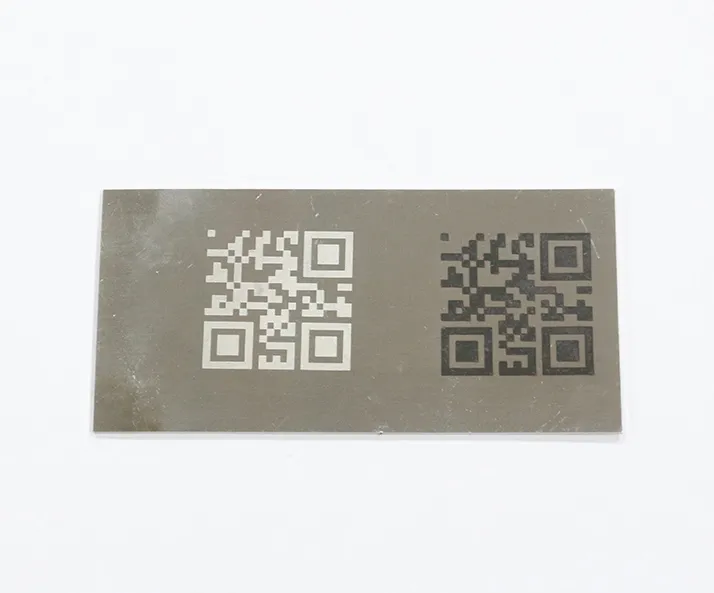

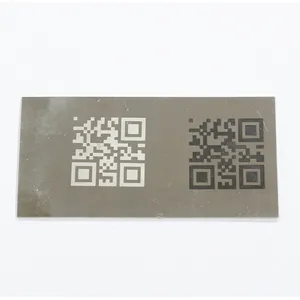

    • Stainless steel laser black and white marking
      Stainless steel laser black and white marking

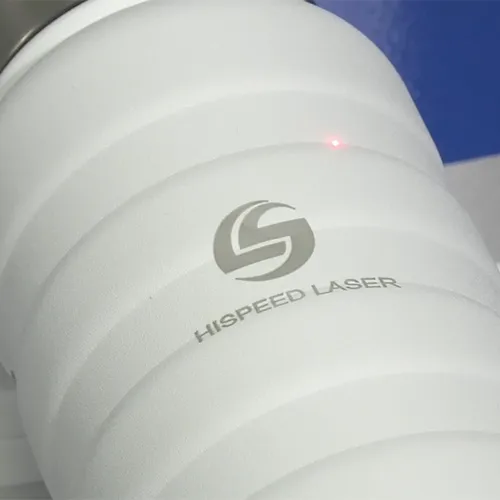

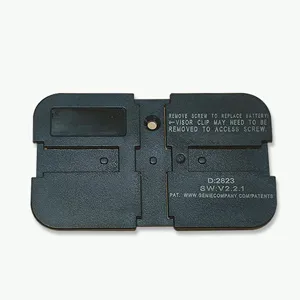

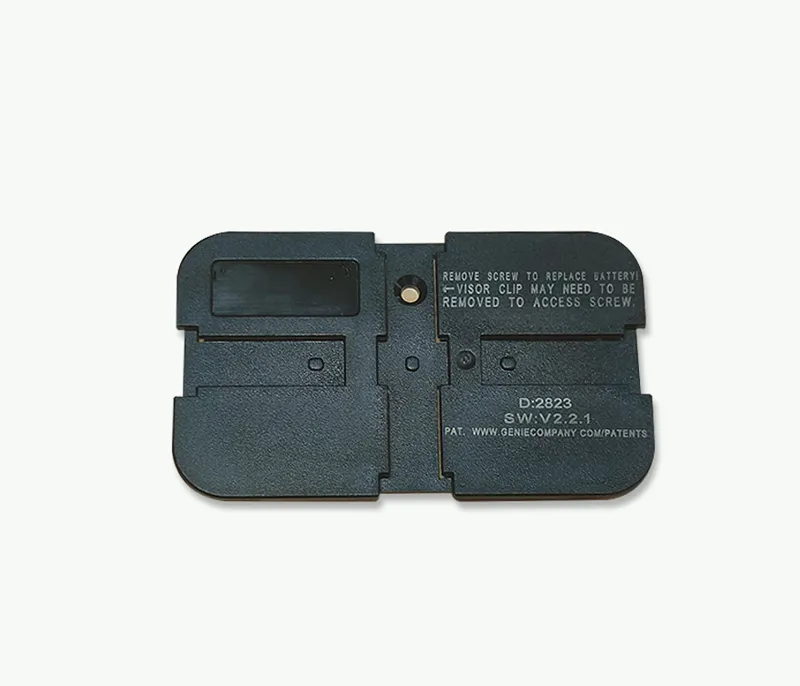

    • Plastic shell laser marking
      Plastic shell laser marking
    • Technical Data
    • Configuration
    • Inquiry
    Technical Data
    • Laser power 20W, 30W, 50W, 60W, 100W, 120W, 200W
    • Laser type fiber laser
    • Laser wavelength 1064nm
    • Marking range 50×50mm~300×300mm
    • Beam quality M²<1.5
    • Max. line speed 7000mm/s
    • Min. character size 0.05mm
    • Min. line width 0.01mm
    • Cooling method air cooling
    • Power supply 110V~240V, 50~60Hz
    • Operating temperature 5℃~40℃ (operation outside this range may affect performance and lifespan)

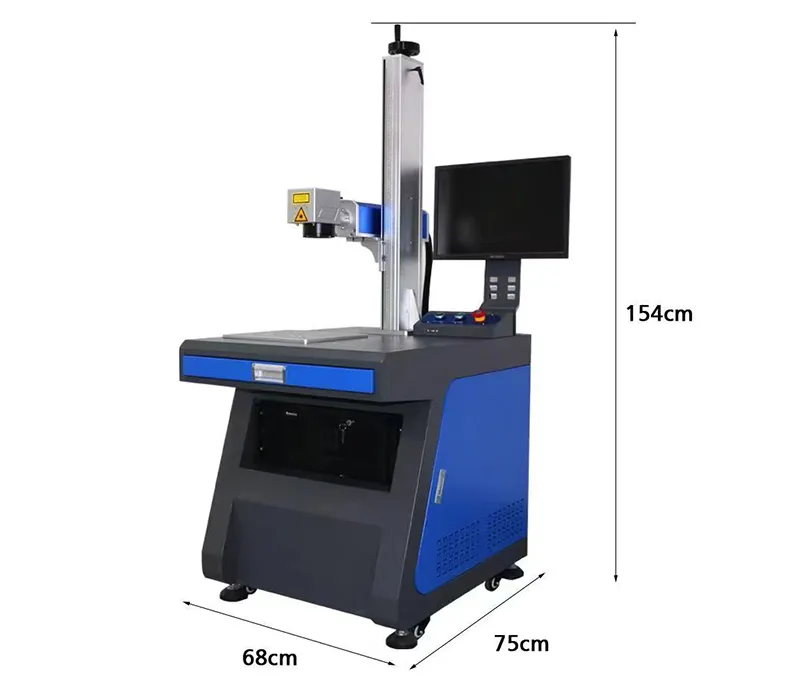

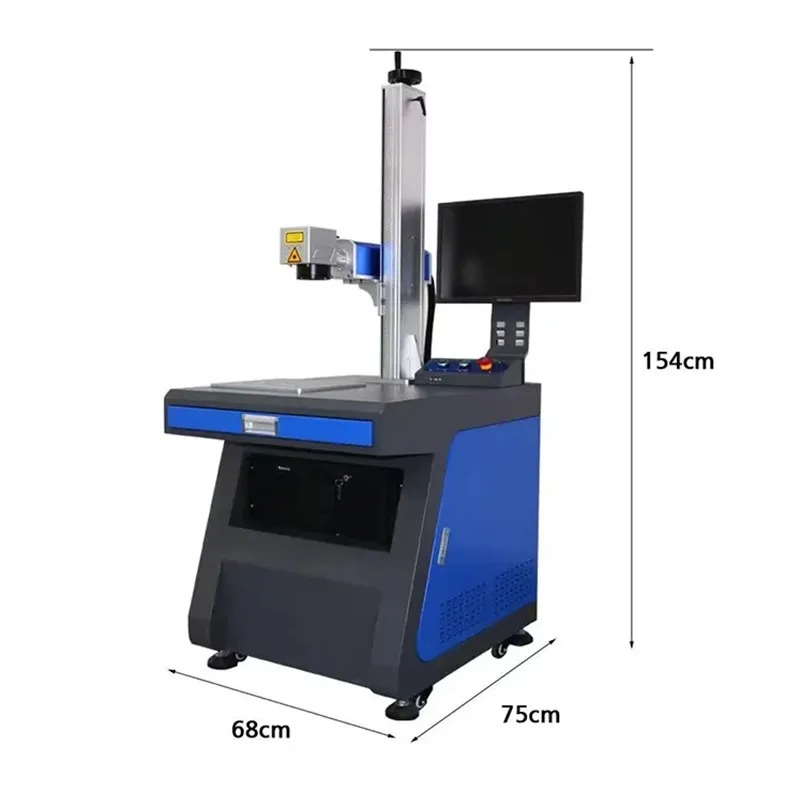

    • Machine dimensions 680×750×1540mm
    • Package size 890×700×1130mm
    • Machine weight 109kg
    • Package weight 119kg
    Configuration

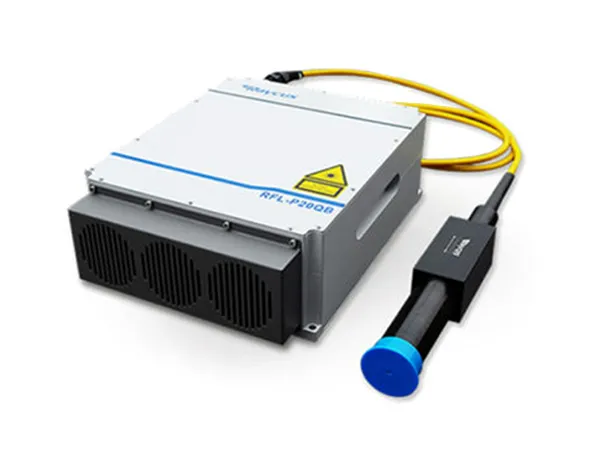

    Laser source

    Laser source
    We provide Raycus, JPT, MAX, SUPER, and IPG laser sources for our laser equipment, featuring high pump conversion efficiency, low power consumption, and excellent beam quality.

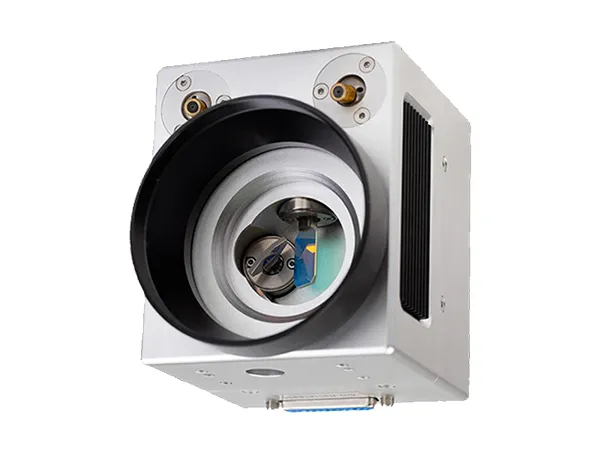

    Galvo scanner

    Galvo scanner
    Characterized by high-speed scanning of 7000mm/s, primarily used for laser marking and engraving. It is equipped with a dual-red-light focusing device, which significantly enhances focusing efficiency.

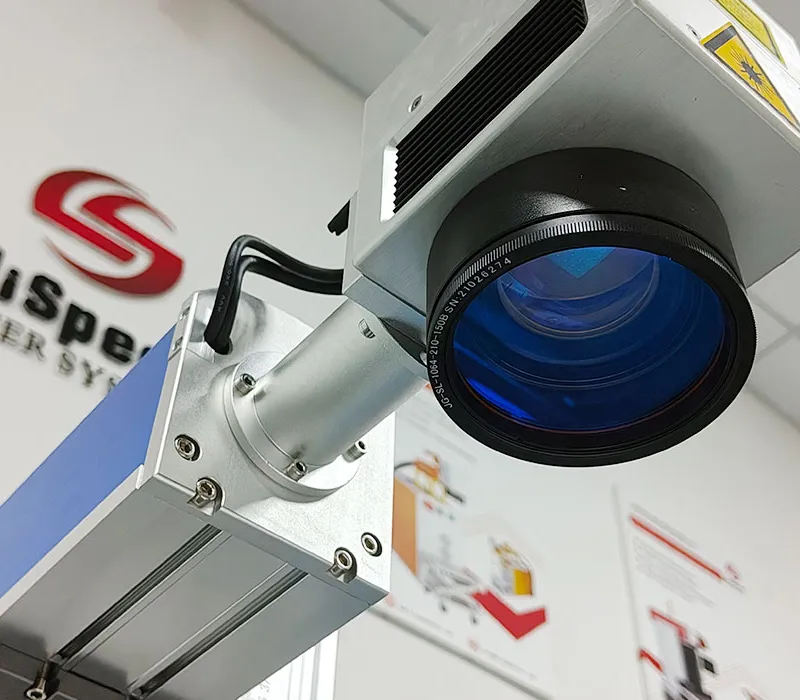

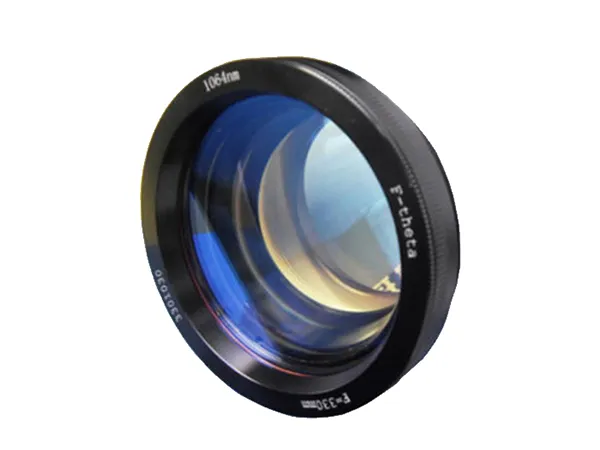

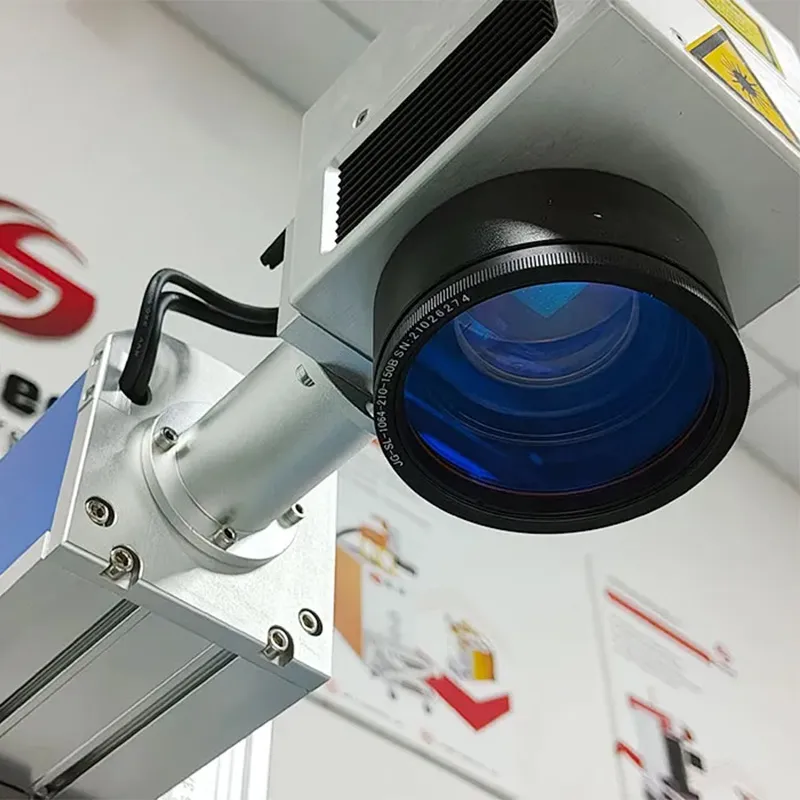

    F-theta lens

    F-theta lens
    Equipped with an F-theta lens for 1064nm wavelength, mainly used in fiber laser marking machines. Due to its longer wavelength, it offers strong energy penetration, making it suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.

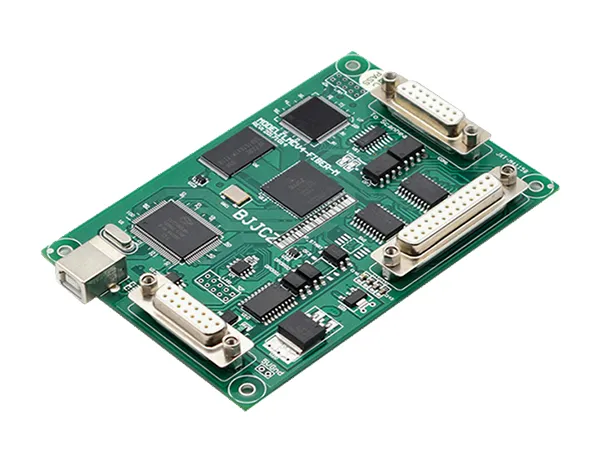

    Control card

    Control card
    Equipped with a genuine JCZ EZCAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.

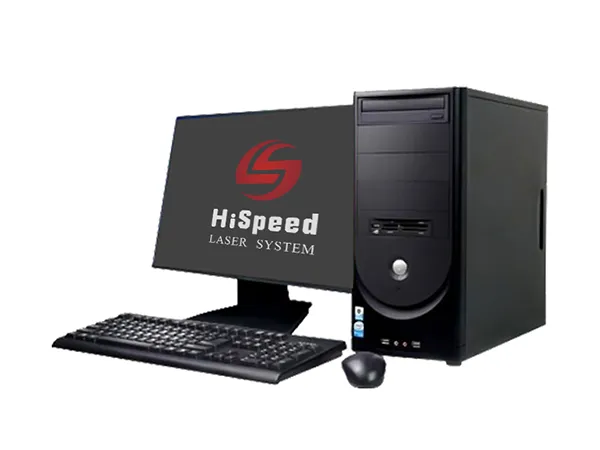

    Industrial computer

    Industrial computer
    Features an industrial computer with a Windows 10 system and a 19-inch LCD display to ensure smoother operation of the entire laser equipment.

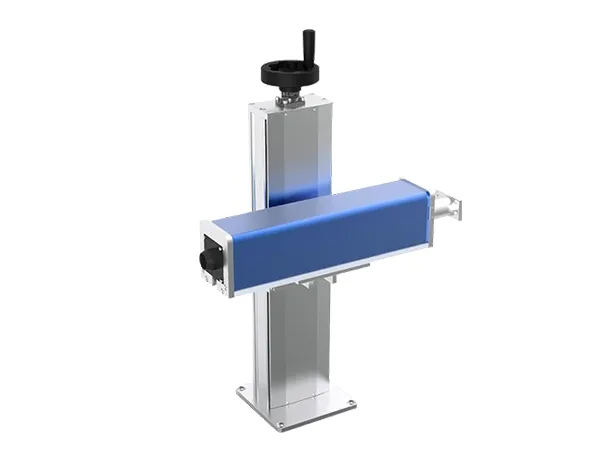

    Column

    Column
    Enables electric lifting and lowering, accommodating marking for workpieces of different heights without manual adjustment, greatly improving overall work efficiency.

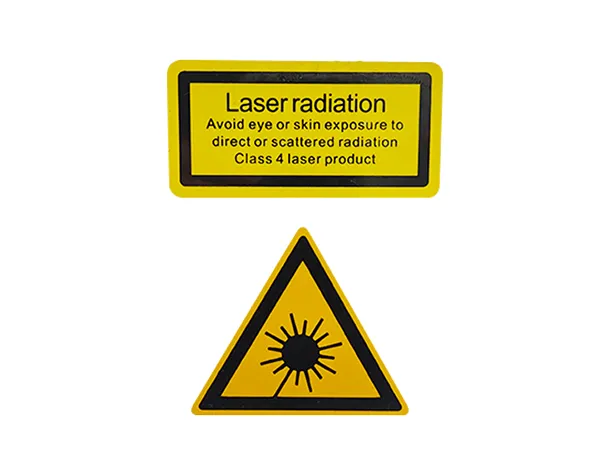

    Laser safety warning labels

    Laser safety warning labels
    Plays a crucial role in scenarios involving laser applications, primarily serving to alert people to potential laser hazards and ensure personnel safety.

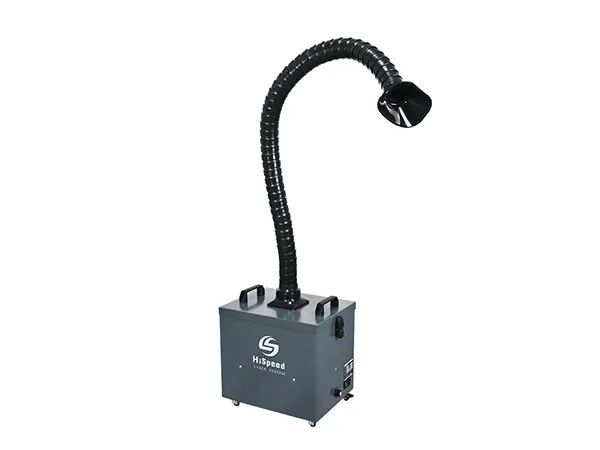

    • Fume ExtractorFume Extractor

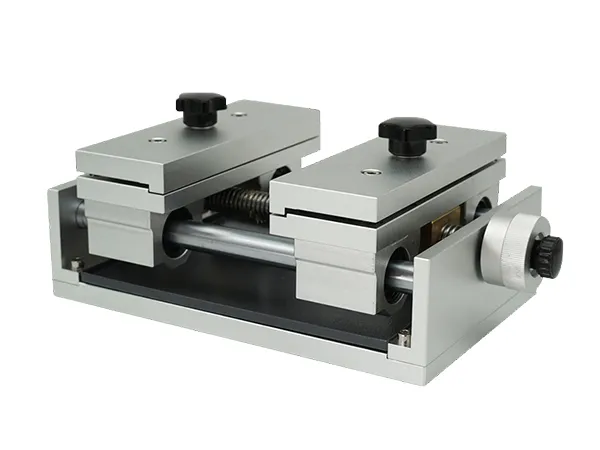

    • Cutting fixture (laser engraving vise)Cutting fixture (laser engraving vise)
    • F-theta lensF-theta lens

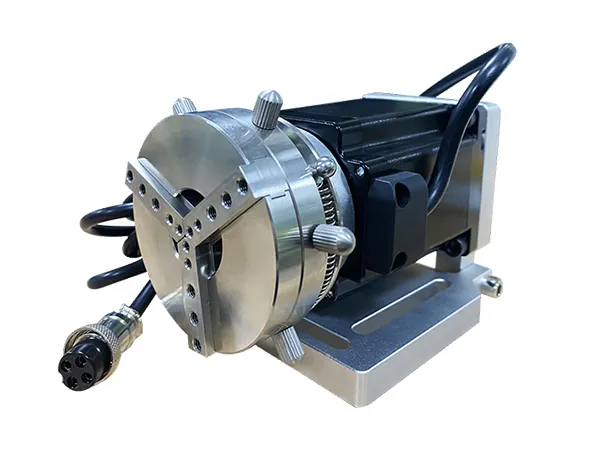

    • Rotary axis for ringRotary axis for ring

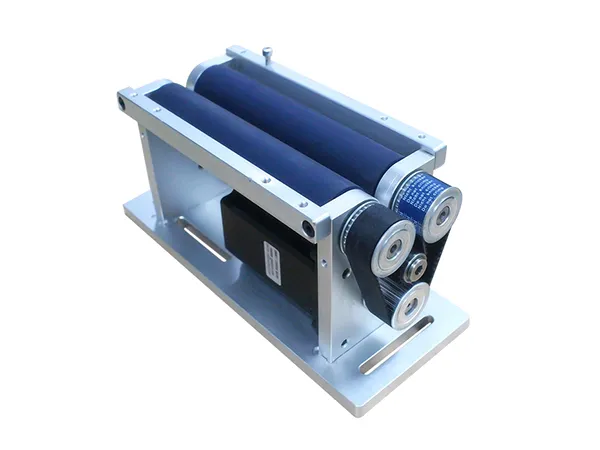

    • Rotary rollerRotary roller

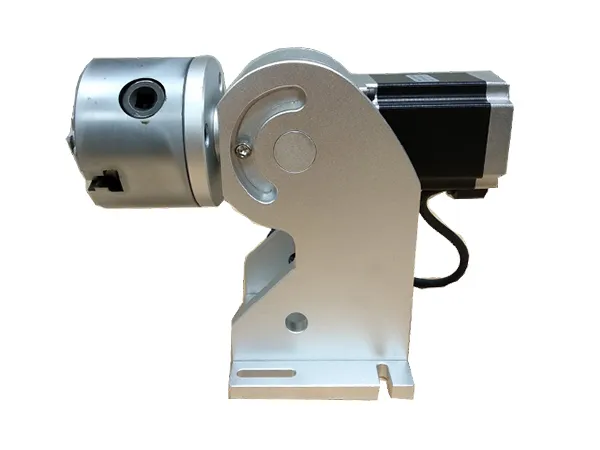

    • Rotary axisRotary axis
    • Fiber laser
    • Laser control cabinet
    • Work panel
    • Galvo scanner
    • F-theta lens
    • Control card
    • Laser power supply
    • Industrial computer
    • Power cord
    • Safety goggles
    • Foot pedal switch

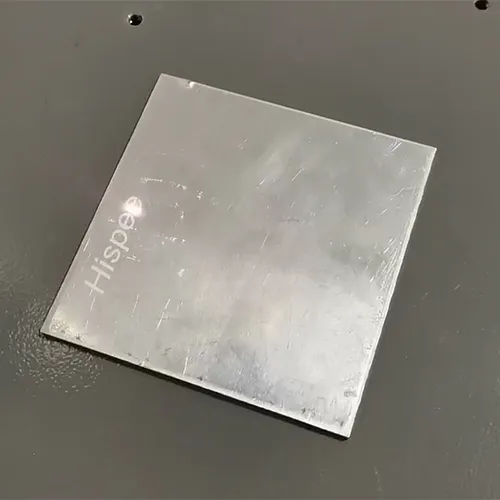

    • Aluminum test piece
    • Hex key tool set
    • Equipment warranty certificate
    • Shipping accessories list
    • Product catalog
    Our Laser Marking Machines

    Hispeed Laser has been a trusted manufacturer of industrial laser systems since 2017, delivering precision solutions for marking, welding, cutting, and cleaning applications. With annual production exceeding 1,000 units, we supply CE, UKCA, and FDA-certified equipment to clients in over 80 countries across Europe, Southeast Asia, and South America.

    Our advanced laser technology serves diverse industries including 3C electronics, automotive, medical devices, jewelry, and packaging. We offer comprehensive OEM/ODM services, fully customized solutions tailored to your specific requirements, and rapid delivery, typically within 7–10 days. Beyond installation, Hispeed provides complete lifecycle support to ensure optimal performance and longevity of your equipment.
    Get in Touch

    Yes, our industrial laser equipment supports marking on all metal materials. Through parameter optimization, it can adapt to 95% of industrial materials. We offer free sample testing for verification.

    Darker materials generally yield higher contrast. Lighter materials may require adjustments to frequency/power. The specific effect depends on the material.

    This depends on the complexity of the content. The length of the content and the machine's power will both affect processing time. We recommend sending us your specific requirements for a test validation of the exact results.

    Theoretically, for every 0.1mm increase in depth, efficiency decreases by approximately 15%. This also depends on the specific material being processed.

    This equipment supports 24-hour uninterrupted operation. Its stability has been verified through long-term practical application.
