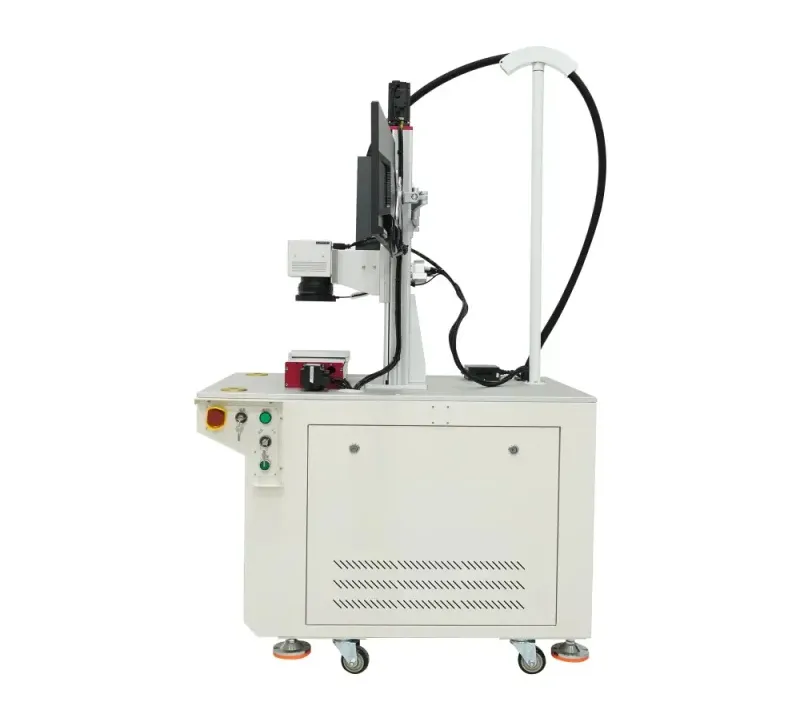

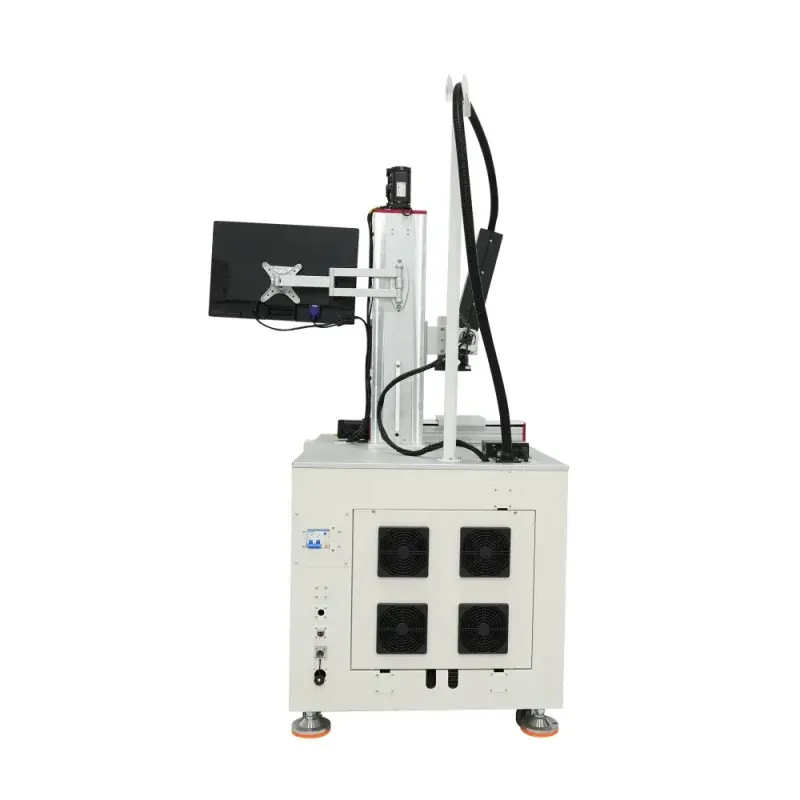

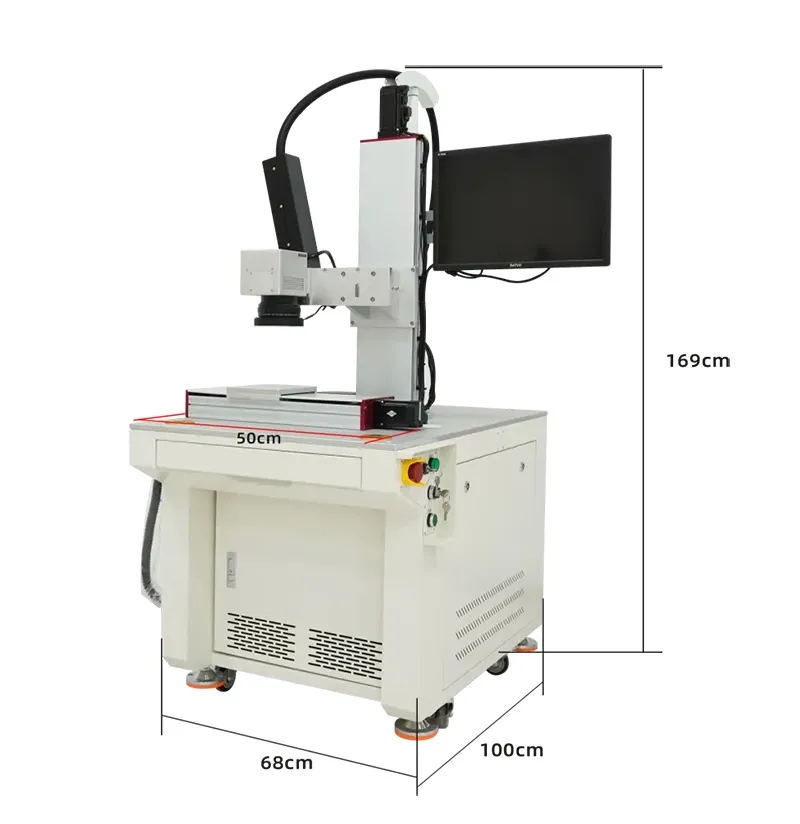

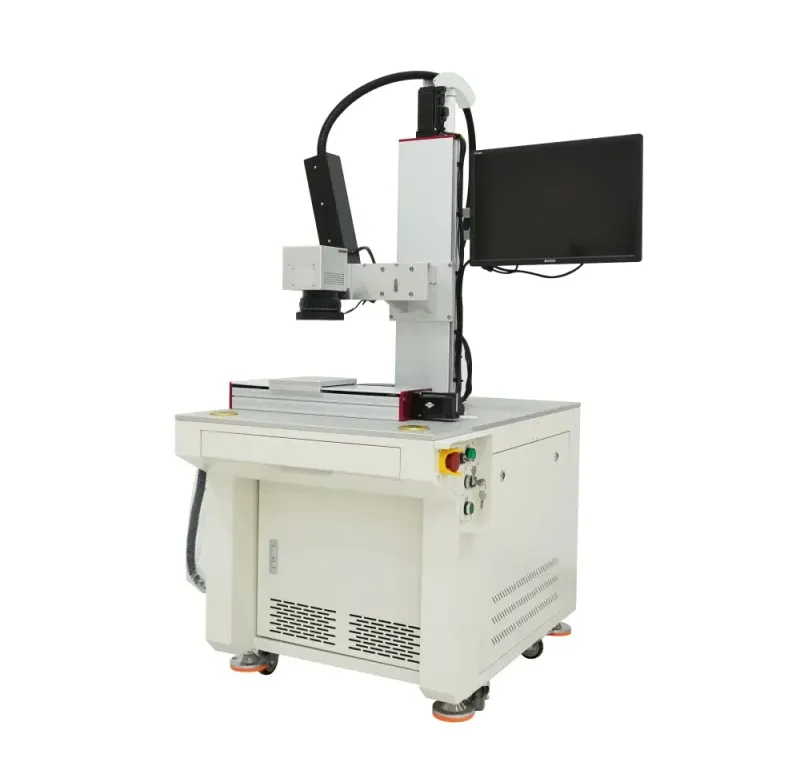

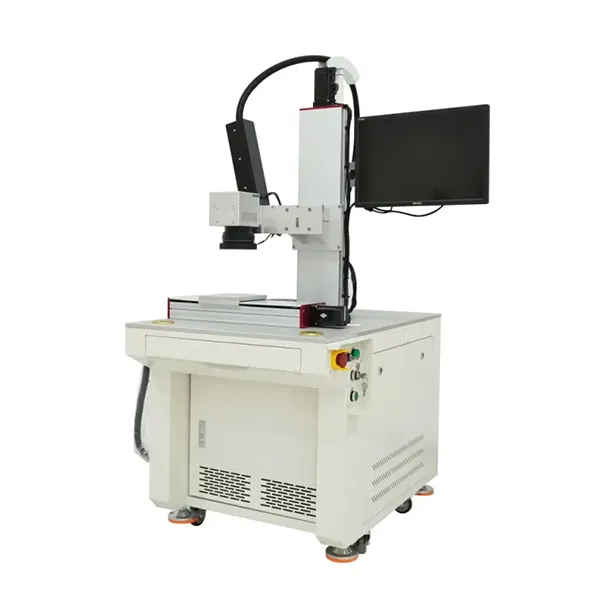

Galvo Fiber Laser Welding Machine

Galvo Fiber Laser Welding Machine
  • Galvo Fiber Laser Welding Machine
  • Galvo Fiber Laser Welding Machine
  • Galvo Fiber Laser Welding Machine
  • Galvo Fiber Laser Welding Machine
    • Working area: 200x200x200mm
    • Wavelength: 1064nm
    • Pulse Width : 0.3-20ms
    • Repeatability : ±0.01mm

    Galvanometer scanning laser electric welding machine can weld 2000 lugs (multiple points) per hour. The welding speed reaches 1-20 points / s, which effectively shortens the welding time. Therefore, it is especially suitable for spot welding of ultra-thin stainless steel circuit board inserts such as mobile phone shield, metal mobile phone or metal capacitor shell, hard disk, micromotor and sensor, especially the welding of cylindrical battery lug.

    Request a Quote
    Technical specifications
    Laser Power QCW-75(Peak Power:750Watts)
    QCW-150(Peak Power:1500Watts)
    Laser Type QCW fiber laser source
    Wavelength 1064nm
    Max Welding Thidkness 0.1-2.0mm
    Gross Powe ≤13kw
    Voltage 220V+10%/ 50Hz/ 30A
    Pulse Width 0.3-20ms
    Frequency 1-100Hz
    Spot Adjustable Range 0.2-2mm
    Positioning Red Indicator
    Repeatability ±0.01mm
    Control System PLC or PC (CNC2000）
    Working area 200mmx200mmx200mm
    Applications & Samples

    It is mainly used for high-speed spot welding of sheet metal materials, such as copper foil, stainless steel, nickel plate etc. It is also applicable to spot welding or sealing welding of various kinds of batteries, cell phone shielding cover, cell phone housing, capacitor products, computer hard disk, micromotor, sensor and other electronic industries. According to the welding requirements of the product, multi-channel output, time-sharing or energy-sharing can be adopted and used in conjunction with the assembly line to improve the welding efficiency.

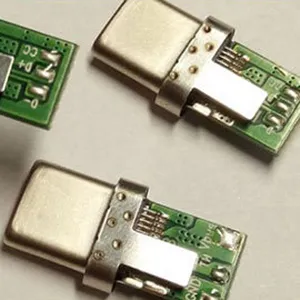

    Spot Welding Spot Welding
    (Material: stainless steel; penetration: 0.6MM)

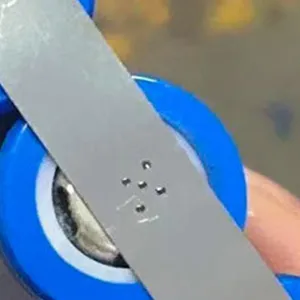

    Stitch Welding Stitch Welding
    (Material: stainless steel; penetration: 0.3MM)

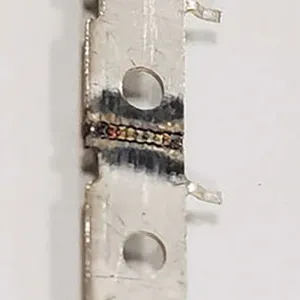

    Splice Welding Splice Welding
    (Material: stainless steel; penetration: 0.8MM)

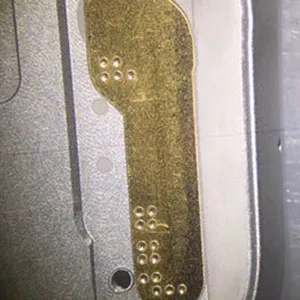

    Compound Welding Compound Welding
    (Material: aluminum + copper sheet; penetration: 0.6MM)
    System Components

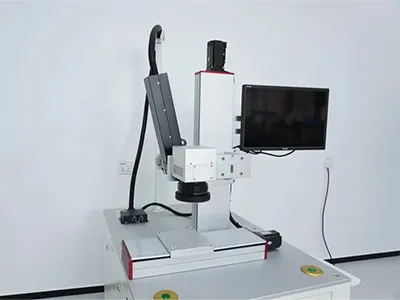

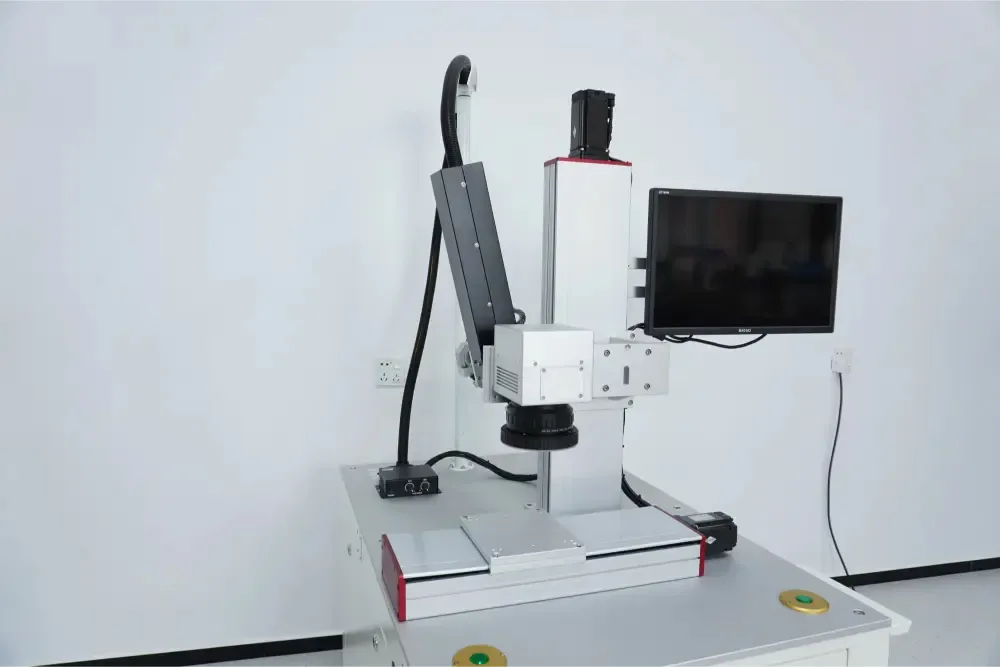

    Galvanometric System

    Galvanometric System
    The high-speed scanning galvanometer is used for laser positioning, and the speed can reach 7000mm/s. The idle time between welding positions is greatly reduced, thereby greatly improving production efficiency;

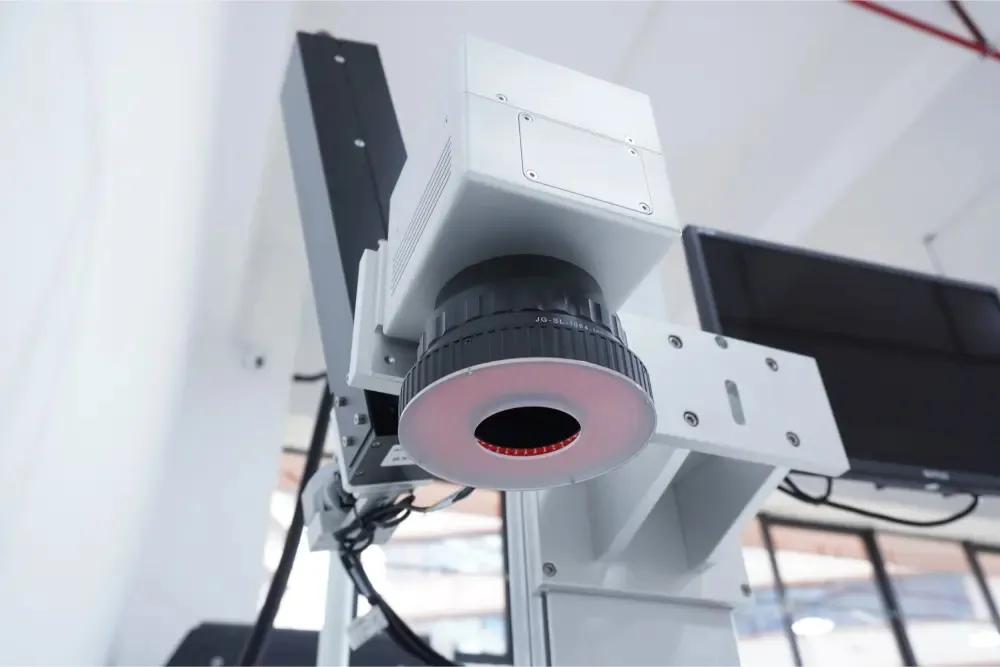

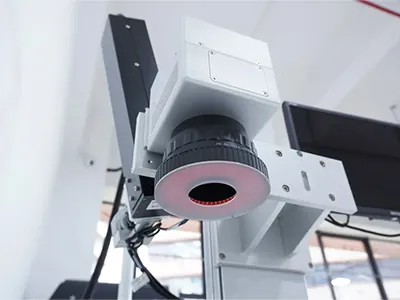

    Field Lens

    Field Lens
    Featuring an air-spaced design and anti-reflective coating, our compact Fθ field lens ensures a excellent throughput and durability with less than 1% distortion.

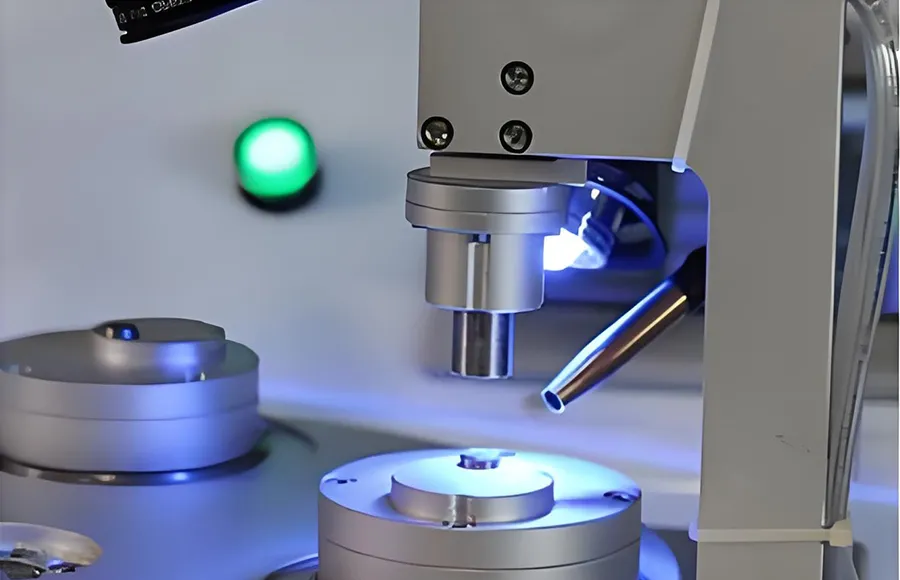

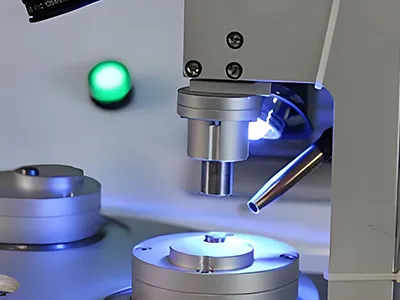

    Precision Welding

    Precision Welding
    Stable and continuous output, spot welding, butt welding, stitch welding, sealed welding, etc.: small welding width, small heat-affected zone, smooth and beautiful welding, high power density
