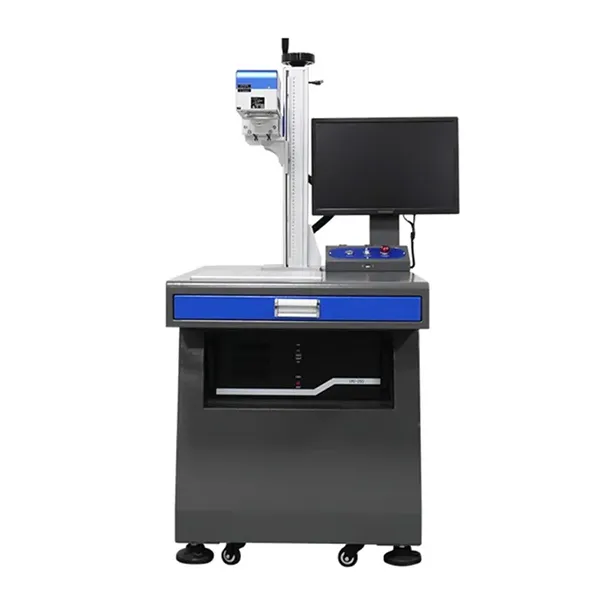

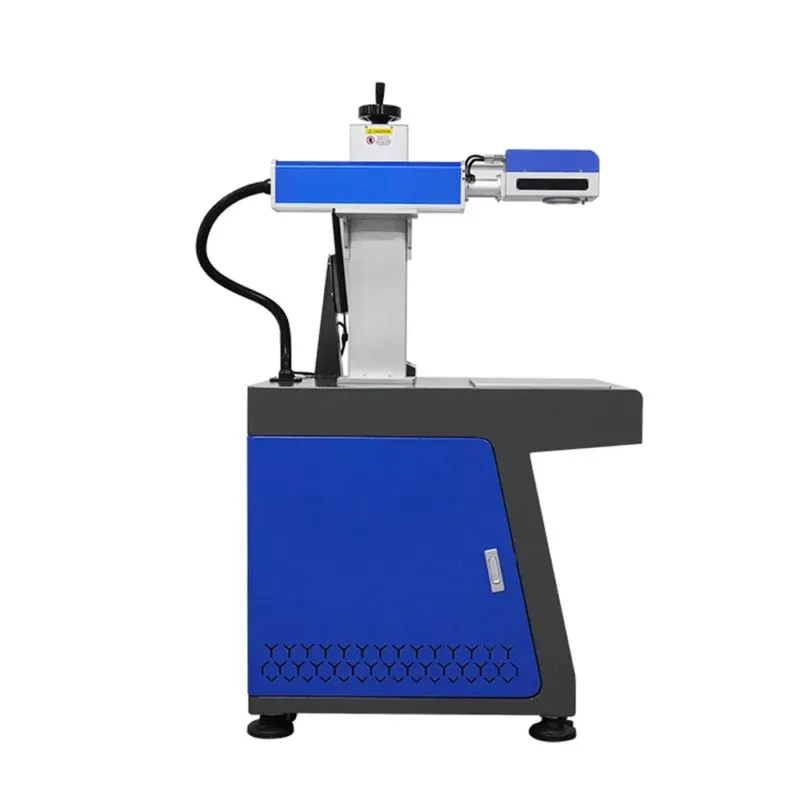

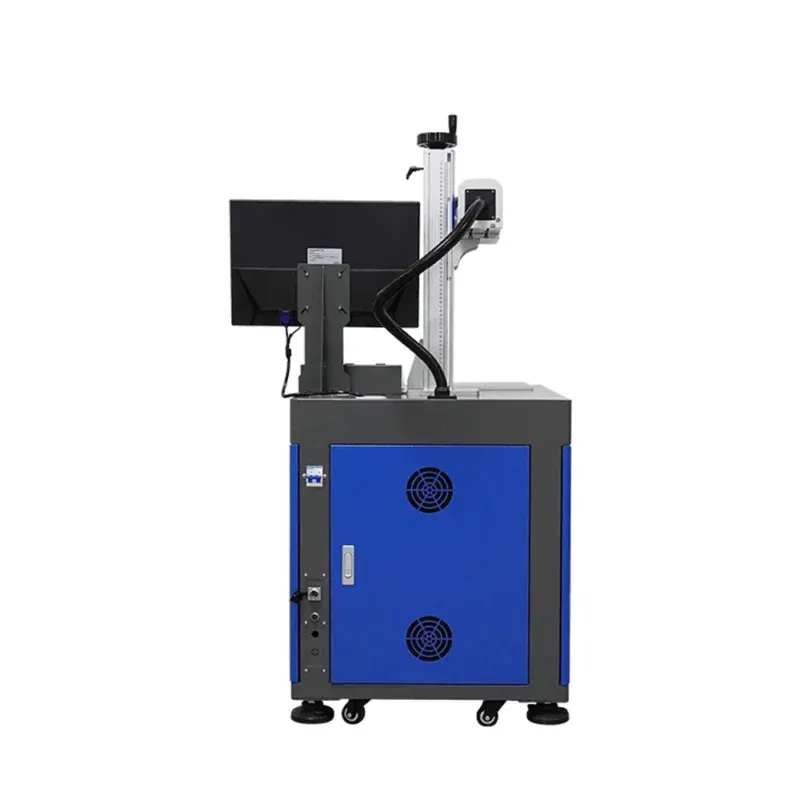

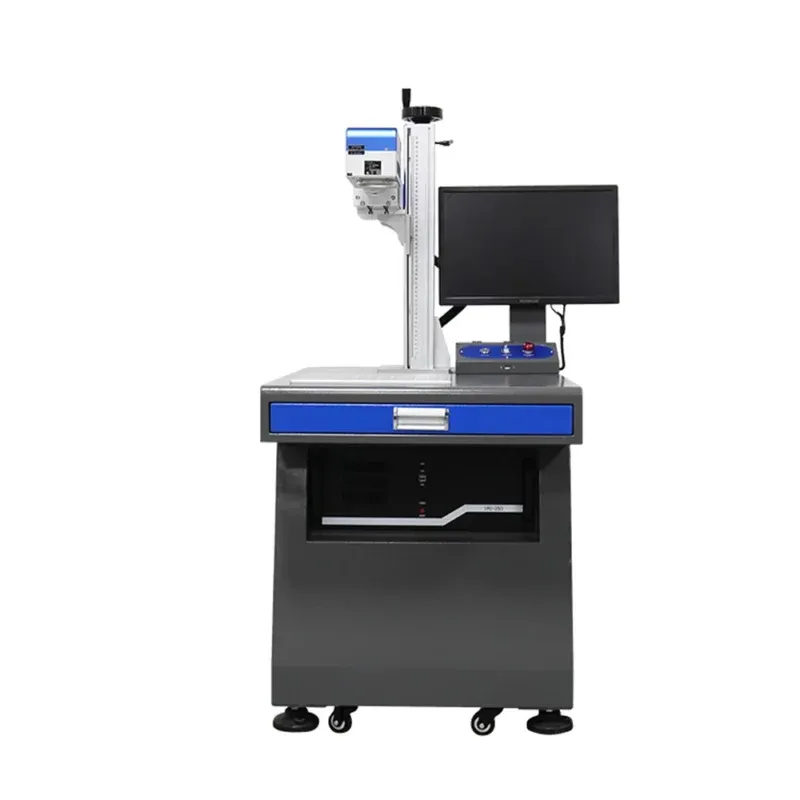

3D Fiber Laser Marking Machine with Dynamic Focus Systems
- Laser Power: 20 / 30 / 50W
- Marking Area: 70×70 — 400×400 mm
- Marking Depth: 0.03-0.5mm
- Laser type: Fiber(CO2 or UV is available)

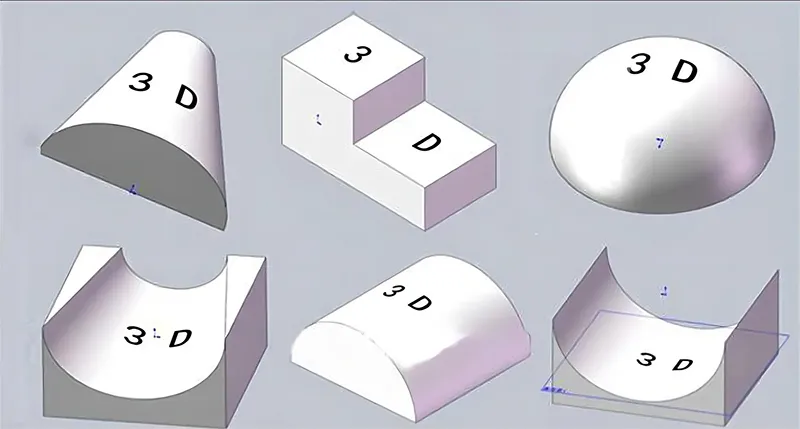

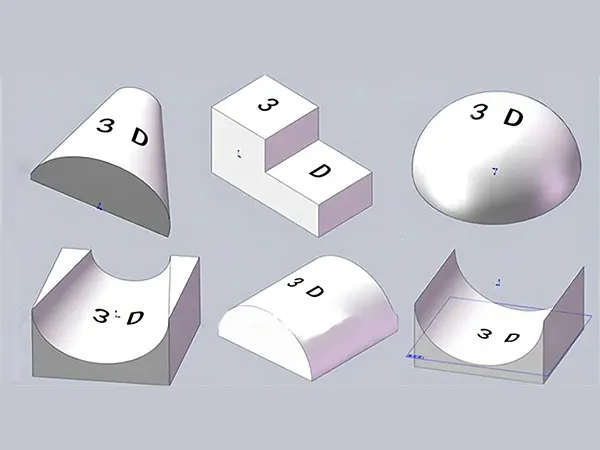

Break through the limitations of flat marking! Our 3D dynamic focusing laser marking machine is specially engineered for marking concave and convex surfaces, multi-level, deep carving and relief with flexibility. It perfectly solves the pain points of 2D laser equipment, such as blurred marking, deformed patterns and inaccurate focusing on uneven curved workpieces, and is the ideal choice for marking of complex surfaces.
Technical Specifications
| Model | |
| Laser Power | 20W 30W 50W |
| Laser type | Fiber(CO2 or UV is available) |
| Purpose | Marking and Engraving |
| Wavelength | 1064nm |
| Galvanometer | Dynamic Auto focus 3D scan head system |
| Marking Area | 70*70mm 110*110mm,150*150mm 200x200mm,300*300mm 400*400mm (optional) |
| Marking Depth | 0.03-0.5mm |
| Controller | Computer with marking software |
| Graphic format supported | JPG,BMP,DXF,PLT,STL |
| Working voltage | AC220V 50HZ ,AC110V 60HZ |
| Cooling type | Air cooling |
| Operating parameter | 0-40℃ |
| Laser module life | >70,000-100,000 hours |
| Warranty | 24 months |
| G.W. | 145KG |

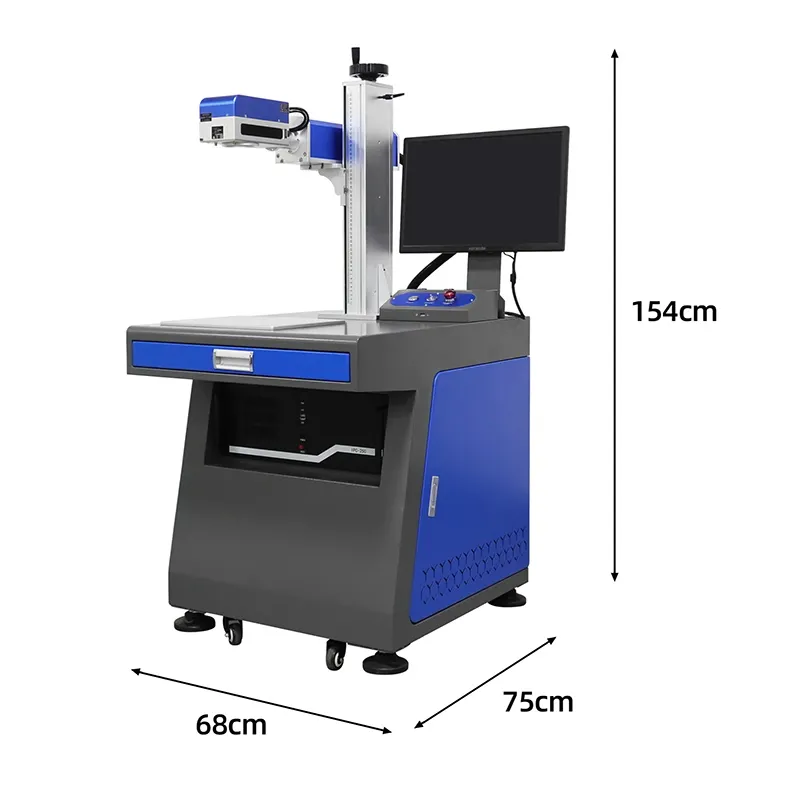

| Package(L*W*H) | 75*68*154cm |
Scan Lens Data Reference
| Marking range | Fiber | UV | ||
| (mm) | Variable focal length range(mm) | Variable focal length total (mm) | Variable focal lengthrange(mm) | Variable focal length total (mm) |
| 70*70 | 100-117 | 17 | 131-140 | 9 |
| 110*110 | 168-195 | 27 | 201-218 | 17 |
| 150*150 | 231-272 | 41 | 307-350 | 43 |
| 200*200 | 303-392 | 89 | 367-437 | 70 |
| 300*300 | 413-602 | 189 | 469-596 | 127 |
| 400*400 | 96-1036 | 440 | ||

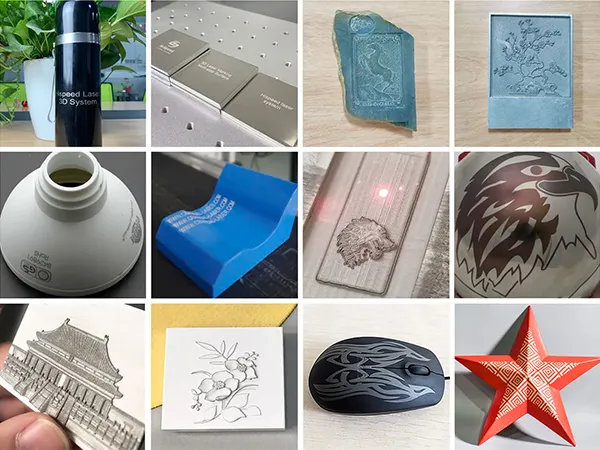

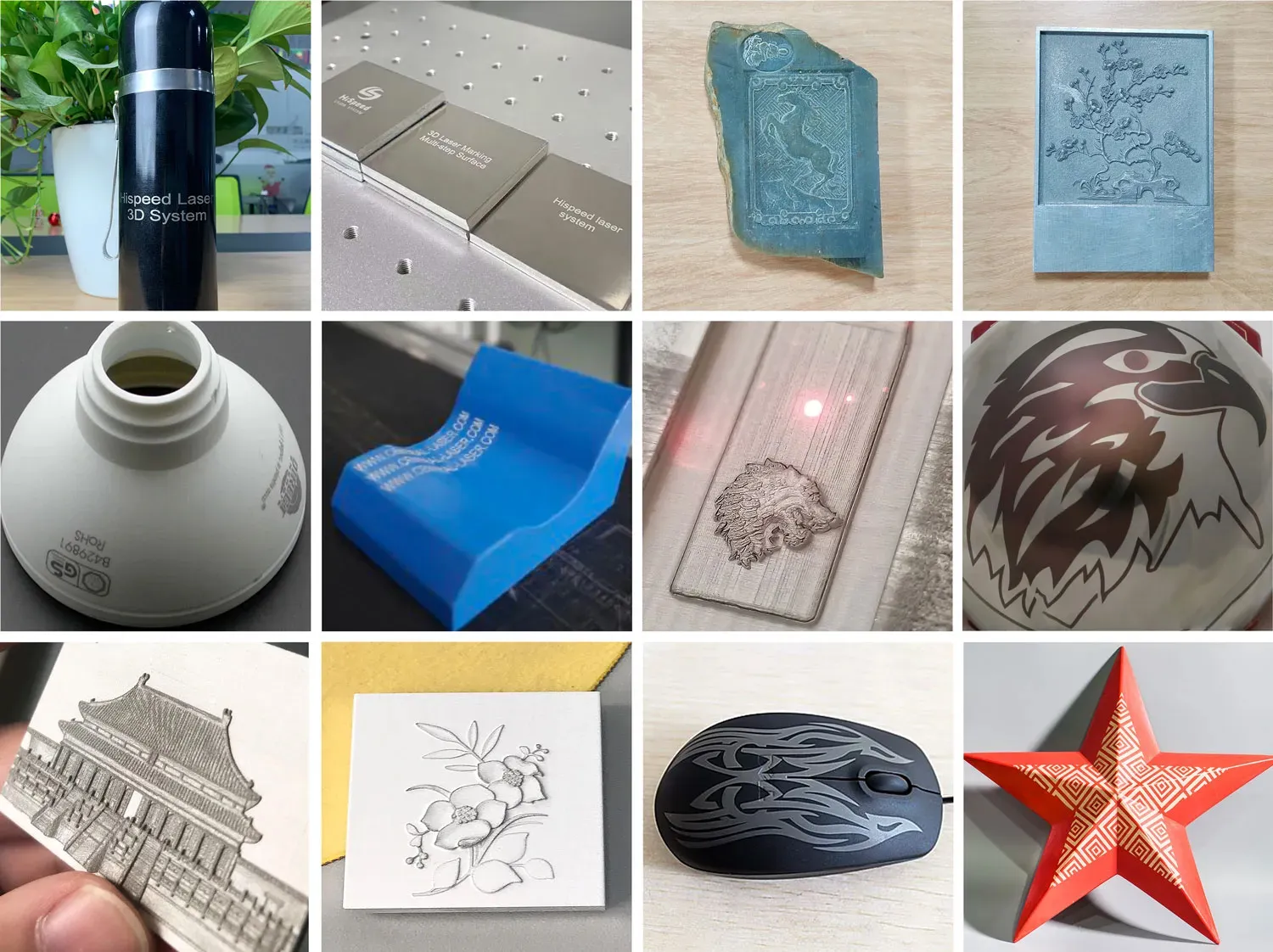

Laser Marking Curved Sample Display
- Auto machinery industry: steel sleeve, piston ring, engine, factory metal flexible paper plates, engine metal flexible paper plates, machine tools, etc.Applications
- Electronic communications industry: the keyboard, electronic components, household appliances panel, fiber optic cable, cable, etc.
- Hardware equipment industry: tools, measuring tools, cutting tools, sanitary ware, tableware, lock, knife cut, medical equipment, fitness equipment, stainless steel products, etc.
- Buckle sign industry: buttons, bags buckle, belt buckle, gold and silver jewelry, signs, badges, attendance cards, greeting cards, calendars, photo cards, leather bags, belts, pens and pen boxes, awards, trophies, all kinds of certificates, collections, arts, stamps, tablets, etc.
- Gauge glasses industry: metal case, the bottom of the table, glass frame, instrument panel, etc.
- Wooden craft industry: wooden crafts, calligraphy, and painting to copy and process table, furniture decoration, etc
- Packaging bottle caps industry: tobacco, food, medicine, cosmetics and so packaging, metal bottle caps, cans, etc
