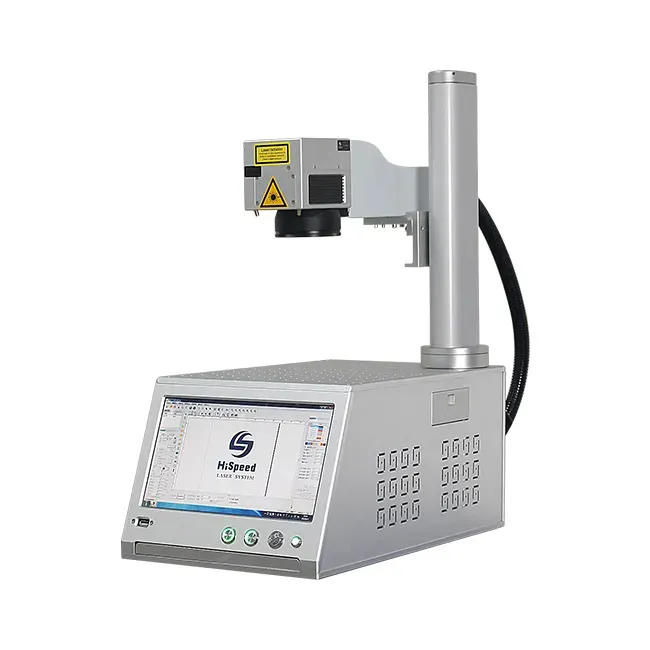

All-in-one Fiber Laser Marking Machine

All-in-one Fiber Laser Marking Machine
  • All-in-one Fiber Laser Marking Machine
  • All-in-one Fiber Laser Marking Machine
  • All-in-one Fiber Laser Marking Machine
    • Output Power: 20 / 30W
    • Marking range: 110x110mm
    • Precision: ±0.003mm
    • Speed: 0-8000mm/s

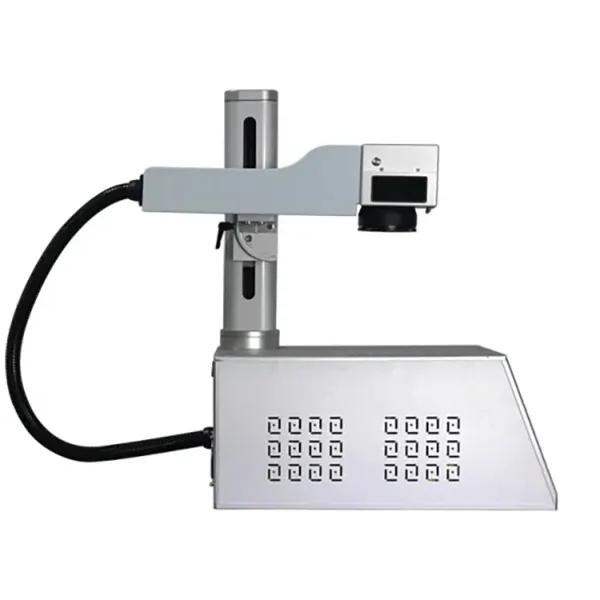

    The model all-in-one fiber laser marker LS-YLP-20L, with the small body and power marking function. From marking logos, barcodes, serial numbers, and even complex patterns, our all-in-one model fiber laser marking machine ensures quality results on various applications.

    Small in size but big on performance, this machine is perfect for limited space and small-scale marking projects. Its compact design and lightweight body make it highly portable and easy to maneuver, ensuring high precision and accuracy in every marking. This machine is built to deliver powerful laser marking at high speed and with exceptional efficiency.

    Request a Quote

    With its compact design, this all-in-one fiber laser marking machine is perfect for small businesses, workshops, and DIY enthusiasts. So, if you’re looking for a reliable and efficient marking solution that won’t take up too much space, this mini fiber laser marking machine is the perfect choice for you.

    Technical Specifications
    Model LS-YLP-20L / 30L
    Voltage 110V~220V
    Fiber Laser Source Maxphotonics (Raycus,JPT,MAX,IPG)
    Output Power 20W / 30W
    Laser wavelength 1064nm
    Modulation frequency range 20-100kHz
    Speed 0-8000mm/s
    Precision ±0.003mm
    Minimum line width 0.015mm
    Minimum height of characters 0.15mm
    Cooling way Air cooling
    Marking range 110x110mm
    Laser power supply 0.5KW,220V/50Hz, 110V/60HZ
    Software Auto-cad, CorelDraw, Photoshop software compatible
    Rotary device Optional Computer system:Windows xp,Windows 7 32bits
    Weight 31KG

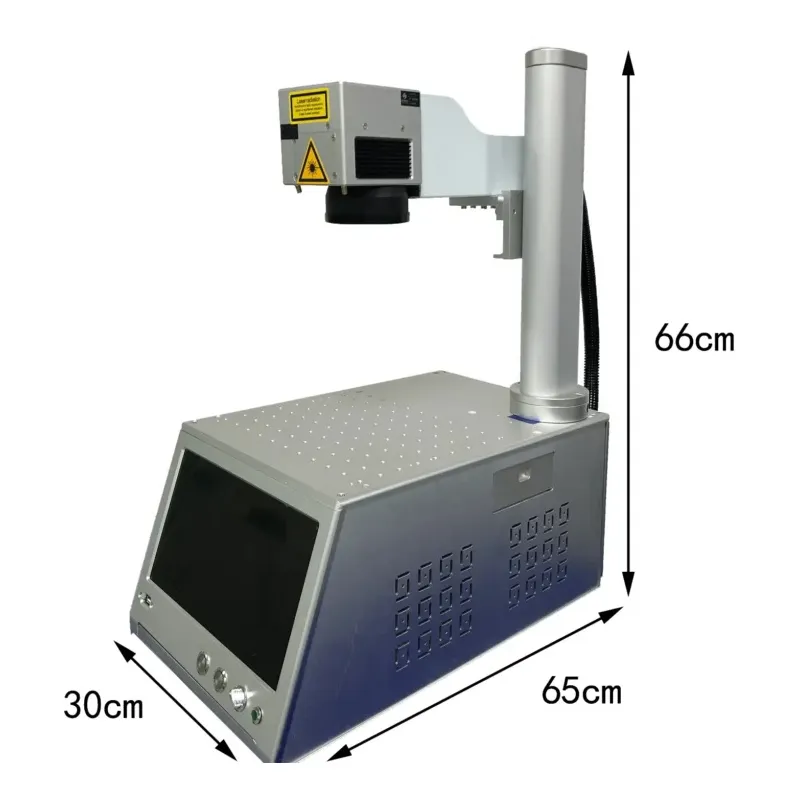

    Wooden case packing size 60*30*66cm
    Packing weight 52KG

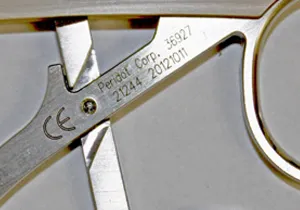

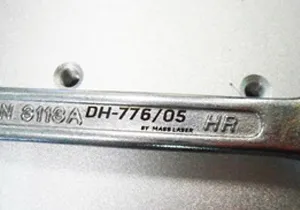

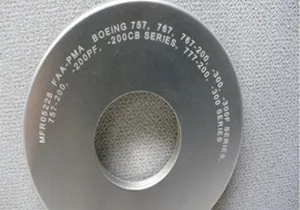

    Sample Show
    All-in-one Fiber Laser Marking Machine
    All-in-one Fiber Laser Marking Machine
    All-in-one Fiber Laser Marking Machine
    All-in-one Fiber Laser Marking Machine
    System Components

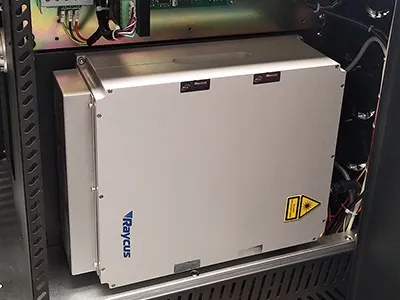

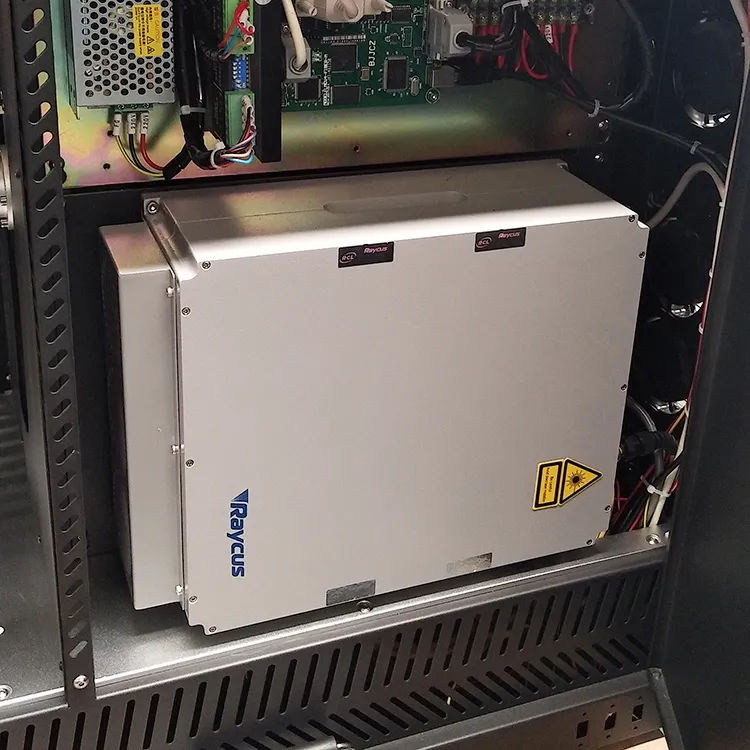

    Fiber Laser Source

    Fiber Laser Source
    Machine is standard with famous Raycus brand fber laser source, with expected 100,000 hours life span, support 7 x24 hours work ,Other brand fiber laser source like MaX,JPT,IPG optional.

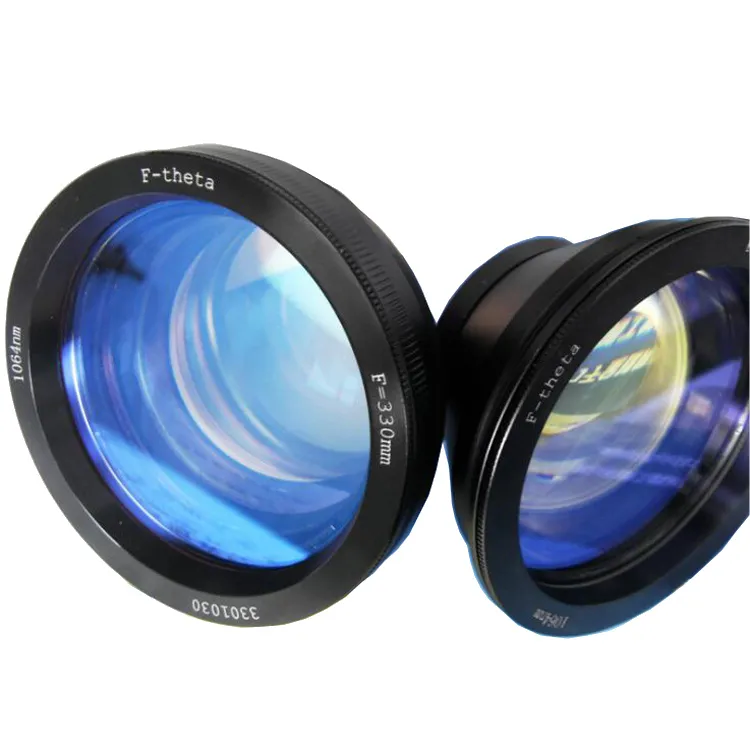

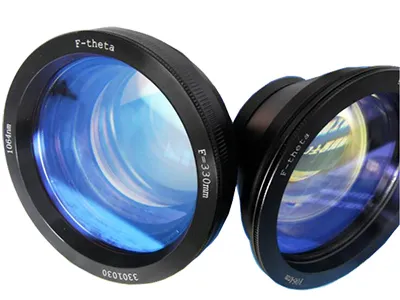

    Field Lens

    Field Lens
    Featuring an air-spaced design and anti-reflective coating, our compact Fθ field lens ensures a excellent throughput and durability with less than 1% distortion.

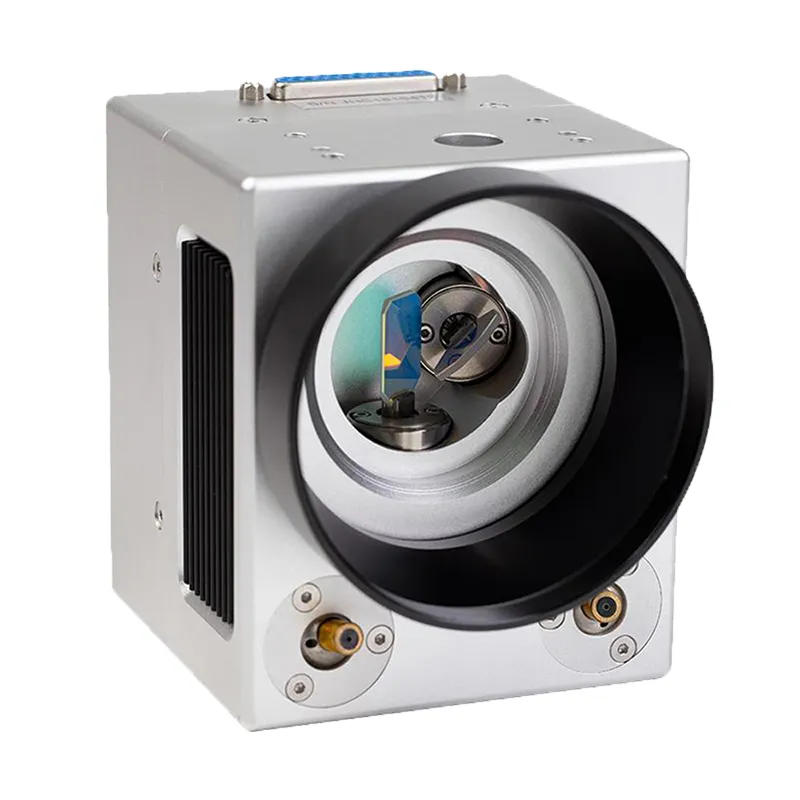

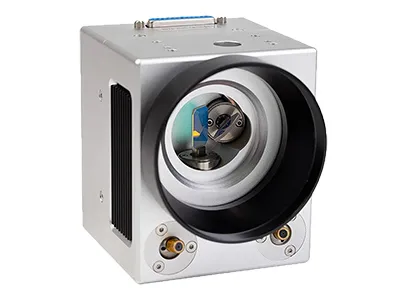

    Galvanometric System

    Galvanometric System
    The laser’s high-speed Galvo-Tech digital galvanometric systerm reduces delays and improves your engraving speed.
