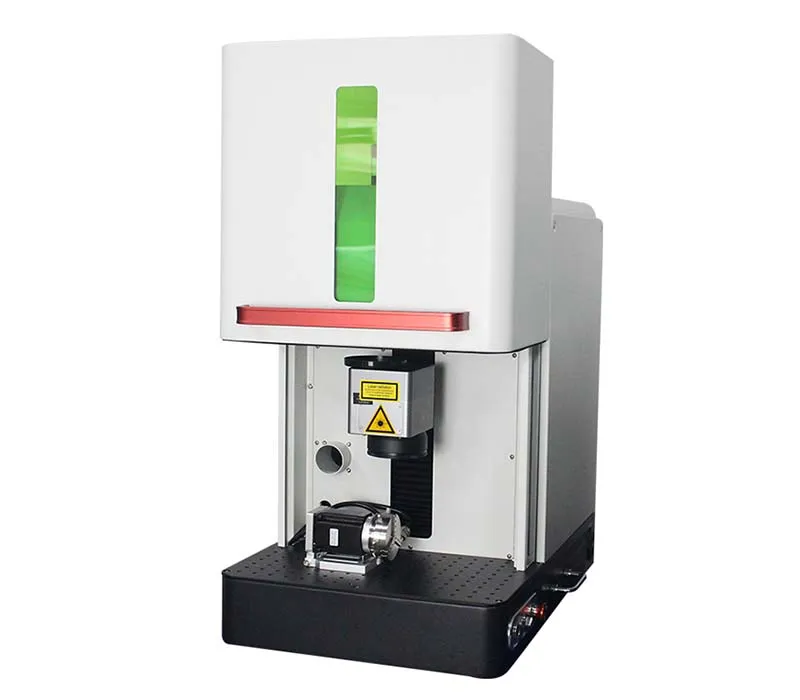

Full Enclosed Desktop Fiber Laser Marking Machine

Full Enclosed Desktop Fiber Laser Marking Machine
  • Full Enclosed Desktop Fiber Laser Marking Machine
  • Full Enclosed Desktop Fiber Laser Marking Machine
  • Full Enclosed Desktop Fiber Laser Marking Machine
  • Full Enclosed Desktop Fiber Laser Marking Machine
  • Full Enclosed Desktop Fiber Laser Marking Machine

    • Full Enclosed Desktop Fiber Laser Marking Machine
    • Laser wavelength 1064nm
    • Marking range 50×50mm~175×175mm
    • Beam quality M²<1.5
    • Max. line speed 7000mm/s

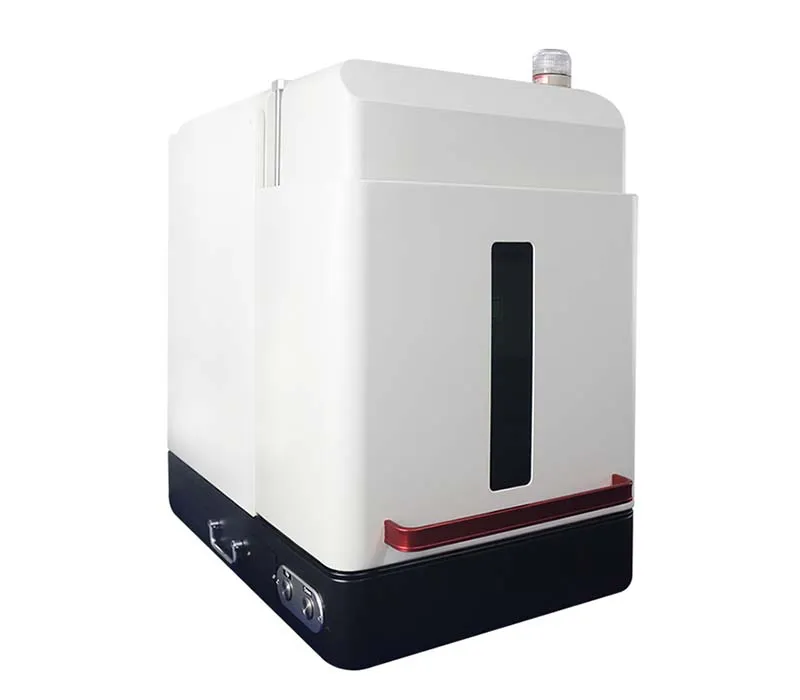

    The full enclosed desktop fiber laser marking machine features an integrated sealed structure that effectively isolates dust, oil stains, and laser scattering, ensuring operations comply with international safety standards (such as CE, FDA). The compact body integrates an anti-vibration base, maintaining excellent marking precision and equipment stability even during continuous high-intensity operation. Furthermore, the fully enclosed design significantly reduces noise and energy consumption, enabling factories to achieve green, efficient, and intelligent marking solutions.

    Request a Quote
    Applications
    Metals: Iron, steel, carbon steel, stainless steel, pure aluminum, aluminum alloy, zinc alloy, titanium alloy, brass, bronze, gold, silver, platinum
    Plastics: ABS, PVC, PE, HDPE
    • Stainless steel laser marking
      Stainless steel laser marking
    • Pen laser marking
      Pen laser marking
    • Business card case laser marking
      Business card case laser marking
    • Brass laser marking
      Brass laser marking
    • Aluminum alloy laser marking
      Aluminum alloy laser marking
    • Carbide drill bit laser marking
      Carbide drill bit laser marking
    • Serial number laser marking
      Serial number laser marking
    • Metal flask laser engraving
      Metal flask laser engraving

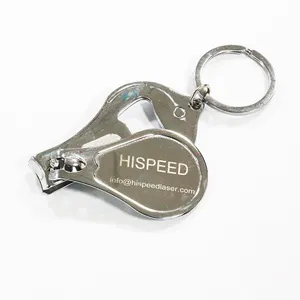

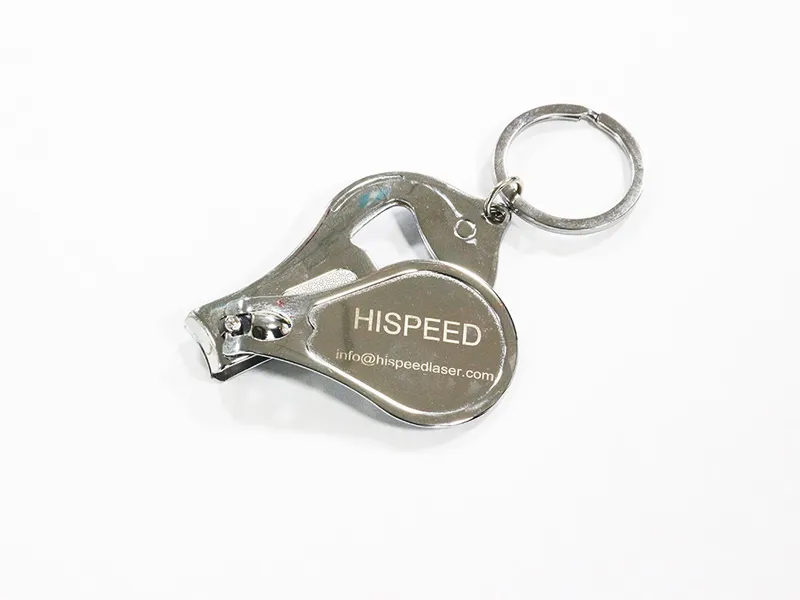

    • Stainless steel nail clipper laser marking
      Stainless steel nail clipper laser marking

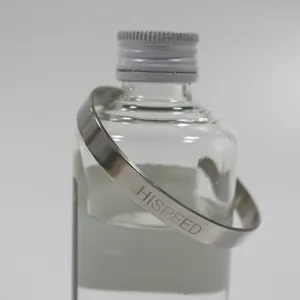

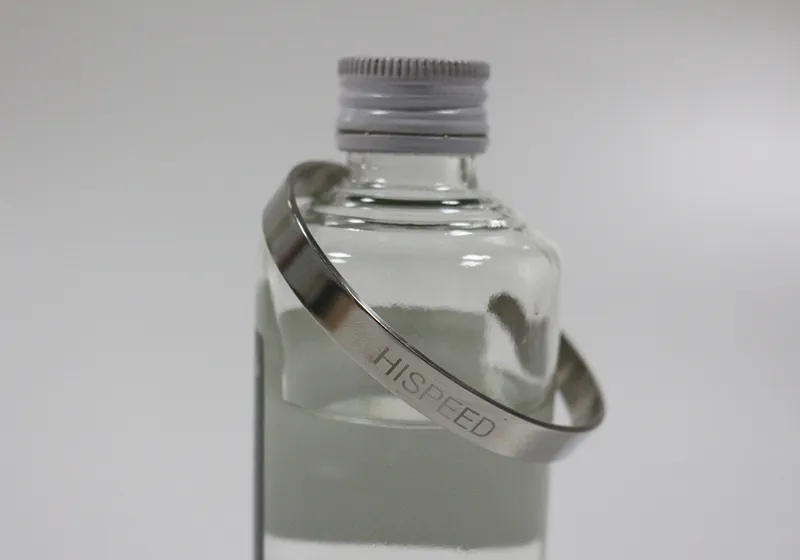

    • Stainless steel bracelet laser marking
      Stainless steel bracelet laser marking

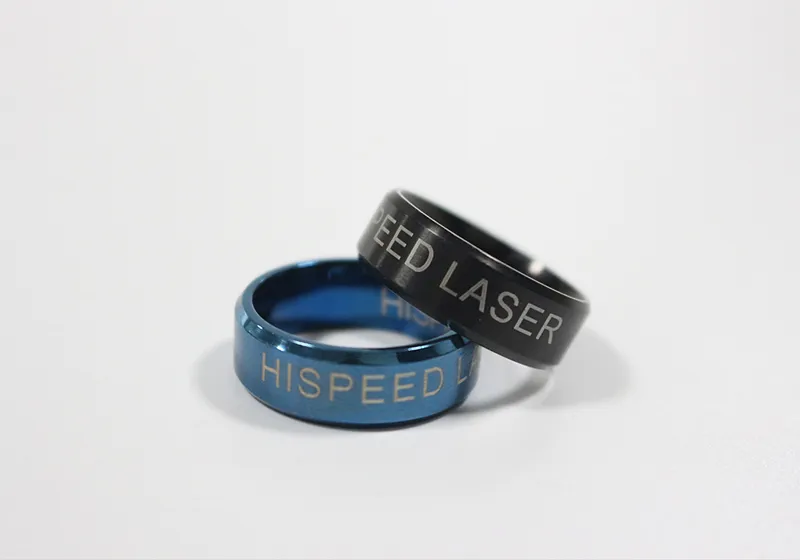

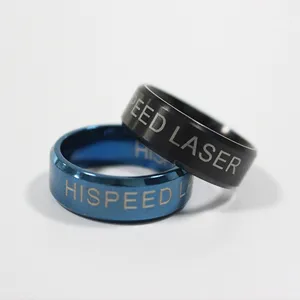

    • Metal ring laser marking
      Metal ring laser marking

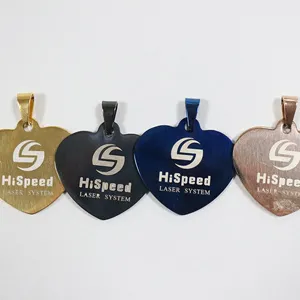

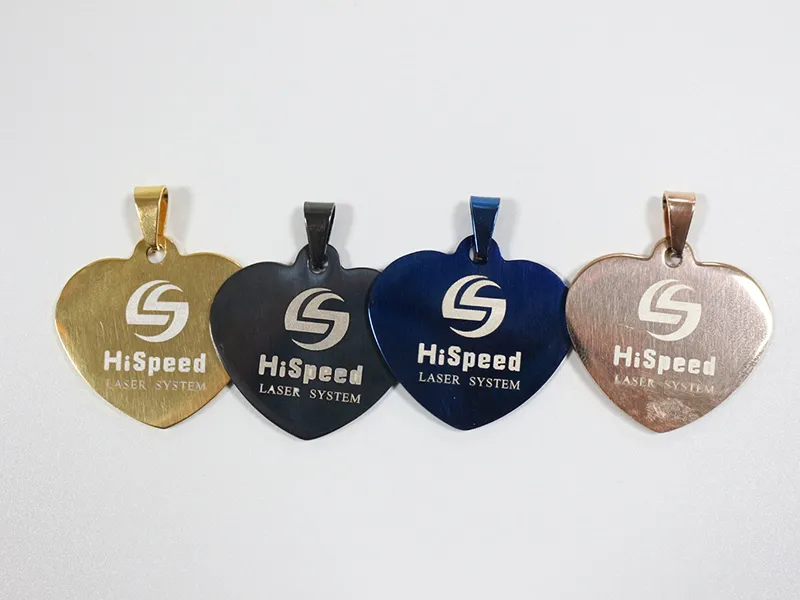

    • Stainless steel necklace pendant laser marking
      Stainless steel necklace pendant laser marking

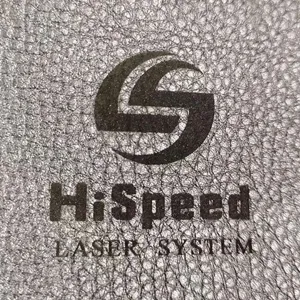

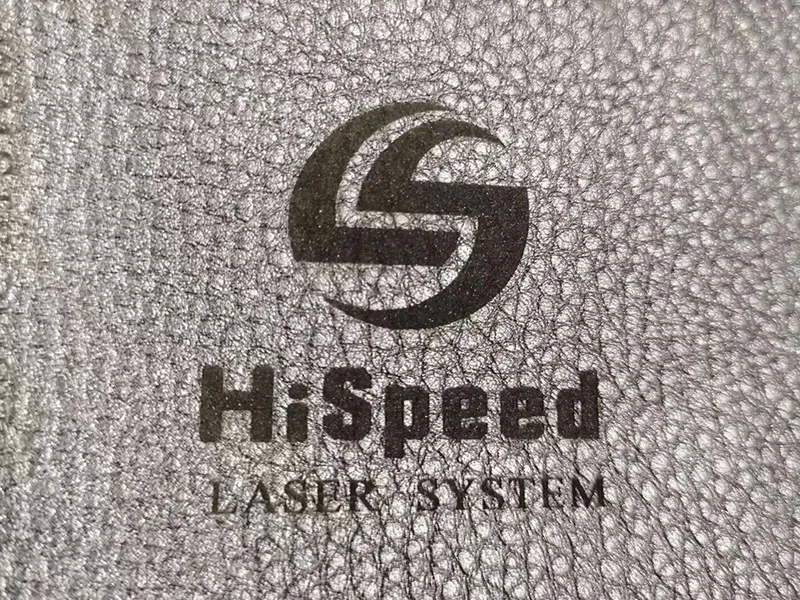

    • PU leather laser marking
      PU leather laser marking

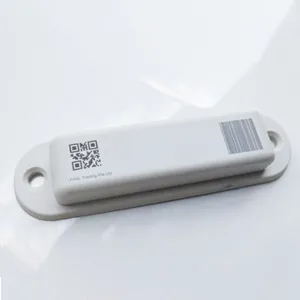

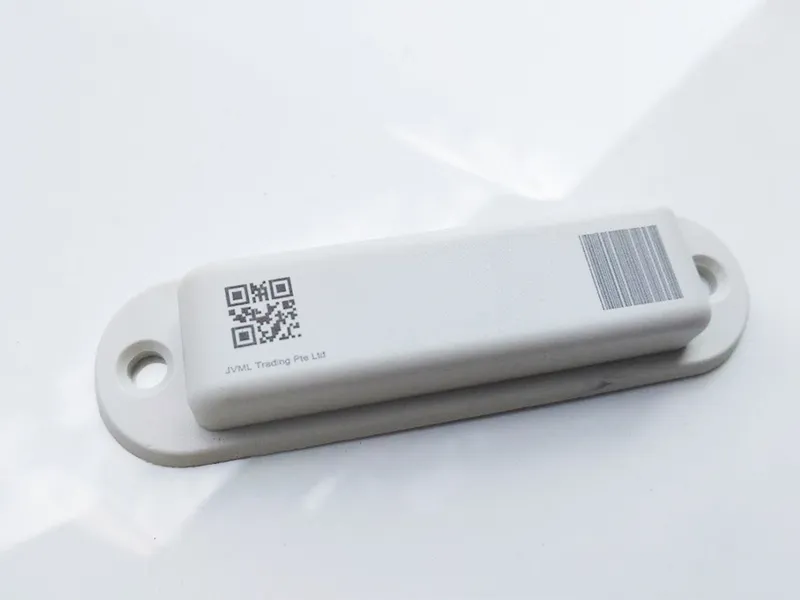

    • ABS plastic laser marking
      ABS plastic laser marking
    • Technical Data
    • Configuration
    • Inquiry
    Technical Data
    • Laser power 20W, 30W, 50W
    • Laser type fiber laser
    • Laser wavelength 1064nm
    • Marking range 50×50mm~175×175mm
    • Beam quality M²<1.5
    • Max. line speed 7000mm/s
    • Min. character size 0.05mm
    • Min. line width 0.01mm
    • Cooling method air cooling
    • Power supply 110V/60Hz, 240V/50Hz
    • Operating temperature 5℃~40℃ (operation outside this range may affect performance and lifespan)

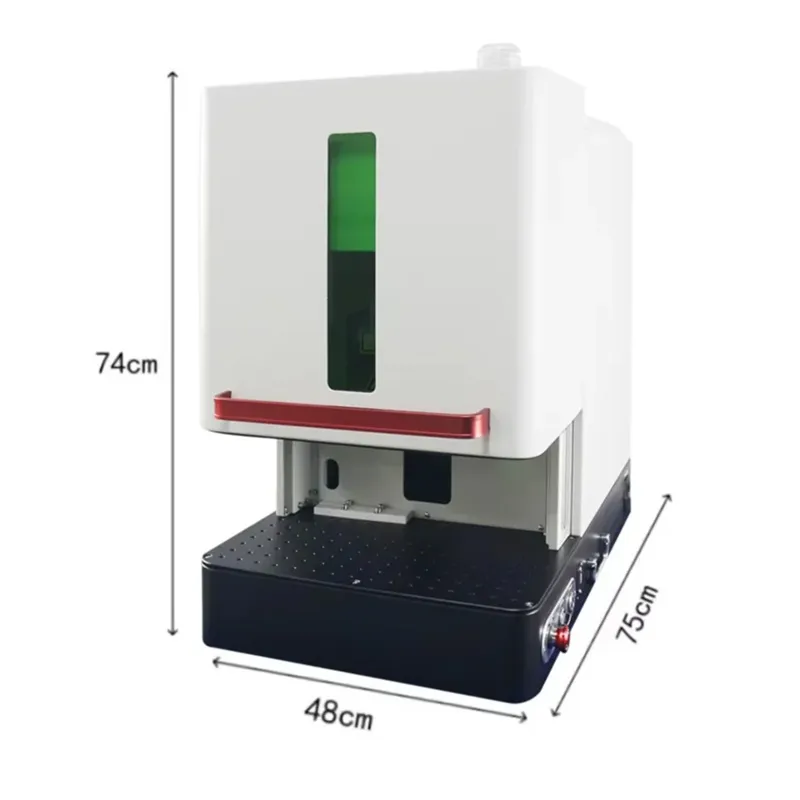

    • Machine dimensions 480×750×740mm
    • Package size 500×820×880mm
    • Machine weight 75kg
    • Package weight 85kg
    Configuration
    Laser source

    Laser source
    We provide Raycus, JPT, MAX, SUPER, and IPG laser sources for our laser equipment, featuring high pump conversion efficiency, low power consumption, and excellent beam quality.

    Galvo scanner

    Galvo scanner
    The 7110 model galvo scanner is characterized by high-speed scanning of 7000mm/s, primarily used for laser marking and engraving. It is equipped with a dual-red-light focusing device, which significantly enhances focusing efficiency.

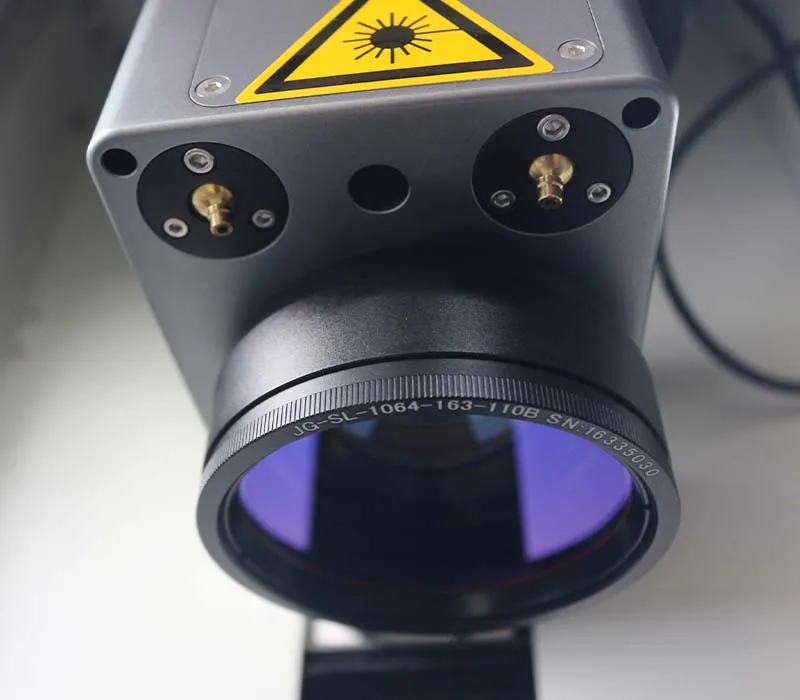

    F-theta lens

    F-theta lens
    Equipped with an F-theta lens for 1064nm wavelength, mainly used in fiber laser marking machines. Due to its longer wavelength, it offers strong energy penetration, making it suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.

    Control card

    Control card
    Equipped with a genuine JCZ EZCAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.

    Laptop

    Laptop
    Features a major brand Lenovo laptop, equipped with a Windows 10 system and a 14-inch display, to ensure smoother operation of the entire laser equipment.

    Column

    Column
    Enables electric lifting and lowering, accommodating marking for workpieces of different heights without manual adjustment, greatly improving overall work efficiency.

    Laser safety warning labels

    Laser safety warning labels
    Play a crucial role in scenarios involving laser applications, primarily serving to alert people to potential laser hazards and ensure personnel safety.

    • Fume ExtractorFume Extractor
    • Cutting fixture (laser engraving vise)Cutting fixture (laser engraving vise)
    • F-theta lensF-theta lens
    • Rotary axis for ringRotary axis for ring
    • Rotary rollerRotary roller
    • Rotary axisRotary axis
    • Fiber laser
    • Full enclosed laser control cabinet

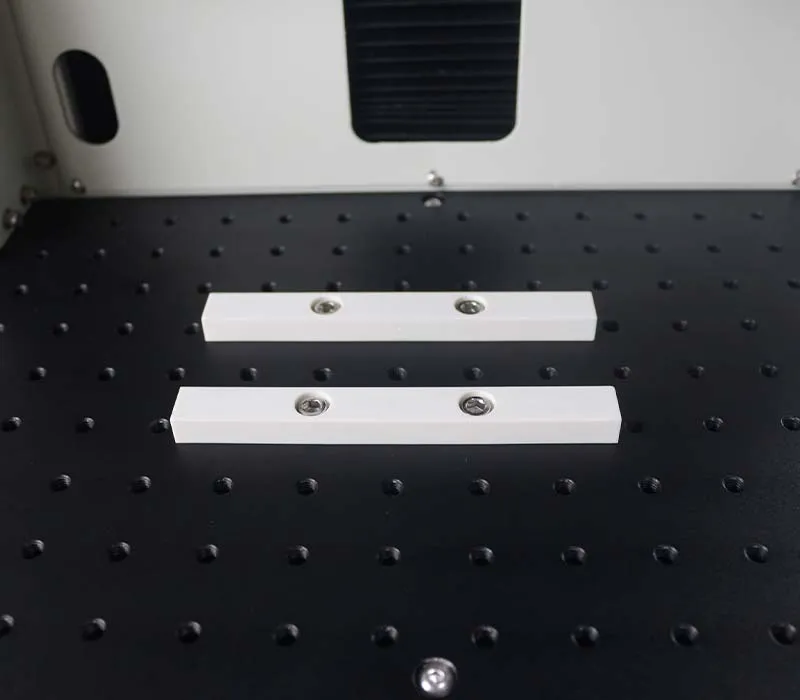

    • Work panel
    • Galvo scanner
    • F-theta lens
    • Control card
    • Laser power supply
    • Laptop
    • Power cord
    • USB connection cable
    • Safety goggles
    • Foot pedal switch
    • Aluminum test piece
    • Hex key tool set
    • Equipment warranty certificate
    • Shipping accessories list
    • Product catalog
    Our Laser Marking Machines

    Hispeed Laser has been a trusted manufacturer of industrial laser systems since 2017, delivering precision solutions for marking, welding, cutting, and cleaning applications. With annual production exceeding 1,000 units, we supply CE, UKCA, and FDA-certified equipment to clients in over 80 countries across Europe, Southeast Asia, and South America.

    Our advanced laser technology serves diverse industries including 3C electronics, automotive, medical devices, jewelry, and packaging. We offer comprehensive OEM/ODM services, fully customized solutions tailored to your specific requirements, and rapid delivery, typically within 7–10 days. Beyond installation, Hispeed provides complete lifecycle support to ensure optimal performance and longevity of your equipment.

    Get in Touch

    This depends on the complexity of the content. The length of the content and the machine's power will both affect processing time. We recommend sending us your specific requirements for a test validation of the exact results.

    This equipment supports 24-hour uninterrupted operation. Its stability has been verified through long-term practical application.

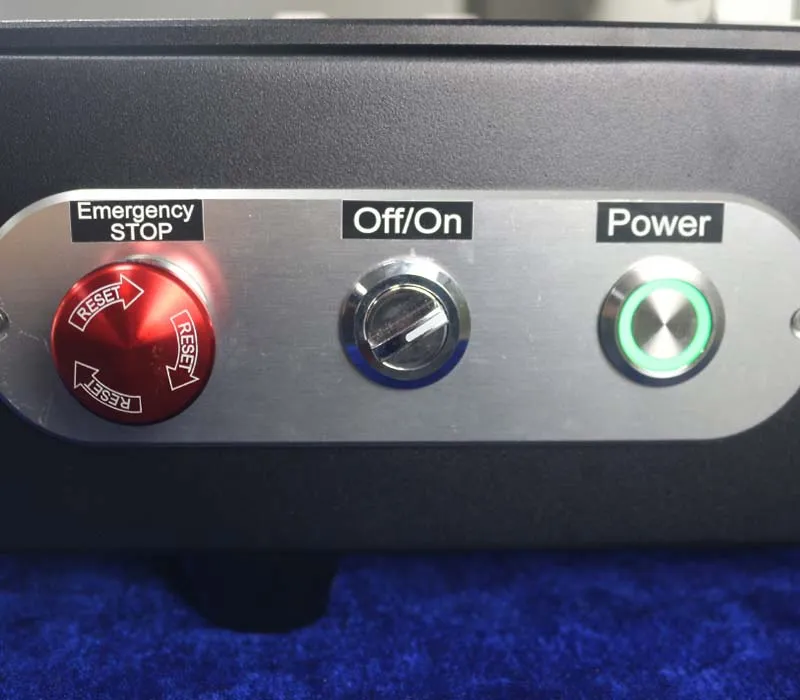

    Hardware operation is very simple, involving just a few buttons. The main learning curve is for software operation. We provide written software operation instructions and tutorial videos. If needed, we also offer 2 hours of remote teaching support.

    The entire machine comes with a two-year warranty. During the warranty period, faulty components not caused by human error can be replaced free of charge.
