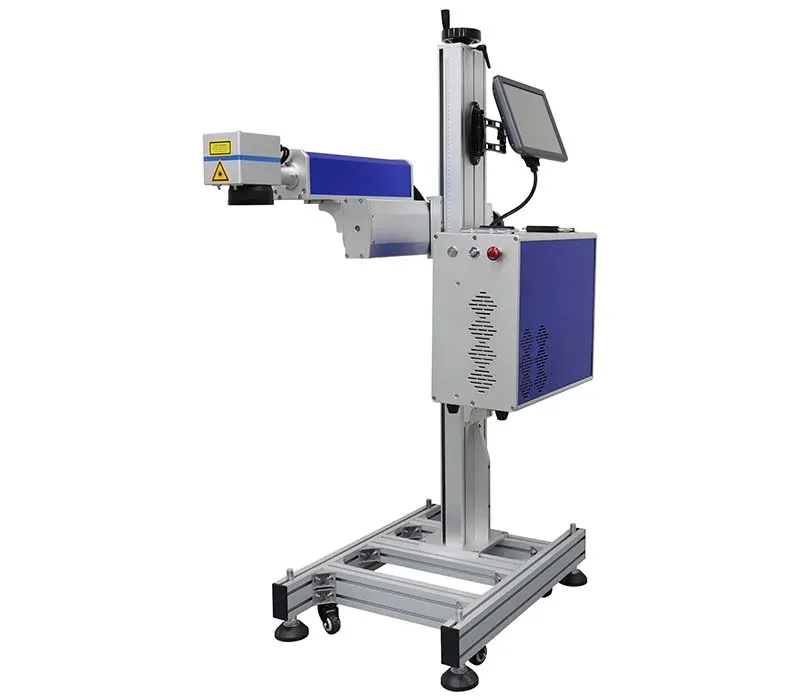

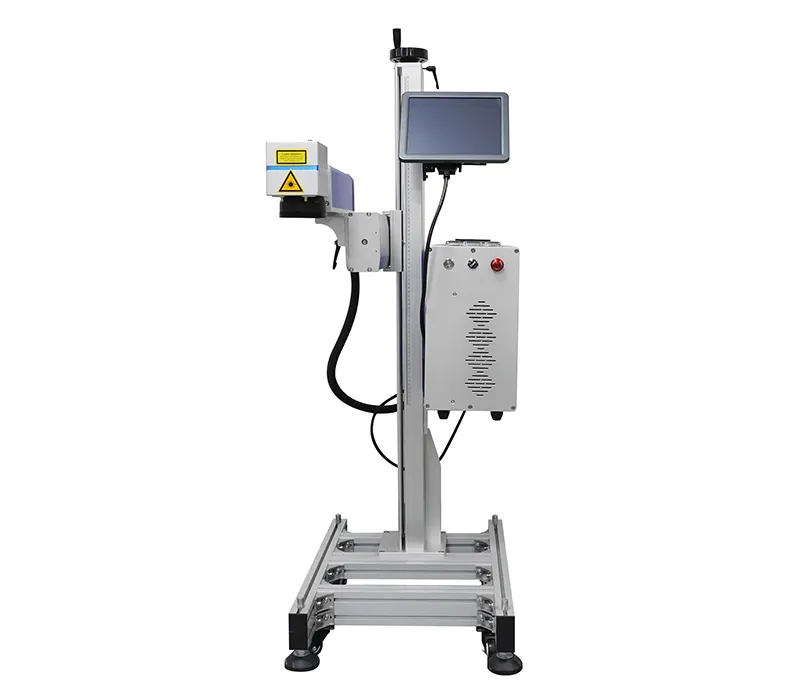

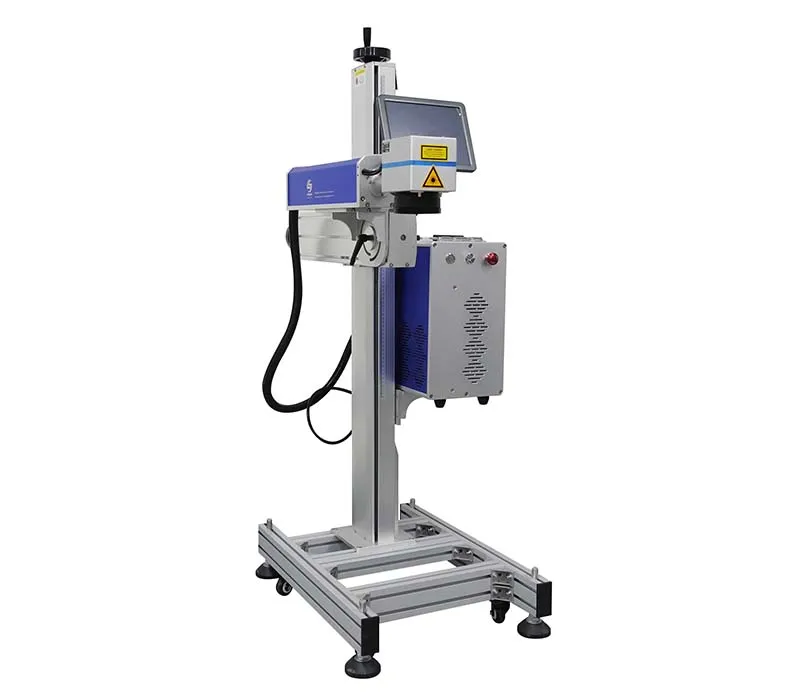

Online Flying Fiber Laser Marking Machine

Online Flying Fiber Laser Marking Machine
  • Online Flying Fiber Laser Marking Machine
  • Online Flying Fiber Laser Marking Machine
  • Online Flying Fiber Laser Marking Machine
  • Online Flying Fiber Laser Marking Machine

    • Online Flying Fiber Laser Marking Machine
    • Laser wavelength 1064nm
    • Marking range 110×110mm
    • Beam quality M²<1.5
    • Max. line speed 12000mm/s

    Designed specifically for high-speed production lines, the online flying fiber laser marking machine integrates an industrial-grade fiber laser and a high-speed galvo scanner system. It supports synchronous marking on production lines moving at 0-30m/min, allowing for permanent product identification without stopping the line. With scanning speeds up to 12,000mm/s, it boosts daily production capacity by 200%. It seamlessly integrates with PLC systems, enabling fully automatic serial number, QR code, and batch number generation and traceability. Requiring zero consumables and causing no ink pollution, it complies with FDA/CE certifications, meeting safety standards for food packaging and medical-grade applications.

    Request a Quote
    Applications
    Metals: Iron, steel, carbon steel, stainless steel, pure aluminum, aluminum alloy, zinc alloy, titanium alloy, brass, bronze, gold, silver, platinum
    Plastics: ABS, PVC, PE, HDPE
    • Stainless steel laser marking
      Stainless steel laser marking
    • Pen laser marking
      Pen laser marking
    • Business card case laser marking
      Business card case laser marking
    • Brass laser marking
      Brass laser marking
    • Aluminum alloy laser marking
      Aluminum alloy laser marking
    • Carbide drill bit laser marking
      Carbide drill bit laser marking
    • Serial number laser marking
      Serial number laser marking
    • Metal flask laser engraving
      Metal flask laser engraving

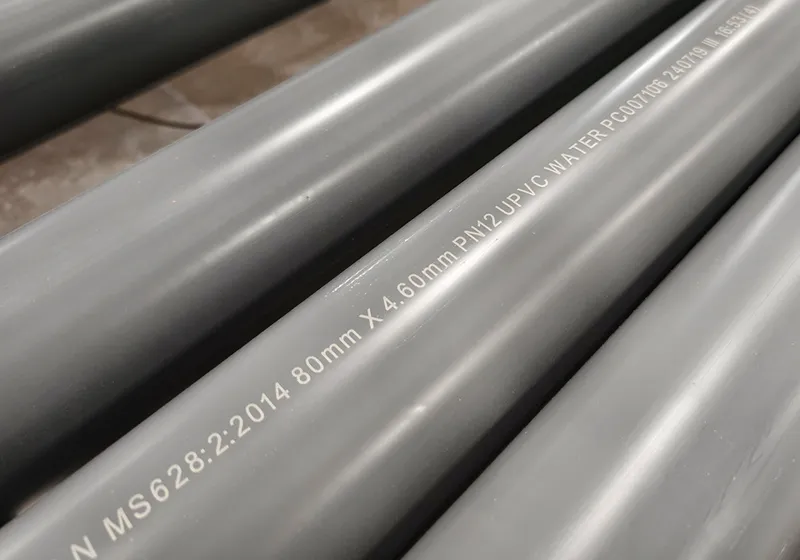

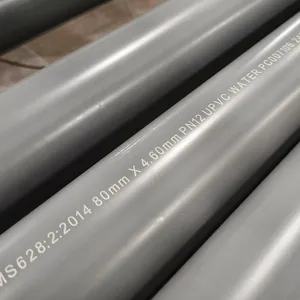

    • PVC pipe laser marking
      PVC pipe laser marking

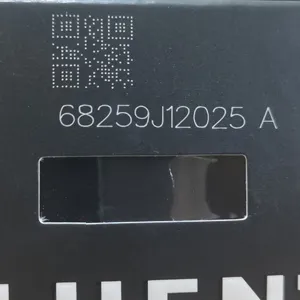

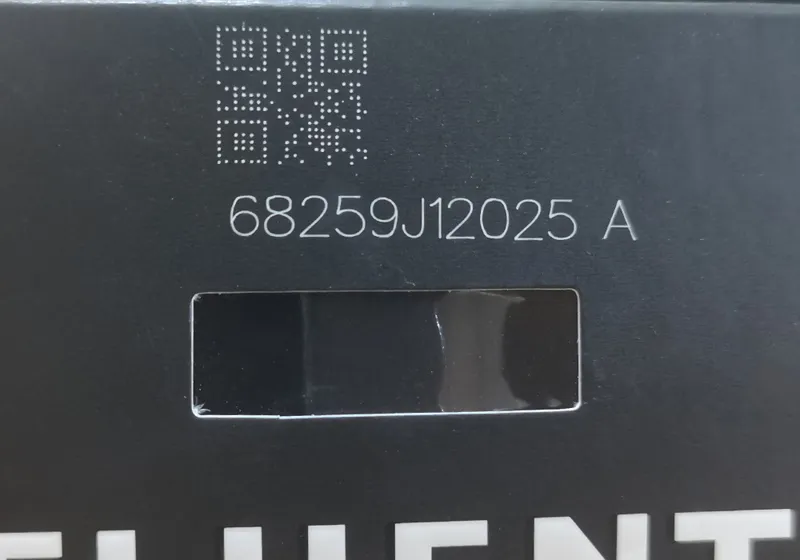

    • Paper box laser marking
      Paper box laser marking

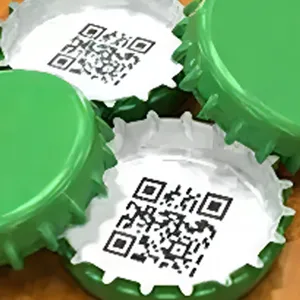

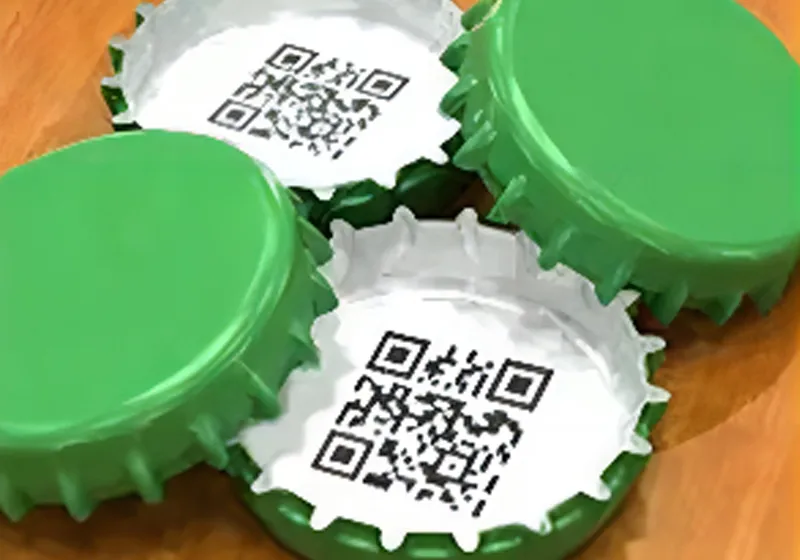

    • Aluminum bottle cap laser marking
      Aluminum bottle cap laser marking

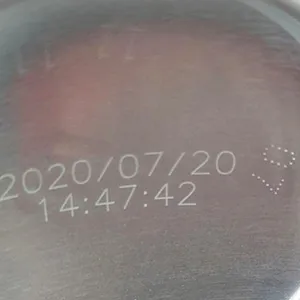

    • Aluminum can bottom laser marking
      Aluminum can bottom laser marking

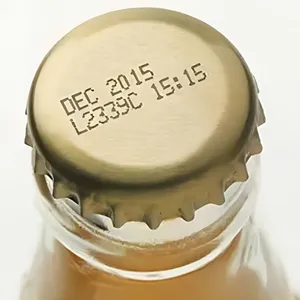

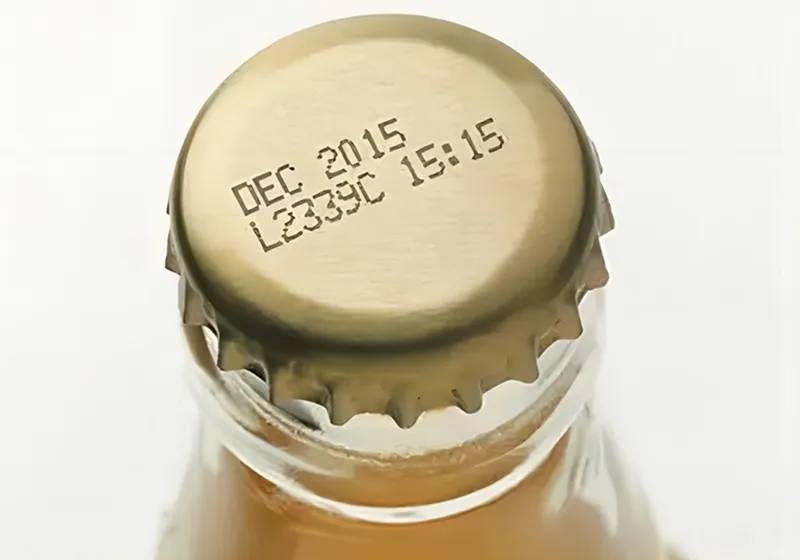

    • Aluminum bottle cap laser marking
      Aluminum bottle cap laser marking

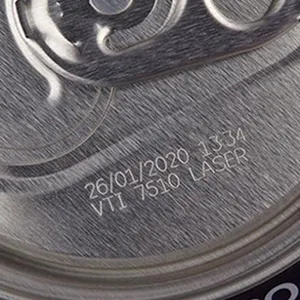

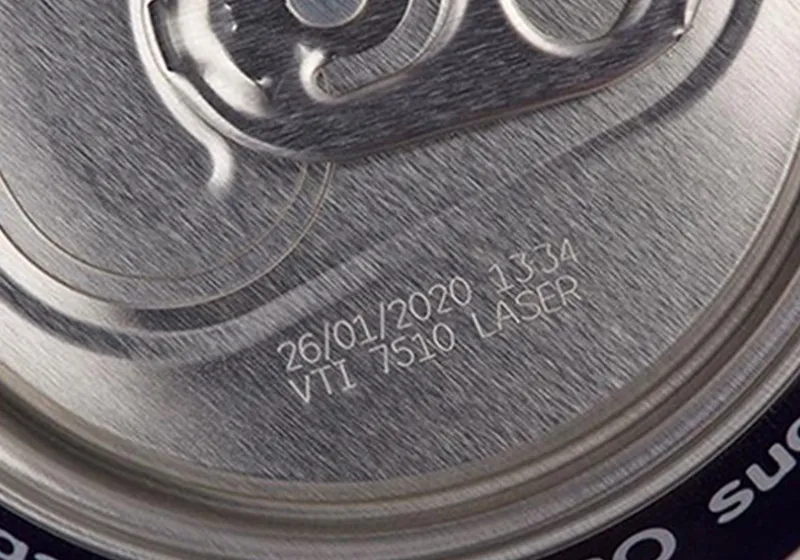

    • Aluminum can top laser marking
      Aluminum can top laser marking
    • Technical Data
    • Configuration
    • Inquiry
    Technical Data
    • Laser power 30W, 50W, 100W
    • Laser type fiber laser
    • Laser wavelength 1064nm
    • Marking range 110×110mm
    • Beam quality M²<1.5
    • Max. line speed 12000mm/s
    • Min. character size 0.05mm
    • Min. line width 0.01mm
    • Cooling method air cooling
    • Power supply 220V/50Hz or 110V/60Hz
    • Operating temperature 5℃~40℃ (operation outside this range may affect performance and lifespan)

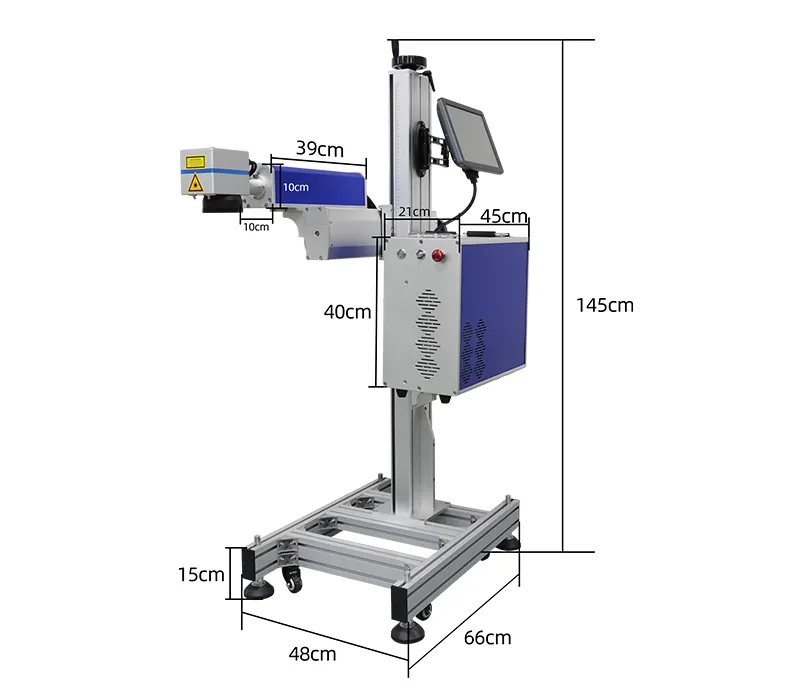

    • Machine dimensions 480×660×1450mm
    • Package size 1330×580×560mm
    • Machine weight 66kg
    • Package weight 76kg
    Configuration
    Laser source

    Laser source
    We provide Raycus, JPT, MAX, SUPER, and IPG laser sources for our laser equipment, featuring high pump conversion efficiency, low power consumption, and excellent beam quality.

    Galvo scanner

    Galvo scanner
    A 12000mm/s high-speed scanning head, primarily used for laser marking. It is equipped with a dual-red-light focusing device, which significantly enhances focusing efficiency.

    F-theta lens

    F-theta lens
    Equipped with an F-theta lens for 1064nm wavelength, mainly used in fiber laser marking machines. Due to its longer wavelength, it offers strong energy penetration, making it suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.

    Control card

    Control card
    Equipped with a genuine JCZ EZCAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.

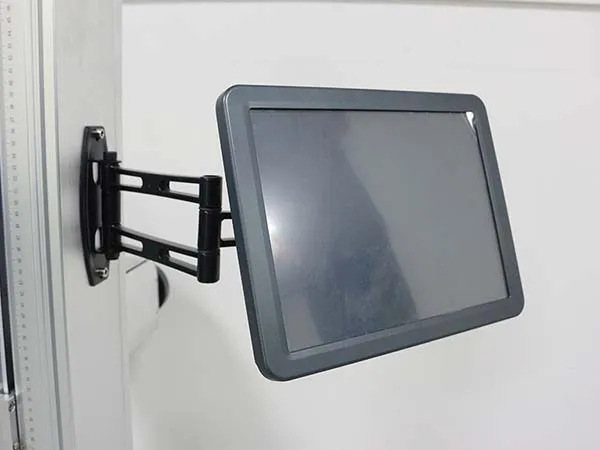

    Touchscreen display

    Touchscreen display
    Features a 10.1-inch industrial-grade capacitive touchscreen, supporting multi-touch for 'What You See Is What You Get' intuitive operation with icon- and color-block distinguished function modules. It boasts high-speed data processing and communication capabilities, with multi-protocol interface compatibility, integrating Ethernet, RS232, and other interfaces for real-time production data upload and remote command reception.

    Laser safety warning labels

    Laser safety warning labels
    Play a crucial role in scenarios involving laser applications, primarily serving to alert people to potential laser hazards and ensure personnel safety.

    • Fume ExtractorFume Extractor

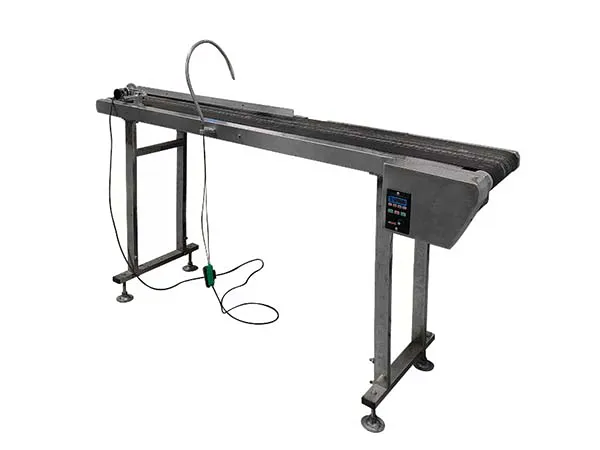

    • Conveyor lineConveyor line
    • Fiber laser
    • High-speed galvo scanner
    • 1200mm z-axis + 500mm y-axis (gantry/column for integration)
    • Laser control cabinet
    • F-theta lens
    • Control card
    • Touchscreen display
    • Encoder
    • Sensor
    • Laser power supply
    • Power cord
    • Safety goggles
    • Foot pedal switch
    • Aluminum test piece
    • Hex key tool set
    • Equipment warranty certificate
    • Shipping accessories list
    • Product catalog
    Our Laser Marking Machines

    Hispeed Laser has been a trusted manufacturer of industrial laser systems since 2017, delivering precision solutions for marking, welding, cutting, and cleaning applications. With annual production exceeding 1,000 units, we supply CE, UKCA, and FDA-certified equipment to clients in over 80 countries across Europe, Southeast Asia, and South America.

    Our advanced laser technology serves diverse industries including 3C electronics, automotive, medical devices, jewelry, and packaging. We offer comprehensive OEM/ODM services, fully customized solutions tailored to your specific requirements, and rapid delivery, typically within 7–10 days. Beyond installation, Hispeed provides complete lifecycle support to ensure optimal performance and longevity of your equipment.

    Get in Touch

    Yes, our industrial laser equipment supports marking on all metal materials. Through parameter optimization, it can adapt to 95% of industrial materials. We offer free sample testing for verification.

    Darker materials generally yield higher contrast. Lighter materials may require adjustments to frequency/power. The specific effect depends on the material.

    The equipment undergoes complete debugging before leaving the factory. Upon receiving the machine, it's plug-and-play; no additional debugging is required.

    The entire machine comes with a two-year warranty. During the warranty period, faulty components not caused by human error can be replaced free of charge.

    A dedicated specialist will respond within 3 business hours. The specific service charges will be determined and quoted based on the actual situation.
