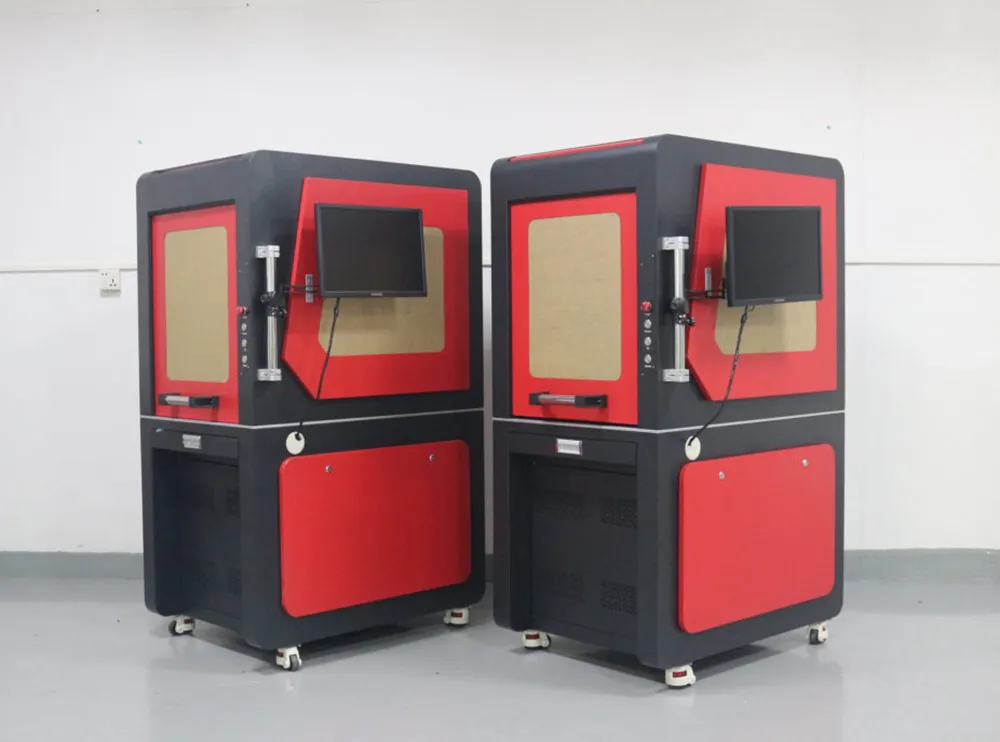

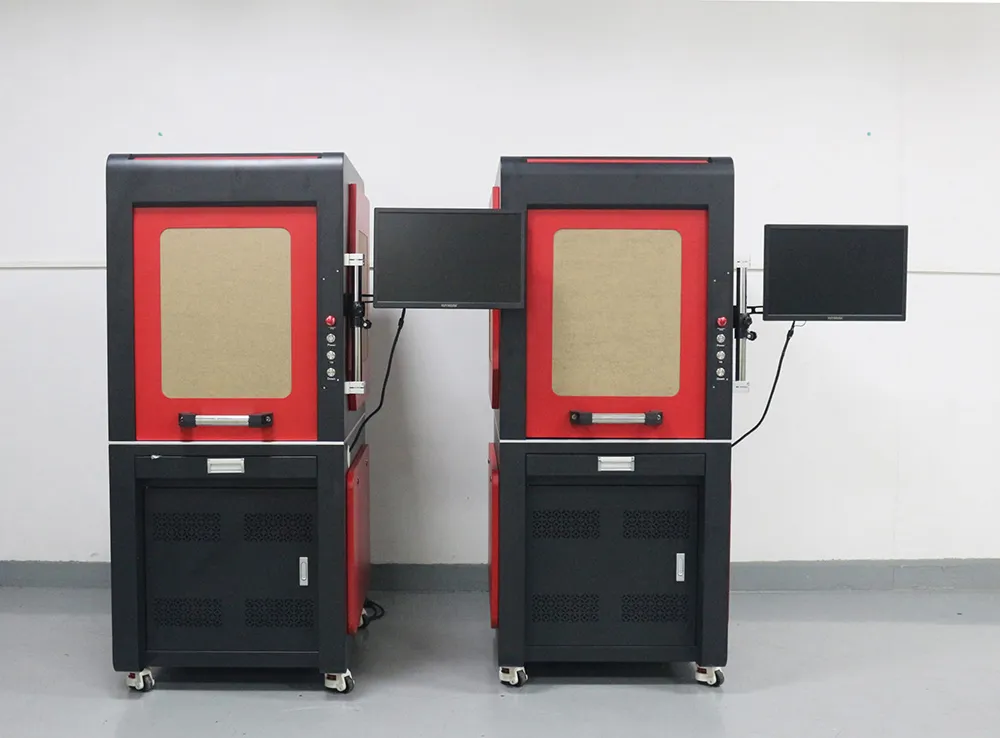

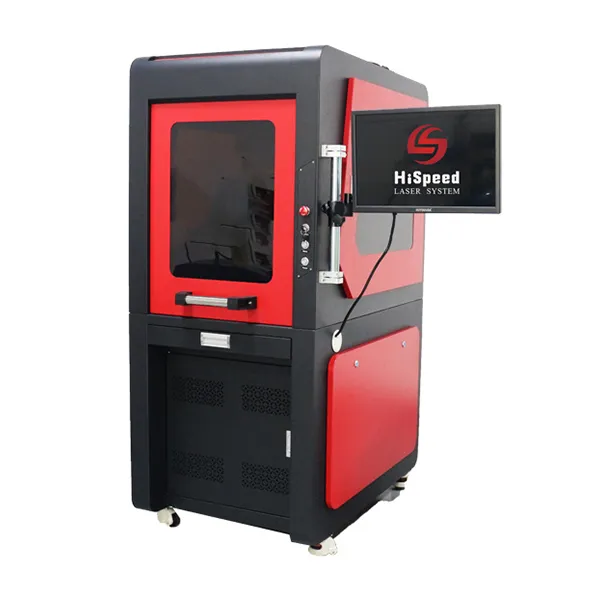

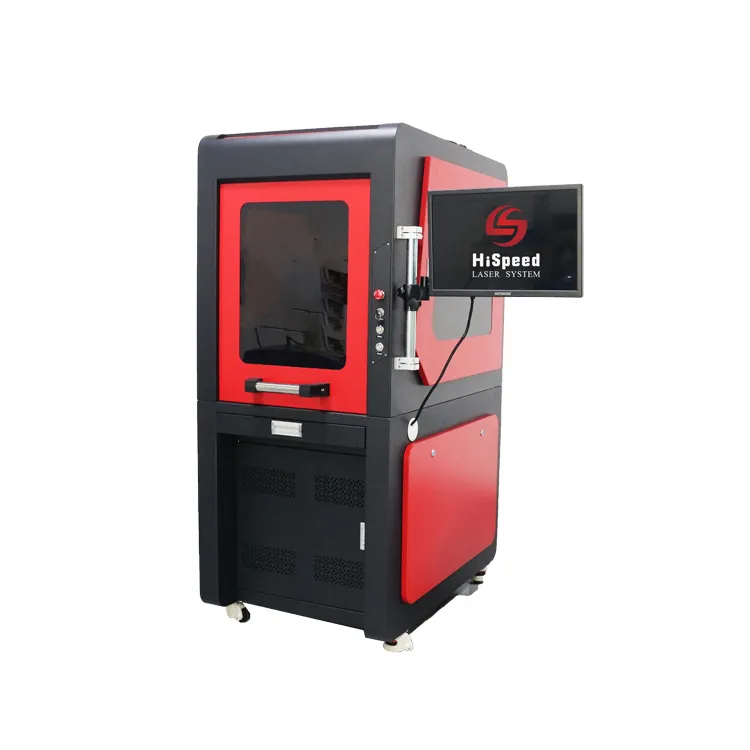

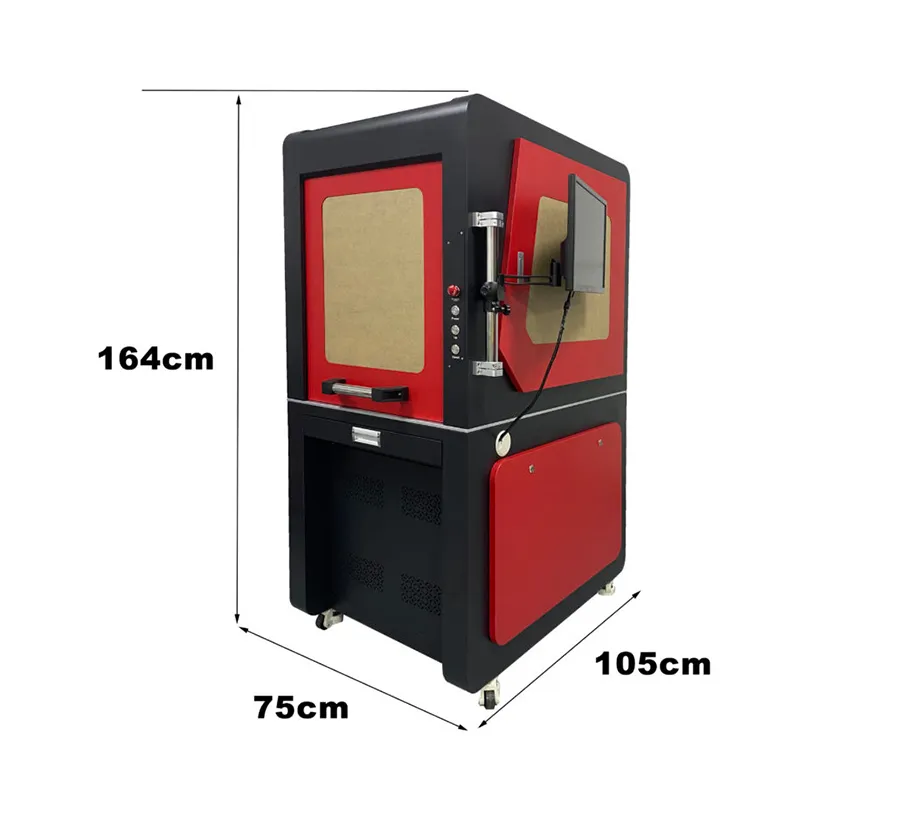

Fully Enclosed Fiber Laser Marking Machine
- Laser type: Q-Switch
- Laser Power: 20 / 30 / 50W
- Marking range 50x50 - 300x300mm
- Repeatability: ±0.01mm
Hispeed fully enclosed fiber laser marking machine adopts Chinese most advanced fiber laser source and high-quality gala scanning system.
It can provide stable power output, perfect optical mode, good beam quality and high speed marking, so users can get a perfect effect and high efficiency, which can fulfill massive production.
The advantages of this machine is as following: good looking, easy operation, no need material, no need maintenance, no faulty in long time working. So it can meet the demand of industrial continuous work.
| Model | |
|
|
| Laser Type | Q-Switch | ||
| Laser Power | 20W | 30W | 50W |
| Wavelength | 1064nm | ||
| Beam Quality | M2< 1.5 | ||
| Marking Range | 50x50mm – 300x300mm(optional) | ||
| Max.Line Speed | 7000mm/s | ||
| Min. Line Width | 0.01mm | ||
| Min. Character | 0.05mm | ||
| Repeatability | ±0.01mm | ||
| Cooling Mode | Air Cooling | ||
| Power Requirement | 220V±10%/50Hz or 110V±10%/60Hz | ||
Electronic components, IC, electrical appliances, mobile phones, plastic buttons, color paper, food packaging, clocks and watches, molds, gaskets and seals, bearing, auto parts, hardware, tools, building materials, PVC tubes, etc.
Laser source
Machine is standard with famous Raycus brand fiber laser source, with expected 100,000 hours life span, support 7 x24 hours work, Other brand fiber laser source like MAX, JPT, IPG optional.
Field Lens
Featuring an air-spaced design and anti-reflective coating, our compact Fθ field lens ensures excellent throughput and durability with less than 1% distortion.
Galvanometric System
The laser’s high-speed Galvo-Tech digital galvanometric system reduces delays and improves your engraving speed.
