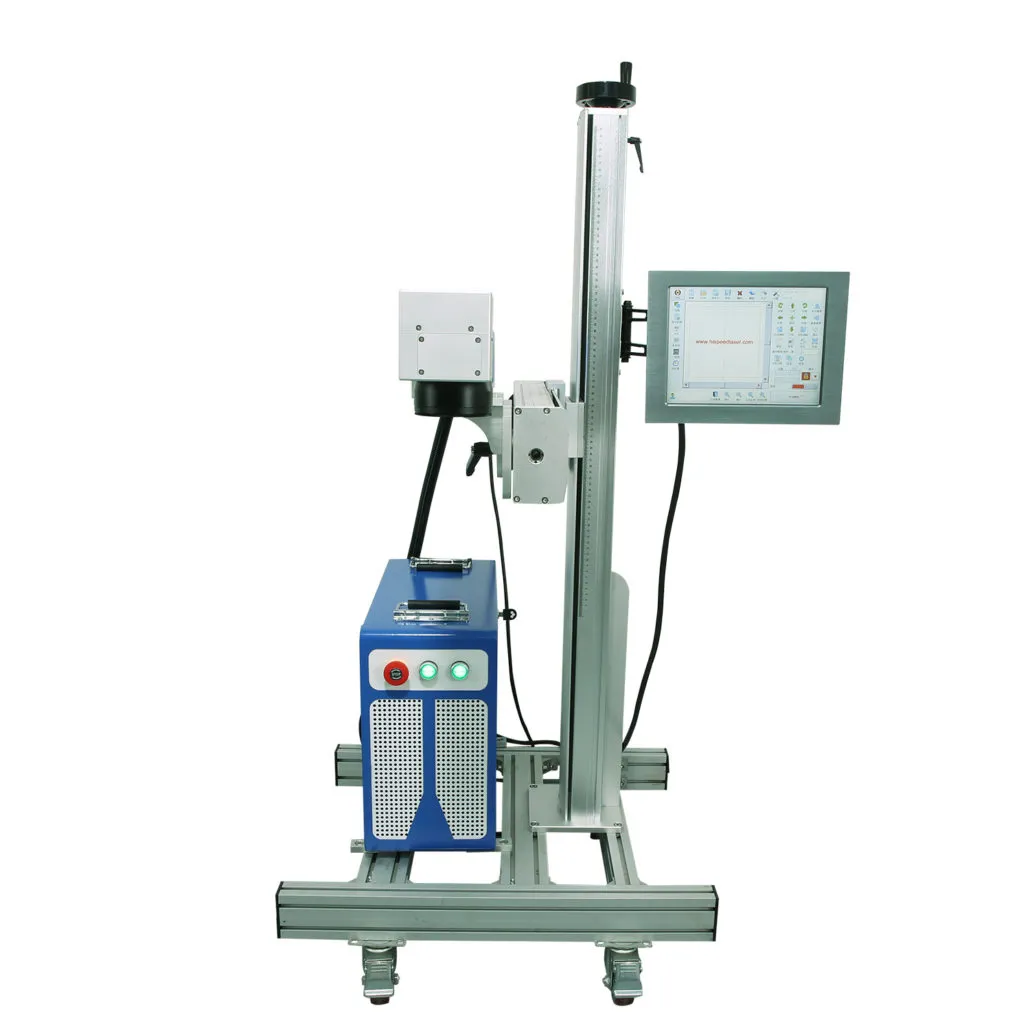

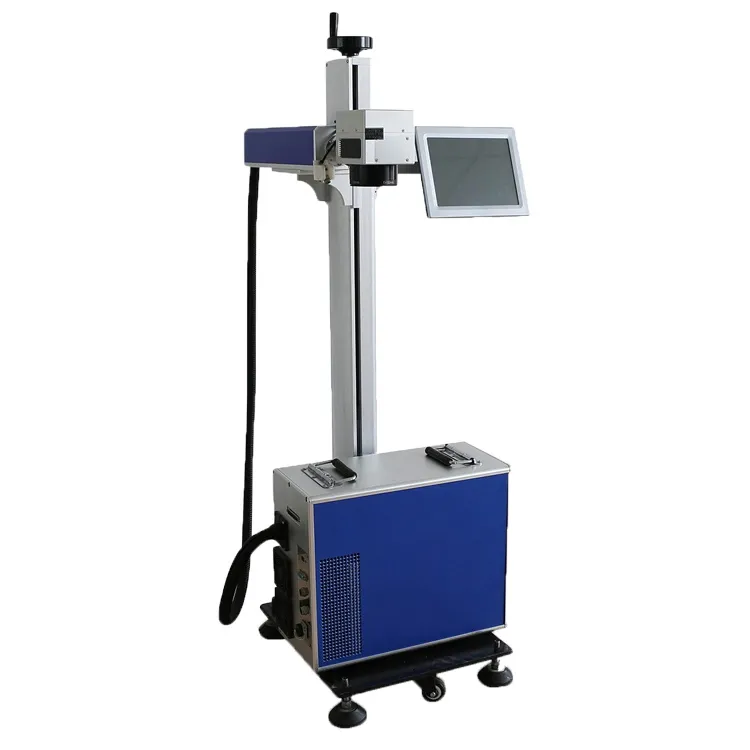

Fiber Online Flying Laser Marking Machine

Fiber Online Flying Laser Marking Machine
  • Fiber Online Flying Laser Marking Machine
  • Fiber Online Flying Laser Marking Machine
  • Fiber Online Flying Laser Marking Machine
    • Power: 20 /30 /50 /70 /100W
    • Engraving Speed: 800 chars/s
    • Lifetime: 100,000 Hours
    • Repeated Accuracy: ±0.003mm

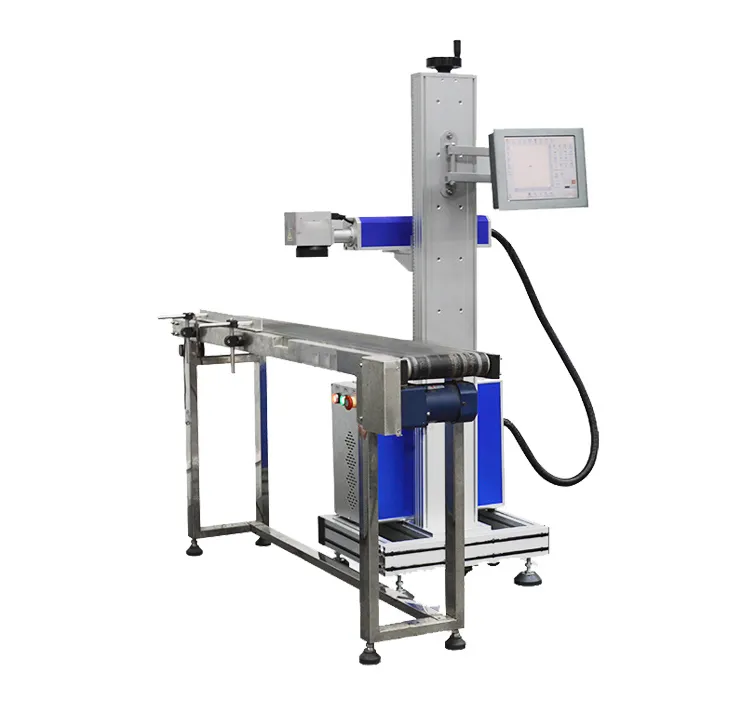

    Flying fiber laser marking machine adopts the combination of automatic feeding system and rapid laser marking equipment, online marking has high production efficiency, stable quality, and online marking system is suitable for multitudinous sequence production. The flying laser marking machine is suitable for users requiring batch production and high marking precision in food printing, medicine printing, soft-drink printing, cigarette code, wines industry, mineral water, daily cosmetic, wires and cables and all kinds of production lines. The conveyor belt is optional items for you to choose and can be customized.

    Request a Quote
    Technical Specifications
    Power 20W/30W/50W/70W/100W
    Wavelength 1064nm
    Beam Quality M2<1.3
    Output Power 10%-100%(continuously to be adjusted)
    Output Frequency 20KHz-100KHz(continuously to be adjusted)
    Power Stability(8h) <±1%rms
    Focus Spot Diameter <0.01mm
    Engraving Speed 800 standard characters/second
    Minimum Line Width 0.012mm
    Minimum Character 0.1mm
    Repeated Accuracy ±0.003mm
    Cooling Mode Air Cooling
    Environment Temperature 10ºC~35ºC
    Environment Humidity 20%-80%
    Power Requirement 220V/50Hz/or 110/60Hz
    Life of Laser Module 100000Hrs
    Applications

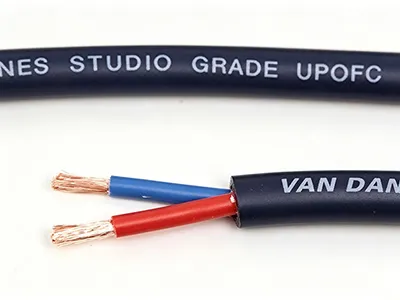

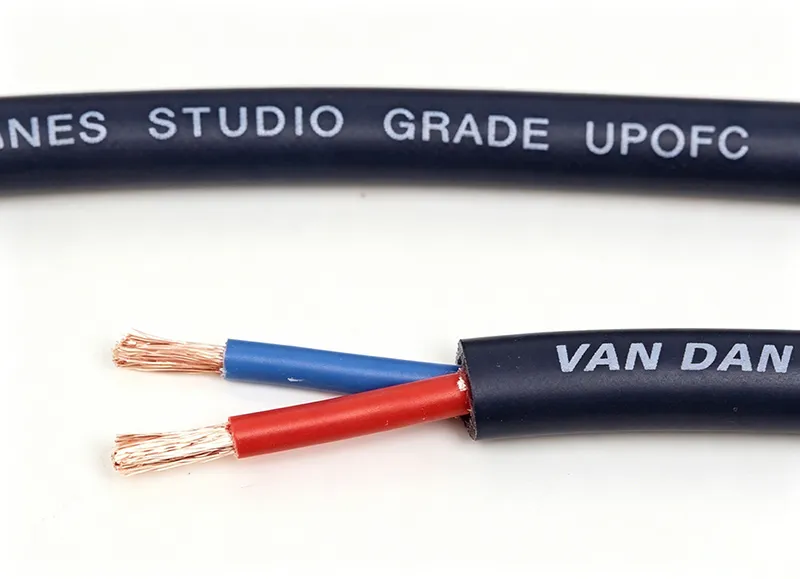

    Electric WireElectric Wire

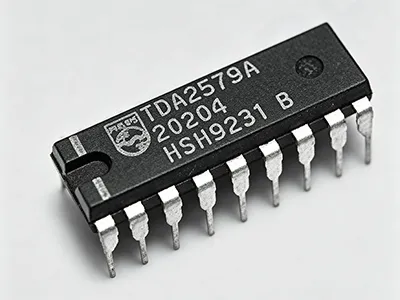

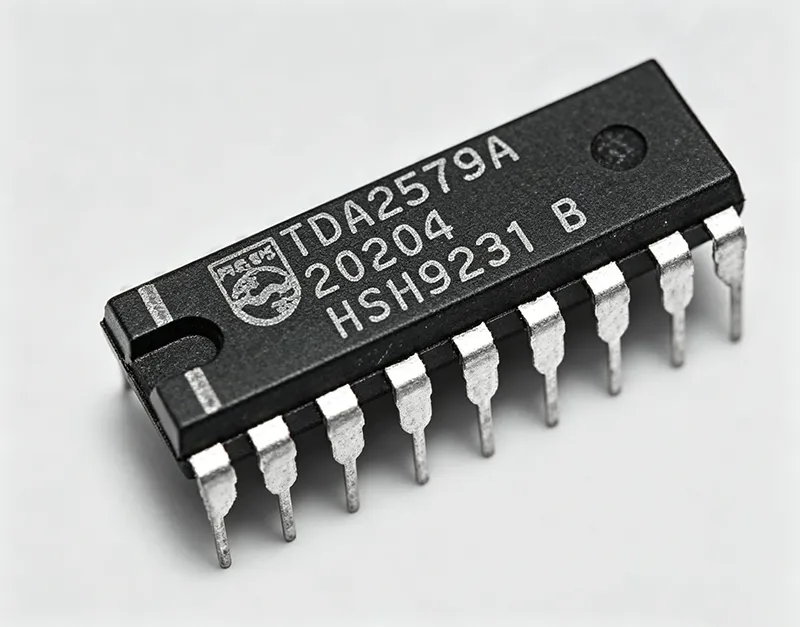

    Electron ComponentElectron Component

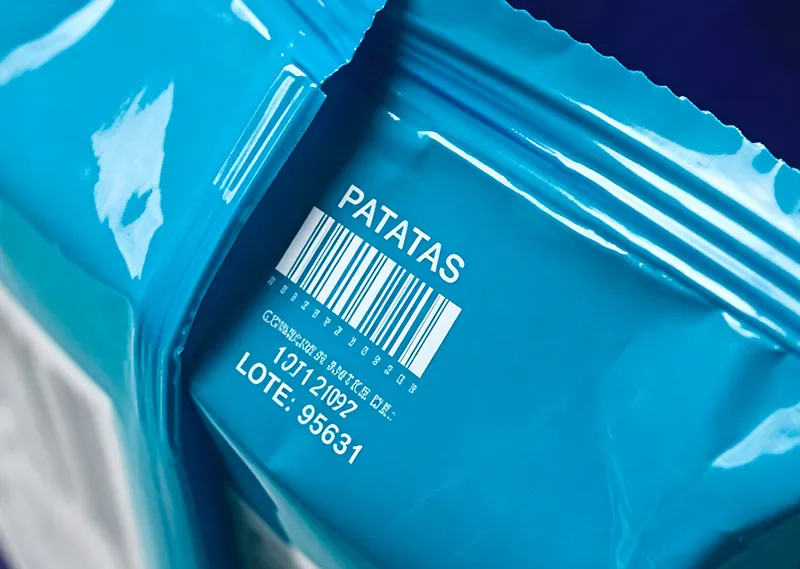

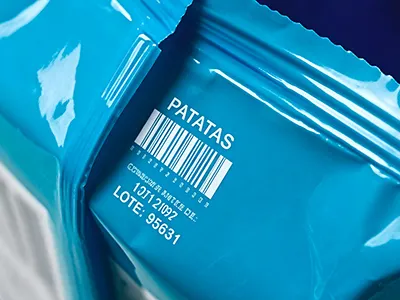

    Packaging BagPackaging Bag

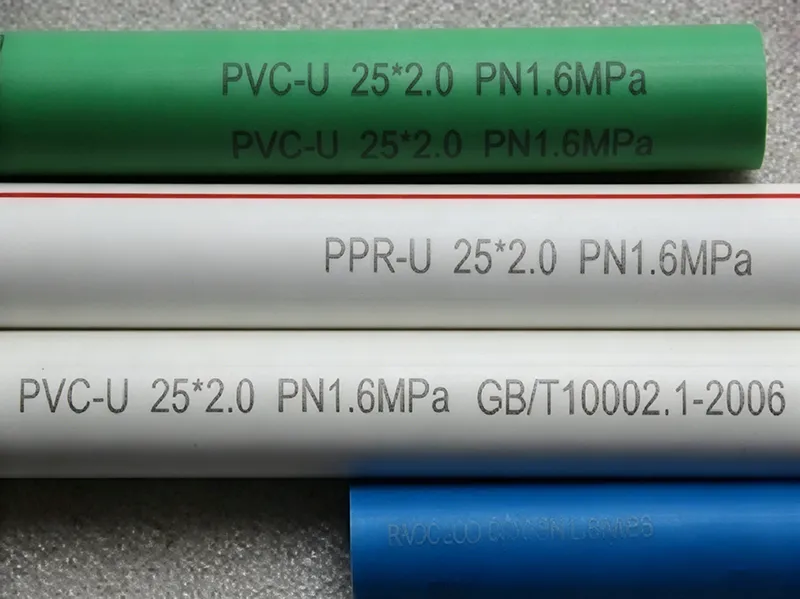

    Plastic PipePlastic Pipe

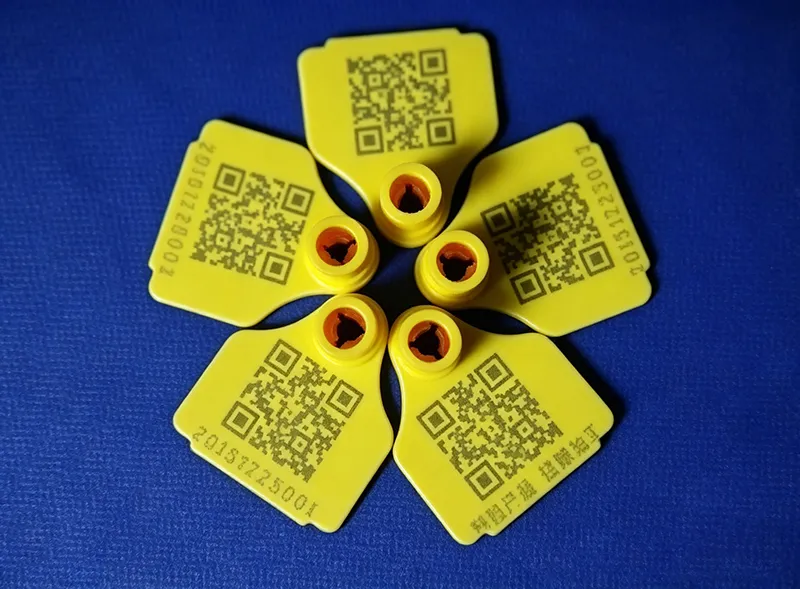

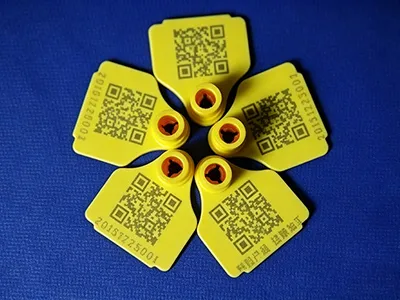

    QR codeQR code

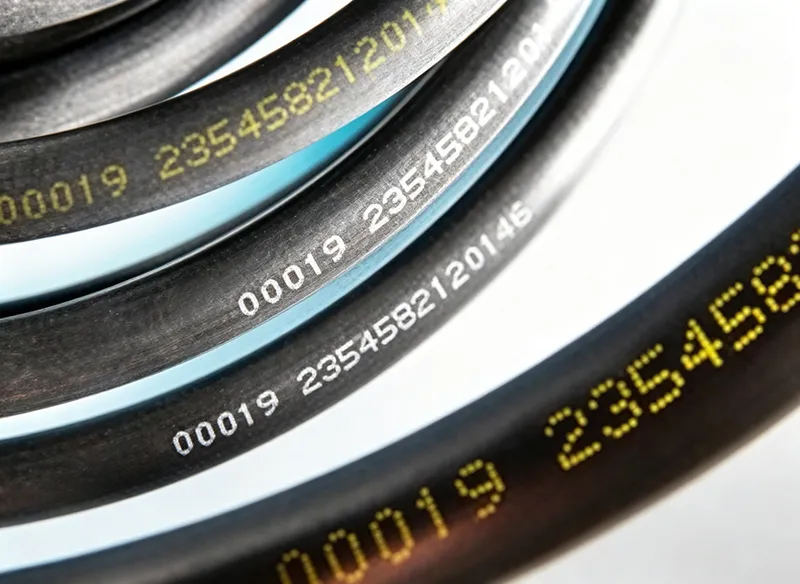

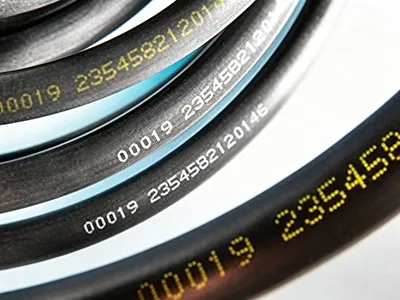

    Wire cableWire cable

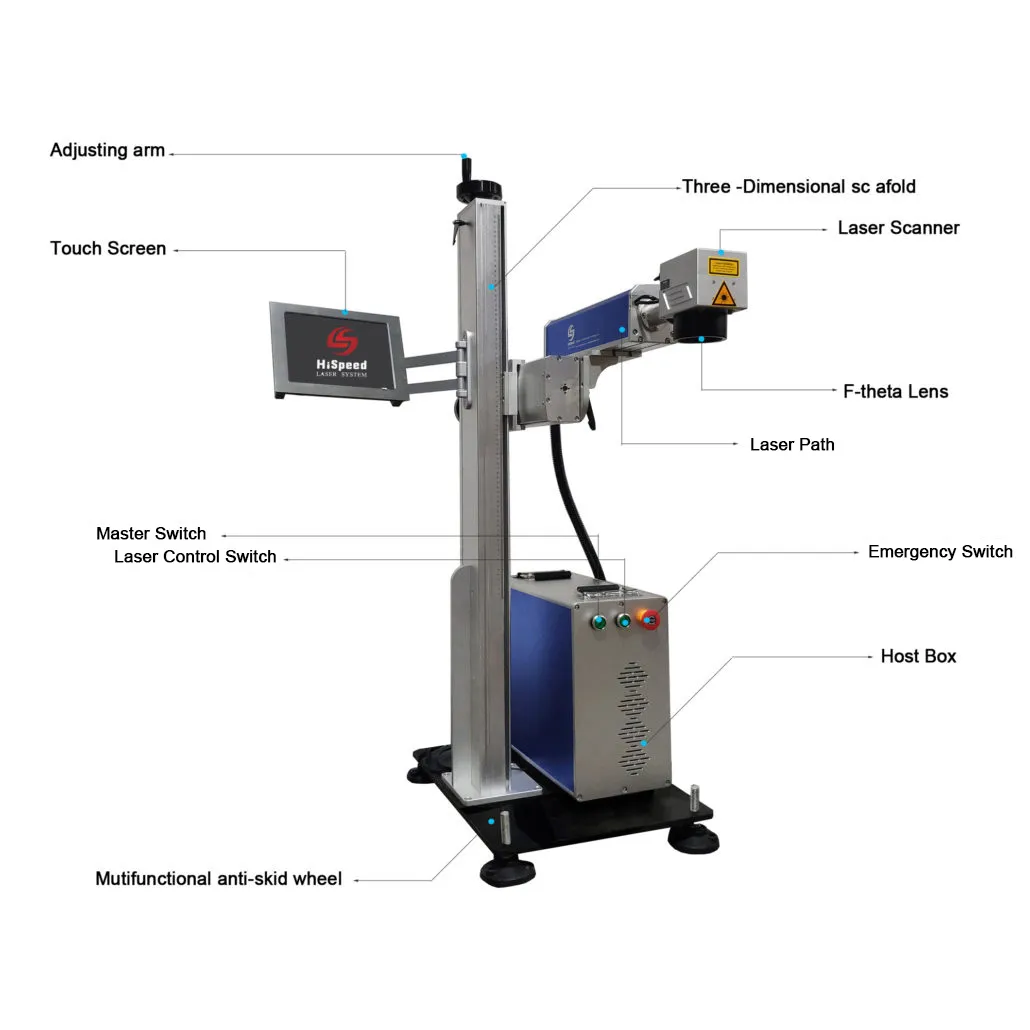

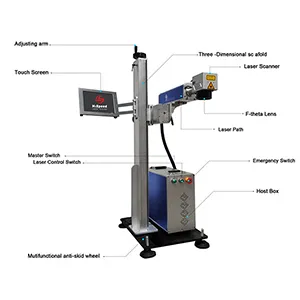

    System Components

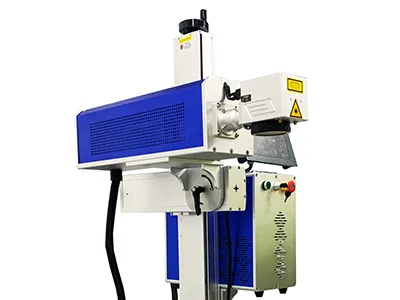

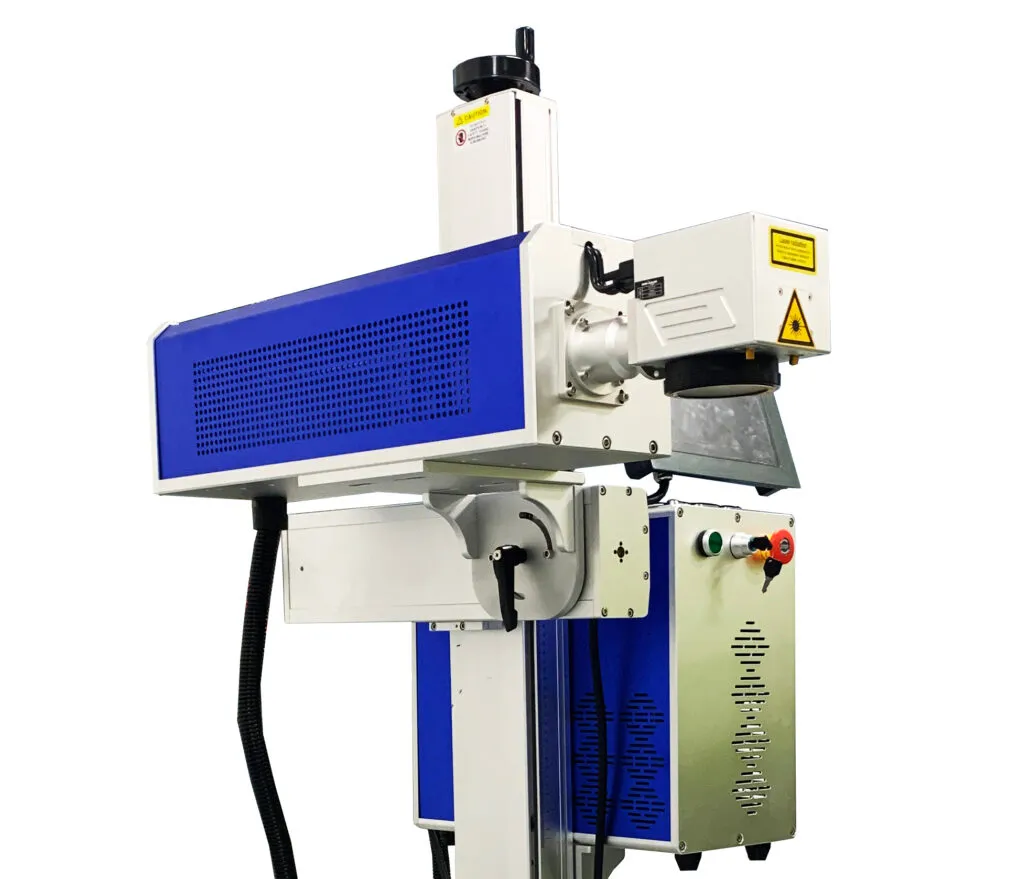

    Galvanometer Scanner

    Galvanometer Scanner
    It is equipped with an automatic scanning system-friendly operation process. The laser head can be rotated 180″left and right. The whole marking system can be rotated 180°up and down. Support different angle marking.

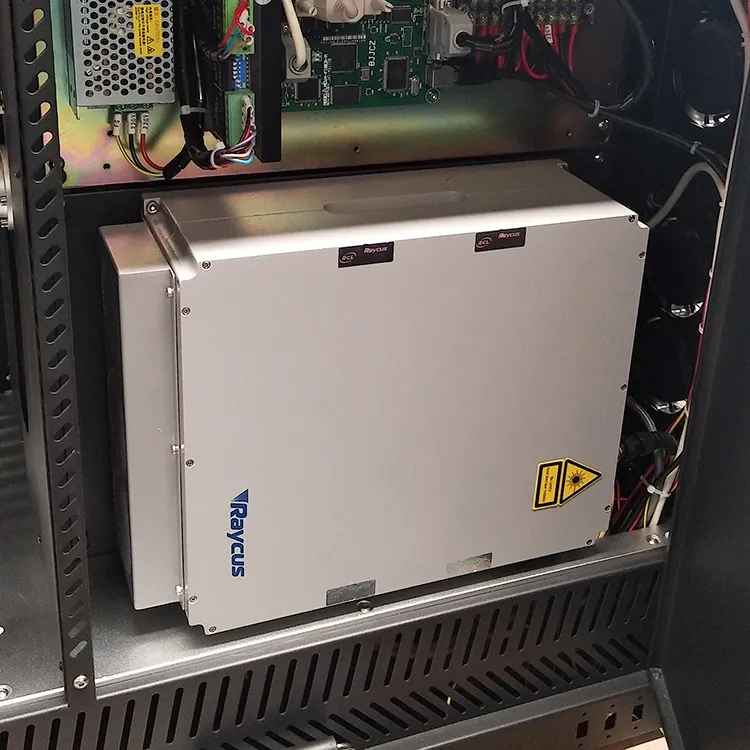

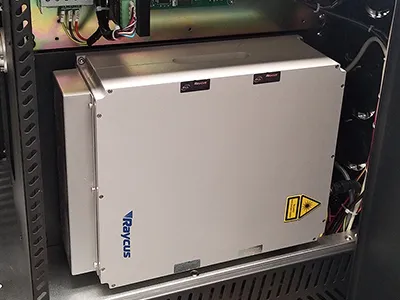

    Fiber Laser Source

    Fiber Laser Source
    The machine is standard with a famous Raycus brand fiber laser source, with an expected 100,000 hours life span, support 7 x24 hours work, Other brand fiber laser source like MaX, JPT, and IPG are optional.

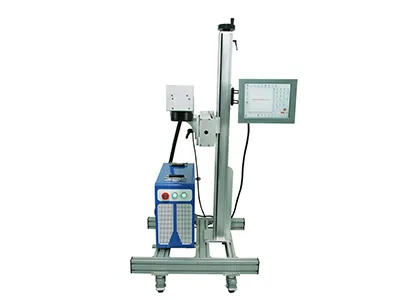

    Standby Column

    Standby Column
    With a ruler, wheels, and liting handle, easy to move and adjust the focal length.

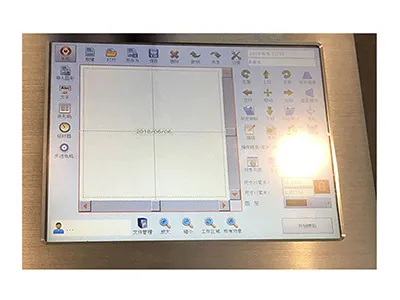

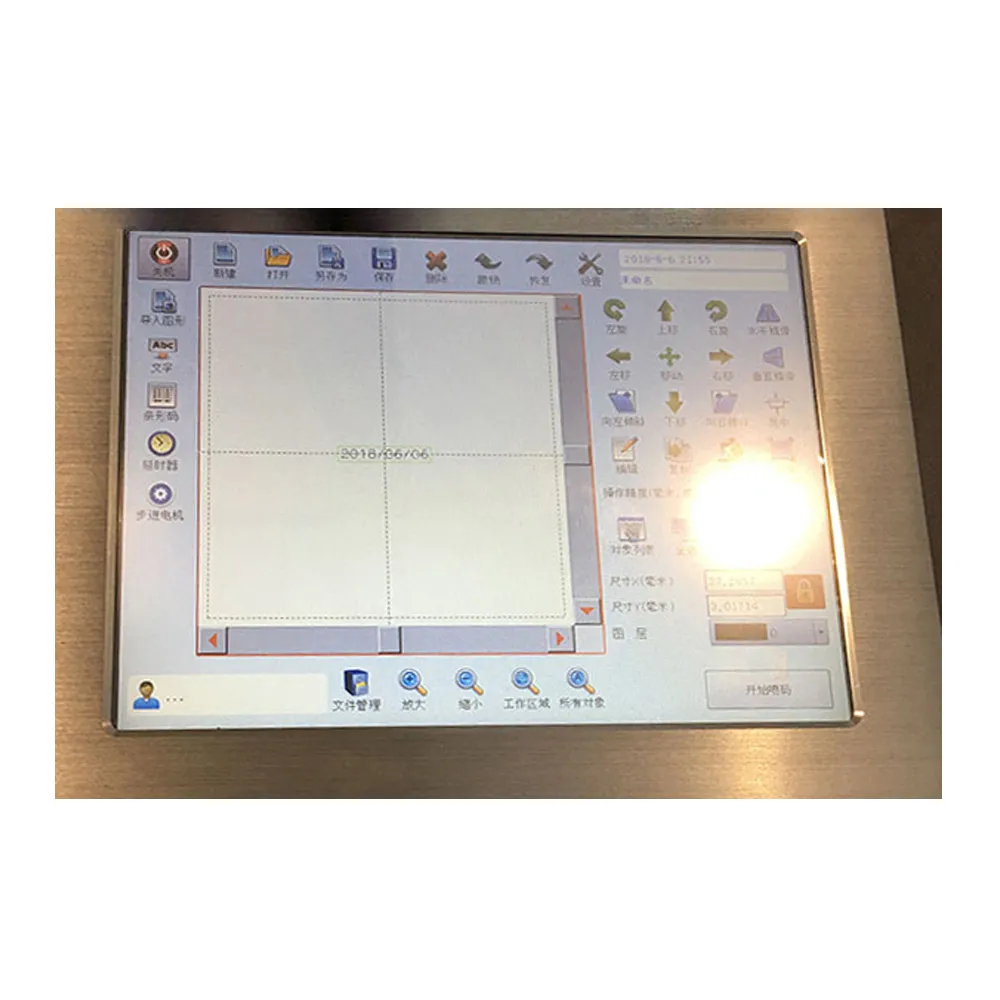

    LCD Touch Screen

    LCD Touch Screen
    LCD touch screen control panel, easy operation, no need to work together with PC.
