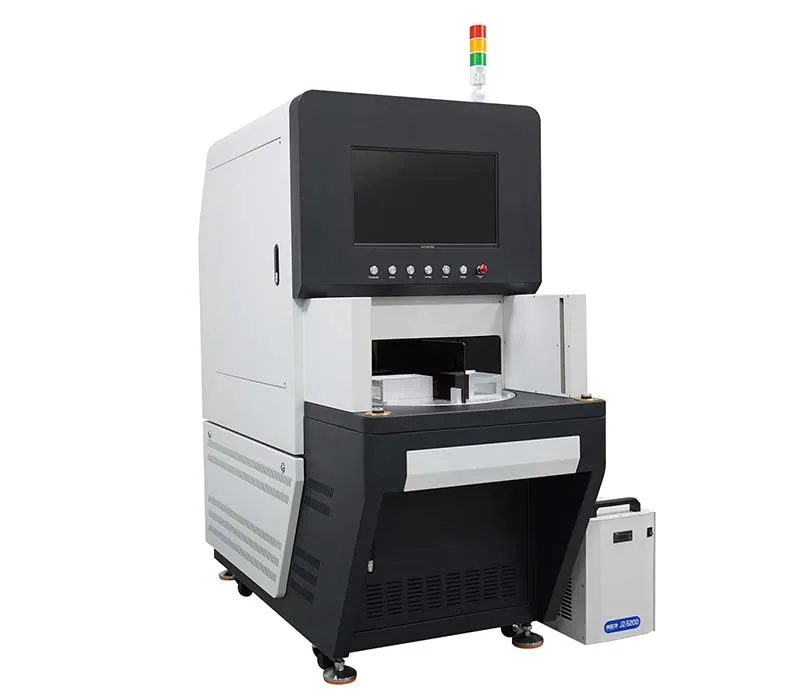

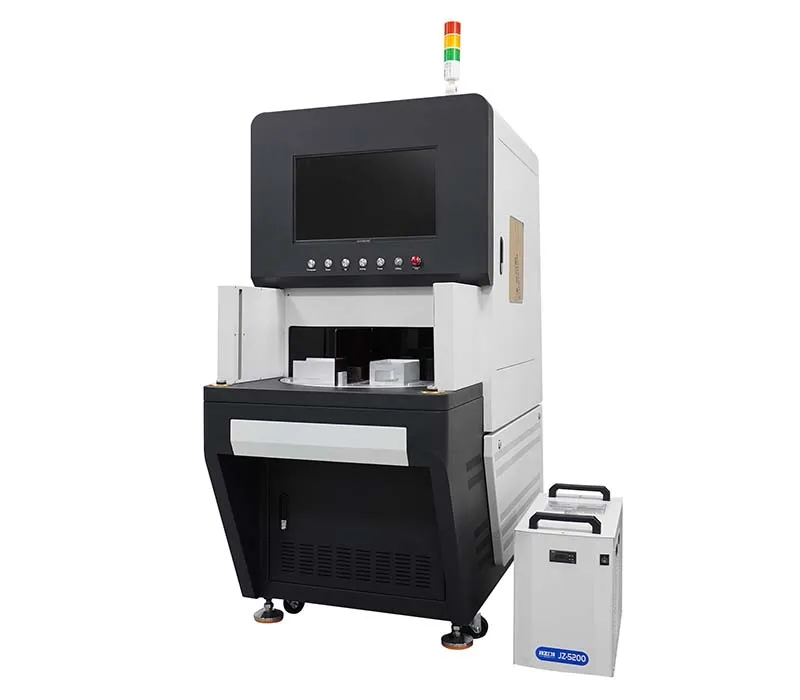

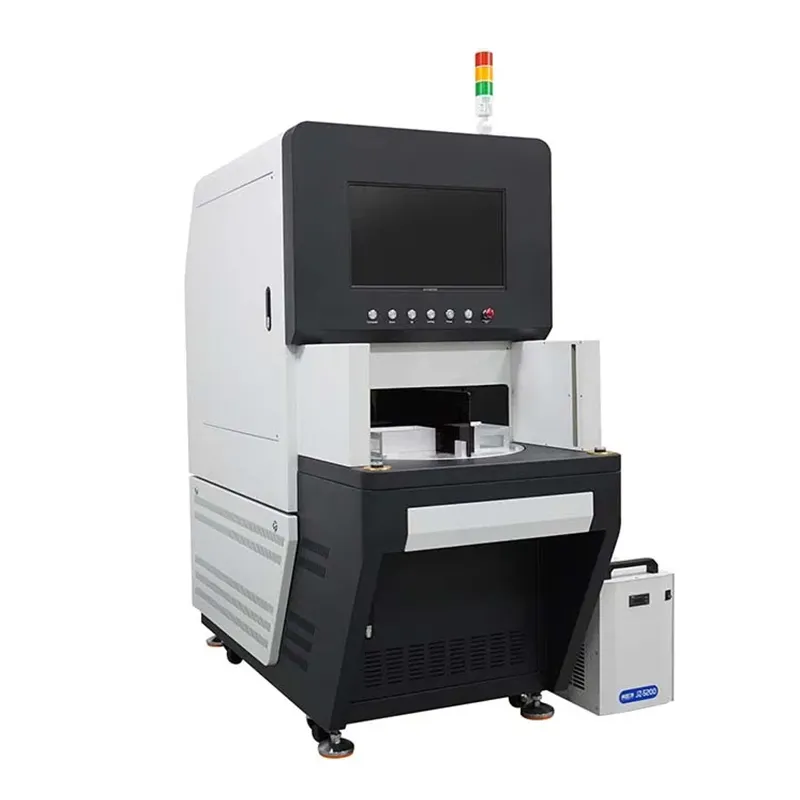

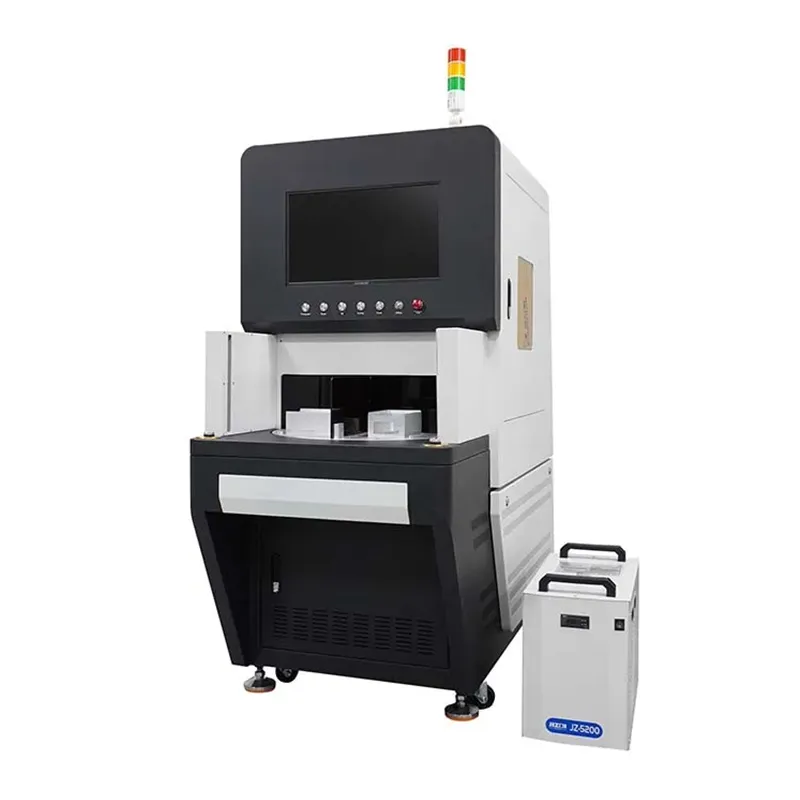

Fiber Laser Cutting Machine for Glass

Fiber Laser Cutting Machine for Glass
  • Fiber Laser Cutting Machine for Glass
  • Fiber Laser Cutting Machine for Glass
  • Fiber Laser Cutting Machine for Glass
  • Fiber Laser Cutting Machine for Glass
  • Fiber Laser Cutting Machine for Glass

    • Fiber Laser Cutting Machine for Glass
    • Laser power 200W
    • Pulse width 6ns-100ns
    • Cooling method air cooling
    • Machine weight 300kg

    This fiber laser cutting machine for glass features a fully enclosed safety design and an acrylic protective observation window, ensuring safe and pollution-free operation. You can monitor the cutting process in real time, with dust and splash protection that keeps your working environment clean. It comes with a renowned JPT fiber laser source, boasting a lifespan of over 100,000 hours and supporting stable 24/7 operation. With a photoelectric conversion efficiency of 30%, its energy consumption is only 20% of traditional equipment, and there's zero gas consumption.

    Request a Quote
    Applications

    Sodium-calcium glass, K9 glass, borosilicate glass, ultra-clear glass, quartz glass

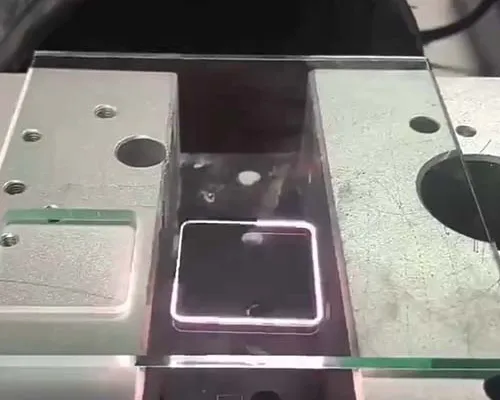

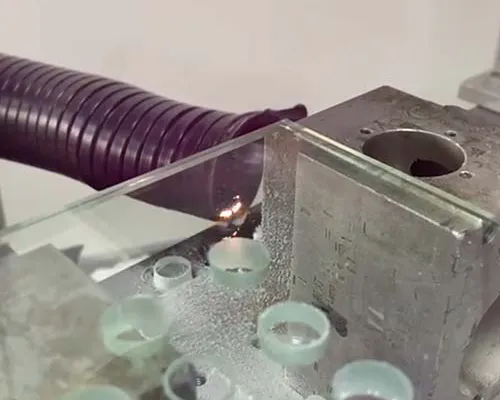

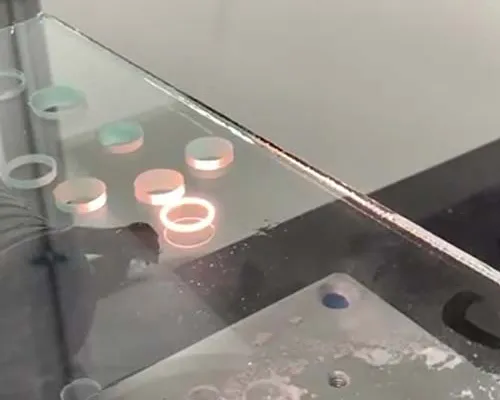

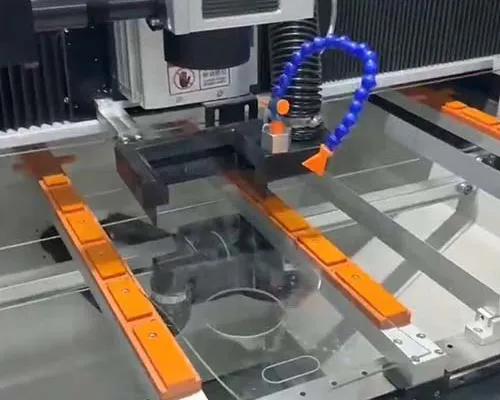

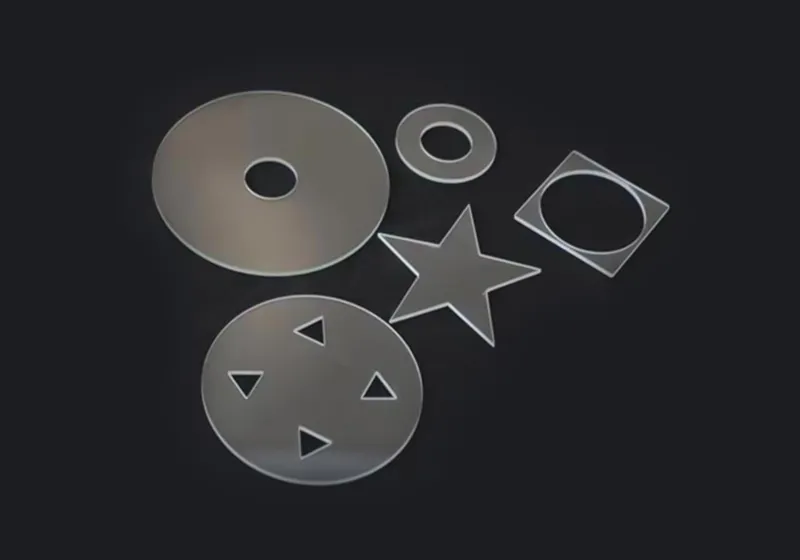

    • Glass laser cutting 1
      Glass laser cutting 1
    • Glass laser cutting 2
      Glass laser cutting 2
    • Glass laser cutting 3
      Glass laser cutting 3

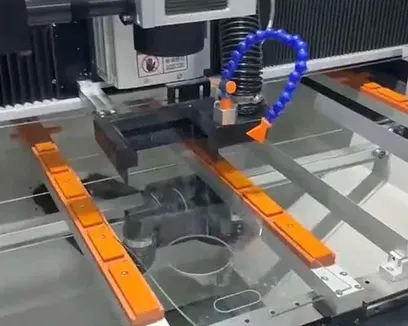

    • Glass laser cutting 4
      Glass laser cutting 4
    • Technical Data
    • Configuration
    • FAQ
    • Why Us
    • Inquiry
    Technical Data
    • Laser type fiber laser
    • Laser power 200W
    • Working area 80×80mm (customizable)
    • Pulse energy 0.58mJ@12ns
    • Pulse width 6ns-100ns
    • M² value 1.4
    • Cooling method water cooling
    • Machine dimensions 750×1500×1950mm (chiller 290×590×470mm)
    • Package size 1370×810×1760mm
    • Machine weight 263kg
    • Package weight 283kg
    Configuration

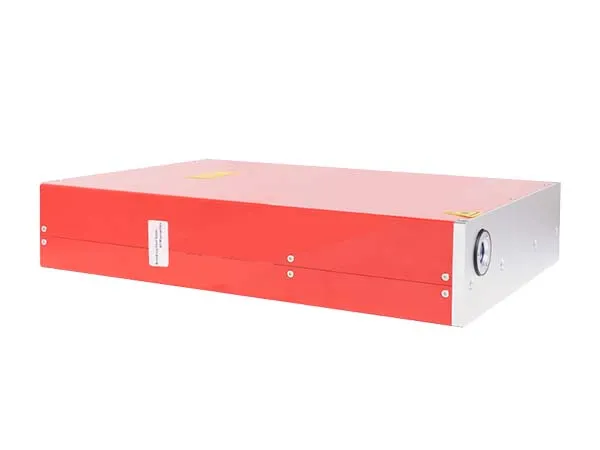

    Fiber laser

    Fiber laser
    Equipped with the industry-renowned JPT-M8 laser, it features ultra-high peak power and independently adjustable pulse width and frequency. Edge chipping is controlled to ≤100μm, making it especially suited for high-precision cutting of ultra-thin glass and brittle materials.

    2.5D galvo system

    2.5D galvo system
    This system uses a galvo motor in conjunction with a dynamic focusing lens, achieving an accuracy of ±0.02mm and scanning speeds up to 9000mm/s. Paired with an F100 field lens, it ensures spot uniformity, reduces the heat-affected zone, and prevents micro-cracks in glass.

    F100 quartz field lens

    F100 quartz field lens
    Made from high-purity quartz material, it can withstand temperatures up to 1200℃, avoiding thermal deformation common in traditional lenses and ensuring stable operation for high-power lasers over long periods. It optimizes the spot diameter to 20μm, improving the smoothness of cutting edges and reducing the need for secondary polishing.

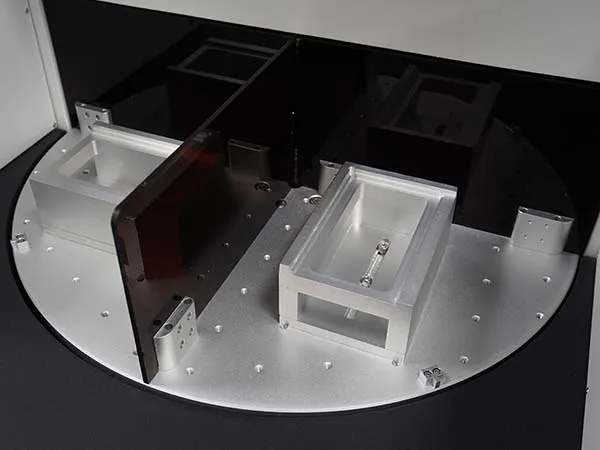

    Multi-station Worktable

    Multi-station Worktable

    • Fully enclosed laser control cabinet
    • Laser source
    • Galvo scanner
    • Field lens
    • Control card

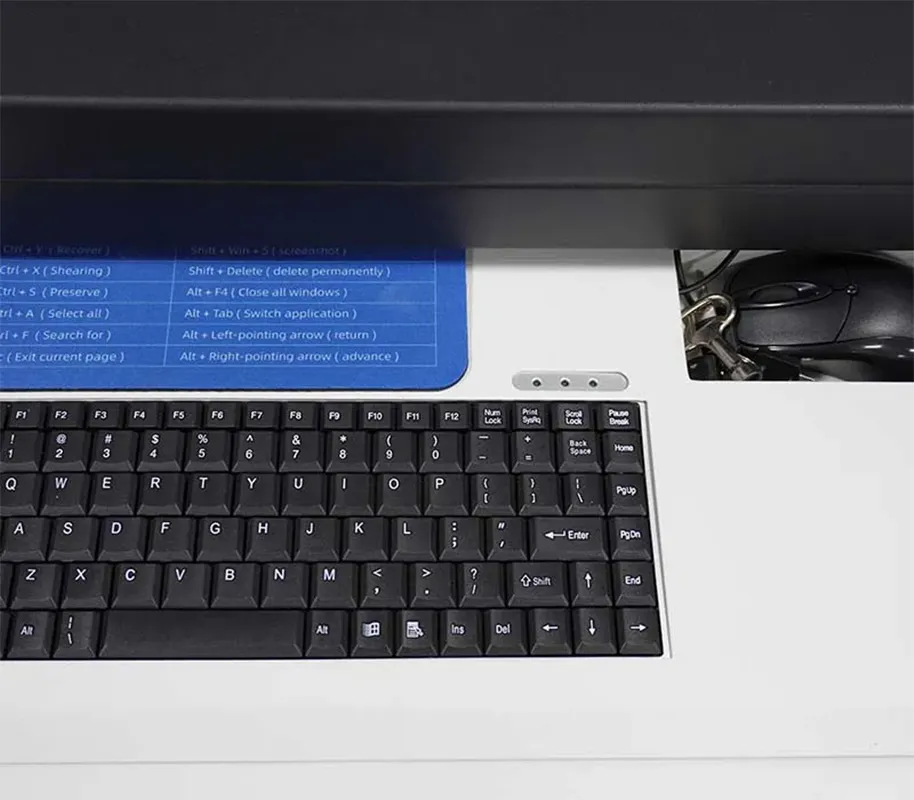

    • Industrial PC
    • Laser power supply
    • Safety goggles
    • Aluminum plate
    • Equipment warranty book
    • Shipping list
    • Product catalog

    For ordinary glass, it can cut thicknesses from 0.1mm to 10mm, with optimal results for thicknesses between 1mm and 5mm.

    No, it cannot. Tempered glass has internal pre-stress, and laser cutting would disrupt this stress balance, causing it to shatter instantly.

    The average lifespan of a fiber laser is approximately 100,000 hours.
