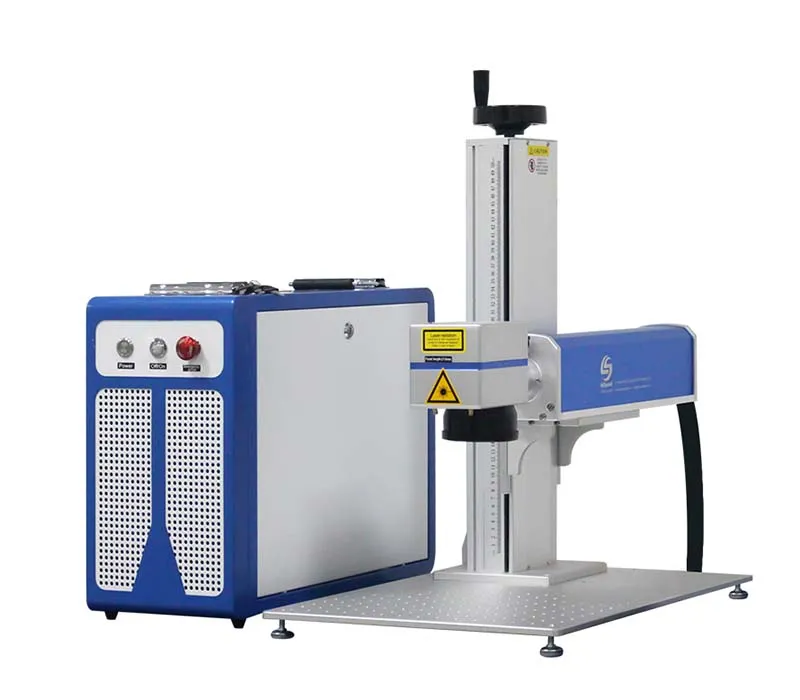

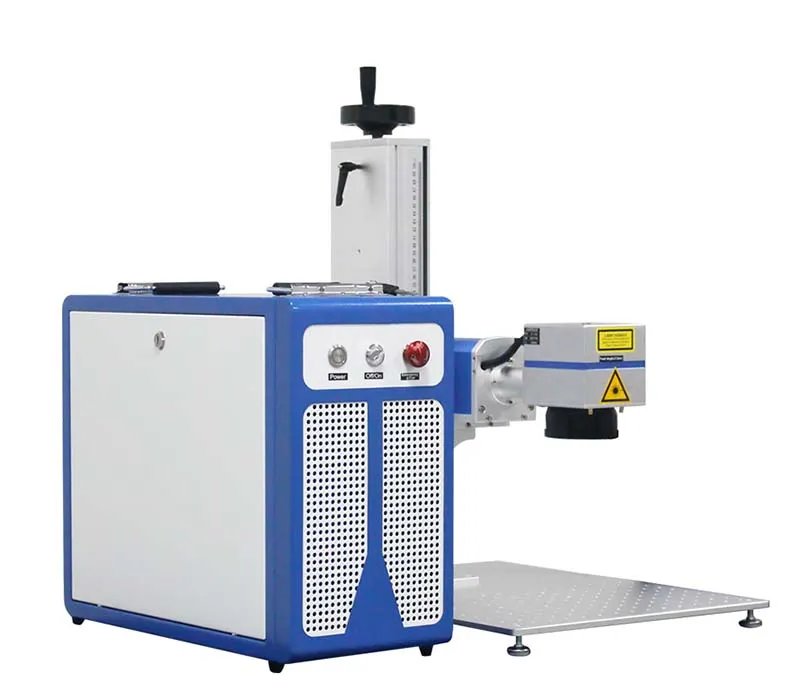

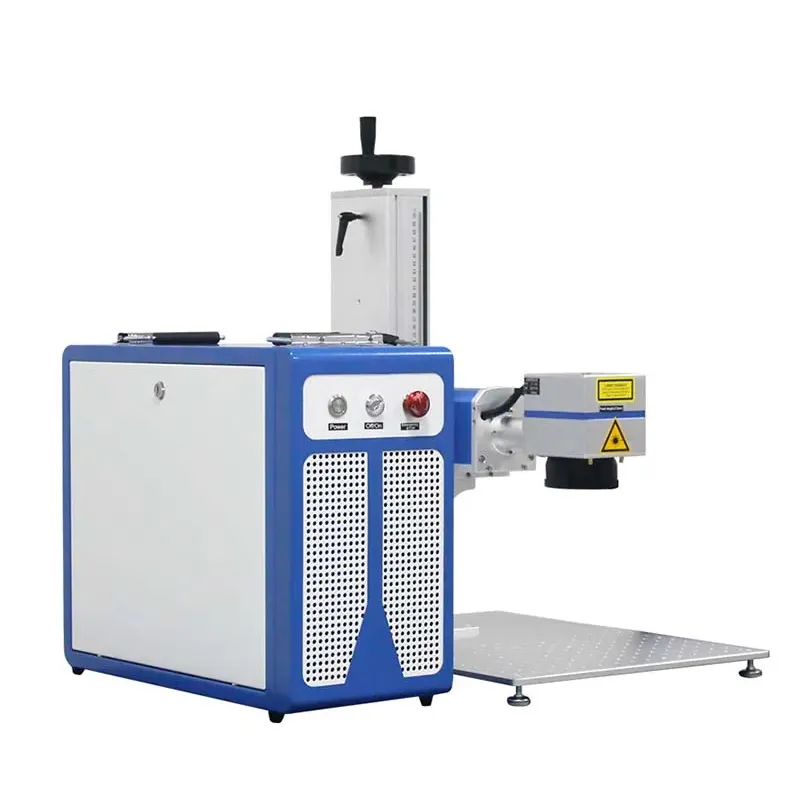

Split Fiber Laser Marking Machine

Split Fiber Laser Marking Machine
  • Split Fiber Laser Marking Machine
  • Split Fiber Laser Marking Machine
  • Split Fiber Laser Marking Machine
  • Split Fiber Laser Marking Machine
  • Split Fiber Laser Marking Machine

    • Split Fiber Laser Marking Machine
    • Laser wavelength 1064nm
    • Marking range 50×50mm~300×300mm
    • Beam quality M²<1.5
    • Max. line speed 7000mm/s

    The split fiber laser marking machine features a modular design as its core advantage. The separated layout of the laser control cabinet and the workstation significantly enhances equipment flexibility and heat dissipation efficiency, making it particularly suitable for factories that require frequent adjustments to production line configurations. Users can freely expand or move equipment components based on production needs, without being constrained by fixed workstations, while also reducing reliance on extensive workshop space. Whether for engraving metal components, micro-marking electronic parts, or high-precision medical device identification, this machine delivers stable and efficient output, meeting the rigorous industrial demands of multi-scenario and multi-material applications.

    Request a Quote
    Applications
    Metals: Iron, steel, carbon steel, stainless steel, pure aluminum, aluminum alloy, zinc alloy, titanium alloy, brass, bronze, gold, silver, platinum
    Plastics: ABS, PVC, PE, HDPE

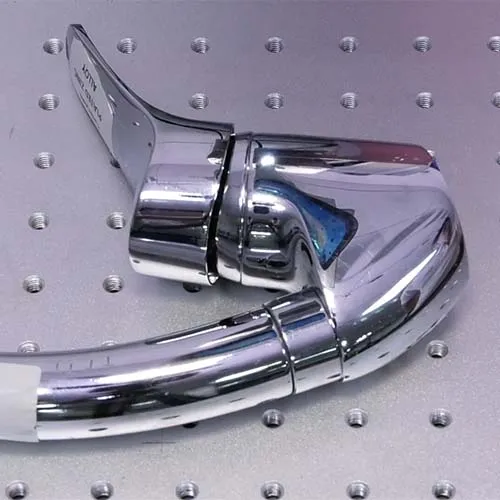

    • Stainless steel faucet laser marking
      Stainless steel faucet laser marking

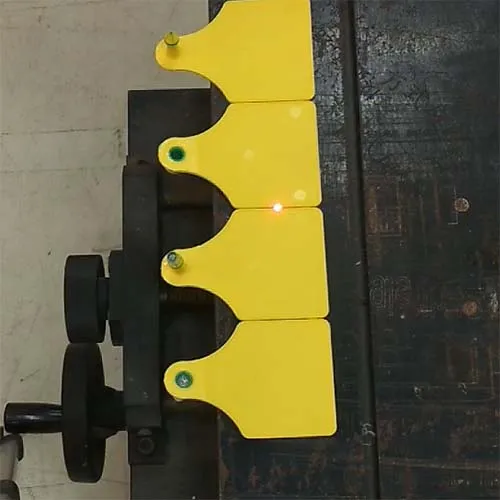

    • Animal ear tag laser marking
      Animal ear tag laser marking

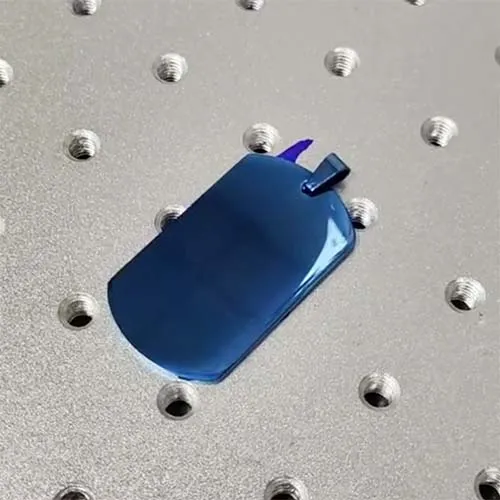

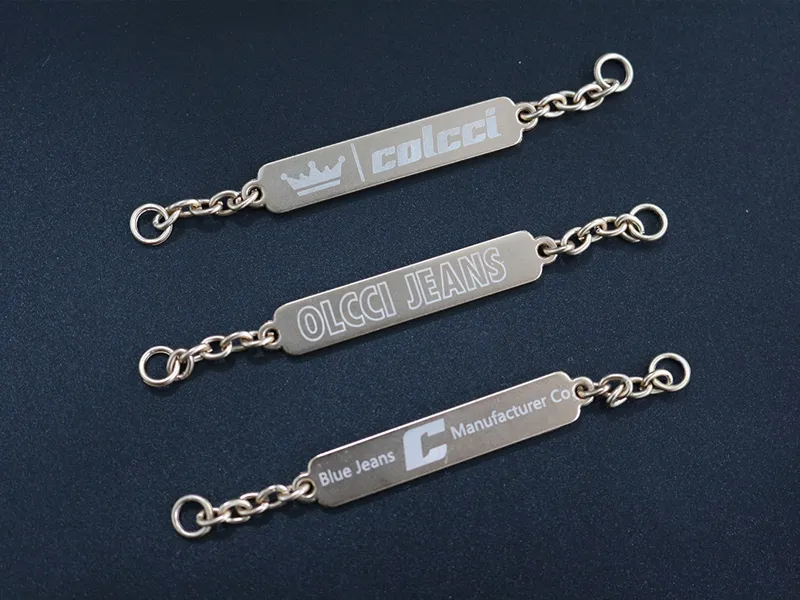

    • Metal pendant laser marking
      Metal pendant laser marking

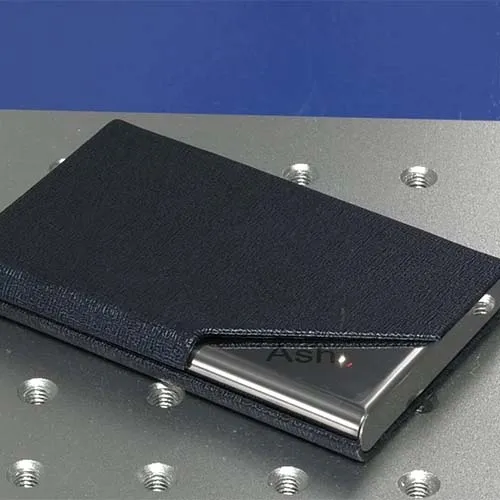

    • Business card case laser marking
      Business card case laser marking

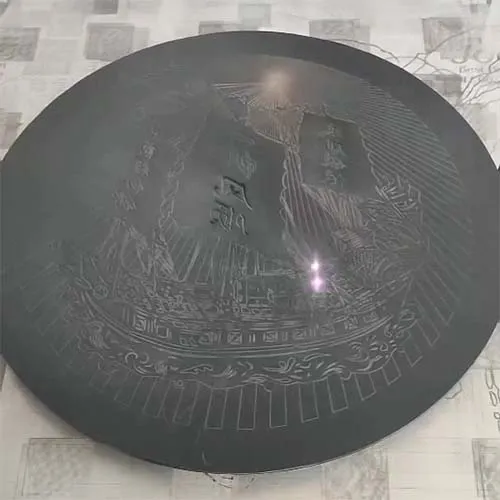

    • Artwork laser engraving
      Artwork laser engraving
    • Brass laser marking
      Brass laser marking
    • Metal sign laser engraving
      Metal sign laser engraving

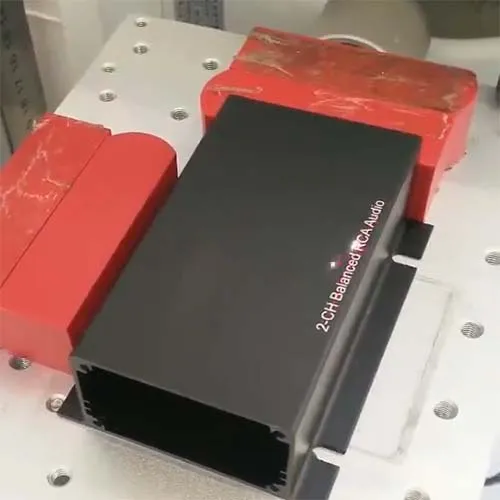

    • Aluminum oxide laser marking
      Aluminum oxide laser marking

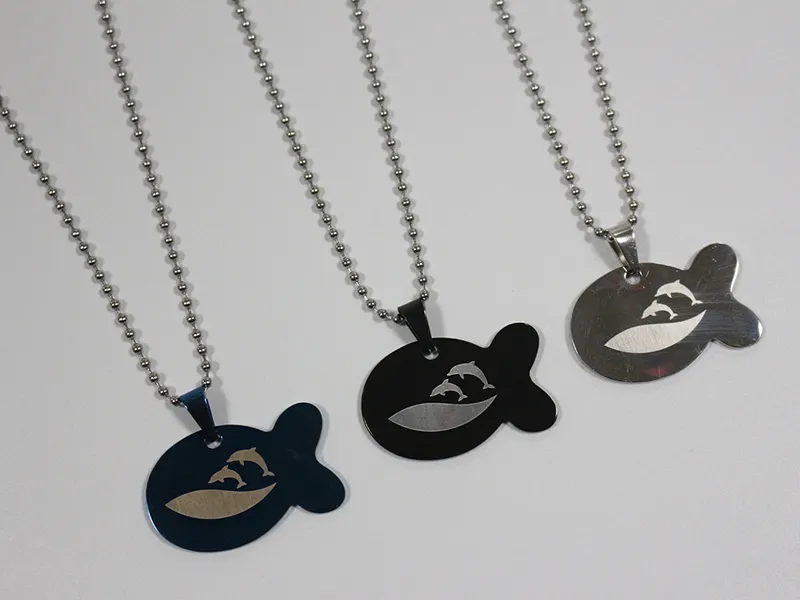

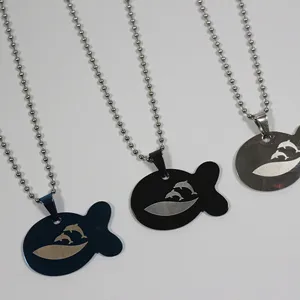

    • Stainless steel necklace laser marking
      Stainless steel necklace laser marking

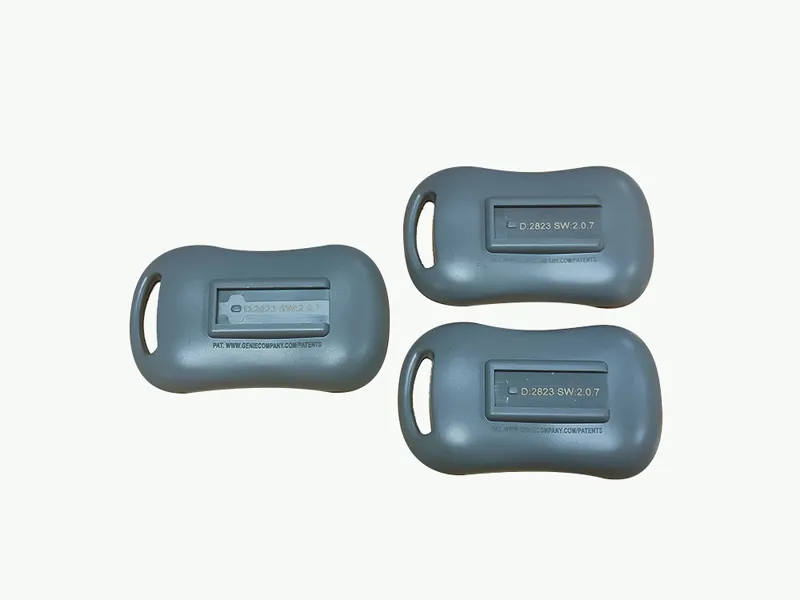

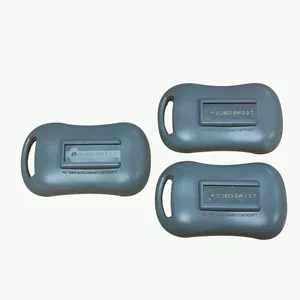

    • Plastic shell laser marking
      Plastic shell laser marking

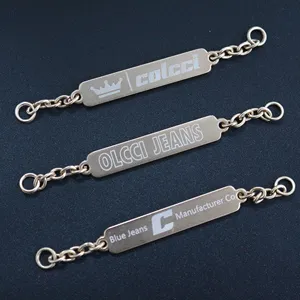

    • Metal jewelry laser marking
      Metal jewelry laser marking

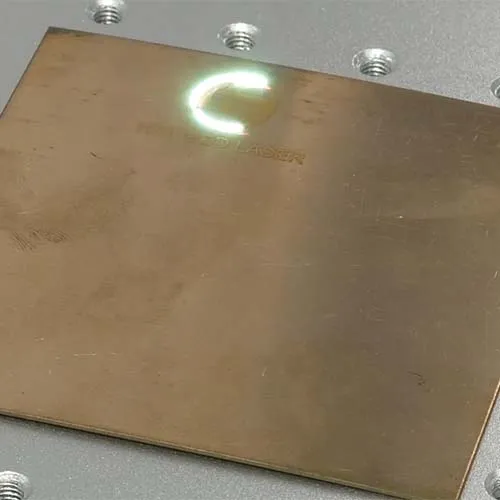

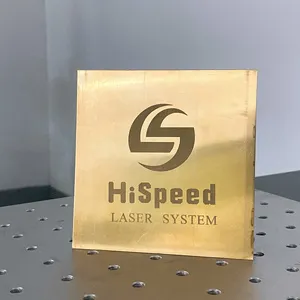

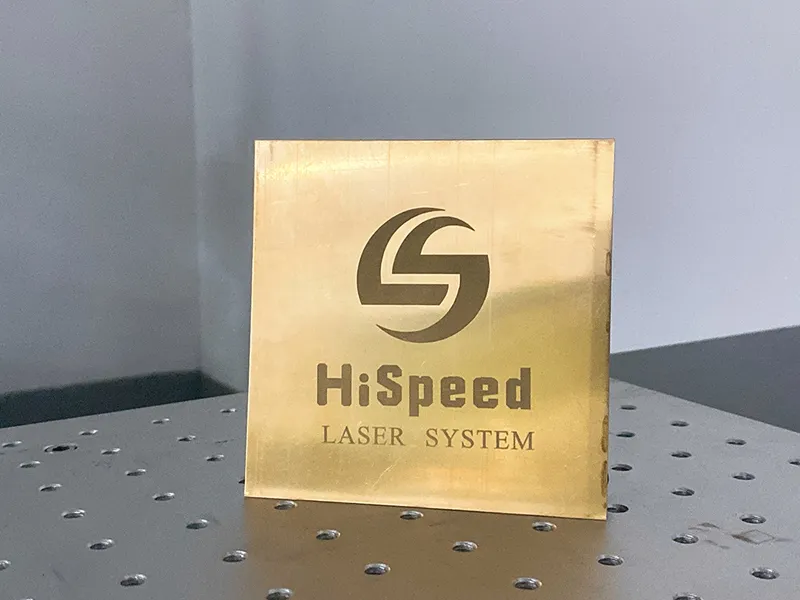

    • Copper block laser marking
      Copper block laser marking

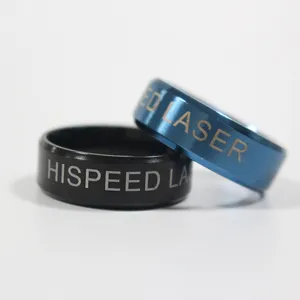

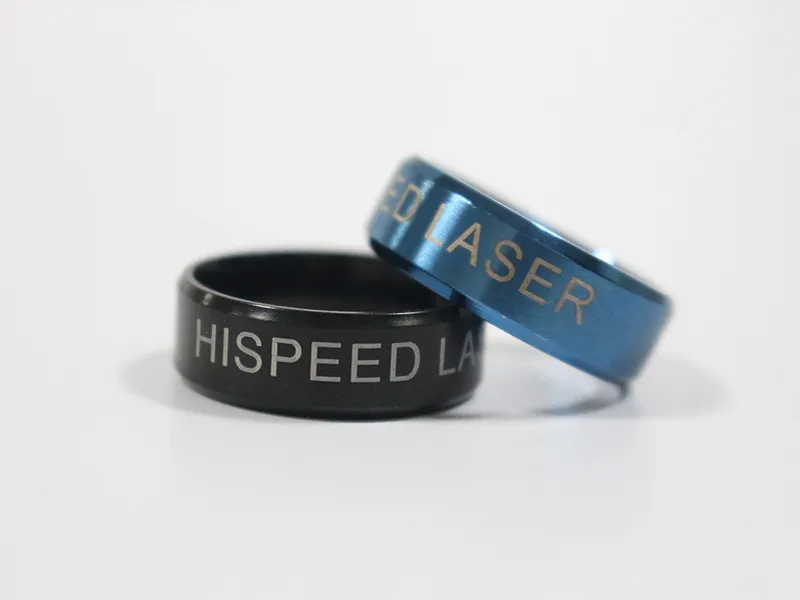

    • Metal ring laser marking
      Metal ring laser marking

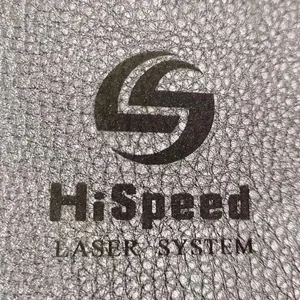

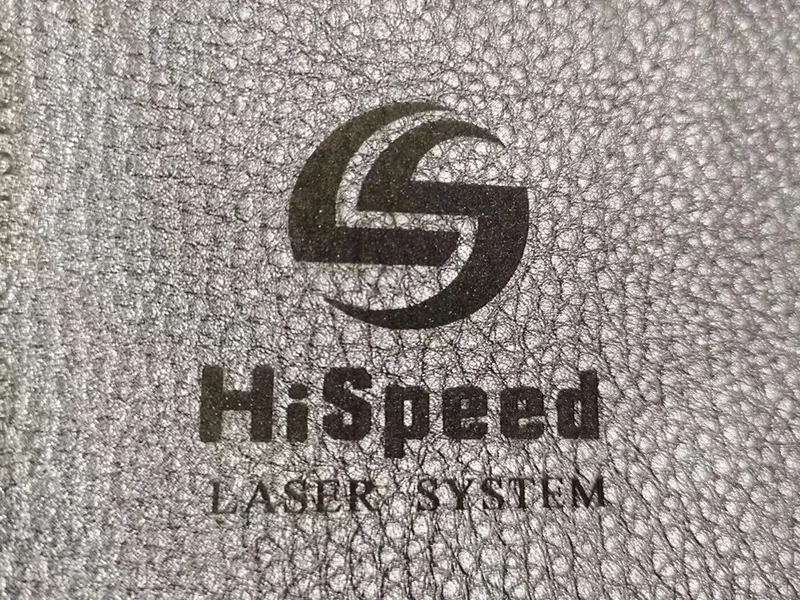

    • PU leather laser marking
      PU leather laser marking
    • Technical Data
    • Configuration
    • Inquiry
    Technical Data
    • Laser power 20W, 30W, 50W, 60W, 100W, 120W, 200W
    • Laser type fiber laser
    • Laser wavelength 1064nm
    • Marking range 50×50mm~300×300mm
    • Beam quality M²<1.5
    • Max. line speed 7000mm/s
    • Min. character size 0.05mm
    • Min. line width 0.01mm
    • Cooling method air cooling
    • Power supply 110V~240V, 50~60Hz
    • Operating temperature 5℃~40℃ (operation outside this range may affect performance and lifespan)
    • Machine dimensions 320×550×700mm, 210×450×400mm
    • Package size 800×450×770mm
    • Machine weight 47kg
    • Package weight 57kg
    Configuration
    Laser source

    Laser source
    We provide Raycus, JPT, MAX, SUPER, and IPG laser sources for our laser equipment, featuring high pump conversion efficiency, low power consumption, and excellent beam quality.

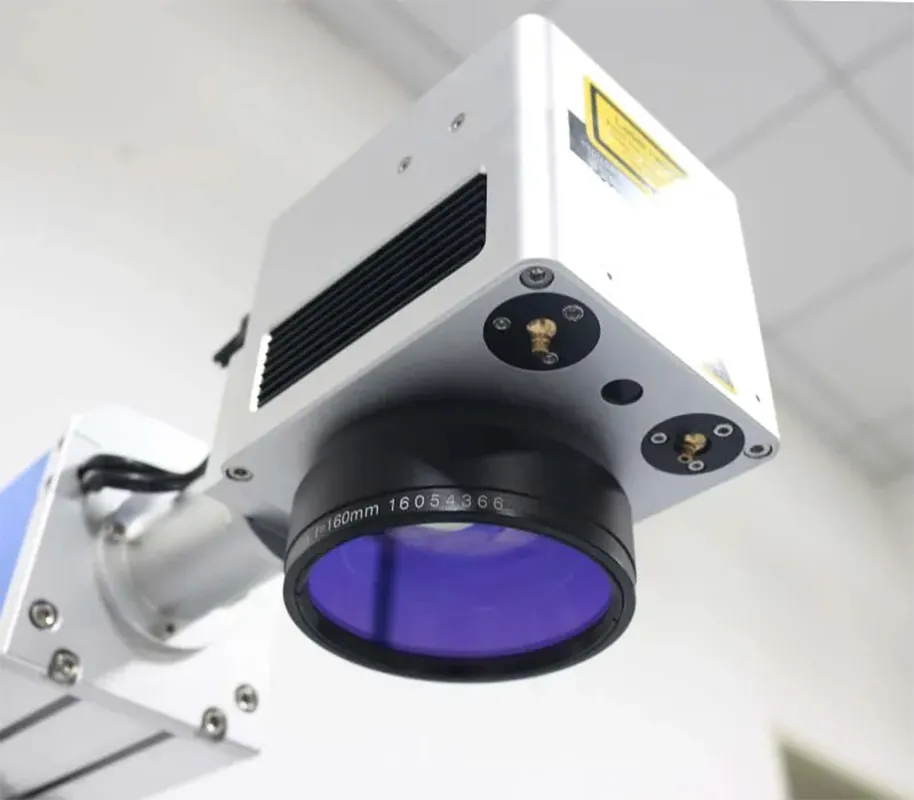

    Galvo scanner

    Galvo scanner
    The 7110 model galvo scanner is characterized by high-speed scanning of 7000mm/s, primarily used for laser marking and engraving. It is equipped with a dual-red-light focusing device, which significantly enhances focusing efficiency.

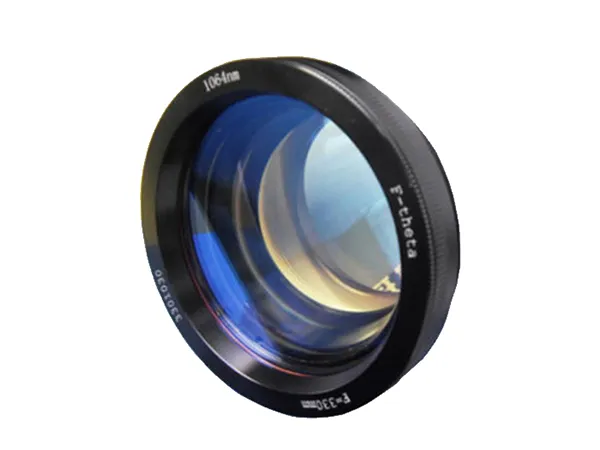

    F-theta lens

    F-theta lens
    Equipped with an F-theta lens for 1064nm wavelength, mainly used in fiber laser marking machines. Due to its longer wavelength, it offers strong energy penetration, making it suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.

    Control card

    Control card
    Equipped with a genuine JCZ EZCAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.

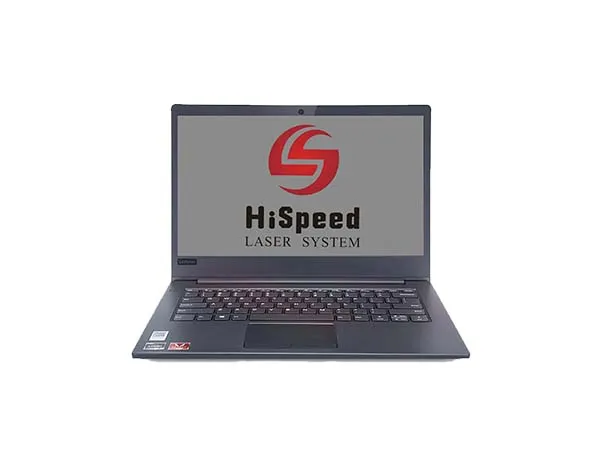

    Laptop

    Laptop
    Features a major brand Lenovo laptop, equipped with a Windows 10 system and a 14-inch display, to ensure smoother operation of the entire laser equipment.

    Column

    Column
    Made of aluminum alloy, with clear scale markings for smooth movement, adapting to marking for workpieces of different heights.

    Laser safety warning labels

    Laser safety warning labels
    Play a crucial role in scenarios involving laser applications, primarily serving to alert people to potential laser hazards and ensure personnel safety.

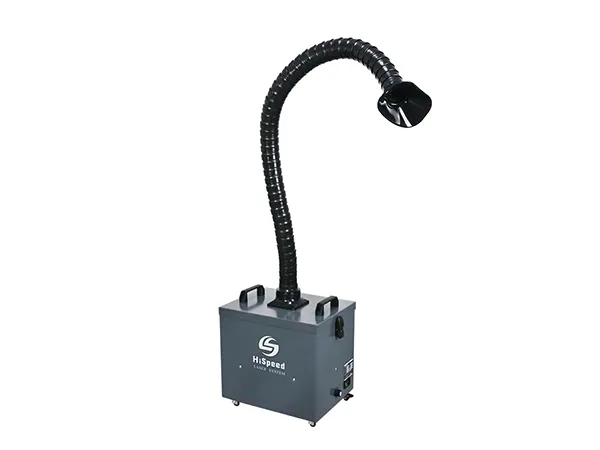

    • Fume ExtractorFume Extractor

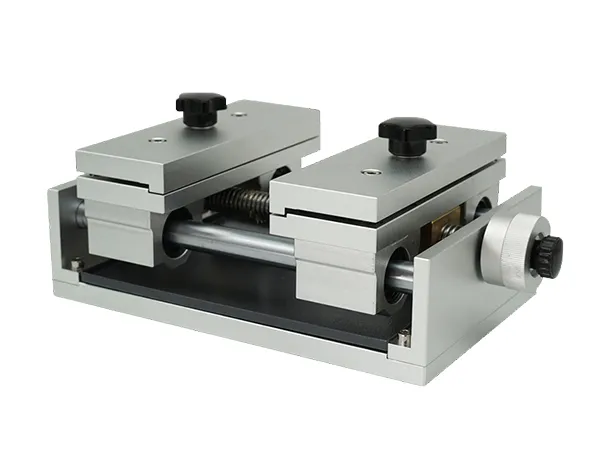

    • Cutting fixture (laser engraving vise)Cutting fixture (laser engraving vise)
    • F-theta lensF-theta lens

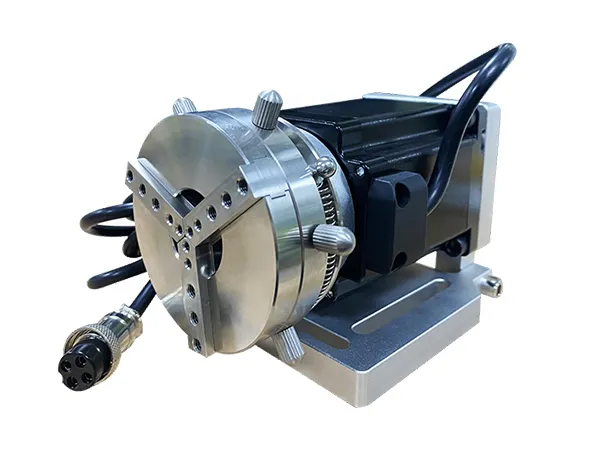

    • Rotary axis for ringRotary axis for ring

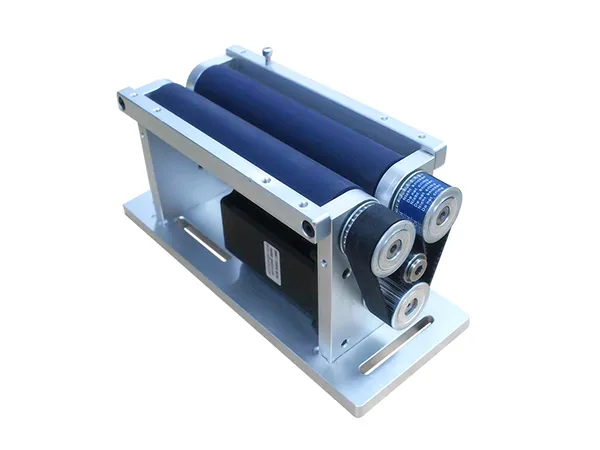

    • Rotary rollerRotary roller

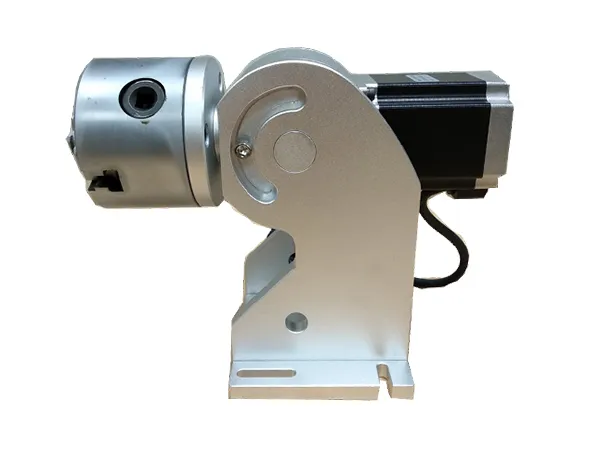

    • Rotary axisRotary axis
    • Fiber laser

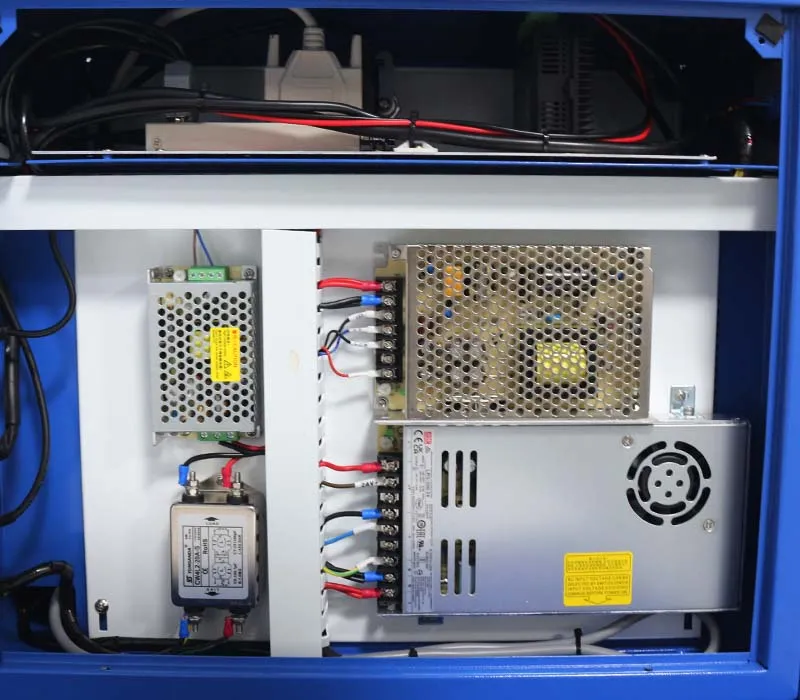

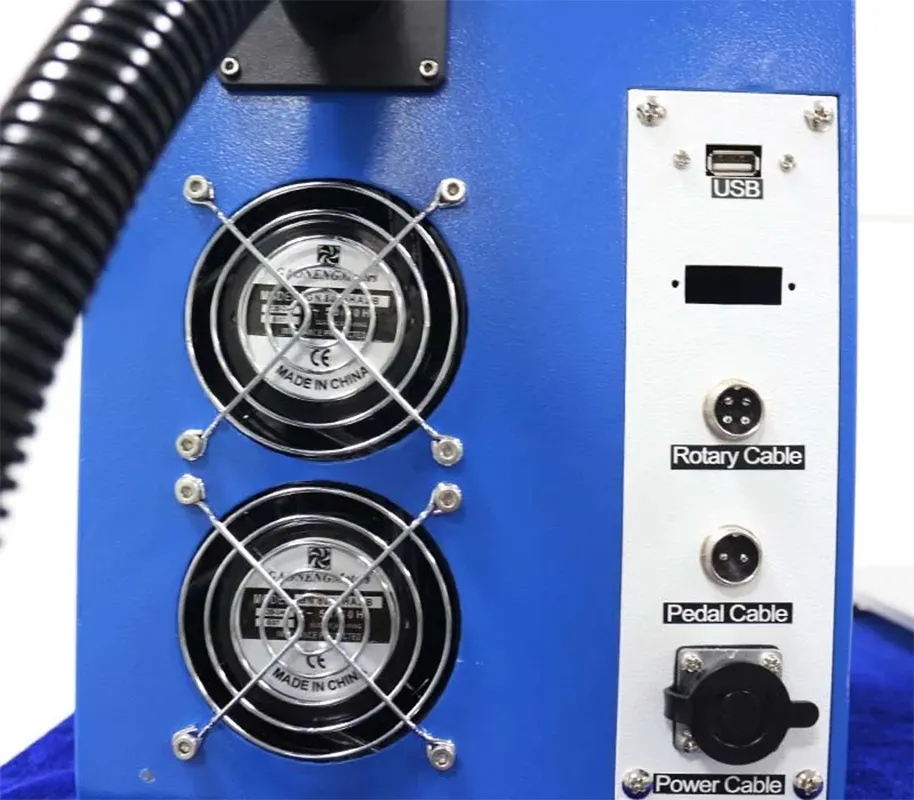

    • Portable laser control cabinet
    • Work panel
    • Galvo scanner
    • F-theta lens
    • Control card
    • Laser power supply
    • Laptop
    • Power cord
    • Safety goggles
    • Foot pedal switch
    • Aluminum test piece
    • Hex key tool set
    • Equipment warranty certificate
    • Shipping accessories list
    • Product catalog
    Our Laser Marking Machines

    Hispeed Laser has been a trusted manufacturer of industrial laser systems since 2017, delivering precision solutions for marking, welding, cutting, and cleaning applications. With annual production exceeding 1,000 units, we supply CE, UKCA, and FDA-certified equipment to clients in over 80 countries across Europe, Southeast Asia, and South America.

    Our advanced laser technology serves diverse industries including 3C electronics, automotive, medical devices, jewelry, and packaging. We offer comprehensive OEM/ODM services, fully customized solutions tailored to your specific requirements, and rapid delivery, typically within 7–10 days. Beyond installation, Hispeed provides complete lifecycle support to ensure optimal performance and longevity of your equipment.

    Get in Touch

    Theoretically, for every 0.1mm increase in depth, efficiency decreases by approximately 15%. This also depends on the specific material being processed.

    This equipment supports 24-hour uninterrupted operation. Its stability has been verified through long-term practical application.

    Our machines support various mainstream file formats, including PLT, DXF, AI, and others, allowing for flexible import of marking designs.

    Hardware operation is very simple, involving just a few buttons. The main learning curve is for software operation. We provide written software operation instructions and tutorial videos. If needed, we also offer 2 hours of remote teaching support.

    The equipment undergoes complete debugging before leaving the factory. Upon receiving the machine, it's plug-and-play; no additional debugging is required.
