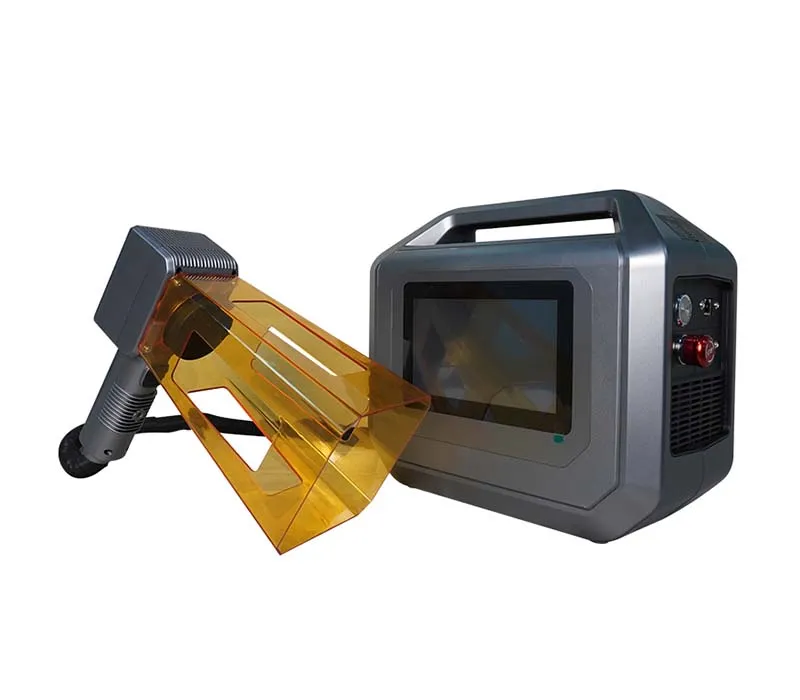

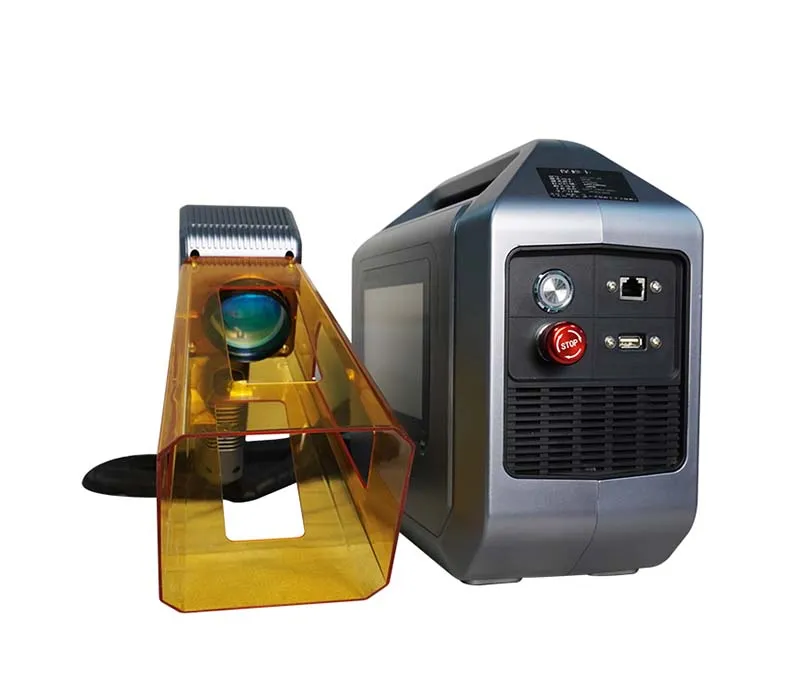

Mini Handheld Fiber Laser Marking Machine

Mini Handheld Fiber Laser Marking Machine
  • Mini Handheld Fiber Laser Marking Machine
  • Mini Handheld Fiber Laser Marking Machine
  • Mini Handheld Fiber Laser Marking Machine
  • Mini Handheld Fiber Laser Marking Machine
  • Mini Handheld Fiber Laser Marking Machine

    • Mini Handheld Fiber Laser Marking Machine
    • Laser wavelength 1064nm
    • Marking range 75×75mm~100×100mm
    • Beam quality M²<1.5
    • Max. line speed 7000mm/s

    Designed for portability and handheld lightweight use, the entire mini handheld fiber laser marking machine weighs only 6.8kg, allowing for flexible single-hand operation. It is ideal for outdoor industrial scenarios and specifically designed for large-sized objects, featuring one-button touchscreen marking. This machine requires no external power source and offers strong battery life; for example, a 20-watt battery provides up to 11 hours of standby time and 3 hours of continuous operation, meeting the demands for mobile and on-the-spot production!

    Request a Quote
    Applications
    Metals: Iron, steel, carbon steel, stainless steel, pure aluminum, aluminum alloy, zinc alloy, titanium alloy, brass, bronze, gold, silver, platinum

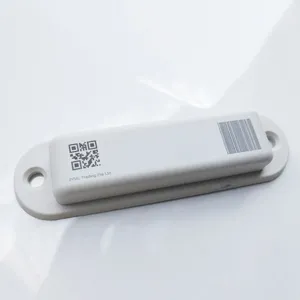

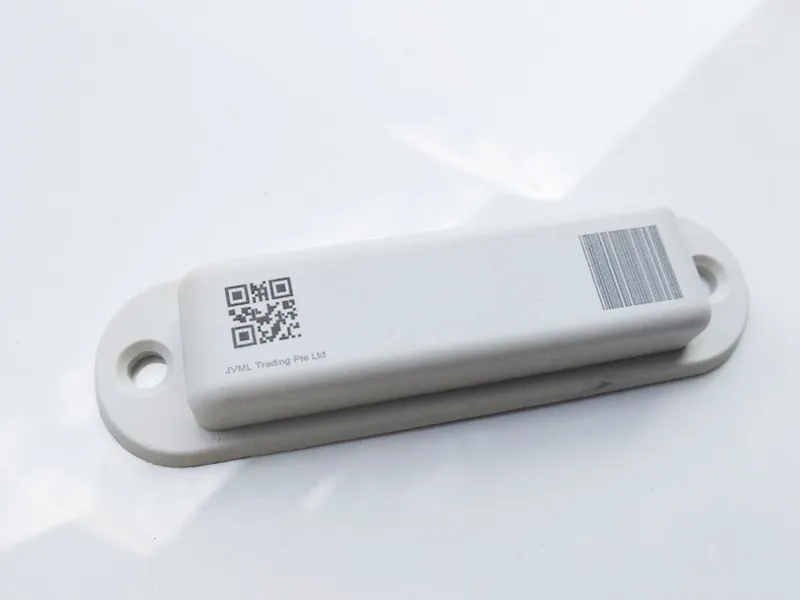

    Plastics: ABS, PVC, PE, HDPE

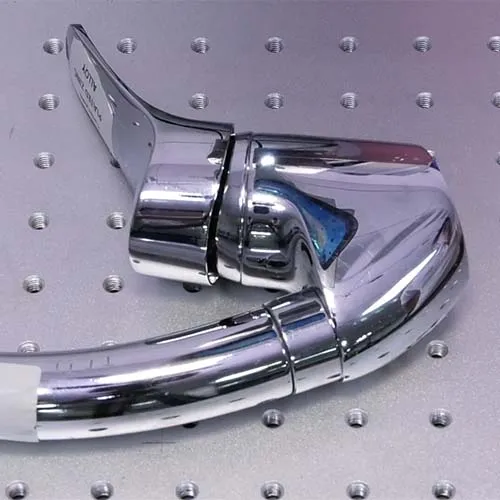

    • Stainless steel faucet laser marking
      Stainless steel faucet laser marking

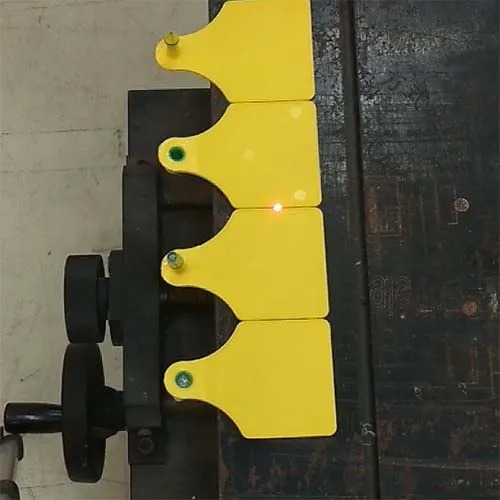

    • Animal ear tag laser marking
      Animal ear tag laser marking

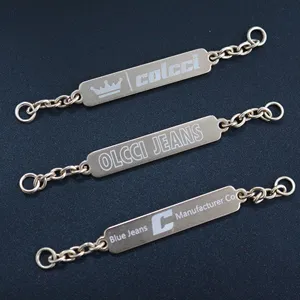

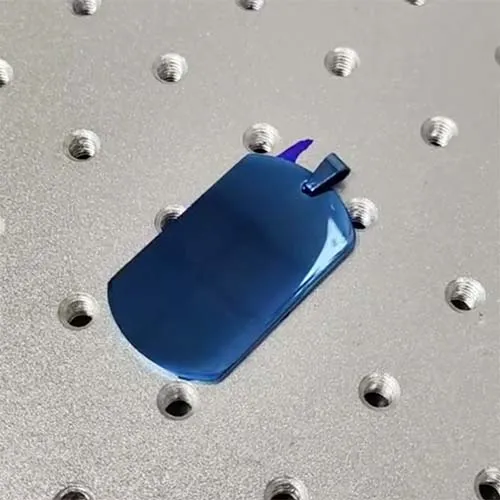

    • Metal pendant laser marking
      Metal pendant laser marking

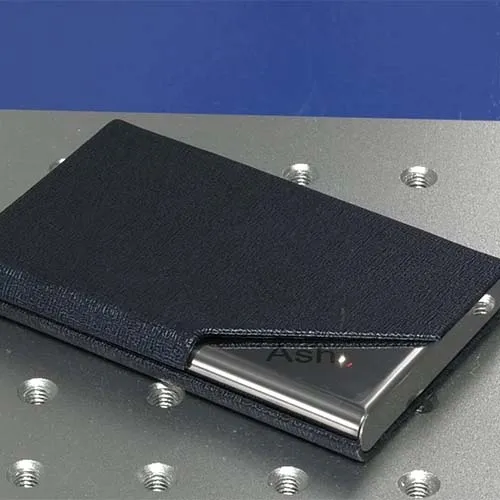

    • Business card case laser marking
      Business card case laser marking

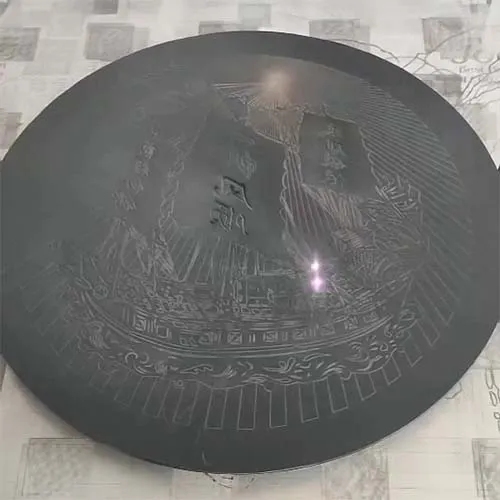

    • Artwork laser engraving
      Artwork laser engraving

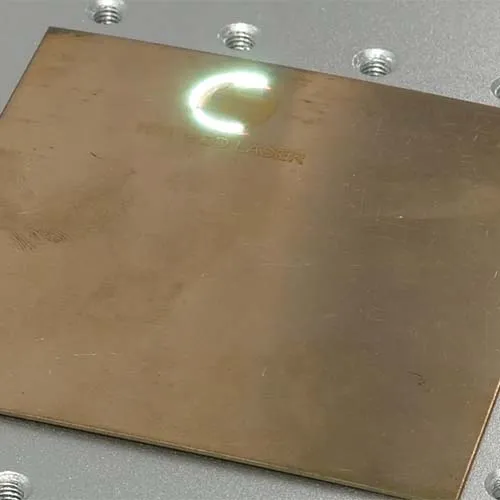

    • Brass laser marking
      Brass laser marking
    • Metal sign laser engraving
      Metal sign laser engraving

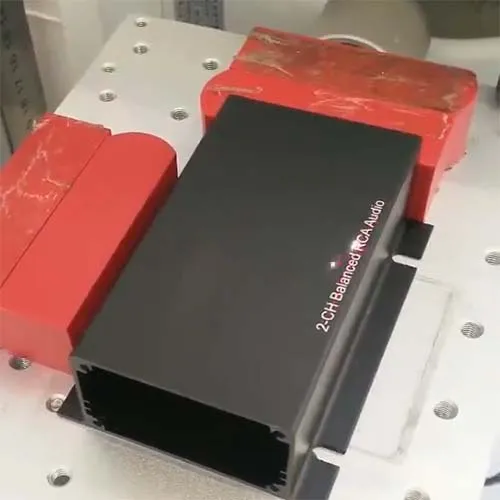

    • Aluminum oxide laser marking
      Aluminum oxide laser marking
    • Technical Data
    • Configuration
    • FAQ
    • Why Us
    • Inquiry
    Technical Data
    • Laser power 20W, 30W, 50W
    • Laser type fiber laser
    • Laser wavelength 1064nm
    • Marking range 20W, 30W, 50W
    • Beam quality M²<1.5
    • Max. line speed 7000mm/s
    • Min. character size 0.05mm
    • Min. line width 0.01mm
    • Cooling method air cooling
    • Power supply 220V/50Hz
    • Operating temperature 5℃~40℃ (operation outside this range may affect performance and lifespan)

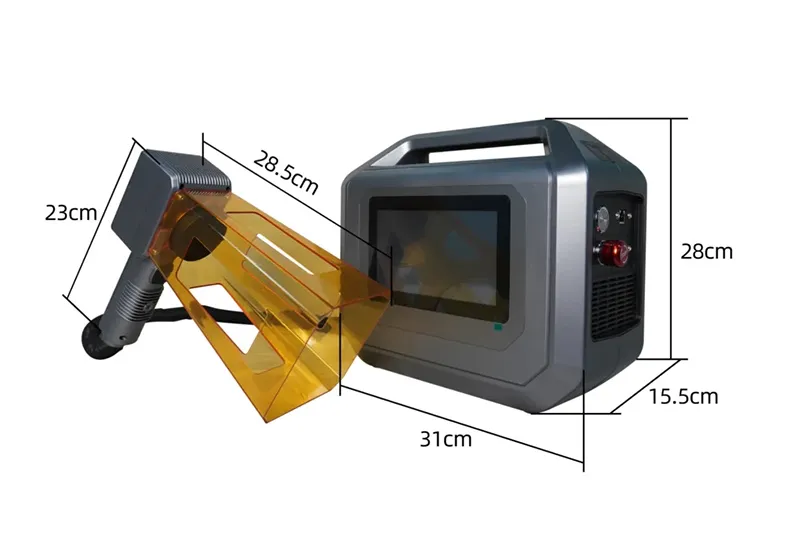

    • Machine dimensions 310×155×280mm (cabinet), 230×285mm (handle)
    • Package size 590×250×400mm
    • Machine weight 7.1kg
    • Package weight 8.3kg
    Recommended Reasons
    • 20W laser powerWorking area ≤75×75mm for surface marking
    • 30W laser powerWorking area ≤100×100mm for surface marking
    Configuration
    Laser source

    Laser source
    Features a compact mini fiber laser, reducing the overall footprint of the machine. It offers high pump conversion efficiency, low power consumption, excellent beam quality, and a lifespan of up to 100,000 hours.

    Galvo scanner

    Galvo scanner
    A 7000mm/s high-speed scanning head, primarily used for laser marking. It is equipped with a dual-red-light focusing device, which significantly enhances focusing efficiency.

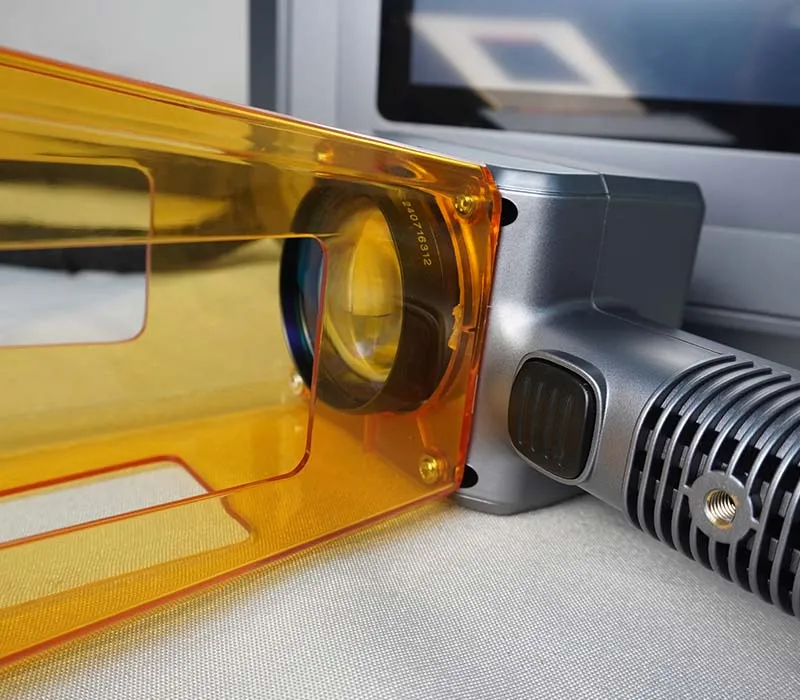

    F-theta lens

    F-theta lens
    Equipped with an F-theta lens for 1064nm wavelength, mainly used in fiber laser marking machines. Due to its longer wavelength, it offers strong energy penetration, making it suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.

    Control card

    Control card
    Equipped with a genuine SEACAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.

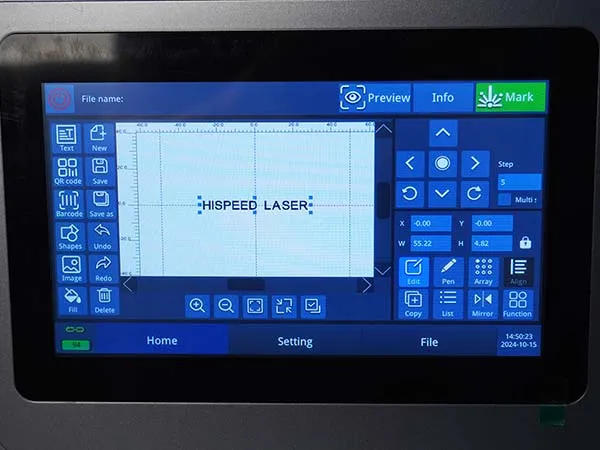

    Touchscreen display

    Touchscreen display
    Features a major brand BSL system, with a 7-inch touchscreen display embedded in the laser control box. Its integrated design makes it more portable, allowing for laser marking anytime, anywhere.

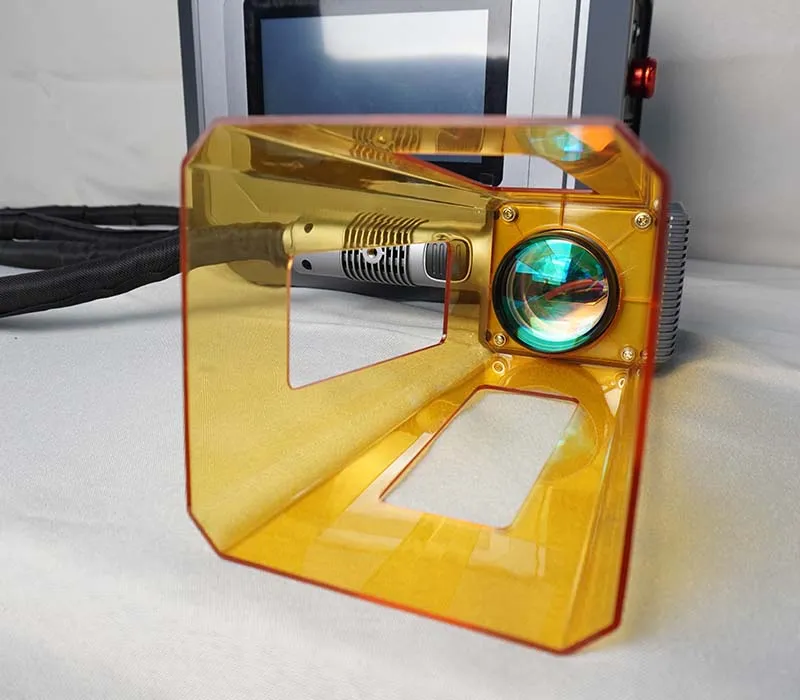

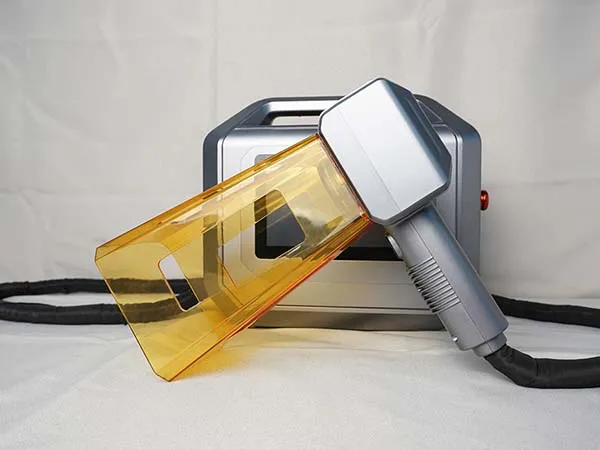

    Portable handheld marking head

    Portable handheld marking head
    The lightweight design of the handheld marking head is crafted from high-strength engineering plastic and aerospace aluminum, with an overall weight controlled between 0.85-1.25kg. Combined with a non-slip textured rubberized grip and balanced center of gravity design, it prevents fatigue even during prolonged operation.

    Laser safety warning labels

    Laser safety warning labels
    Play a crucial role in scenarios involving laser applications, primarily serving to alert people to potential laser hazards and ensure personnel safety.

    Fume Extractor
    Fume Extractor
    • Fiber laser
    • Handheld marking head
    • Galvo scanner
    • F-theta lens
    • Control card
    • Laser power supply
    • Power cord
    • Safety goggles
    • Foot pedal switch
    • Aluminum test piece
    • Hex key tool set
    • Equipment warranty certificate
    • Shipping accessories list
    • Product catalog

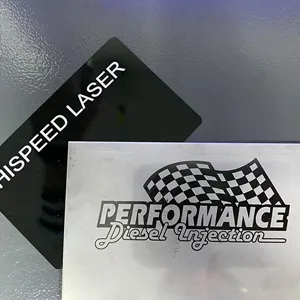

    Darker materials generally yield higher contrast. Lighter materials may require adjustments to frequency/power. The specific effect depends on the material.

    Theoretically, for every 0.1mm increase in depth, efficiency decreases by approximately 15%. This also depends on the specific material being processed.

    This equipment supports 24-hour uninterrupted operation. Its stability has been verified through long-term practical application.

    We offer remote diagnosis for fault issues and will provide a solution within 24 hours. If necessary, replacement parts will be shipped immediately.

    Our machines support various mainstream file formats, including PLT, DXF, AI, and others, allowing for flexible import of marking designs.
