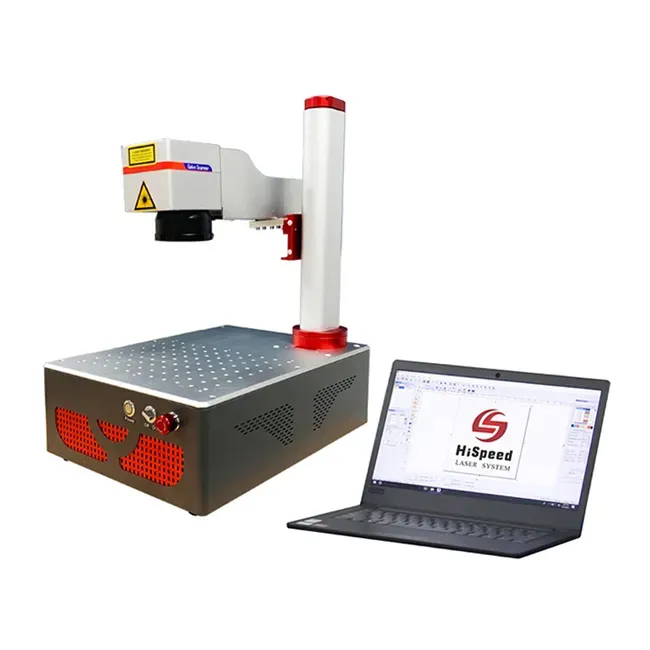

22KG Mini Portable Laser Engraving Machine
- Laser power: 20 / 30W
- Working area: 110*110 / 150*150 / 200*200mm
- Repeat precision:±0.01mm
- Working speed: ≤8000mm/s
Mini portable fiber laser marking machine, is with powerful function, good performance, small and portable.Widely used to mark text, pattern, bar code and other graphics in metal, electronics,plastic and other materials.
| Machine name | Mini Portable fiber laser marking machine |
| Machine model | LS-YLP-20L/30L |
| Laser source | Raycus/ JPT/ MAX/Hans |
| Laser power | 20W/30W |
| Working area | 110*110mm/150*150mm/200*200mm |
| Working speed | ≤8000mm/s |
| Wavelength | 1064nm |
| Min line width | 0.03mm |
| Min character | 0.1mm |
| Repeat precision | ±0.01mm |
| Marking frequency | 0-30KHz |
| Marking depth | ≤0.3mm (depend on material) |
| Cooling type | Air cooling |
| Applicable materials | Metal and part of non-metal materials |
| Work temperature | 0℃-40℃ |
| Input voltage | 110V/220V |
| Warranty | 2 years |

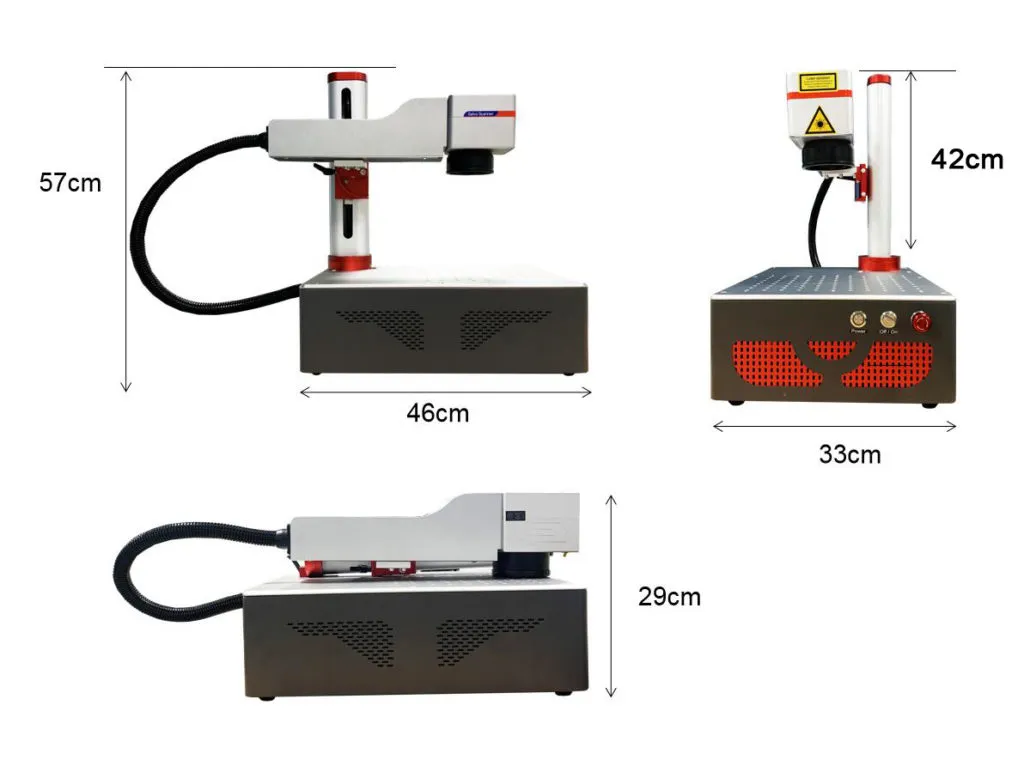

| Outer size | 46*33*58cm |
| Packing size | 66*38*39cm |
| Packing weight | 34kgs |
Laser source
Machine is standard with famous Raycus brand fber laser source, with expected 100,000 hours life span, support 7 x24 hours work ,Other brand fiber laser source like MAX,JPT,IPG optional.
Field Lens
Featuring an air-spaced design and anti-reflective coating, our compact Fθ field lens ensures a excellent throughput and durability with less than 1% distortion.
Galvanometric System
The laser’s high-speed Galvo-Tech digital galvanometric systerm reduces delays and improves your engraving speed.
