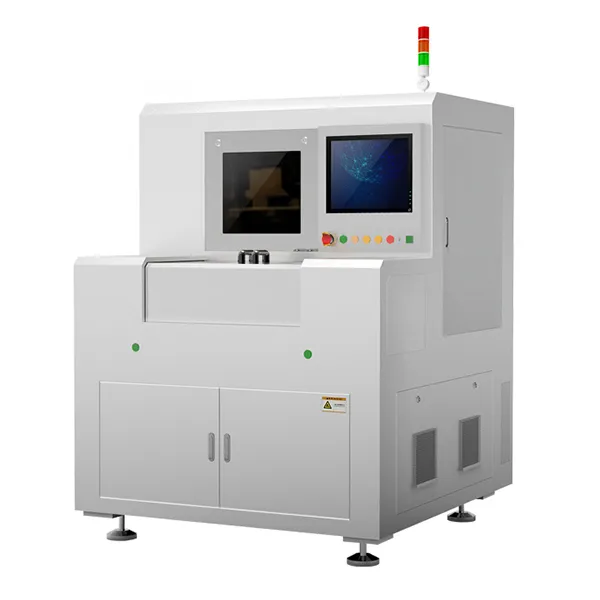

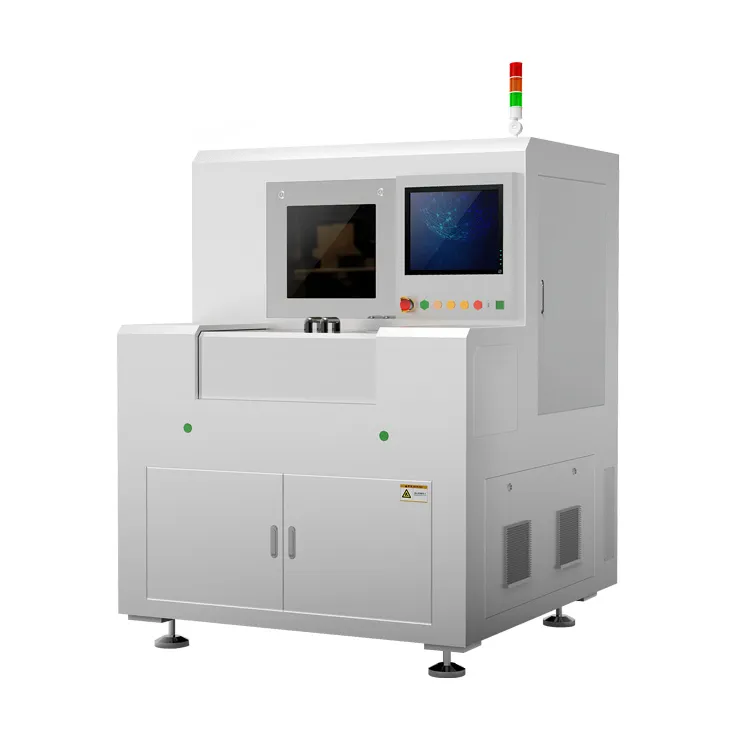

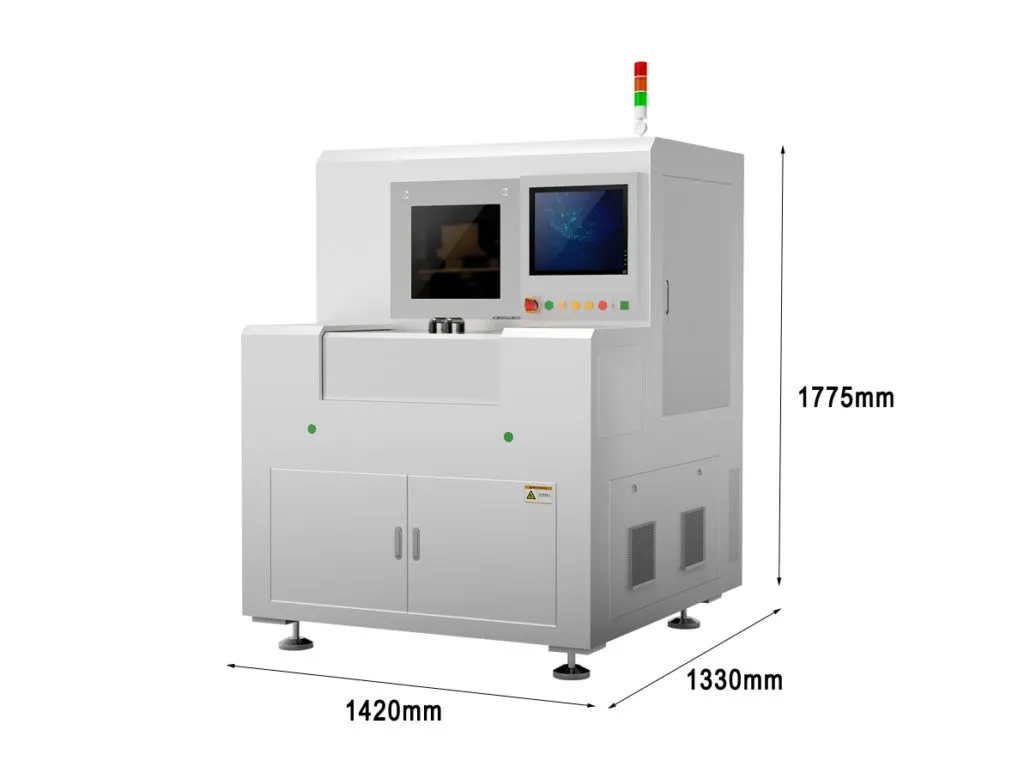

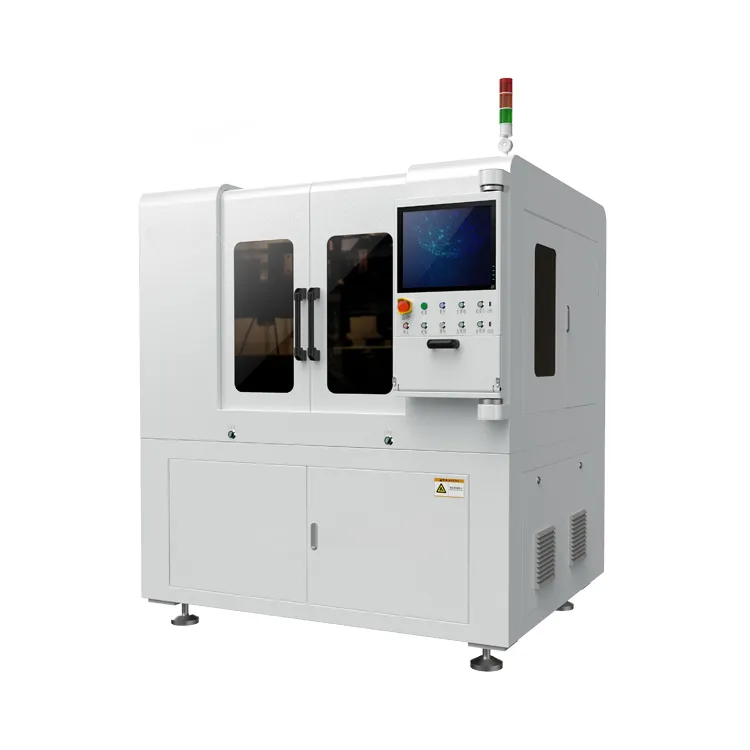

Precision UV Laser Marking Machine
- Laser source : 15 / 20 / 30w
- Scan range : 54* 54mm
- Processing range : 650*550mm / 350*500mm
- Repeat accuracy : ±2μm
This equipment is a special cutting equipment designed by using laser technology and numerical control technology. It has the characteristics of stable laser power, good beam pattern, high peak power, low cost, safety, stability, and simple operation. (This machine is a standard machine, and can be equipped with automatic or film-to-film, roll-to-film)
Technical Specifications
| Device model | |
||
| Laser source | UV 15w/20w/30w (optional nanosecond or picosecond) | ||
| Equipment station | Single optical path single station | Single optical path double station | Double optical path double station |
| Scan range | 54mm* 54mm (customizable) | ||
| Processing range | 650mm*550mm/350mm*500mm (customizable) | ||
| Precise positioning | ±3μm | ±3μm | ±3μm |
| Repeat accuracy | ±2μm | ±2μm | ±2μm |
| Depth control | ≤5μm | ≤5μm | ≤5μm |
Application industry

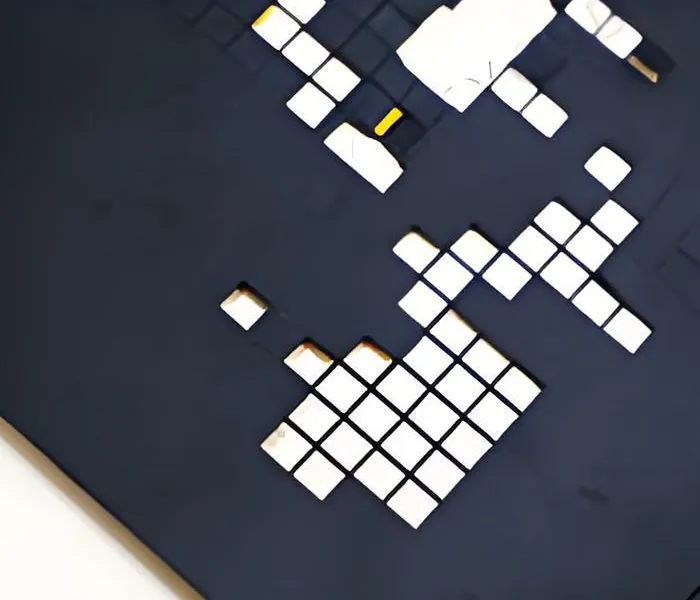

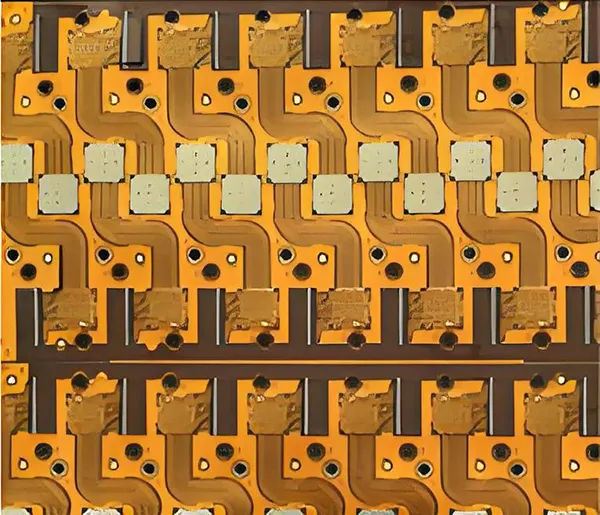

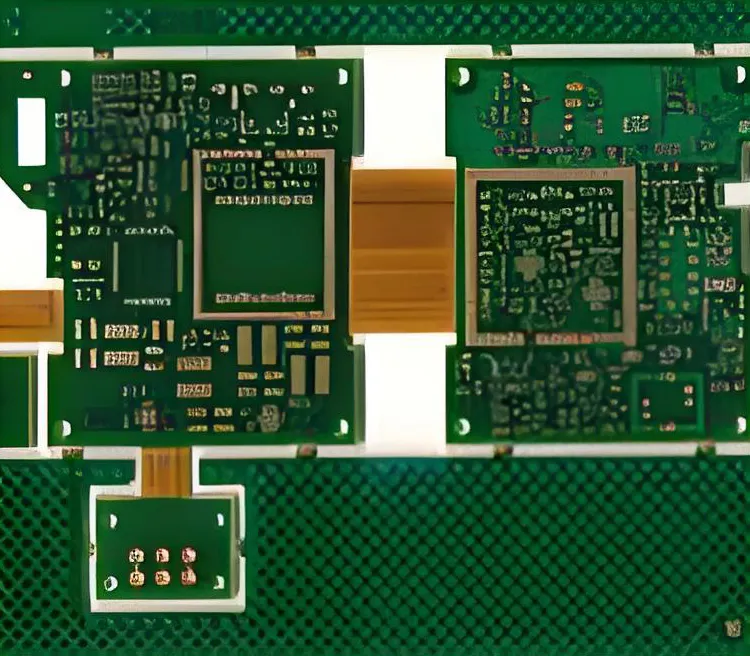

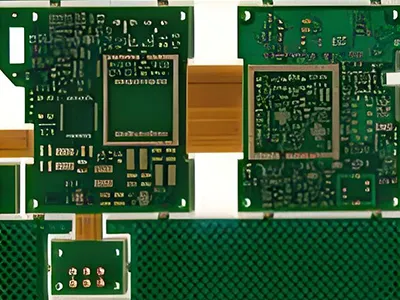

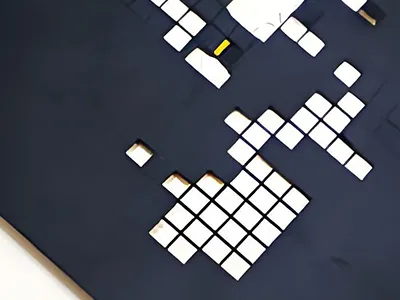

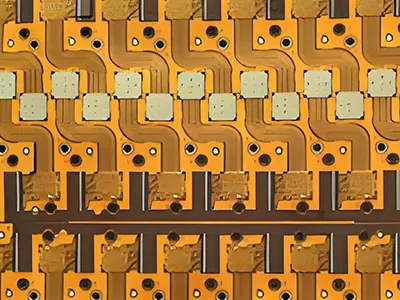

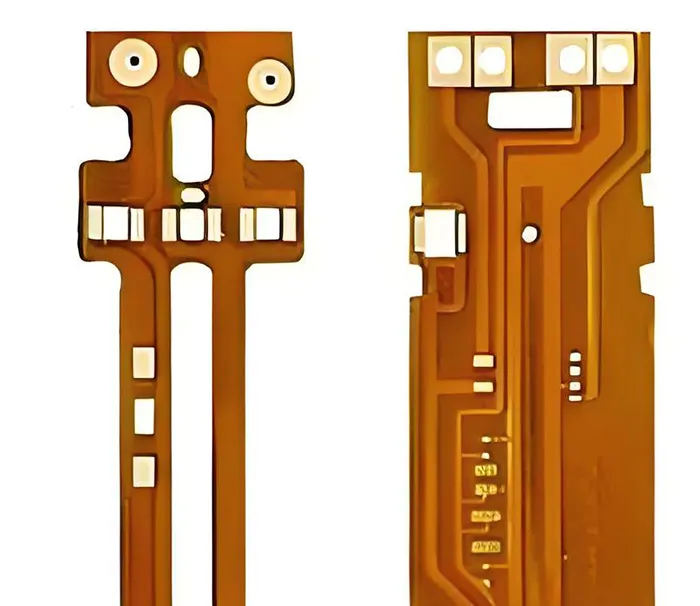

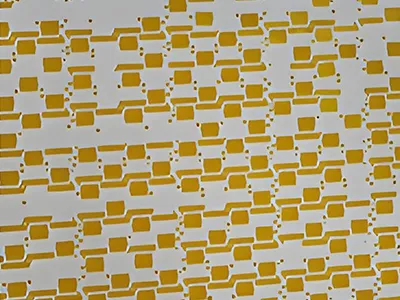

Used in PCB and SMT industries. FPC soft board cutting, drilling, PCB circuit board sub-board cutting, camera module cutting, fingerprint recognition chip cutting, semiconductor cutting, etc.
