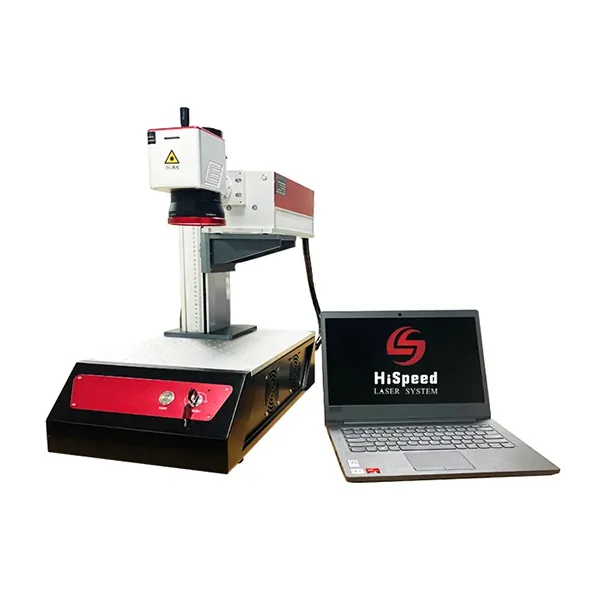

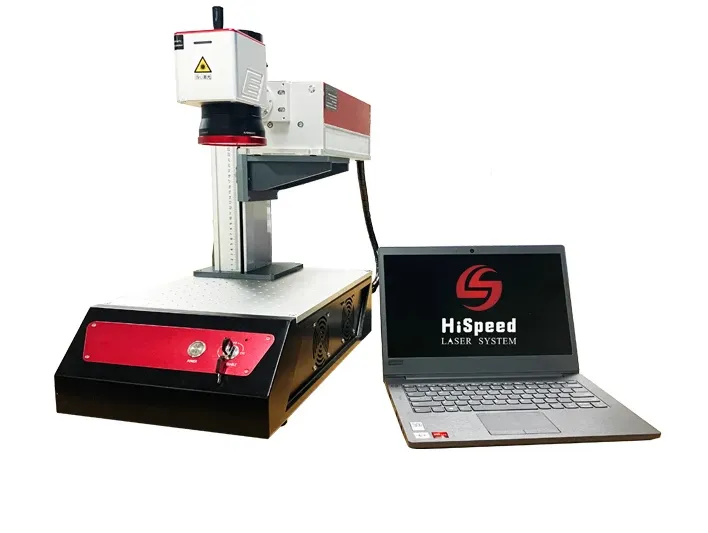

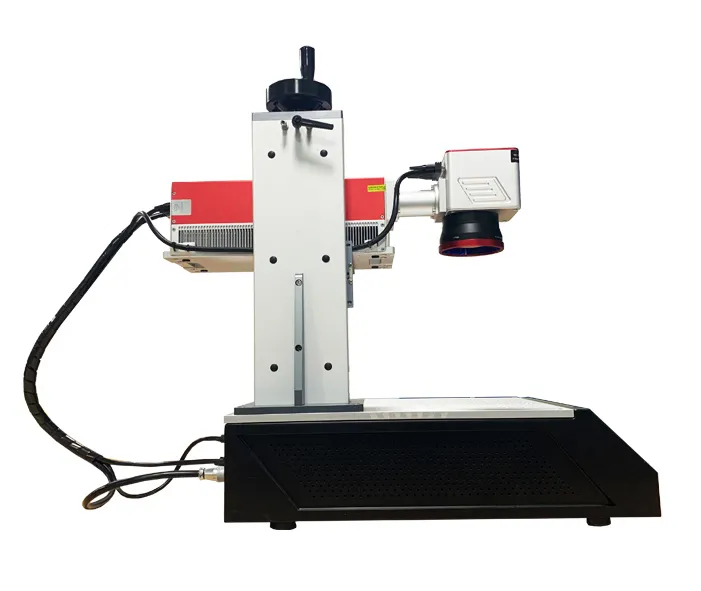

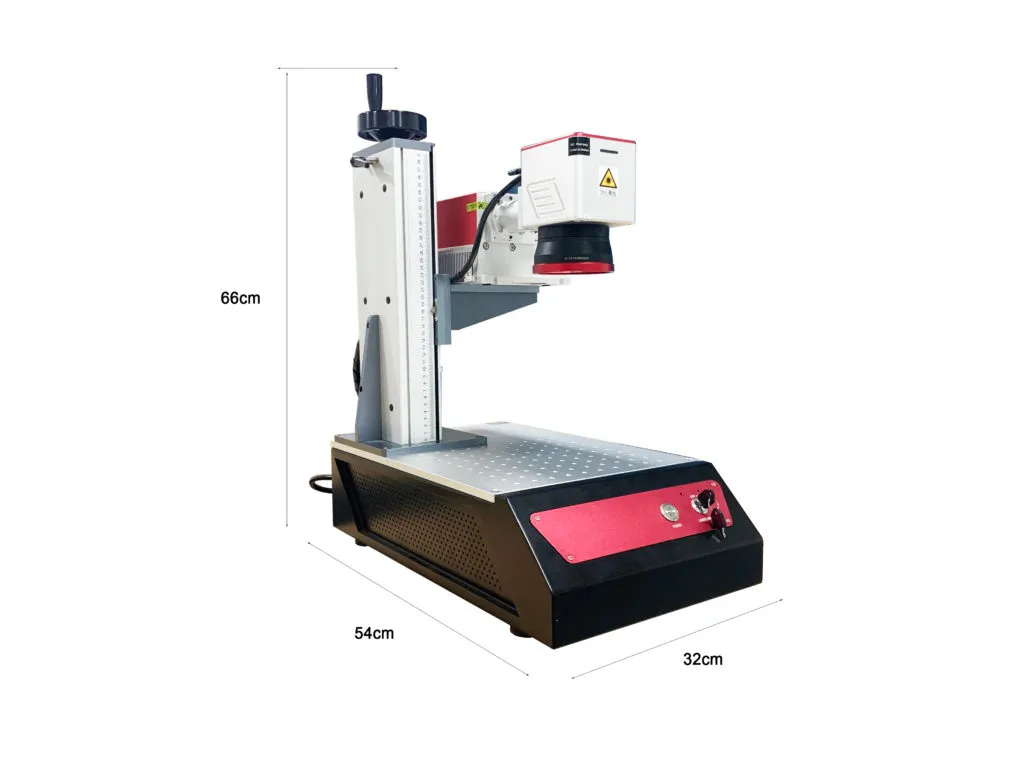

Mini UV Laser Marking Machine
- Laser source : 3W
- Wavelength : 355nm
- Power Stability : < ±2%m
- Beam Diameter : 0.6±0.1mm

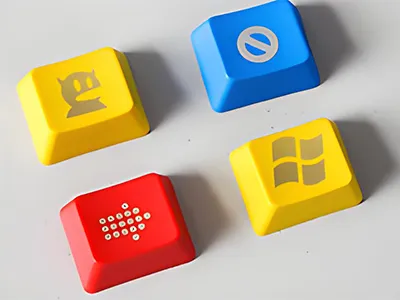

Hispeed UV laser marker 3W adopts three order intracavity frequency doubling (THG) technology. Compared to infrared laser, 355nm ultraviolet laser has extremely small laser facula, which reduces the mechanical deformation to a significant extent and diminishes the influence of heat-process to a very limited area. Therefore it can be mainly applied for hyperfine marking and engraving, especially suitable for marking on packing materials ,medicines, mobile phones, keyboard, chargers etc.
| Model | |
| Power | 3W |
| Wavelength | 355nm |
| Beam Quality | M2< 1.3 |
| Output Power | 10%-100% |
| Output Frequency | 15KHz-100KHz |
| Power Stability(8h) | < ±2%m |
| Pulse to pulse instabilit | < ±3%rms |
| Spatial Mode | TEmoo(M2< 1.3) |
| Beam Divergence | < 2 mrad (full angle) |
| Beam Diameter | 0.6±0.1mm |
| Beam Roundness | >90% |
| Pointing stability | < 50urad |
| Polarization Direction | < Horizontal |
| Polarization Ratio | 1900/1/4 4:01:00 |
| Cooling | Air-cooling |

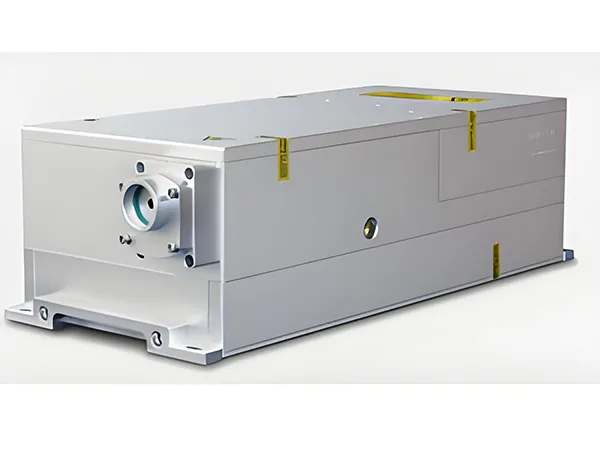

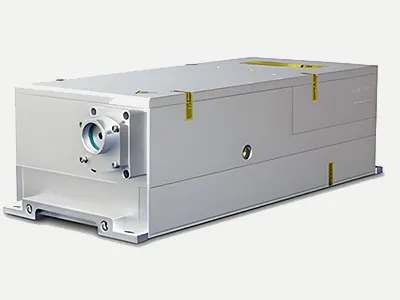

UV Laser Source
Hispeed brand laser source,Coherent,with expected 30,000 hours life span, support 7 x24 hours work

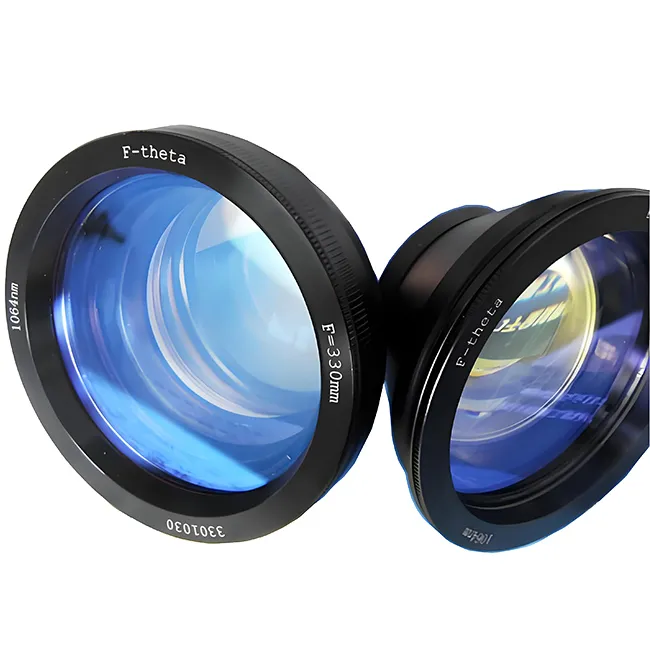

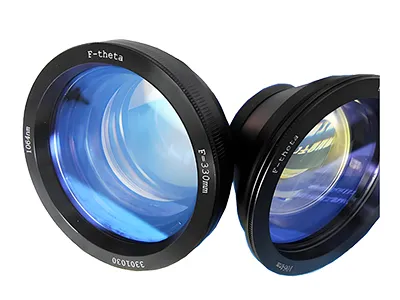

Field Lens
Featuring an air-spaced design and anti-reflective coating, our compact Fθ field lens ensures a excellent throughput and durability with less than 1% distortion.

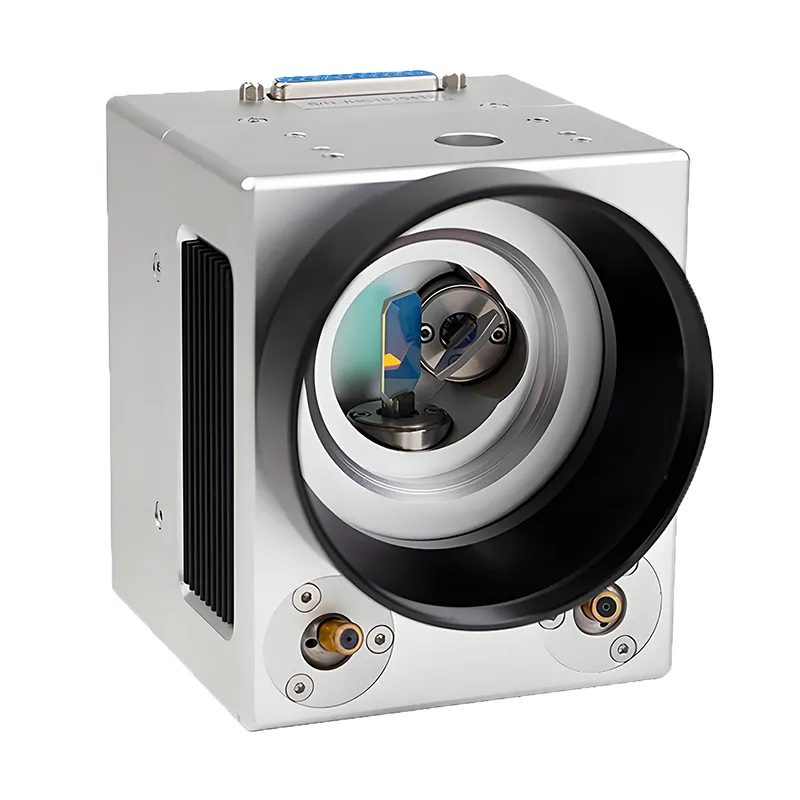

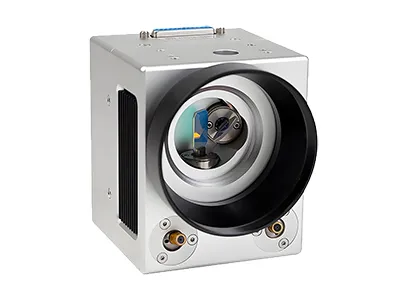

Galvanometric System
The laser’s high-speed Galvo-Tech digital galvanometric systerm reduces delays and improves your engraving speed.
