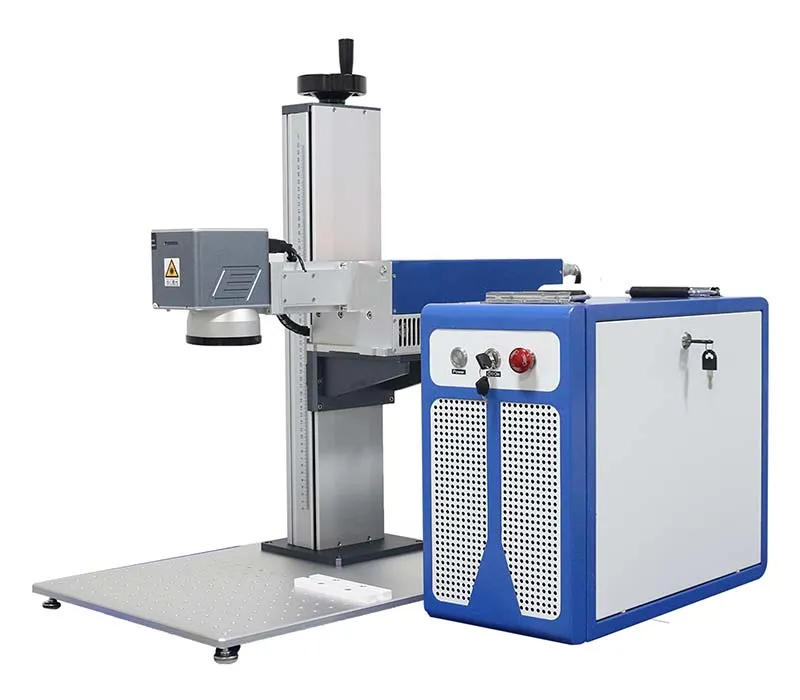

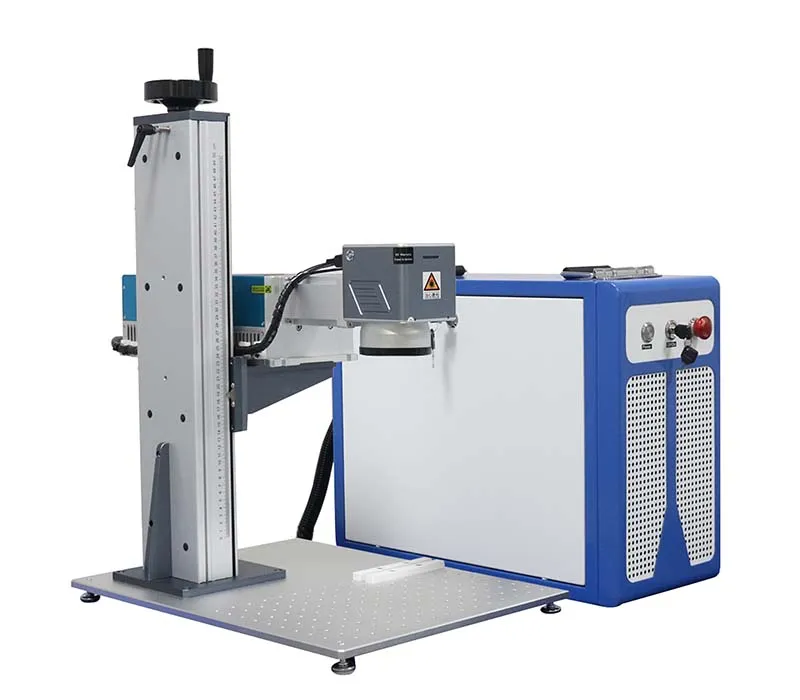

Split UV Laser Marking Machine

Split UV Laser Marking Machine
  • Split UV Laser Marking Machine
  • Split UV Laser Marking Machine
  • Split UV Laser Marking Machine
  • Split UV Laser Marking Machine
  • Split UV Laser Marking Machine

    • Split UV Laser Marking Machine
    • Laser wavelength 355nm
    • Marking range ≤300×300mm
    • Beam quality M²<1.2~1.5
    • Max. line speed 7000mm/s

    The split UV laser marking machine features a split-type design, separating the laser source from the marking head, which significantly enhances equipment deployment flexibility. It adapts well to production lines, mobile workstations, and confined spaces. Combining 355nm UV cold processing technology, it achieves an ultra-fine spot diameter of ≤0.017mm and a heat-affected zone of <1μm, enabling perfectly precise and non-damaging marking on materials like plastics, glass, and metal coatings. It supports dynamic serial numbers, invisible QR codes, and complex graphics, integrating smart software like EzCAD to meet diverse industry demands. This machine is an efficiency innovation tool for fields such as electronic components, medical packaging, and luxury goods anti-counterfeiting.

    Request a Quote
    Applications

    UV laser marking machines leverage cold processing, high precision, and multi-material adaptability as core competencies, excelling particularly in handling heat-sensitive, highly reflective, or materials requiring ultra-fine processing. They can achieve sub-micron level non-thermal damage engraving on surfaces including metal coatings, polymers: (e.g., ABS, PVC, HDPE, and other plastics), glass, ceramics and more.

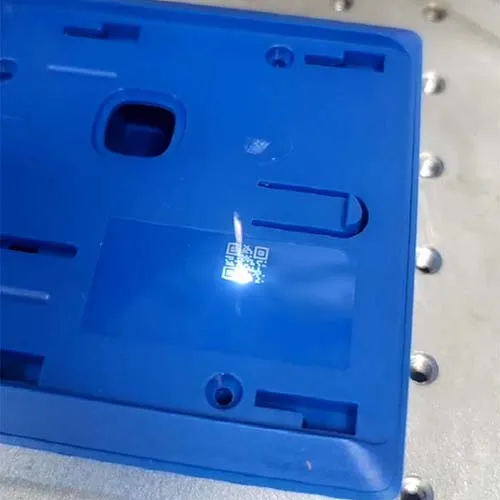

    • Plastic part laser marking
      Plastic part laser marking

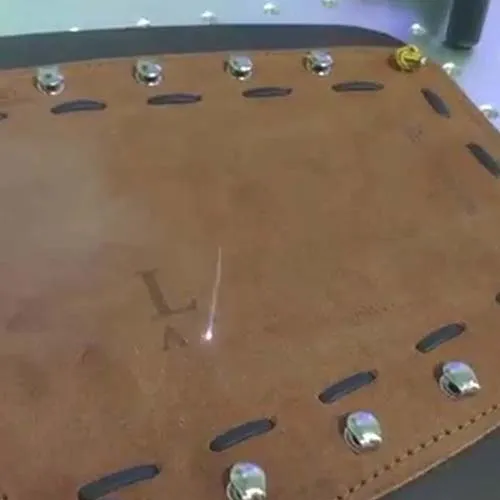

    • Leather laser engraving
      Leather laser engraving

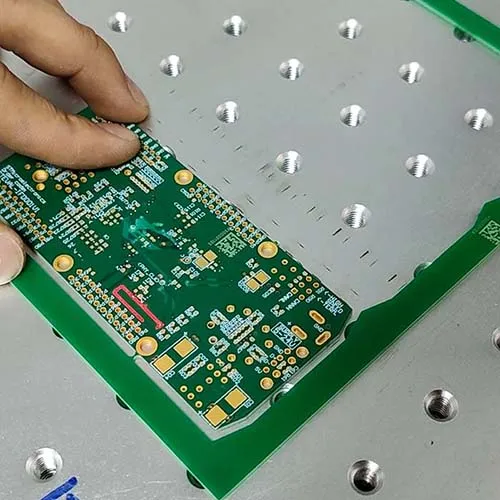

    • PCB laser marking
      PCB laser marking

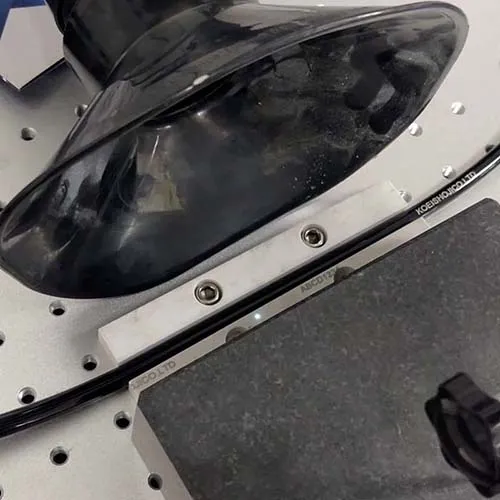

    • PU hose laser marking
      PU hose laser marking
    • Silicone laser marking
      Silicone laser marking

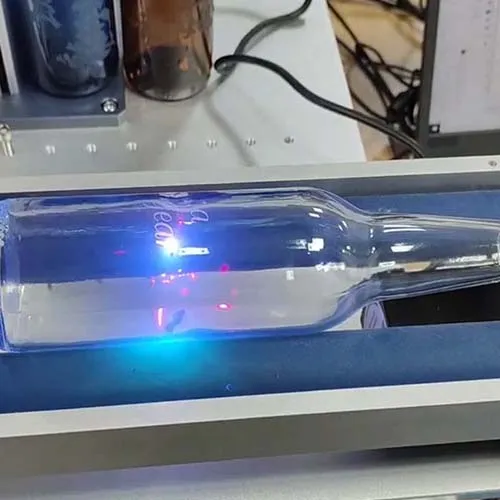

    • Glass bottle laser marking
      Glass bottle laser marking

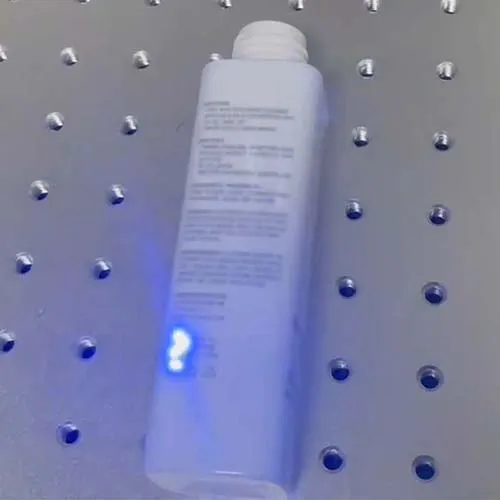

    • PET white bottle laser marking
      PET white bottle laser marking

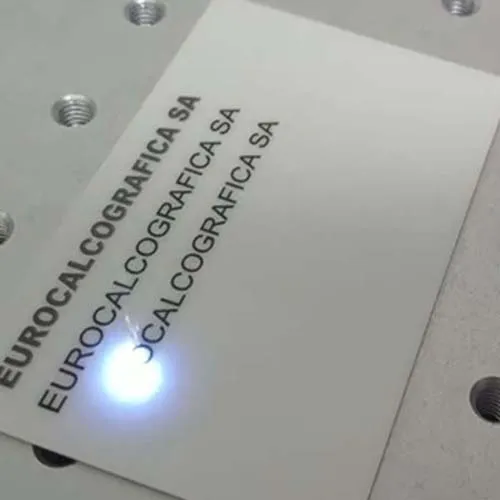

    • PC card laser marking
      PC card laser marking
    • Technical Data
    • Configuration
    • FAQ
    • Why Us
    • Inquiry
    Technical Data
    • Laser power 3W, 5W, 10W
    • Laser type UV laser
    • Laser wavelength 355nm
    • Marking range ≤300×300mm
    • Beam quality M²<1.2~1.5
    • Max. line speed 7000mm/s
    • Min. character size 0.05mm
    • Min. line width 0.01mm
    • Cooling method water cooling
    • Power supply 220V/50Hz, 110V/60Hz
    • Operating temperature 10℃~35℃ (Operating outside this range may affect equipment performance and lifespan)
    • Machine dimensions 400×550×650mm (optical path section), 210×445×400mm (cabinet), 290×540×470mm (chiller)
    • Package size 800×700×1030mm
    • Machine weight 81kg
    • Package weight 92kg
    Recommended Reasons
    • 3W laser powerWorking area ≤110×110mm for plastic products
    • 5W laser powerWorking area ≤110×110mm for glass and ceramic products
    • 10W laser powerWorking area ≤300×300mm for wider applications
    Configuration

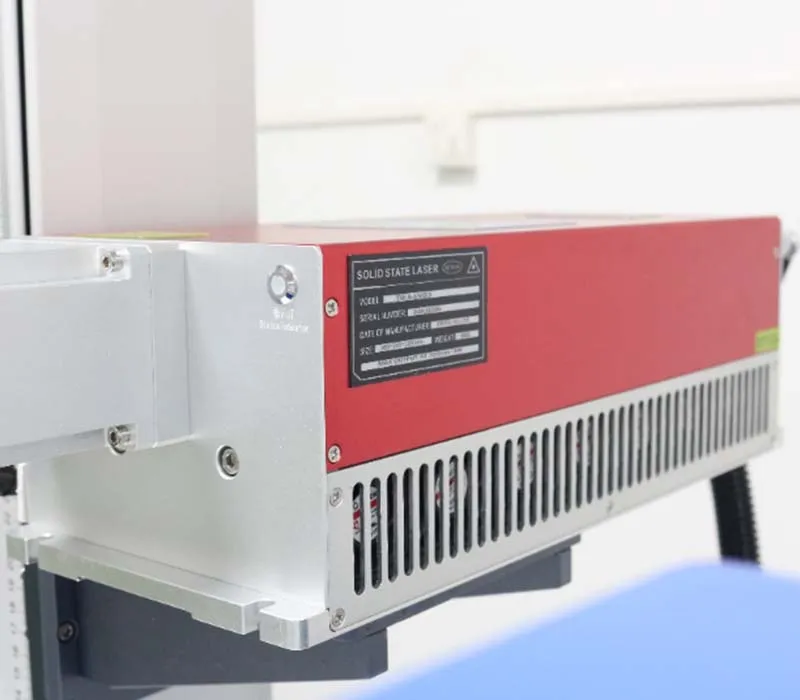

    Laser source

    Laser source
    We provide renowned domestic and international brand laser sources for our equipment, such as DXT, GL, and Optowave. These sources offer high pump conversion efficiency, low power consumption, and excellent beam quality. Utilizing third-order intracavity frequency doubling technology, the wavelength is shorter than that of fiber (1064nm) and CO₂ (10.64μm) lasers, resulting in higher photon energy. This allows for direct breaking of material molecular chains rather than heating, achieving a "photo-etching" effect with a minimal heat-affected zone (<1μm), thereby preventing material deformation or scorching.

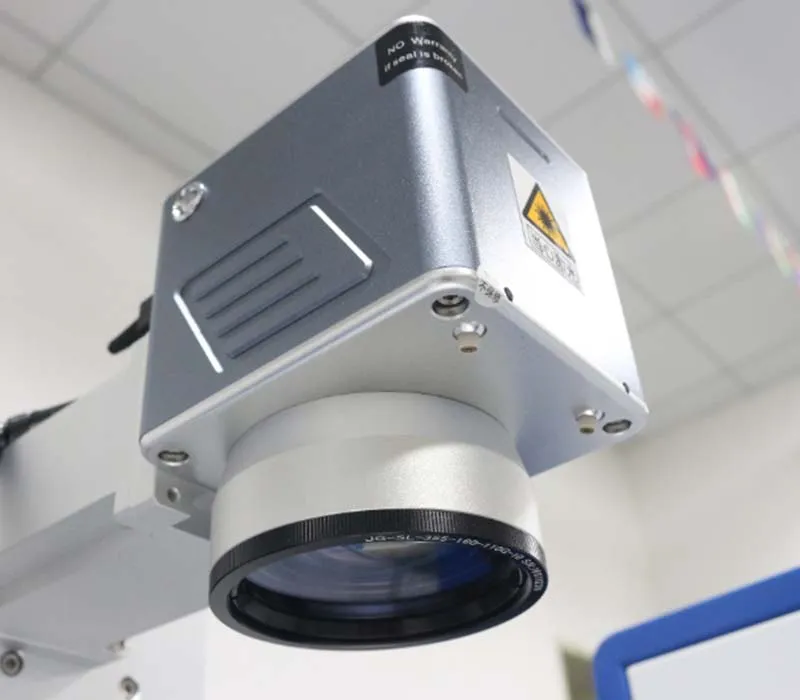

    Galvo scanner

    Galvo scanner
    Features a high scanning speed of 7000mm/s, high stability, and is equipped with a dual-red-light focusing device, which significantly enhances focusing efficiency.

    F-theta lens

    F-theta lens
    Equipped with a 355nm wavelength F-theta lens, primarily used for uv laser marking machines. Due to its shorter wavelength, it is suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.

    Control card

    Control card
    Equipped with a genuine JCZ EZCAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.

    Laptop

    Laptop
    Utilizes a major brand Lenovo laptop, equipped with Windows 10 system and a 14-inch display, ensuring smoother operation of the entire laser equipment.

    Column

    Column
    Features electric lifting and lowering, adapting to marking workpieces of various heights without manual adjustment, significantly improving overall work efficiency.

    Laser safety warning labels

    Laser safety warning labels
    Plays a crucial role in scenarios involving laser applications, primarily serving to alert people to potential laser hazards and ensure personnel safety.

    • Fume ExtractorFume Extractor
    • F-theta lensF-theta lens

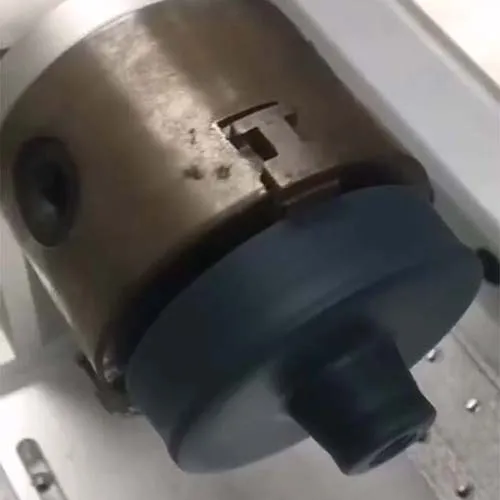

    • Cylindrical rotary clamp fixtureCylindrical rotary clamp fixture
    • Roller rotary axisRoller rotary axis
    • UV laser

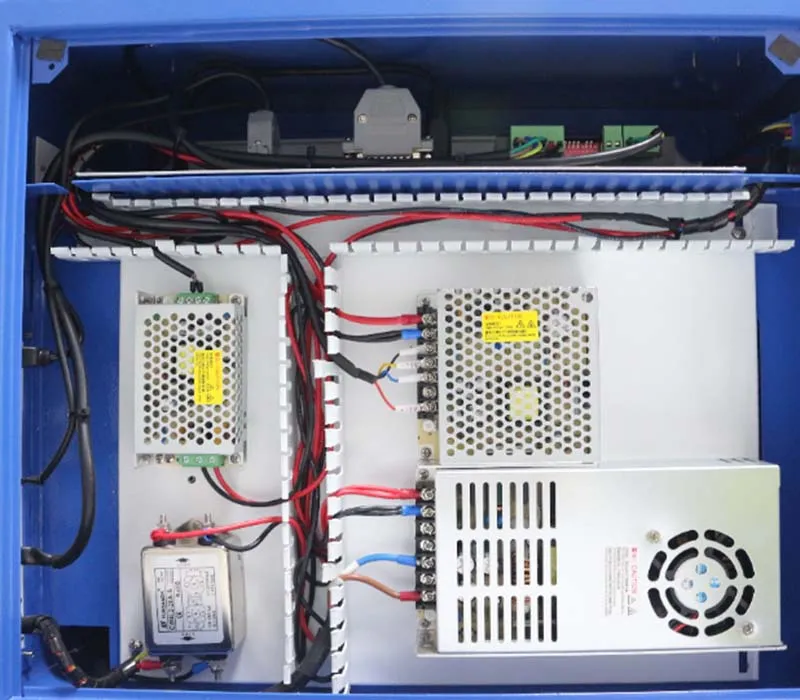

    • Split laser control cabinet
    • Work panel
    • Galvo scanner
    • F-theta lens
    • Control card
    • Laser power supply
    • Laptop
    • Power cord
    • Water chiller
    • Safety goggles
    • Foot pedal switch
    • Aluminum test piece
    • Hex key tool set
    • Equipment warranty certificate
    • Shipping accessories list
    • Product catalog

    It can achieve various types of marking including QR codes/barcodes, serial numbers, LOGOs, component identification, production dates, and more.

    UV laser is a cold processing method, where energy is concentrated on the material surface with almost no heat-affected zone. It will not damage circuits or substrates.

    UV lasers can achieve sub-micron level etching on glass surfaces. By adjusting parameters, it typically does not cause breakage or chipping.
    Why Choose Us?

    For OEM/ODM Clients

    • Fully Customized Marking Software LOGO
      Seamlessly integrates with your brand system.
    • Full English After-Sales Technical Support
      Ensures barrier-free communication for improved service efficiency.
    • Ready-to-Use Marketing Materials
      We provide product images, demonstration videos, product brochures, and product operation manuals.
    • CE/FDA Dual Certification
      No need for additional certification applications, reducing your costs and improving product export efficiency.

    For Distributors

    • Technical complementarity: We have delved deeply into the laser marking industry for many years, accumulating rich marking experience. Our laser equipment and technical expertise cover application areas where your company might have gaps (e.g., marking on thermosensitive plastics).
    • Training and ready-to-use marketing materials: We provide comprehensive training along with ready-to-use marketing collateral.
    • Proven partnerships: We have established long-term friendly cooperation agreements with numerous distributors from Europe, the Americas, Southeast Asia, and other regions (references can be shared under confidentiality).
